HAKRC 60A F7 V2 DJI Stack 7230V2 2-6S F7 Flight Controller & 4in1 ESC for RC FPV Racing Drones, Dual Gyro, Programmable LEDs

-19%

HAKRC 60A F7 V2 DJI Stack 7230V2 2-6S F7 Flight Controller & 4in1 ESC for RC FPV Racing Drones, Dual Gyro, Programmable LEDs

Original price was: $144.64.Current price is: $117.59.

STM32F722RET6 Processor for smooth flight control
Dual ICM42688 Gyroscope for enhanced stability
60A ESC with peak current up to 70A
Programmable Rainbow LEDs for customization
Compatible with 2S-6S input voltage and various signal modes

SKU: RC1992321 Category: Multi Rotor Parts Tags: 2S to 6S input voltage, 60A 4in1 ESC, drone signal modes, dual gyro drone, HAKRC flight controller, programmable LEDs drone, RC FPV racing drone, STM32F722RET6 processor Brand: HAKRC

Description

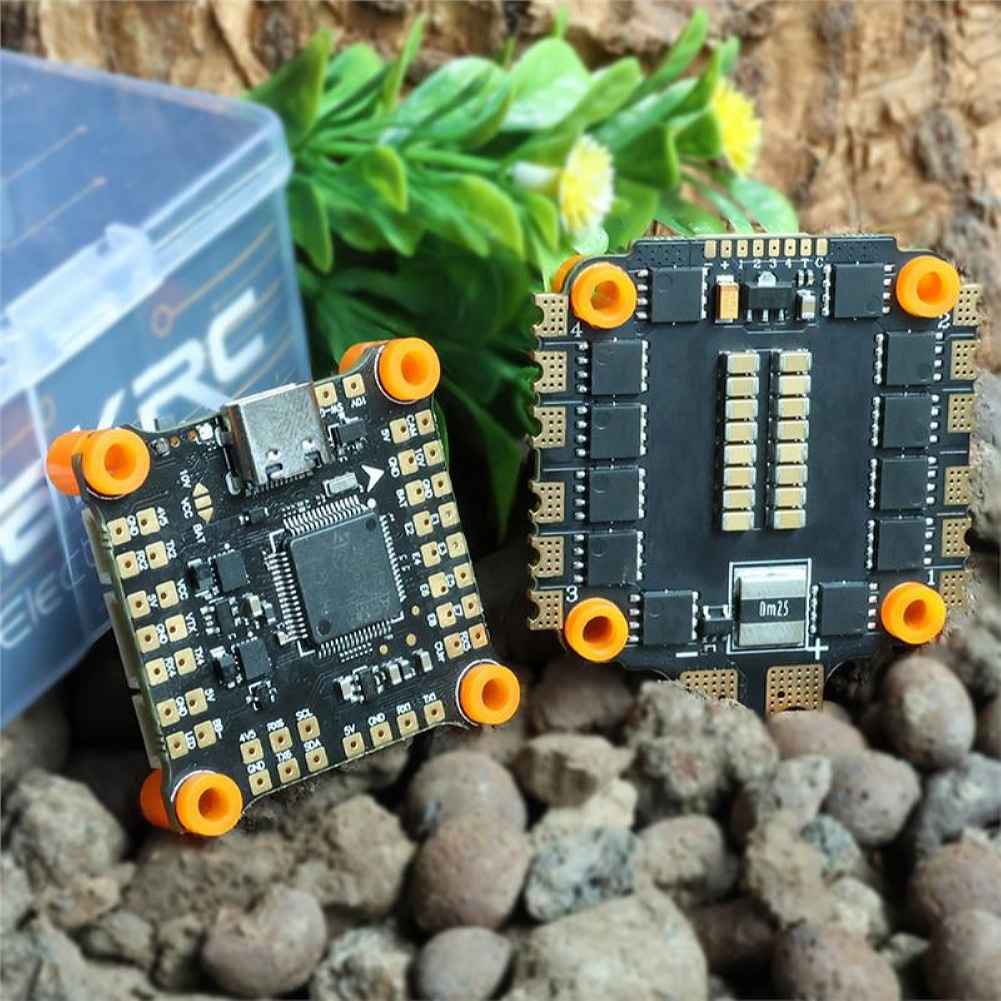

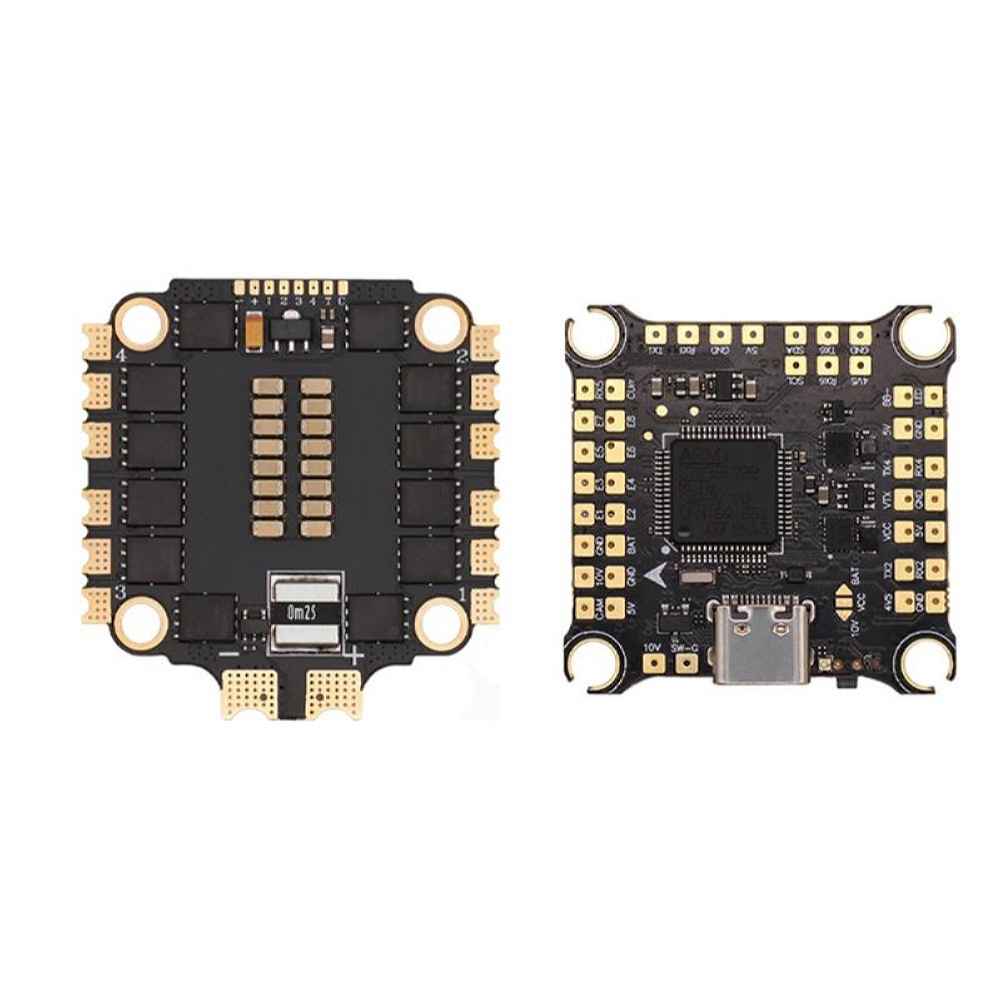

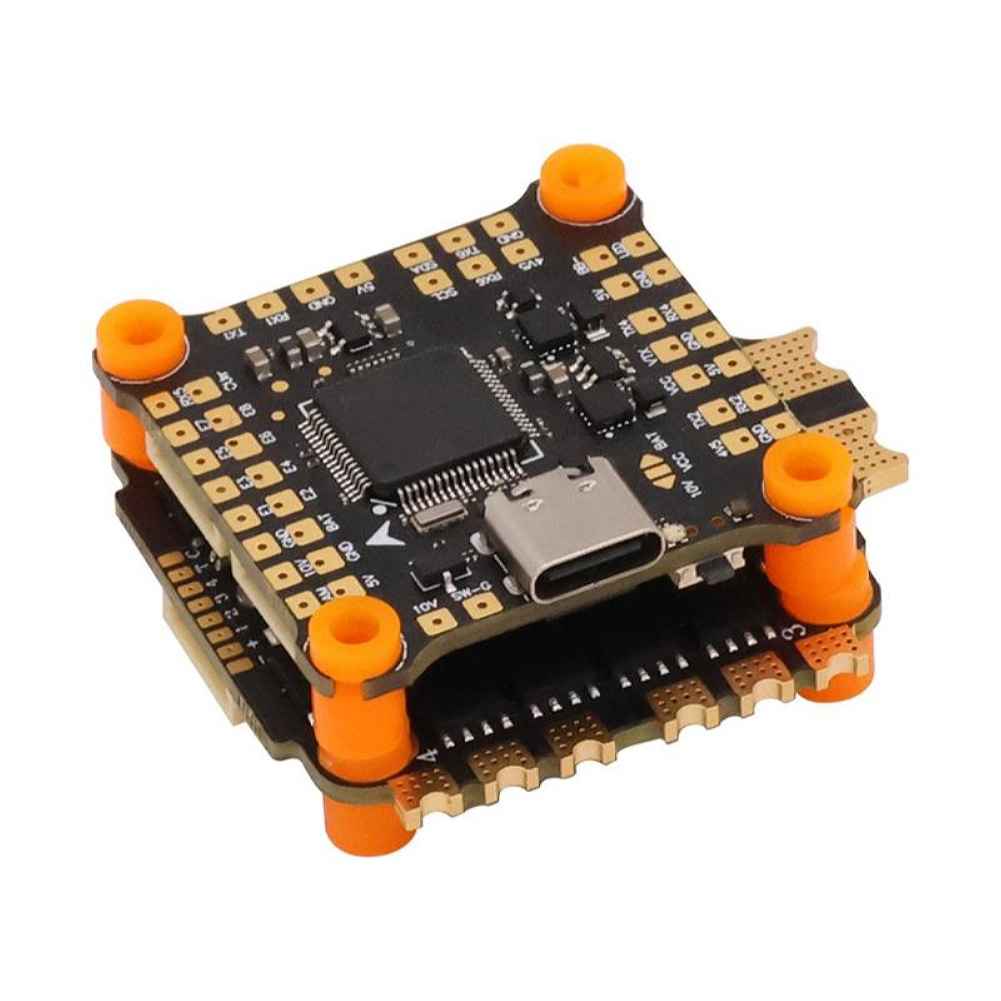

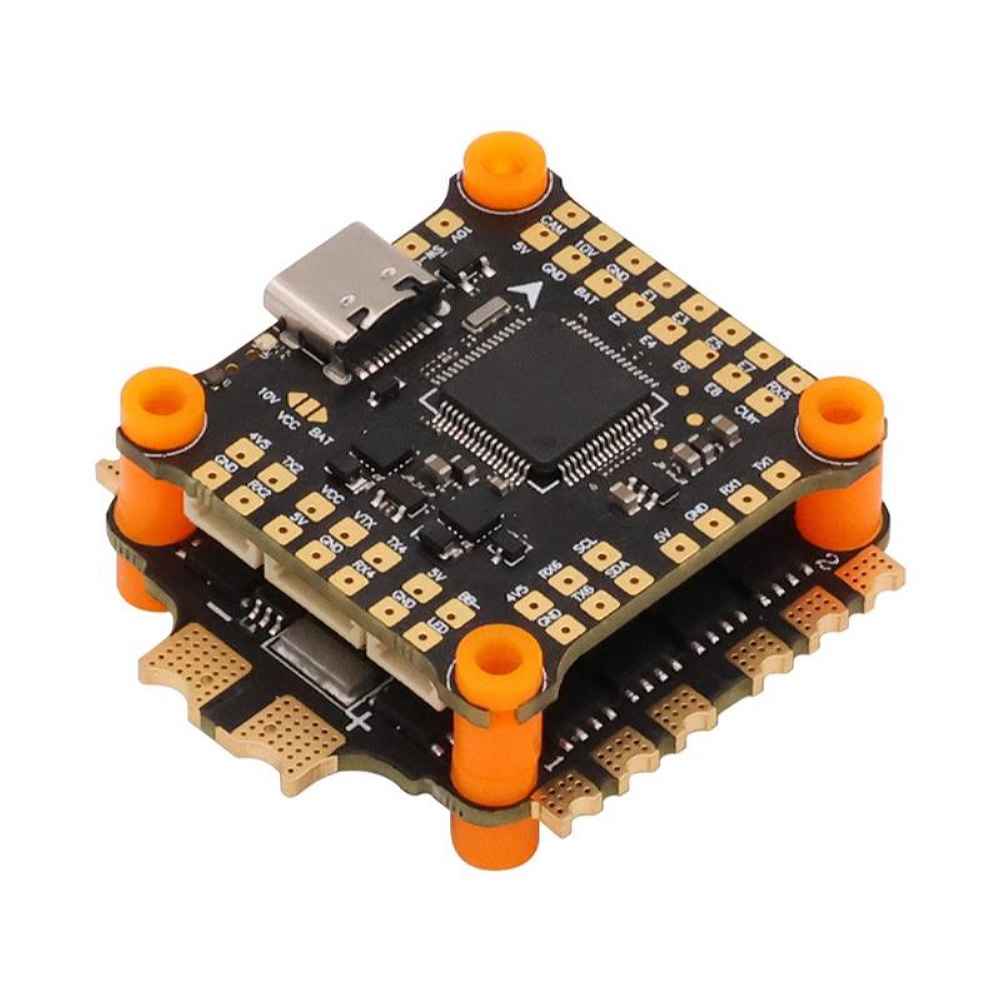

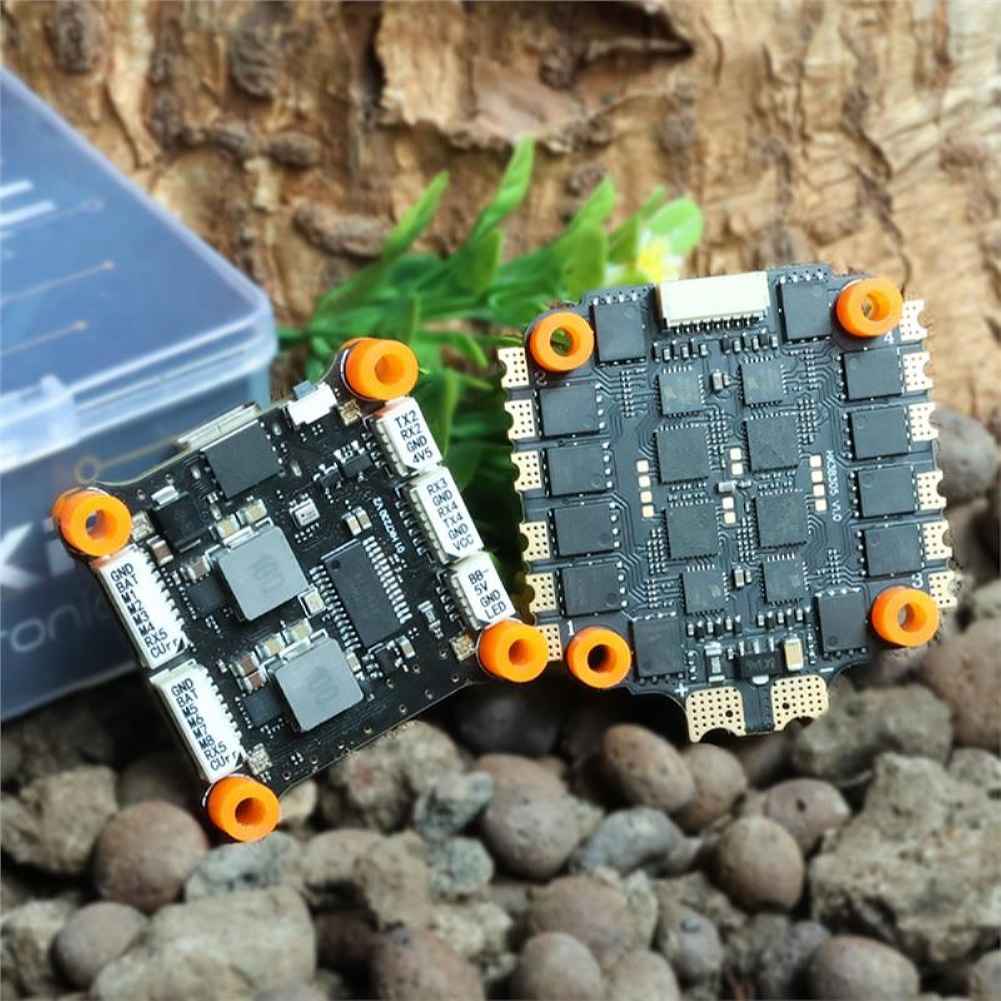

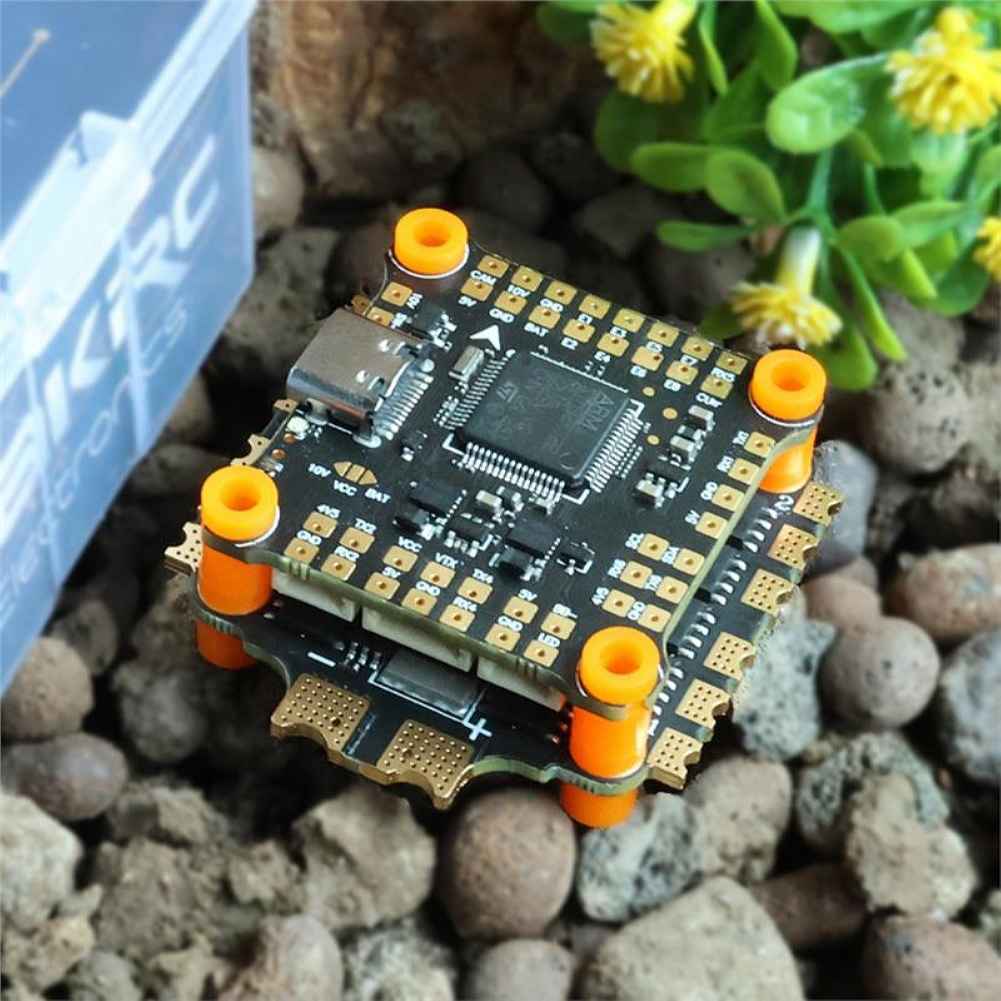

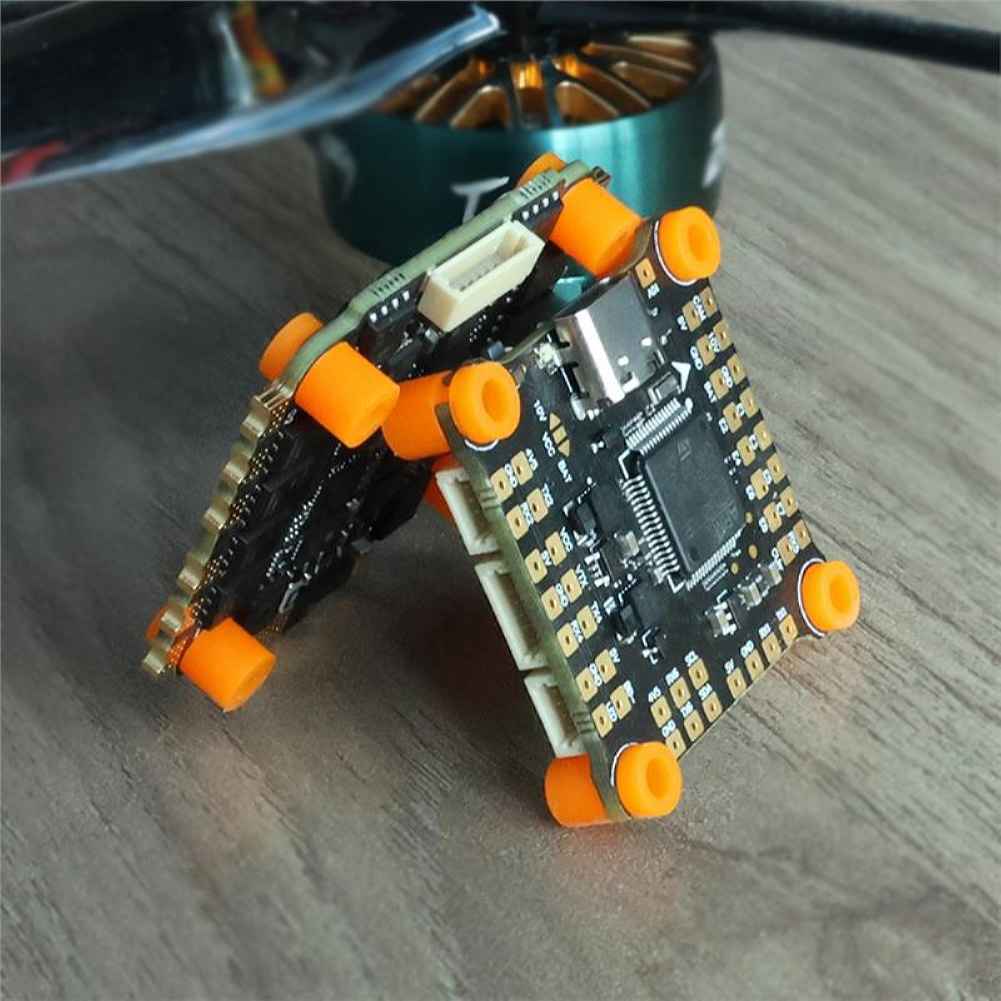

30.5×30.5mm HAKRC 60A F7 V2 DJI Stack 7230V2 2-6S F7 Flight Controller Dual Gyro & 3B60A 60A BL_32 4in1 ESC for RC FPV Racing Drone

The HAKRC 60A F7 V2 DJI Stack is engineered for RC FPV racing drones, offering a seamless blend of performance and versatility. The flight controller features an STM32F722RET6 processor and dual ICM42688 gyroscopes for precise and stable control. It supports a broad range of signal modes and input voltages from 2S to 6S, making it adaptable for various drone setups. The 60A 4in1 ESC can handle peak currents up to 70A, ensuring robust performance during intense maneuvers. With programmable rainbow LEDs, this stack adds a vibrant, customizable touch to your drone. The included accessories ensure easy installation and connectivity.

Specifications:
Brand: HAKRC
Size: 44*44mm
Mounting Holes: 30.5mm-30.5mm
Package Size: 64*64*35mm
Product Weight: 15g
Package Weight: 54g
Hole Diameter: M4

F7 Flight Controller

Mounting Hole Spacing: 30.5*30.5mm 鑰?mm
Processor: STM32F722RET6
Gyroscope: Dual ICM42688
BEC: 5V/3A ; 10V/2.5A
Storage: 16MB
Input Voltage: 2S銆?S
Firmware: HAKRCF722V2
Uart Ports: 6
Comes with 4 programmable rainbow LEDs
Includes a 6P sky socket

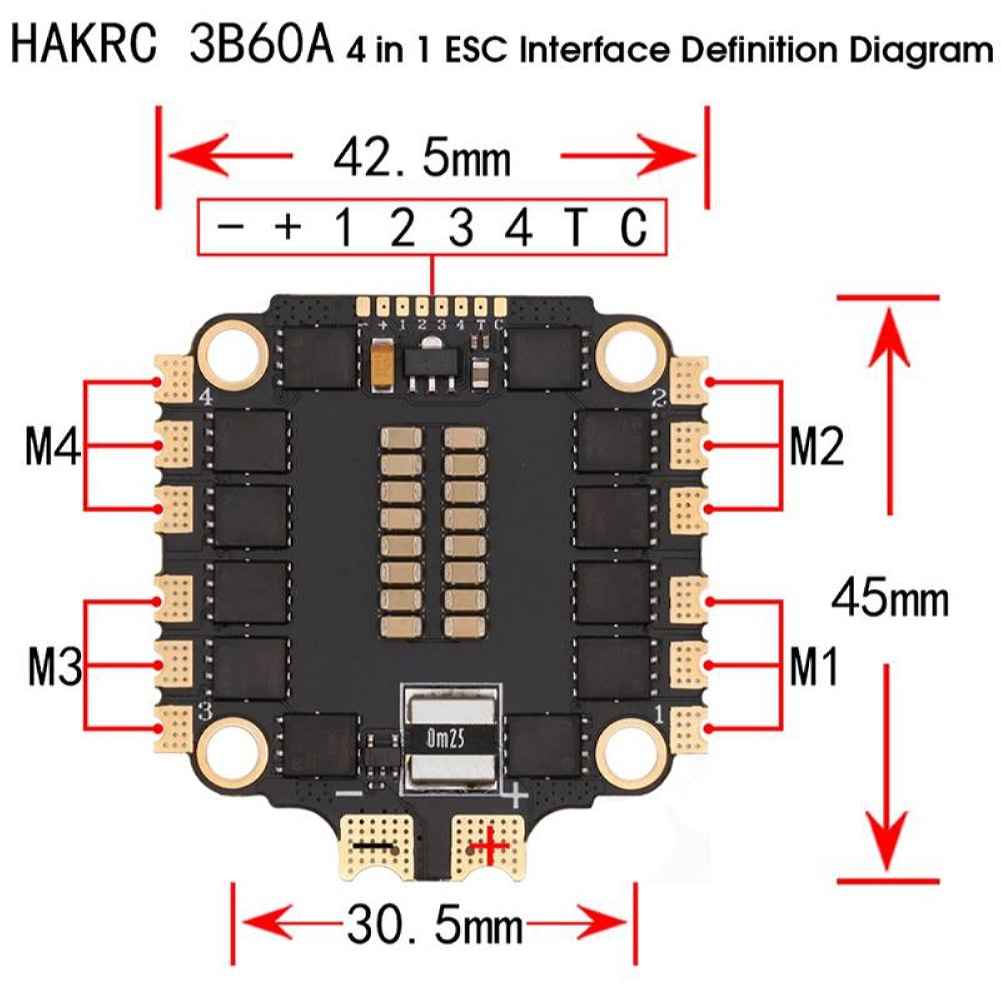

60A Brushless ESC

Mounting Hole Spacing: 30.5mm-30.5mm 鑰?mm
Continuous Current: 60A
Peak Current: 70A (10 seconds duration)
Input Voltage: 2S-6S
Current Ratio: 160
Configuration Software: BLHeliSuite32Activator_32.9.0.3
Signal Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Features:
STM32F722RET6 Processor: For rapid and smooth flight control, providing an enhanced flight experience.
Dual ICM42688 Gyroscope: Offers exceptional stability during complex flight maneuvers.
60A ESC: Built for performance, our ESC can handle peak currents of 70A for 10 seconds.
Programmable Rainbow LEDs: Add a unique touch to your drone with four customizable LEDs.
Broad Compatibility: With a wide range of supported signal modes and input voltages (2S to 6S), our kit is a versatile choice for all drone enthusiasts.

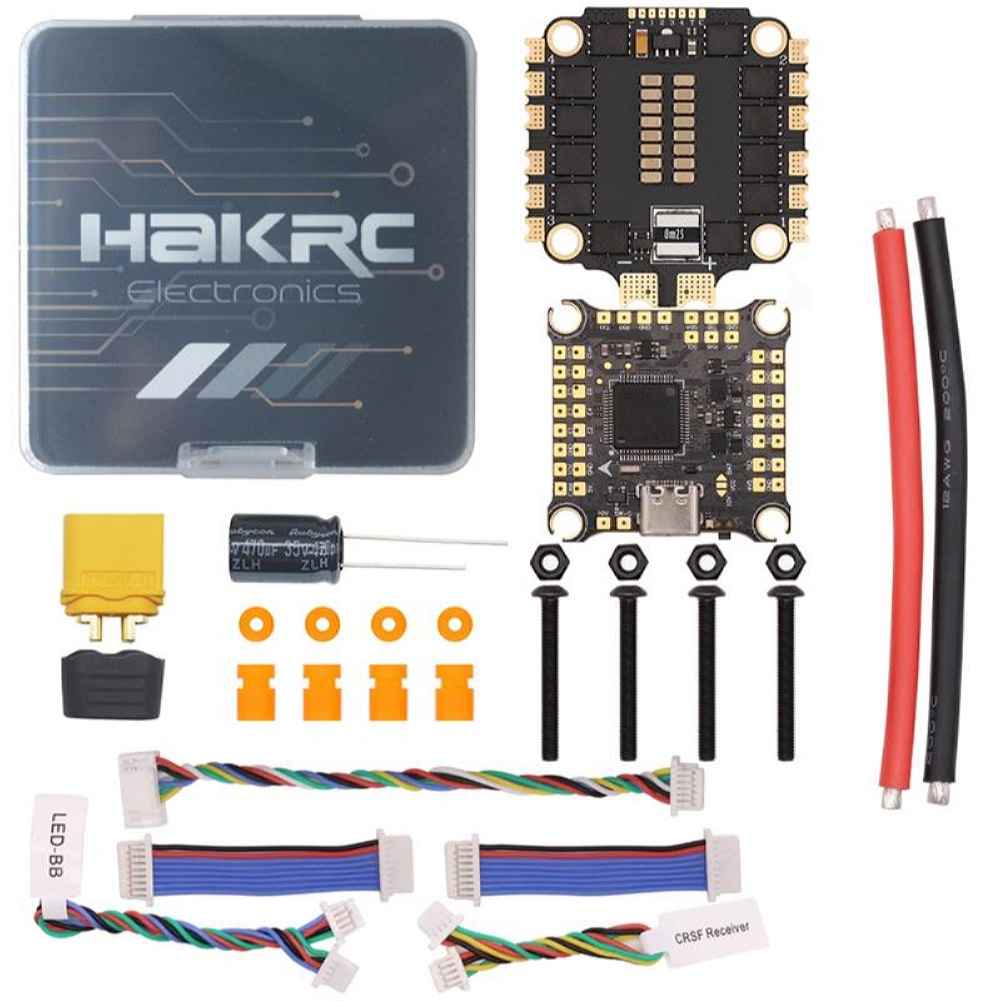

Package Included:
1 x F7 Flight Controller
1 x 60A 4in1 ESC
8 x M3 Orange Shock Absorption
2 x 8P Cables
1 x LED 4P Cable
1 x CRSF Receiver 4P Cable
1 x DJI 6P Connection Cable
1 x 35v470uf Capacitor
1 x XT60 Power Plug
1 x Red and Black Power Cable
4 x M3x25mm Screws
4 x Black Nuts
