Holybro Micro M10 GPS Module with IST8310 Compass, 4.7-5.2V, Ceramic Patch Antenna for RC Drone FPV Racing Helicopter

-21%

Holybro Micro M10 GPS Module with IST8310 Compass, 4.7-5.2V, Ceramic Patch Antenna for RC Drone FPV Racing Helicopter

Original price was: $51.96.Current price is: $40.91.

Ublox 10th Gen GNSS chip for enhanced accuracy
Supports up to 4 concurrent GNSS systems
IST8310 digital compass for precise orientation
Compact 25 x 25 x 4 mm ceramic patch antenna
Low power consumption, less than 200mA @ 5V

SKU: RC1993190 Category: Multi Rotor Parts Tags: ceramic patch antenna, drone navigation module, FPV racing GPS, helicopter GPS, Holybro GPS module, IST8310 compass, multi GNSS support, RC drone GPS, RC parts GPS, Ublox GNSS chip Brand: Holybro

Description

Holybro Micro M10 GPS Module with IST8310 Compass 4.7-5.2V Ceramic Patch Antenna for RC Drone FPV Racing Helicopter Airplane

The Holybro Micro M10 GPS Module integrates the latest Ublox 10th Generation GNSS chip and IST8310 digital compass, offering enhanced navigation accuracy for RC drones, FPV racing helicopters, and airplanes. This module supports up to four concurrent GNSS systems, including BeiDou, Galileo, GLONASS, and GPS, ensuring reliable positioning. It features a compact design with a 25 x 25 x 4 mm ceramic patch antenna and operates efficiently with low power consumption. The module is equipped with a rechargeable backup battery for warm starts and can be easily mounted away from interference sources. With a high navigation update rate of up to 25 Hz for single GNSS, it provides real-time, precise data for optimal performance.

Introduction:
This new design incorporates the Ublox latest 10 Generation GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Specification:
GNSS Receiver: Ublox M10 Receiver
Number of Concurrent GNSS: Up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)
Compass: IST8310
Frequency Band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Output Protocol: UBX (U-blox), NMEA
Nav. Update Rate: Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System: SBAS: WAAS, EGNOS, MSAS, QZSS: L1S (SLAS)
Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Accuracy: 1.5m
Speed Accuracy: 0.05 m/s
Port Type: JST-GH-6P
Antenna: 25 x 25 x 4 mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V
Operating Temperature: -40~80C
Dimension: 32 x 26 x 9mm
Weight: 14g
Features:
Advanced GNSS Receiver: Featuring Ublox’s 10th Gen GNSS chip, the Holybro Micro M10 GPS Module offers exceptional accuracy and reliability by supporting up to four global navigation satellte systems concurrently.
Integrated IST8310 Compass: The included compass provides precise orientation data, ensuring the highest level of navigation accuracy for your vehicle.
High Update Rate: With an update rate of up to 25 Hz for single GNSS and up to 10 Hz for 4 concurrent GNSS, you can rely on real-time, accurate positioning data.
Compact and Efficient Design: Despite its small size and low power consumption of less than 200mA @ 5V, this GPS module delivers robust performance, making it a great fit for any setup.

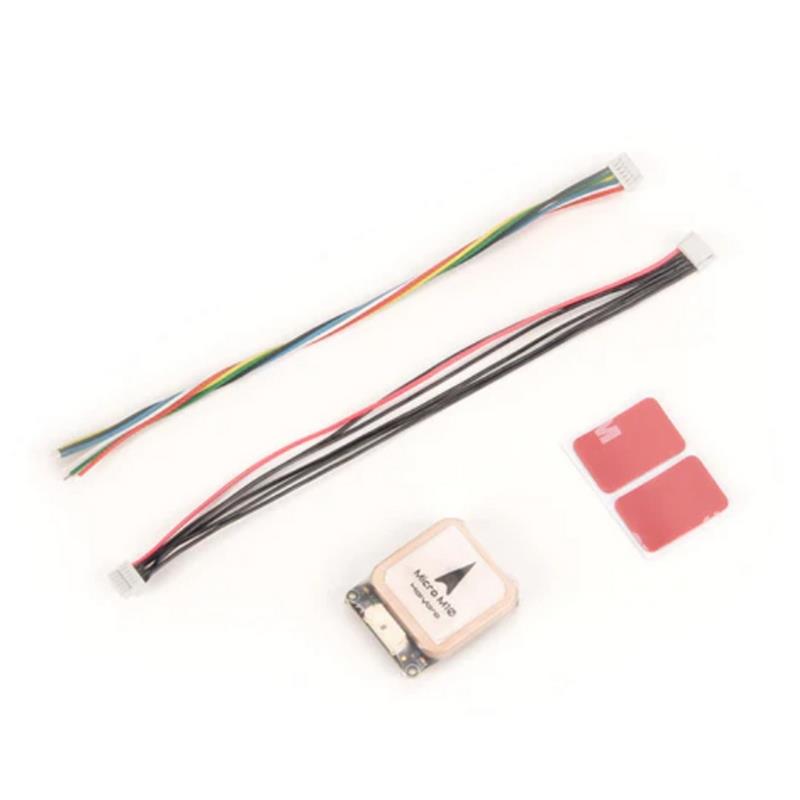

Ready to Use Package: The Holybro Micro M10 GPS Module comes complete with a 15 cm JST GH 6 Position Connector and a 15 cm JST-GH 6pin Colored Silicon Cable, providing everything you need to enhance your navigation system.
