Happymodel Mobula6 ECO 2024 1S 65mm Ultra Light Micro HD FPV Racing Drone with ELRS BNF and HDZero ECO VTX Camera

Original price was: 296.10$.Current price is: 259.09$.

  • Ultra-lightweight design with 65mm frame wheelbase
  • Equipped with HDZERO ECO VTX and camera
  • Compatible with 1S Lipo/LIHV batteries
  • Powered by SE0702 brushless motors
  • Includes Betaflight 4.4.2 firmware and 12A Blheli_S 4in1 ESC

Description

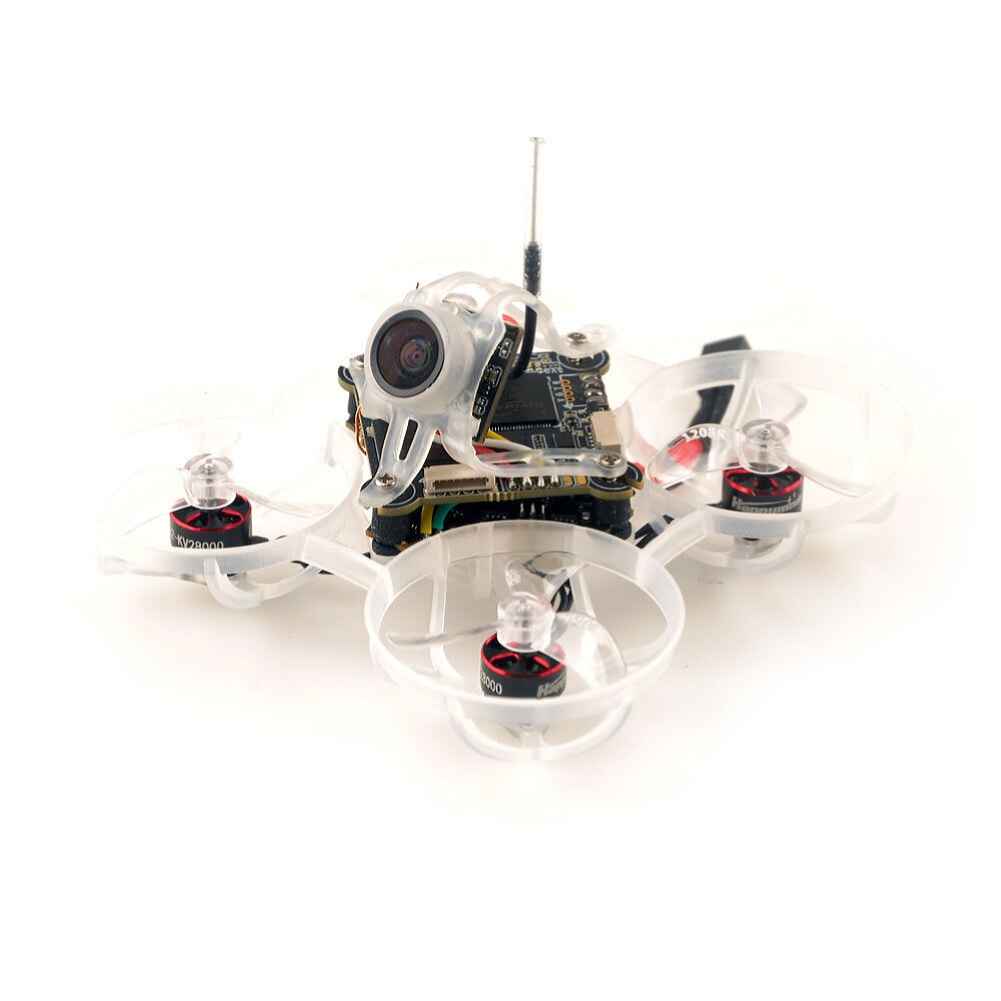

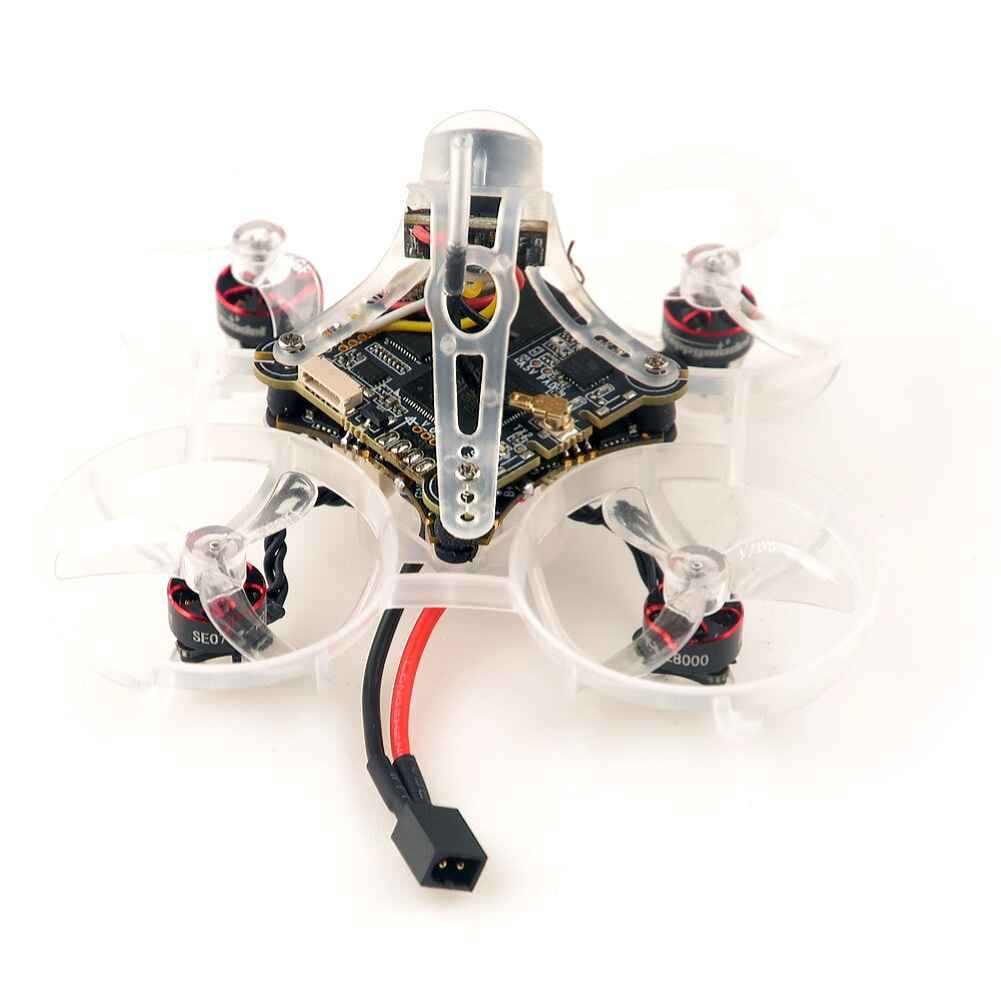

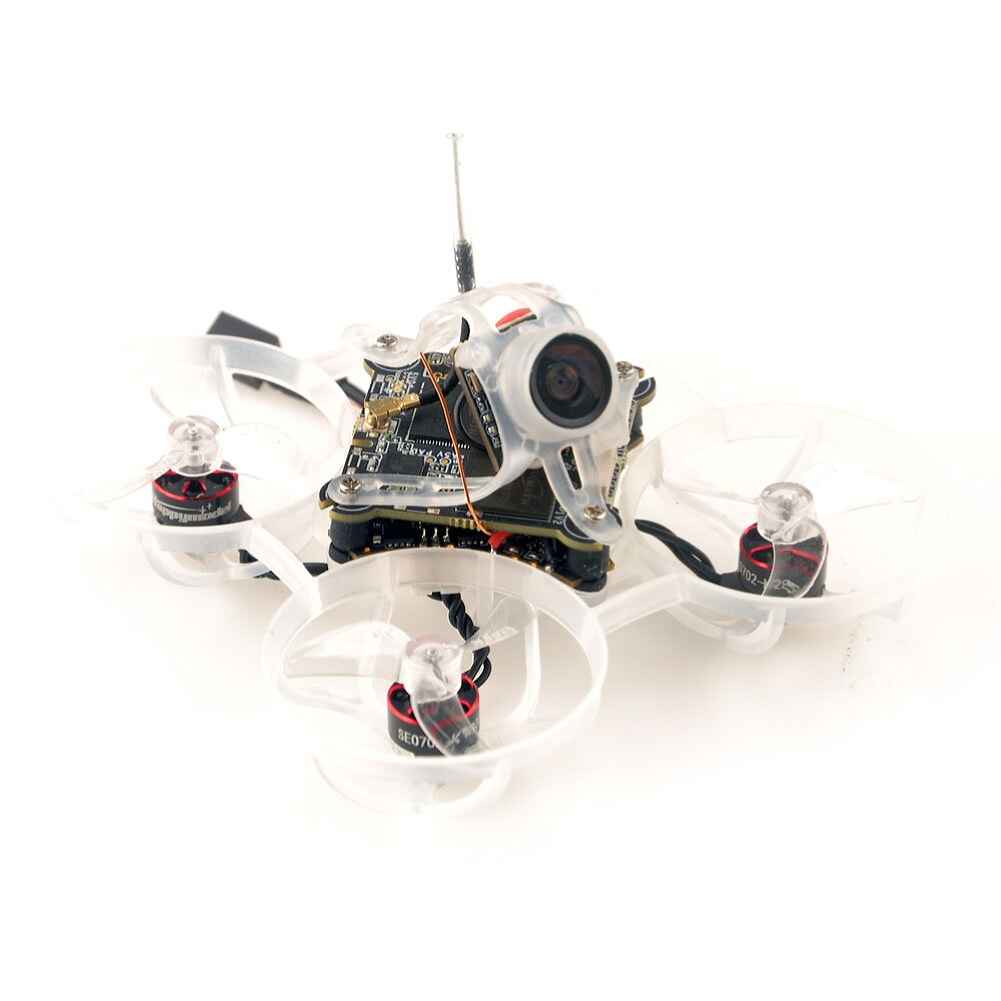

Happymodel Mobula6 ECO 2024 1S 65mm Ultra Light Micro HD Whoop RC FPV Racing Drone ELRS BNF with HDZero ECO VTX Camera

The Happymodel Mobula6 ECO 2024 is an ultra-light micro FPV racing drone designed for high-performance racing. It features an AIO flight controller with a Serial ELRS receiver, compatible with the HDZERO system. This drone is equipped with lightweight SE0702 brushless motors and an HDZERO NEW ECO VTX and camera, ensuring smooth and powerful operation. It supports 1S Lipo/LIHV batteries and includes an onboard blackbox. The Mobula6 ECO 2024 is built with a 65mm frame wheelbase and weighs only 23.16g without the battery. The drone is ready to race with Betaflight 4.4.2 firmware and comes with a built-in 12A Blheli_S 4in1 ESC, making it a top choice for FPV enthusiasts.

Features:
– AIO Flight controller with Serial ELRS Receiver
– Compatible with HDZERO system
– Equipment with the lightest brushless motors-SE0702 only 1.49gram
– HDZERO NEW ECO VTX and Camera ready
– Smooth and powerful
– Compatible for 1S Lipo/LIHV
– Onboard blackbox ready
Specifications:
Brand Name: HAPPYMODEL & HDZERO CO-Brand
Model: Mobula6 ECO 2024
Frame wheelbase: 65mm

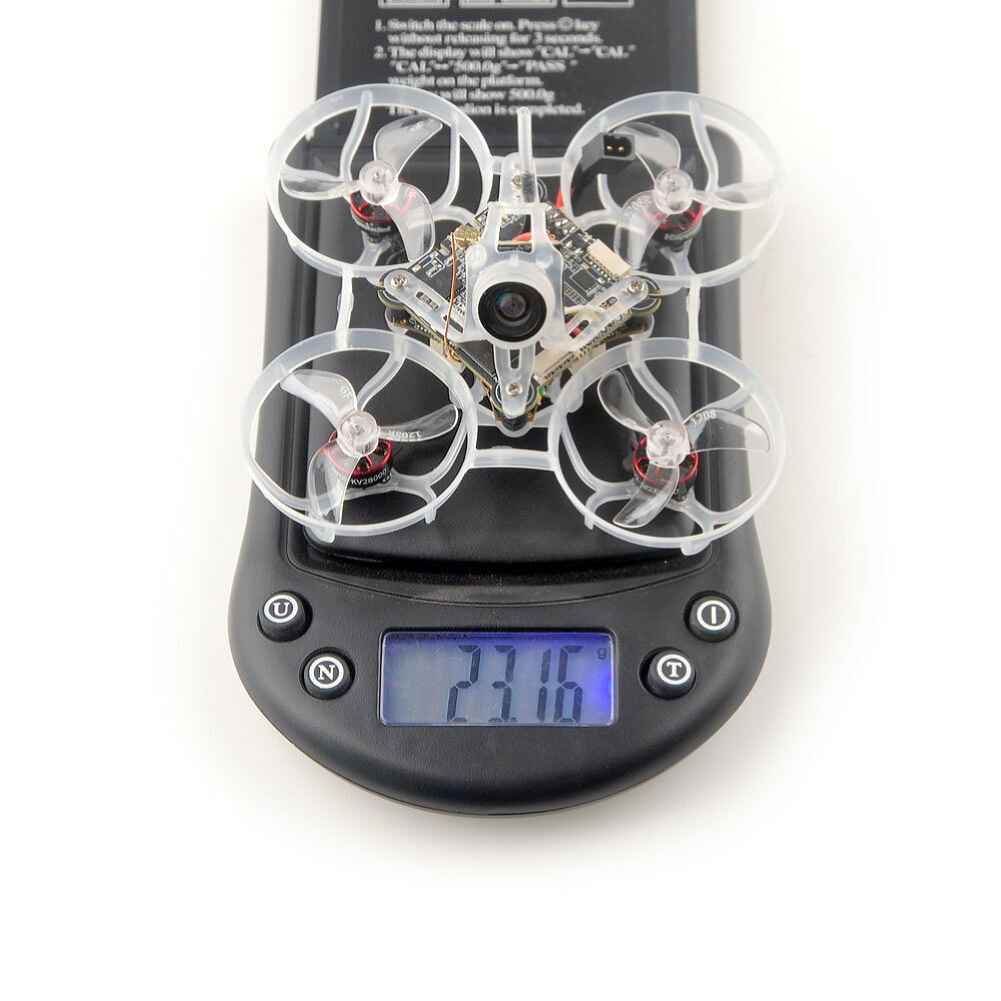

Weight: 23.16g ( without battery)
Size: 81mm*81mm*45mm
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30

Motor

Mode: SE0702 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:朴1mm
Motor Dimension(Dia.*Len):朴9.5mm*14mm
Weight(g):1.49g
No.of Cells(Lipo):1S only

Propellers

Materials: PC
Inch: 31mm
Pitch: 0.8 in
Weight: 0.21g
Mount hole diameter: 1mm

Flight controller
SuperX HD ELRS

Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300

Onboard Serial ExpressLRS 2.4GHz Receiver

RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through

HDZERO ECO VTX

Composite HD Video interface
1S-3S Input
25mW/200mW RF output

Package Included:
1 x Happymodel Mobula6 ECO 2024 1S 65mm Ultra Light Micro HD Whoop RC FPV Racing Drone

Recommended Category:
Toys & Games > Remote Control Vehicles > Drones > Racing Drones

Additional information

Weight0.076 kg
