Beitian BN-880 GPS Module with Dual Compass and Cable for RC Drone FPV Racing

-17%

Beitian BN-880 GPS Module with Dual Compass and Cable for RC Drone FPV Racing

Original price was: 57.98$.Current price is: 48.41$.

Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS
Dual module compass with HMC5883L
Compatible with open-source flight controllers
72-channel receiver for precise positioning
Includes a 15cm cable for easy setup

SKU: RC971082 Category: Multi Rotor Parts Tags: Beitian BN-880 GPS module, dual compass GPS, electronic compass GPS, FPV racing GPS, GPS module with cable, open-source flight controller GPS, precision GPS module, RC drone GPS module Brand: Beitian

Description

Beitian BN-880 Flight Control GPS Module Dual Module Compass With Cable for RC Drone FPV Racing

The Beitian BN-880 GPS Module is designed for precision in RC drone FPV racing. This module features a dual compass with an electronic compass IC HMC5883L, providing enhanced navigation accuracy. It supports multiple satellite systems, including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, with a 72-channel receiver. The module operates with a power supply of DC 2.8V to 6.0V, typically at 3.3V or 5.0V, and has a consumption rate of 50mA at 5V. It offers a positioning precision of 2 meters in open conditions, with a cold start time averaging 26 seconds. The BN-880 is suitable for open-source flight controllers and comes with a 15cm cable for easy integration.

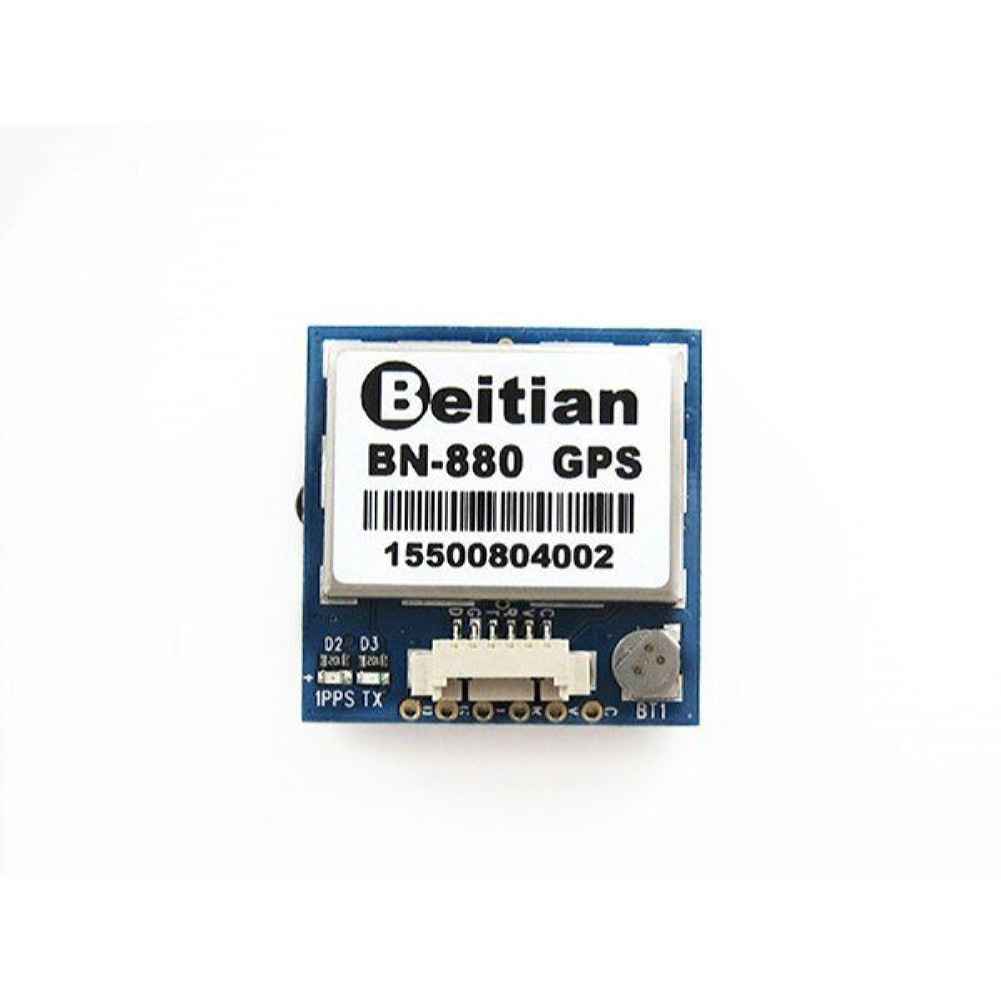

Beitian BN-880 Flight Control GPS Module Dual Module Compass With Cable
Description:
Model:BN-880
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
Capture-148dBm
Positioning Time:Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison:2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40⊥-+85⊥
Storage Temperature:-40⊥-+85⊥
Size:28mm x 28mm x 10mm
Weight:10g
The Module＊s Pins:SDA,GND,TX,RX,VCC,SCL
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Note:Can not use for flight control with ,but it is suitable for Open source flight controller.
GPS Program Set up documents and instructions:Please click here
BN-880 GPS Configuration files
Pcakage Included:
1x BN-880 GPS Module
1x 15cm Cable,,,,,
