Beitian BK-252Q GPS Module with QMC5883 Compass, NMEA UBX Dual Protocol, Compatible with F4 F7 Flight Controller for FPV Racing Drones

-21%

Beitian BK-252Q GPS Module with QMC5883 Compass, NMEA UBX Dual Protocol, Compatible with F4 F7 Flight Controller for FPV Racing Drones

Original price was: $35.98.Current price is: $28.42.

Compatible with F4 and F7 flight controllers
Supports GPS, GLONASS, BDS, and Galileo systems
Features QMC5883 compass for precise navigation
Dual protocol support: NMEA and UBX
High sensitivity and quick reacquisition time

SKU: RC2003130 Category: Multi Rotor Parts Tags: Beitian BK-252Q GPS, drone flight controller GPS, drone navigation GPS, dual protocol GPS, dynamic heading GPS, fast reacquisition GPS, FPV racing drone GPS, GNSS receiver module, GPS module for F4, GPS module for F7, high sensitivity GPS module, horizontal position accuracy GPS, multi-satellite GPS module, precise navigation GPS, QMC5883 compass module, RC airplane GPS module Brand: Beitian

Description

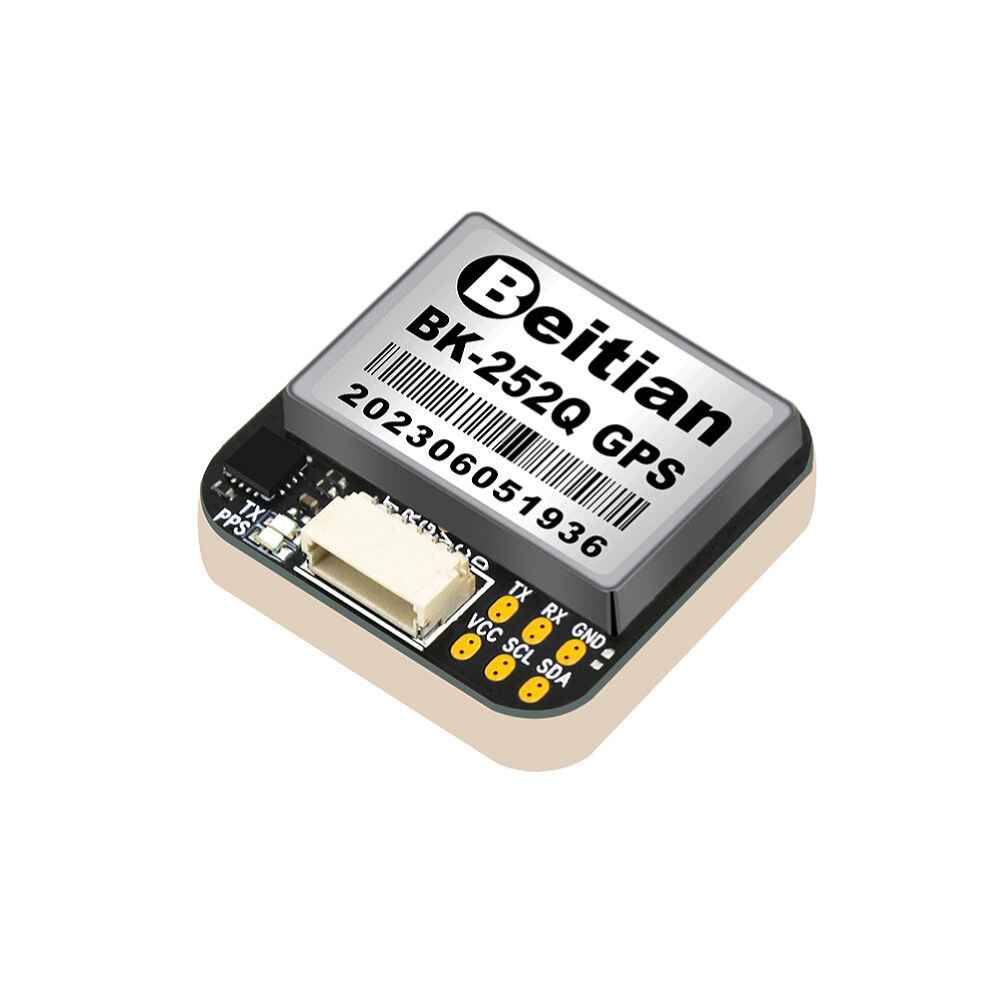

Beitian BK-252Q GPS Module With QMC5883 Compass NMEA UBX Dual Protocol Drone UAV GNSS Receiver Module for FPV Return Rescue Racing Drone RC Airplane Compatible F4 F7 Flight Controller

The Beitian BK-252Q GPS Module is designed for precision and reliability, featuring the QMC5883 compass and dual protocol support with NMEA and UBX. It is compatible with F4 and F7 flight controllers, making it an ideal choice for FPV racing drones and RC airplanes. The module utilizes multiple satellite systems, including GPS, GLONASS, BDS, and Galileo, for enhanced positioning accuracy. With a sensitivity of -167dBm and a quick reacquisition time, it ensures fast and accurate navigation. The module is equipped to handle dynamic heading changes with a precision of 0.3 degrees and offers a horizontal position accuracy of 1.5 meters CEP, making it a dependable component for drone enthusiasts.

Specifications:

Item

Description

Electrical Characteristic

Chip

M9140-KB

Receiver type

GPS L1 C/A, QZSS L1 C/A/S,GLONASS L10F, BDS B1I,Galileo
E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN

Default position system

GPS, GLONASS,BDS, GALILEO

Augmentation system

SBAS, QZSS
