30.5×30.5mm Holybro Kakute F722 F7 OSD Flight Controller 3-8S with 9V 5V 3.3V BEC Output Support DJI O3 CADDX VISTA HDZERO Analog for FPV RC Racing Drone

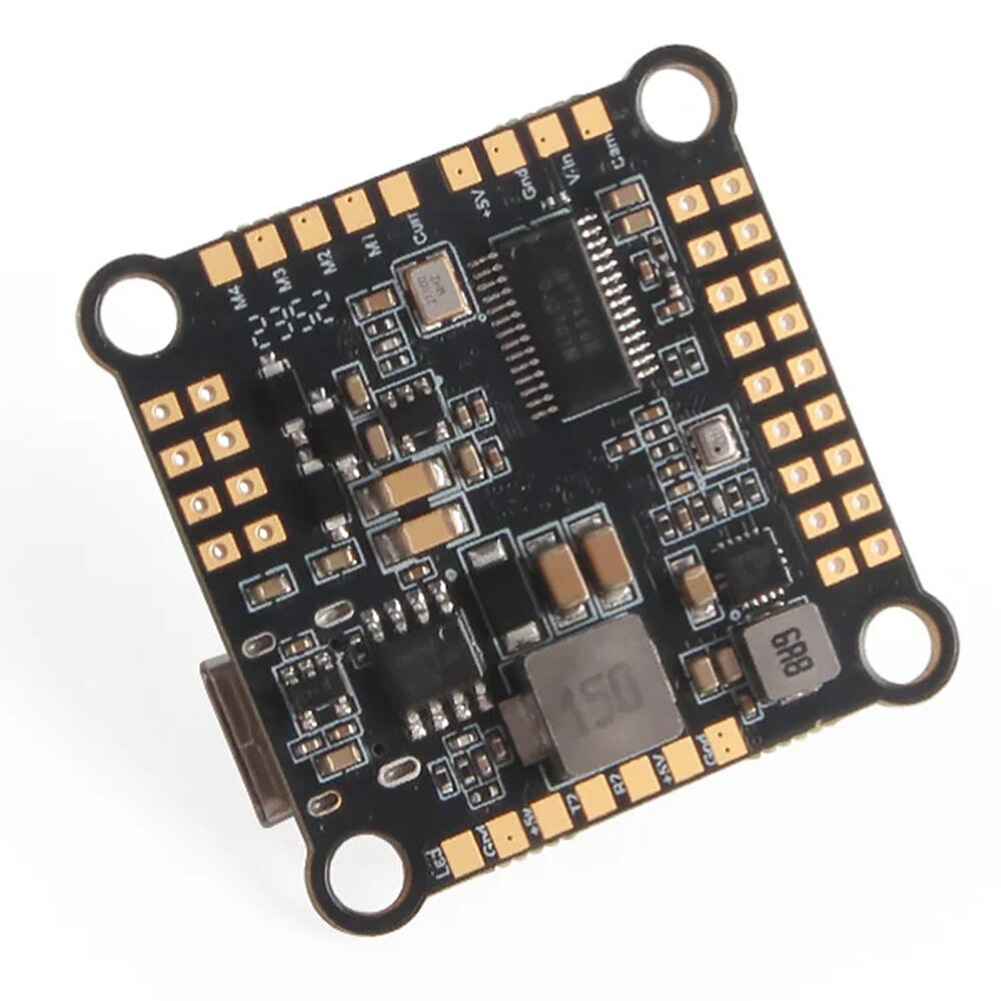

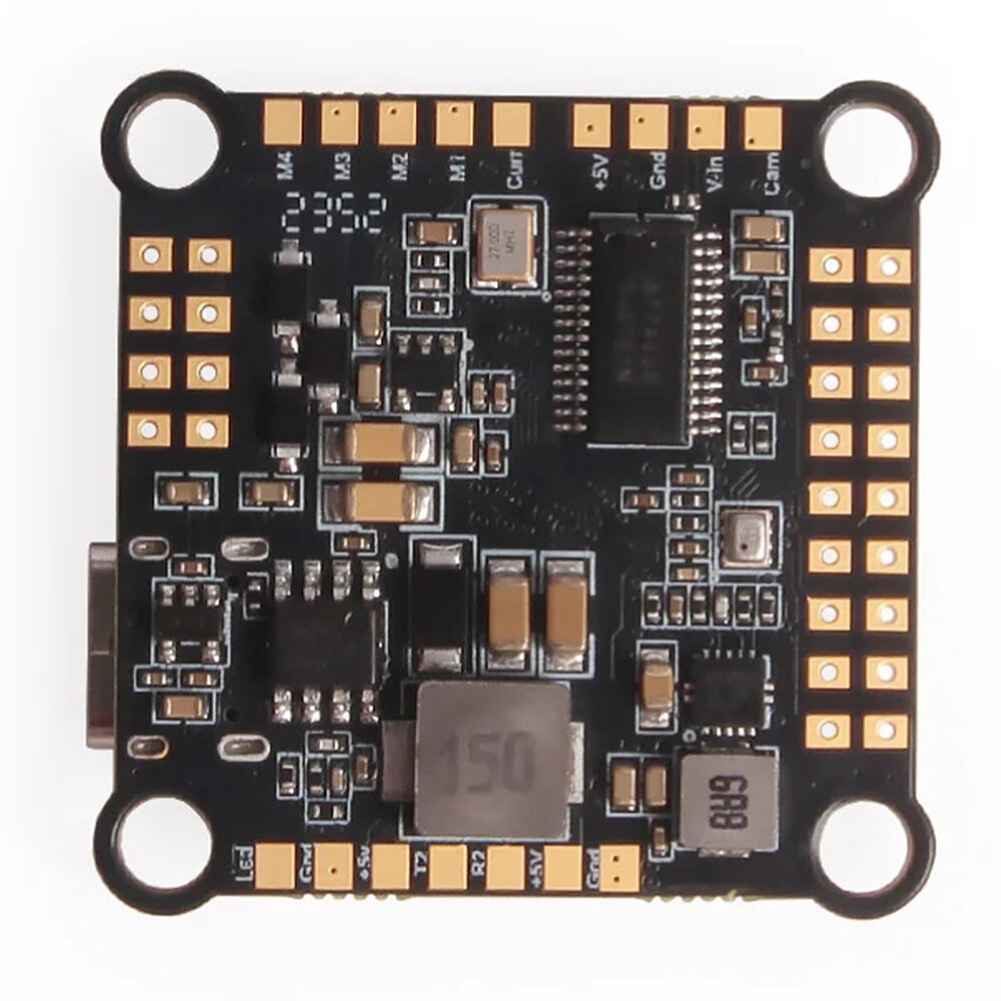

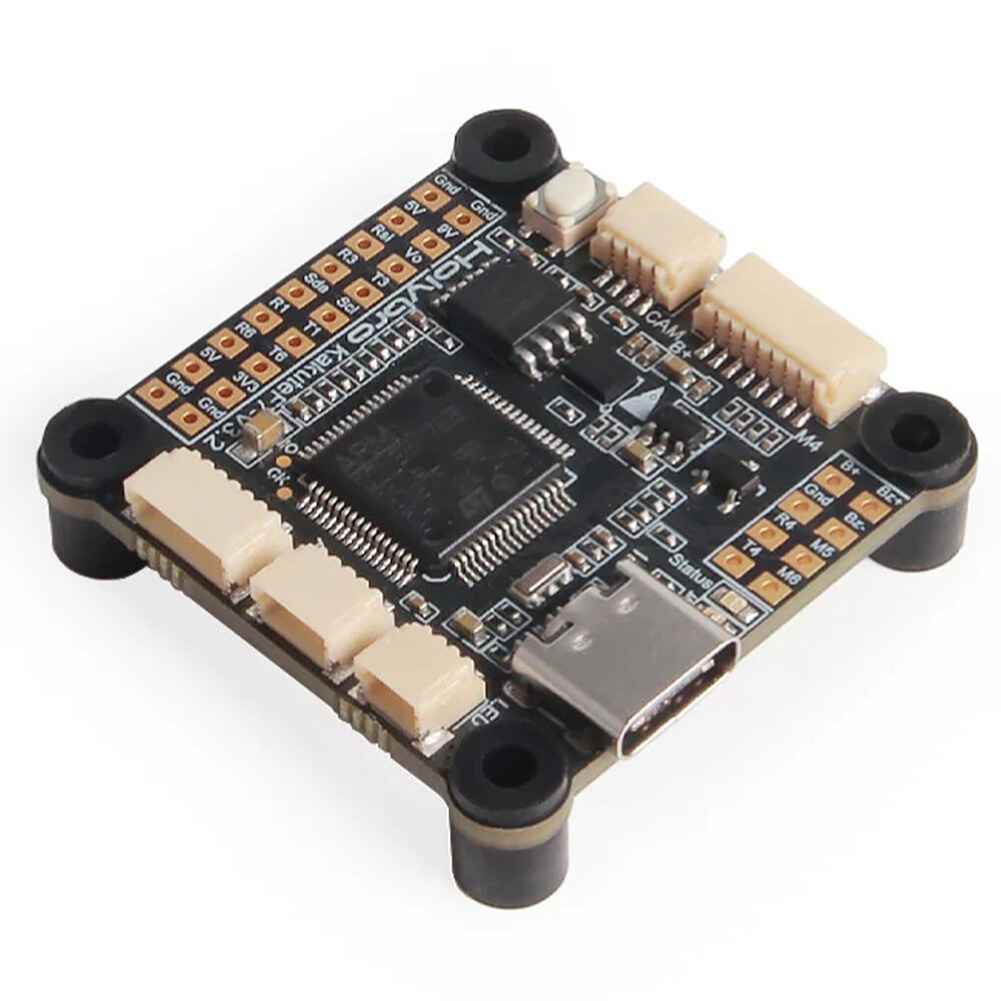

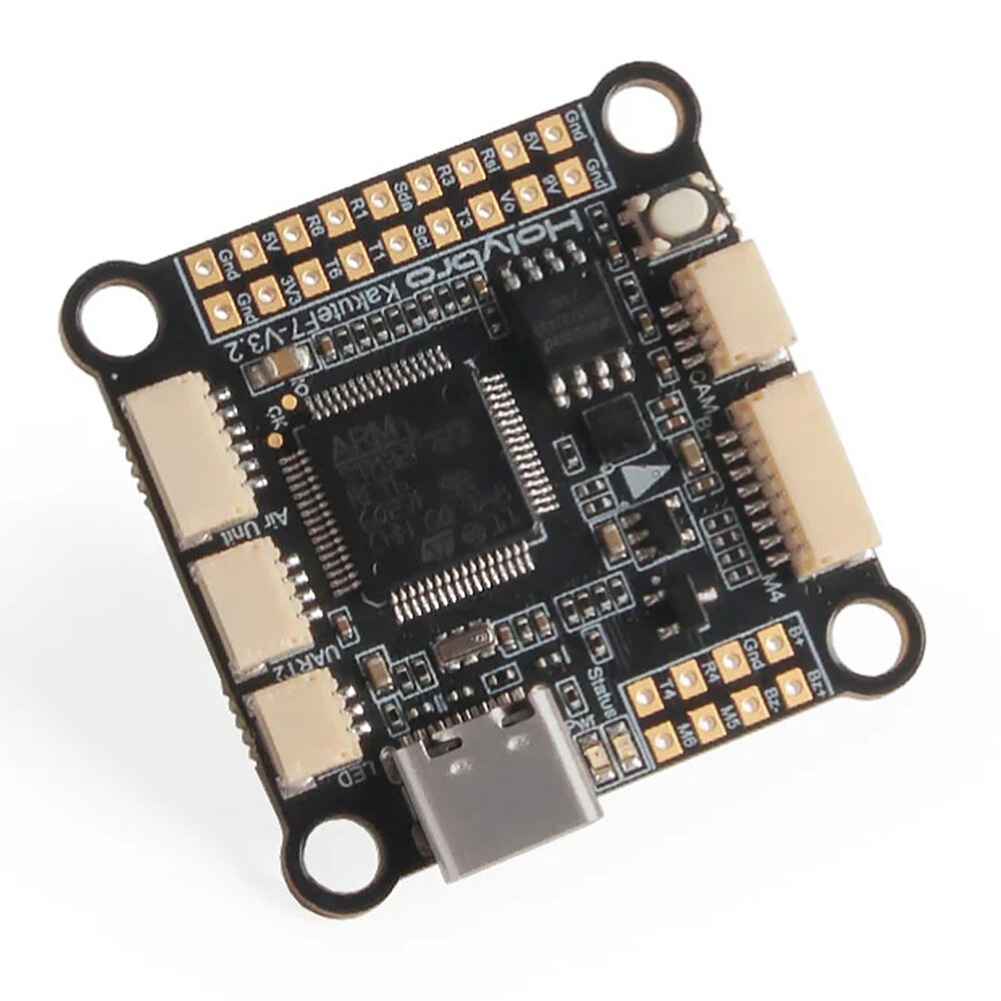

The Holybro Kakute F722 F7 OSD Flight Controller is engineered for high performance with its STM32 F722 MCU, delivering speeds up to 216MHz. It features an ICM42688P gyroscope with an independent low-noise power supply, ensuring smooth operation. This flight controller offers various ports, including ESC, Digital VTX, Analog VTX, Receiver, and LED ports, for easy setup. The built-in analog video OSD and 16 Mbytes black box enhance functionality. It supports up to 8S input and provides stable 9V/3A, 5V/2A, and 3.3V/0.2A outputs through its high-power synchronous rectifier BEC. Designed for FPV RC racing drones, it is compatible with DJI O3, CADDX VISTA, and HDZERO systems.
Feature:
– High-performance STM32 F722 MCU with speeds up to 216MHz.
– ICM42688P gyroscope, independent low-noise power supply.
– Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
– Built-in analog video OSD, 16 Mbytes black box,
– High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.
Specification:
Brand: Holybro
Model: Kakute F722
Item Name: F7 Flight Controller
MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
IMU: ICM42688-P (SPI)
Barometer: BMP280
OSD: AT7456E
5x hardware UARTS (UART1,2,3,4,6)
7x PWM Outputs (6 Motor Output, 1 LED)
Onboard 16 Mbytes for Blackbox logging
Battery input voltage: 3S – 8S
BEC: 9V/3A, 5V/2A, 3.3V/0.2A
Connector
-2x JST-SH 8pin port for ESC
-1x JST-SH 6pin port for HD VTX
-2x JST-SH 4pin port for Receiver & Analog Camera
-1x JST-SH 3pin port for LED
USB Type -C
Dimensions: 35x35mm
Mounting Holes: Standard 30.5 x 30.5
Weight: 8g
Firmware Targets
Betaflight Target: KAKUTEF7MINIV3
INAV Target: KAKUTEF7MINIV3
Package Included:
1 x Kakute F722 Flight Controller
4 x M3 Silicon Grommets
1 x JST-SH1.0_8pin 150mm Cable (For ESCs)
2 x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
1 x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)
1 x JST-SH1.0_4pin to Dupont 150mm Cable
1 x JST-SH1.0_3pin to Dupont 150mm Cable
1 x JST-SH1.0_4pin to Molex1.25 150mm Cable
