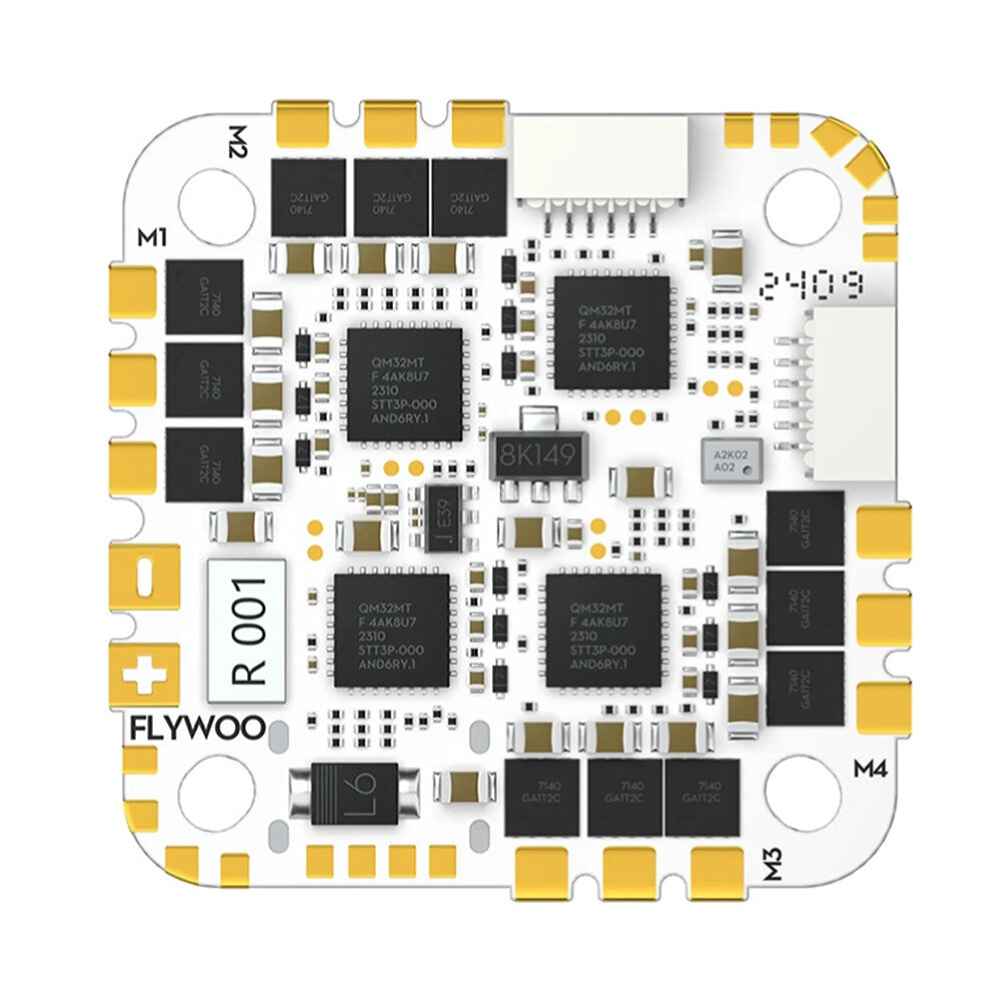

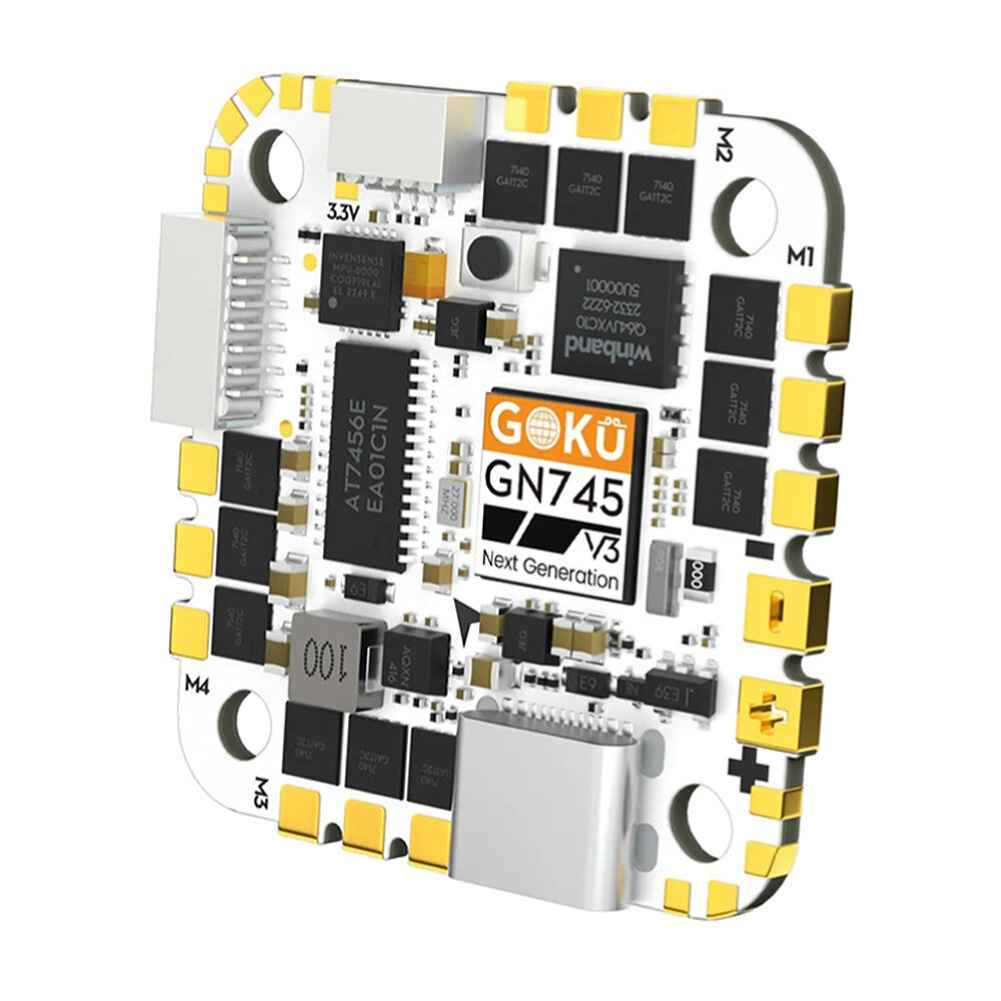

Flywoo GOKU GN745 V3 45A AIO Flight Controller with 4in1 ESC, Type-C, 1MB Flash for RC Drone FPV Racing

Description

25.5×25.5mm Flywoo GOKU GN745 45A AIO BL_32 MPU6000 V3 Flight Controller 1MB Flash Integrated with 4in1 ESC for RC Drone FPV Racing

The Flywoo GOKU GN745 V3 AIO Flight Controller is a premium choice for RC drone FPV racing enthusiasts. This upgraded version features a new ESC two-in-one drive solution, boosting the continuous current capacity to 45A and enhancing motor pad protection. The V3 is equipped with the STM32F745 chip, BLHELI_32 firmware, and MPU6000 gyro, ensuring superior performance. It offers 4 direct-plug Uart ports and a Type-C interface, making connectivity with DJI O3, GPS, cameras, and more seamless without soldering. Compatible with Betaflight, INAV, and Ardupilot platforms, this controller supports various serial receivers and includes onboard 8Mbytes for Blackbox logging.

Since its launch, the GOKU GN745 AIO has stood as Flywoo’s top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we’re excited to introduce the latest upgrade in this series〞the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.
Highlightsㄩ
1.Performance: Utilizes STM32F745 chip, BLHELI_32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
2.Plug & Play: Compatible with DJI O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
3.Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
4.Compatibility: Supports BF, INAV, and Ardupilot platforms.
5.New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
6.Better Protection: Larger motor pad area with improved overcurrent protection.
Specificationsㄩ
Brand: Flywoo
Model: GOKU GN745 AIO
BF Flight Controller Firmware: FLYWOOF745
INAV Firmware: FLYWOOF745
Ardupilot Firmware: FLYWOOF745
MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
IMU: MPU6000 (SPI)
Barometer: SPL06
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, CRSF) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5×33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 9.4g
Onboard 4in1 ESC
Support BLheli / BLHELI_32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 45A
Firmware: GOKU_F4A32_PRO
Package List
1x GOKU GN745 AIO Flight Controller
1x Capacitor 25V 470UF
4x M2x6.6 Shock-Absoring Ball
4x M2 Rubber Ring
1x XT30 Power Cable
1x Connection Cable for DJI O3
1x VTX & Camera Connection Cable
1x Receiver Connection Cable
1x GPS Compass Connection Cable

Package Included:
1 x GOKU GN745 AIO Flight Controller
1 x Capacitor 25V 470UF
4 x M2x6.6 Shock-Absorbing Ball
4 x M2 Rubber Ring
1 x XT30 Power Cable
1 x Connection Cable for DJI O3
1 x VTX & Camera Connection Cable
1 x Receiver Connection Cable
1 x GPS Compass Connection Cable
