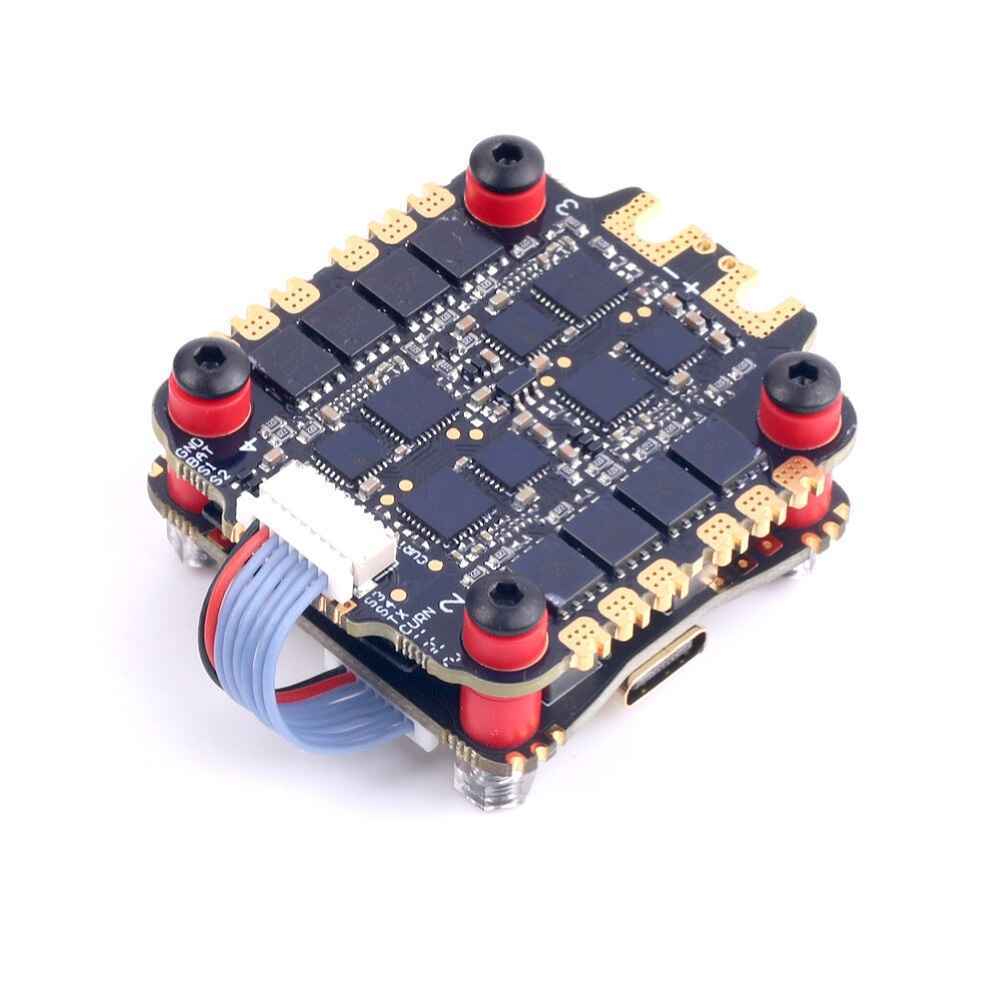

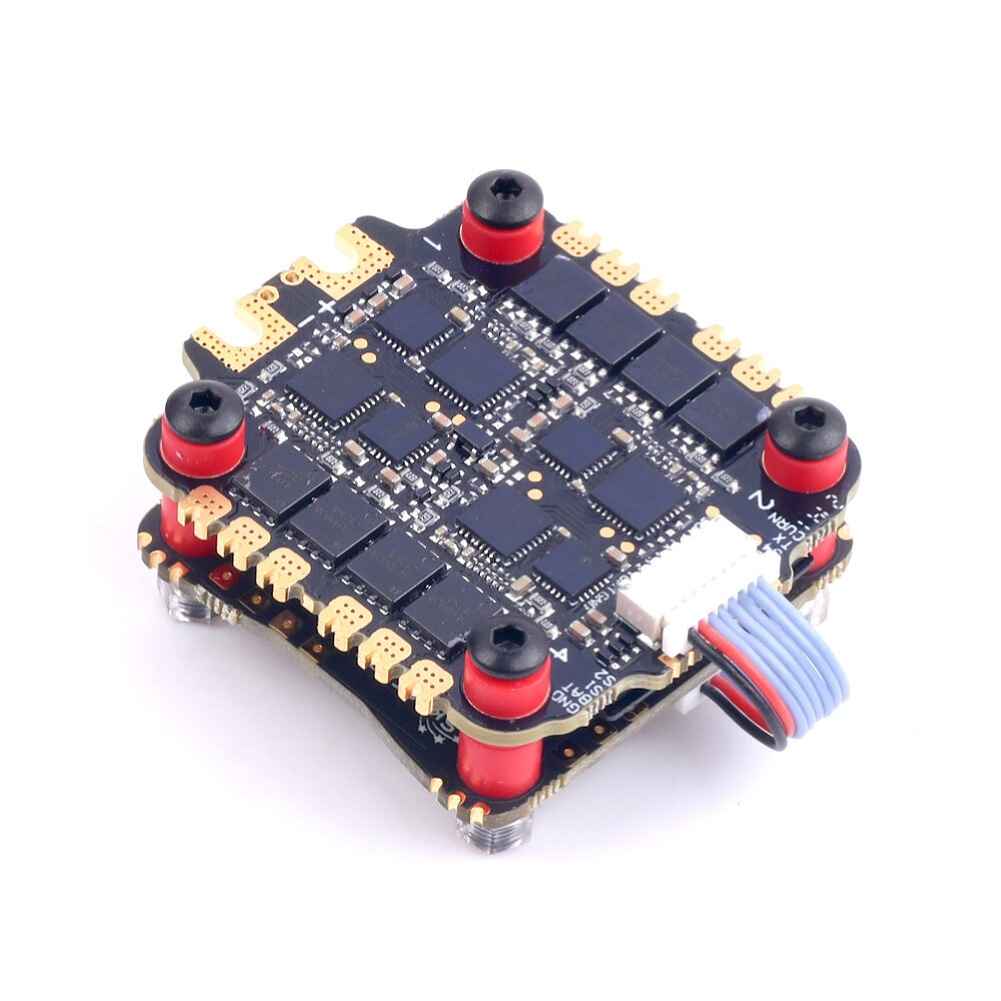

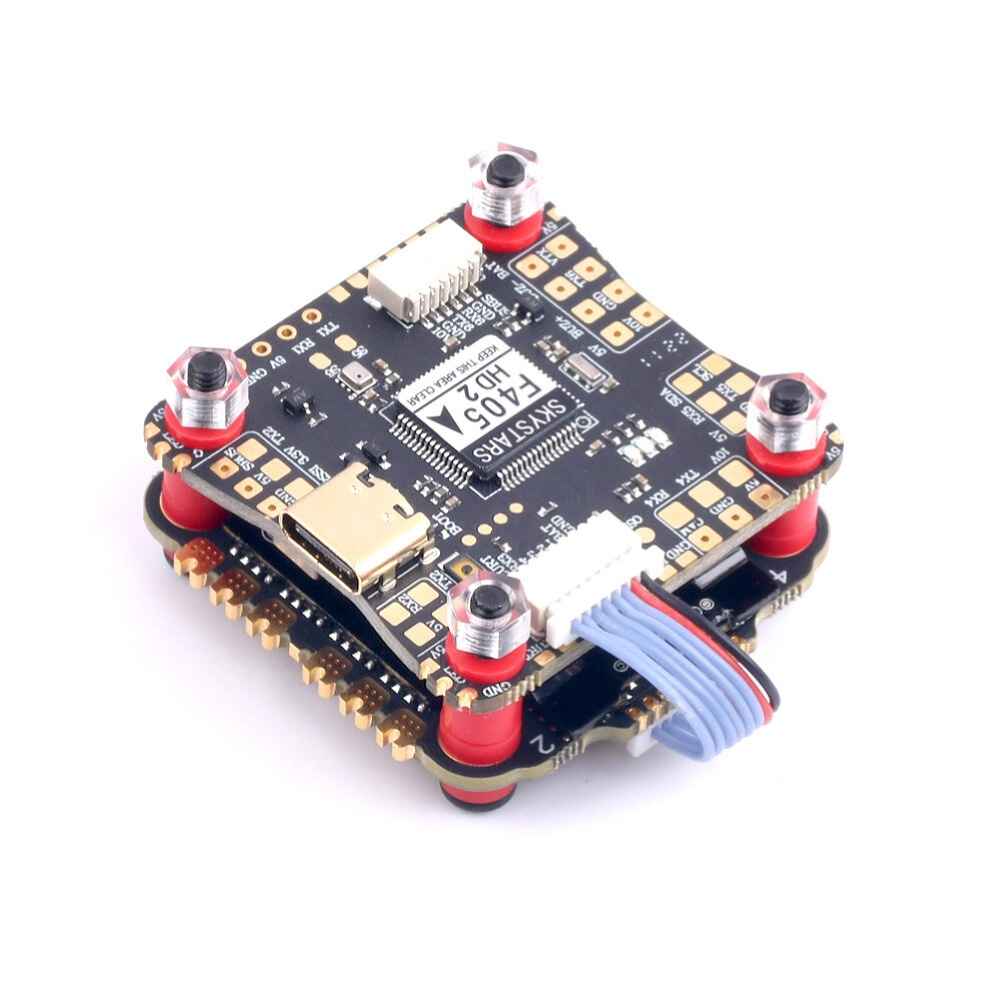

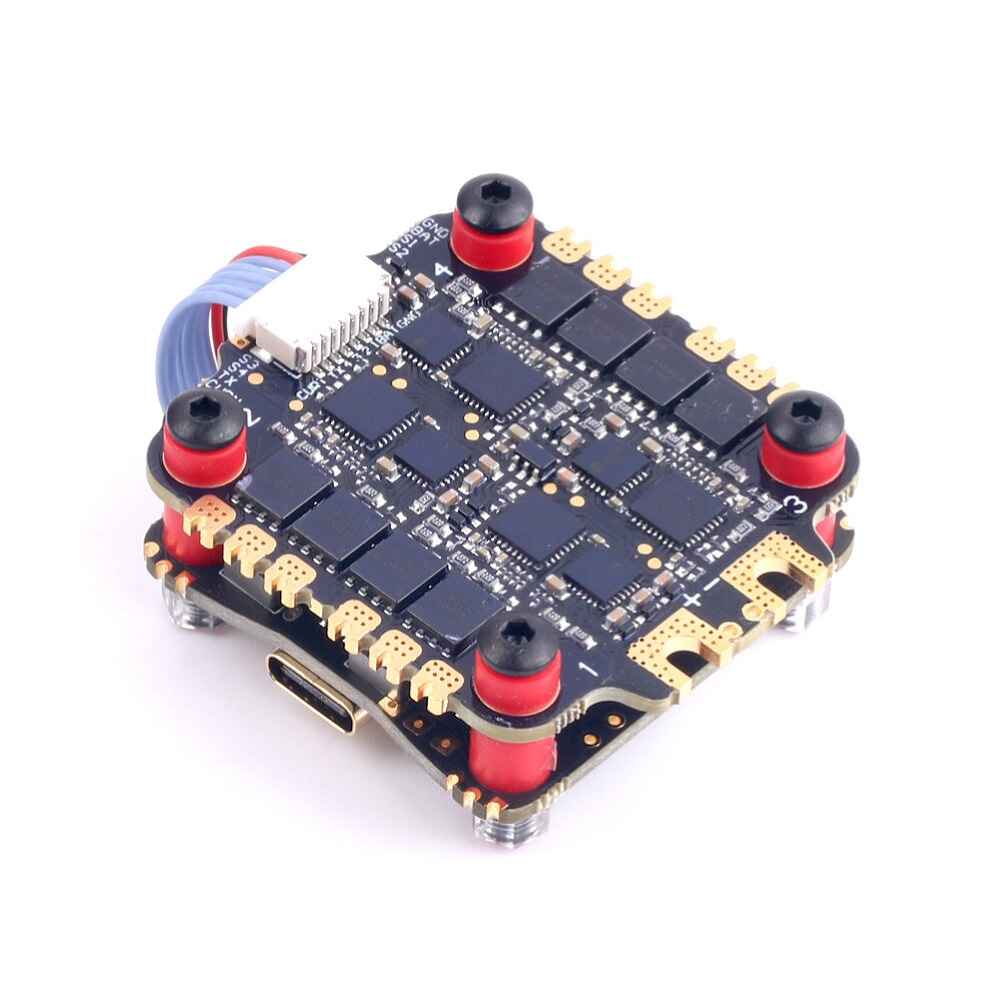

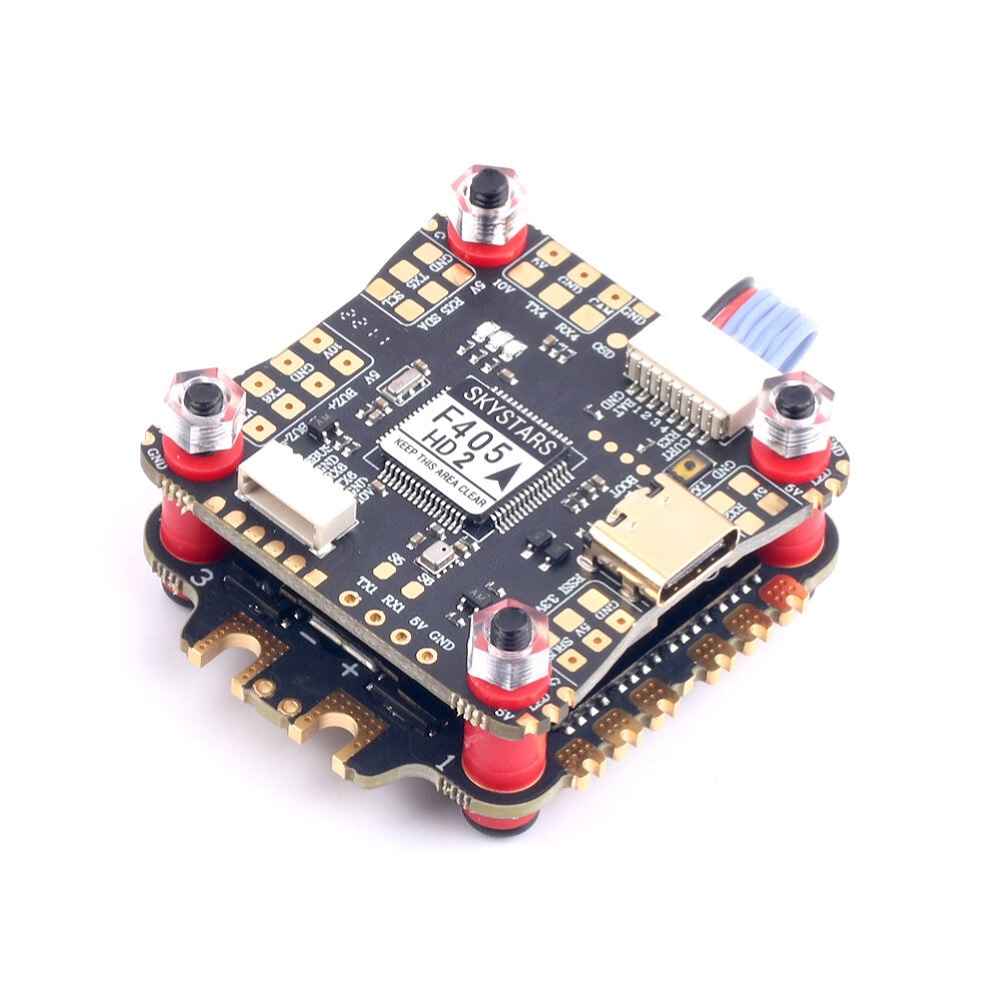

Skystars F405 HD2 Flight Controller with KO50 50A 4in1 ESC, OSD Blackbox, 3-6S Stack for FPV RC Racing Drone

-21%

Skystars F405 HD2 Flight Controller with KO50 50A 4in1 ESC, OSD Blackbox, 3-6S Stack for FPV RC Racing Drone

Original price was: $139.98.Current price is: $110.58.

High-performance STM32F405 MCU and BMI270 IMU
16MB Blackbox data storage and AT7456E OSD
Supports 3-6S LiPo input with KO50 50A 4in1 ESC
Compatible with Betaflight and INAV firmware
30.5×30.5mm mounting with grommets for stability

SKU: RC2005942 Category: Multi Rotor Parts Tags: 3-6S Lipo compatible, AT7456E OSD, Betaflight compatible, Blackbox data storage, BMI270 IMU, DIY freestyle drone, DShot protocol support, FPV racing drone stack, high-performance flight controller, INAV compatible, KO50 50A 4in1 ESC, OneShot protocol support, RC drone parts, Skystars F405 HD2 Flight Controller, STM32F405 MCU, WS2812 LED strip support Brand: Skystars

Description

30.5×30.5mm Skystars F405 HD2 F4 Flight Controller OSD Blackbox KO50 50A BL_S 4in1 ESC 3-6S Stack for DIY Freestyle FPV RC Racing Drone

The Skystars F405 HD2 Flight Controller and KO50 50A 4in1 ESC stack is designed for DIY freestyle FPV RC racing drones. This high-performance setup features the STM32F405 MCU, BMI270 IMU, and AT7456E OSD for seamless flight control. With 16MB of Blackbox data storage, six UARTs, and integrated WS2812 LED strip support, it offers extensive customization. The controller includes a 5V/2A BEC with a 3A peak, barometer, and beeper. Compatible with Betaflight and INAV firmware, it uses a 30.5×30.5mm mounting pattern. The KO50 50A ESC supports 3-6S LiPo input, runs BLHELI 16.X firmware, and is compatible with various protocols like DShot and OneShot. This stack is perfect for enhancing your drone’s performance and reliability.

Specification:
Brand: Skystars
Model: F405 HD2 Flight Controller KO50 ESC Stack

F405 HD2 Flight Controller

MCU: STM32F405
IMU: BMI270
OSD: AT7456E
Blackbox: 16MB
6X Uarts(1 2 3 4 5 6)
WS2812 led Strip: YES
Baro: YES
Beeper: YES
BEC: 5V/2A ,3A Peak
Mounting: 30.5*30.5mm, 4mm with Grommets 3mm
Dimensions: 36*36mm
Weight: 6g
Firmware:
Betaflight FC Target: SKYSTARSF405
INAV FC Target:SKYSTARSF405HD

KO50 50A 4in1 ESC
( Separate ESC Link)

Supports 3-6S Lipo input
BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware, Support Bulejay.
Current sensor: YES
BEC: NO
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-50 BLS 16.7
Dimension: 41x46mm
Mounting Holes: 30.5*30.5mm/朴3mm
Weight:13.3g

Package Included:
1 x Skystars F405 HD2 Flight Controller
1 x 50A 4in1 Brushless ESC
