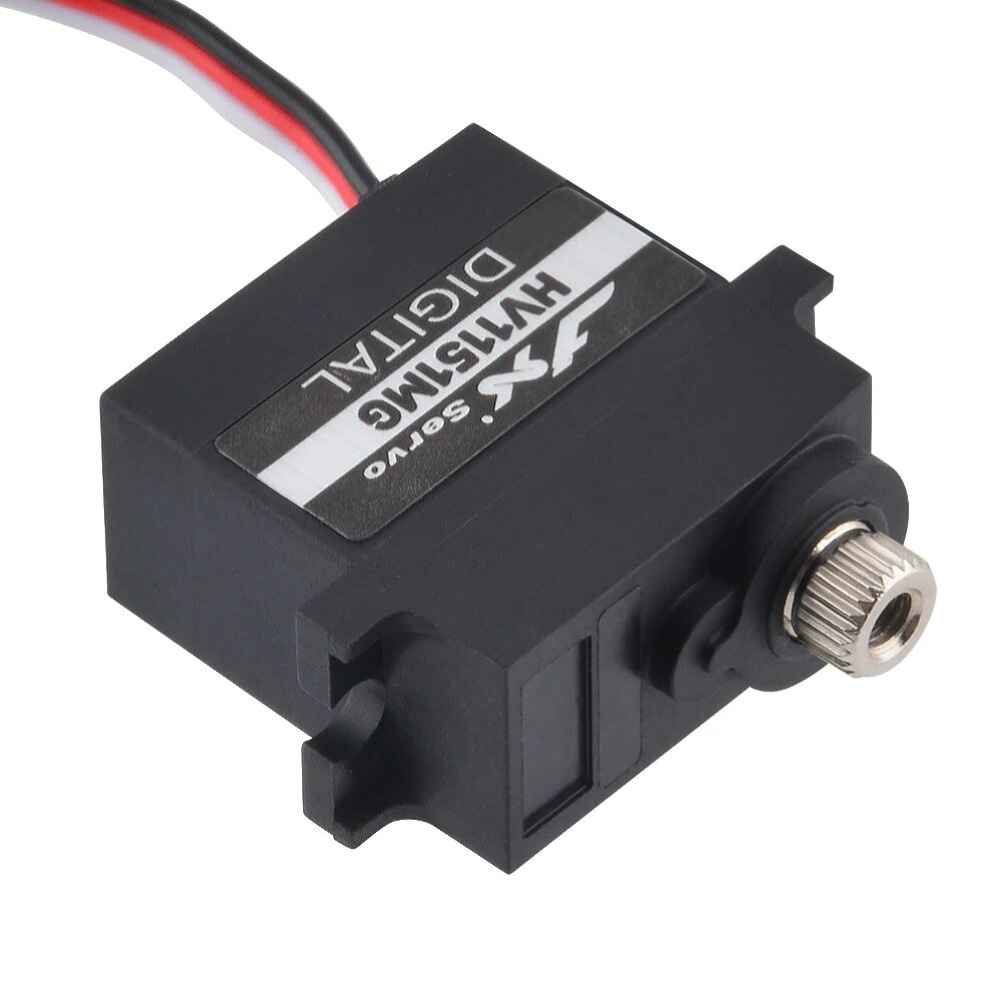

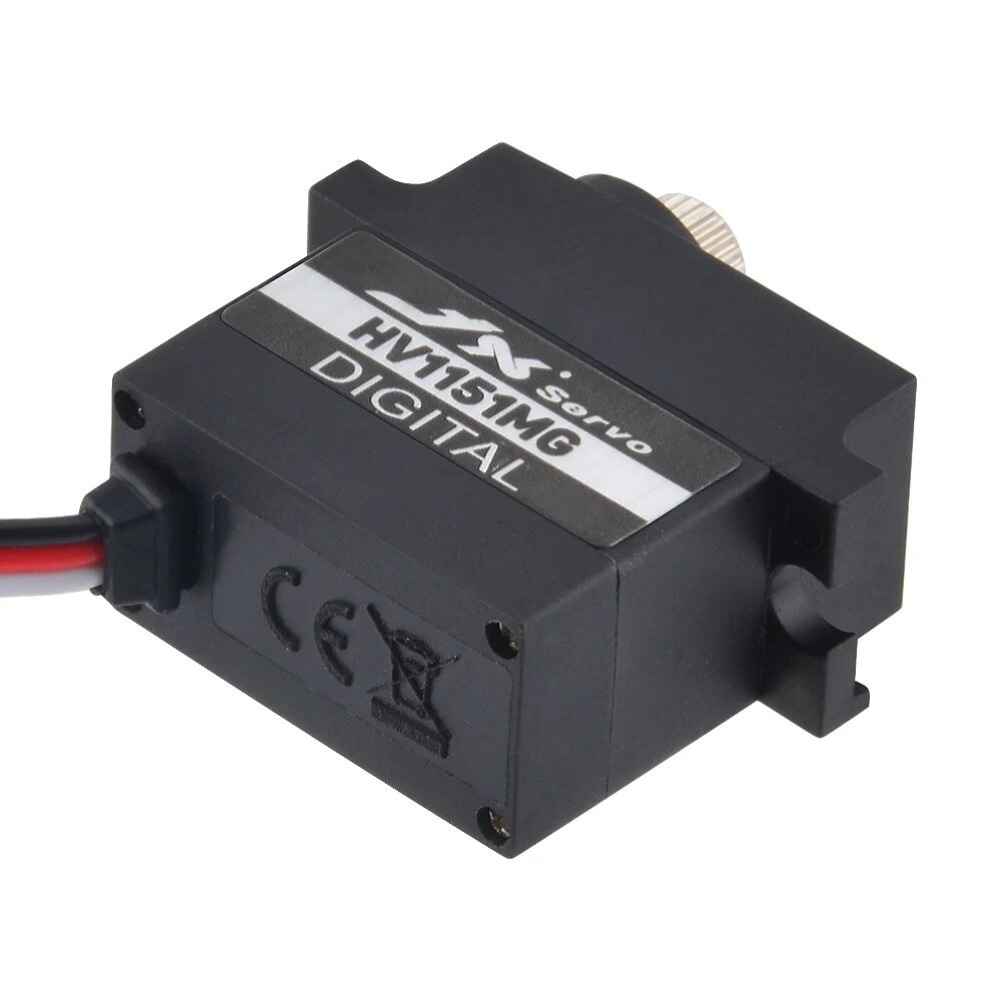

JX PDI-HV1151MG Mini Waterproof Servo 8.4V 4.5KG Metal Gear Digital Servo for Traxxas TRX4 BRX01 Crawler RC Car
The JX PDI-HV1151MG Mini Waterproof Servo is designed for optimal performance in RC vehicles like the Traxxas TRX4 and Boom Racing BRX01. Featuring a high voltage capacity up to 8.4V, this servo delivers rapid idle speeds and impressive torque of 4.5Kg/cm at 8.4V. Its waterproof design ensures reliability in various conditions, while the advanced PWM control system provides precise operation. Constructed with durable metal gears and a robust PA66+fiber40% case, it promises a long lifespan of over 15,000 cycles without load. Ideal for any setup requiring a shift servo, this component is a perfect fit for power-intensive remote control vehicles.

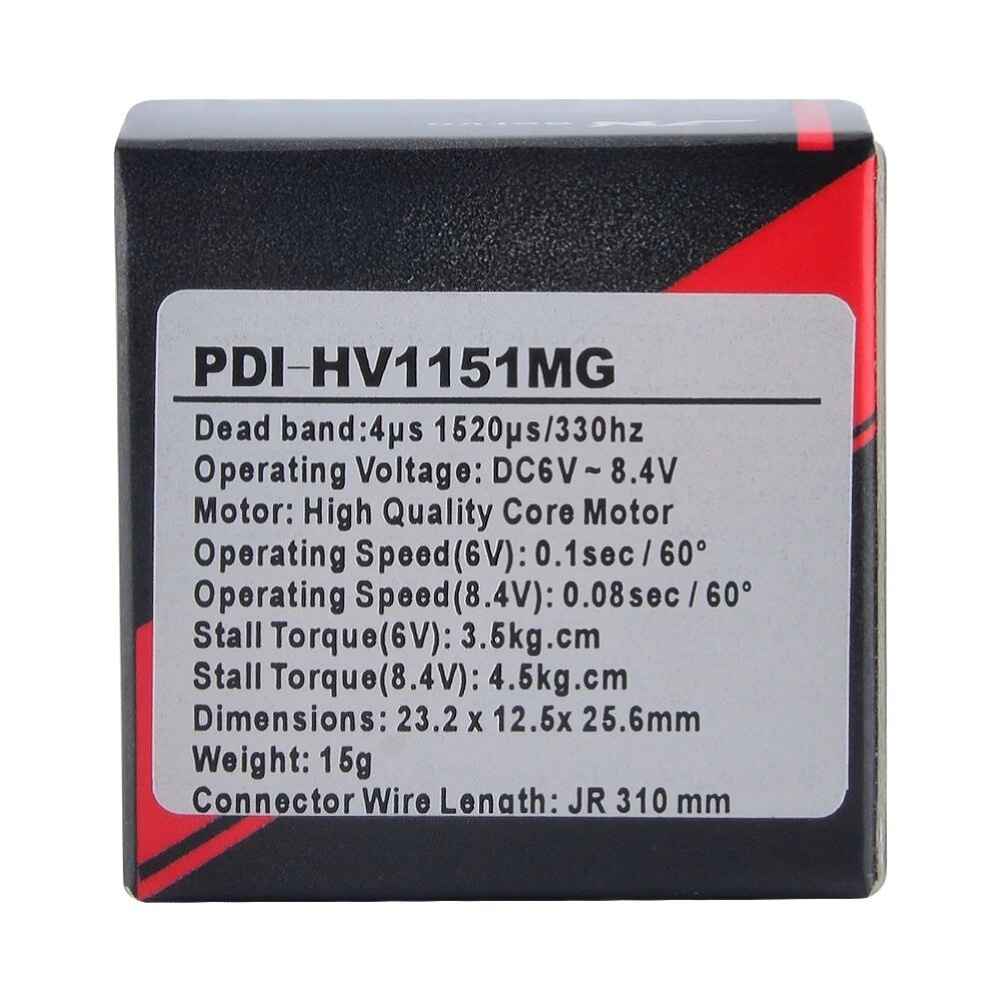

Specifications:
Working temperature: -20C～~ +60C～
Idle speed: 6V 0.1sec/60o; 8.4V 0.08sec/60o
Idle current: 6V 150mA; 8.4V 180mA
Control system:
PWM control 1500 u-sec is the central point PWM control 1500 u-sec is the central point
Max Angle:180～
Pulse width: 1000-2000米s=90～
Pulse width: 500-2500米s=180～
Dead band: 4米s 1520米s/330hz
Working voltage: 6V~8.4V
Torque: 6V 3.5Kg/cm; 8.4v 4.5Kg/cm
Load current: 6V 260mA; 8.4V 340mA
Dead band: 4usec
Lifetime: >15000 times without load
Moving angle: 60o㊣2～
Drive type: Mos drive
Motor type: Coreless motor
Potentiameter type: Direct drive
Signal booster type: Digital

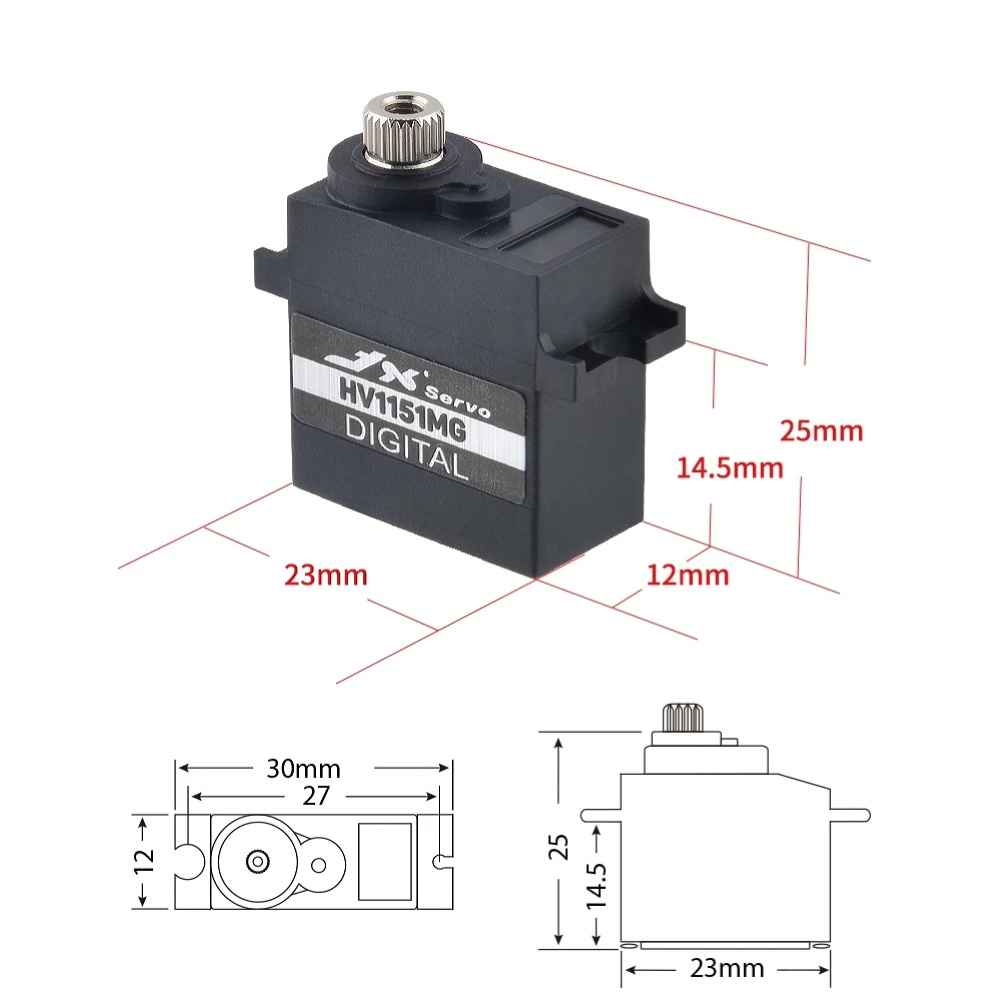

Size: 23.2×12.5×25.6mm
Weight: 15g
Gear material: Metal gear
Case material: PA66+fiber40%

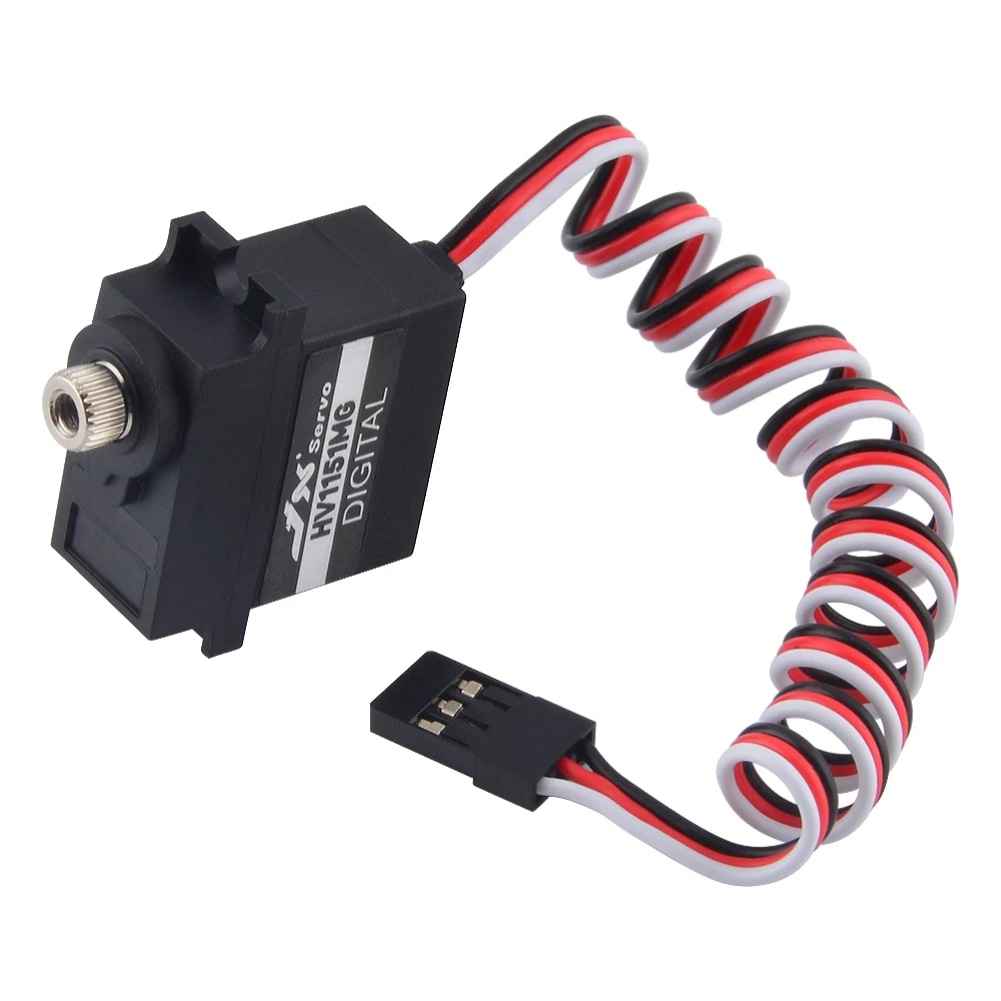

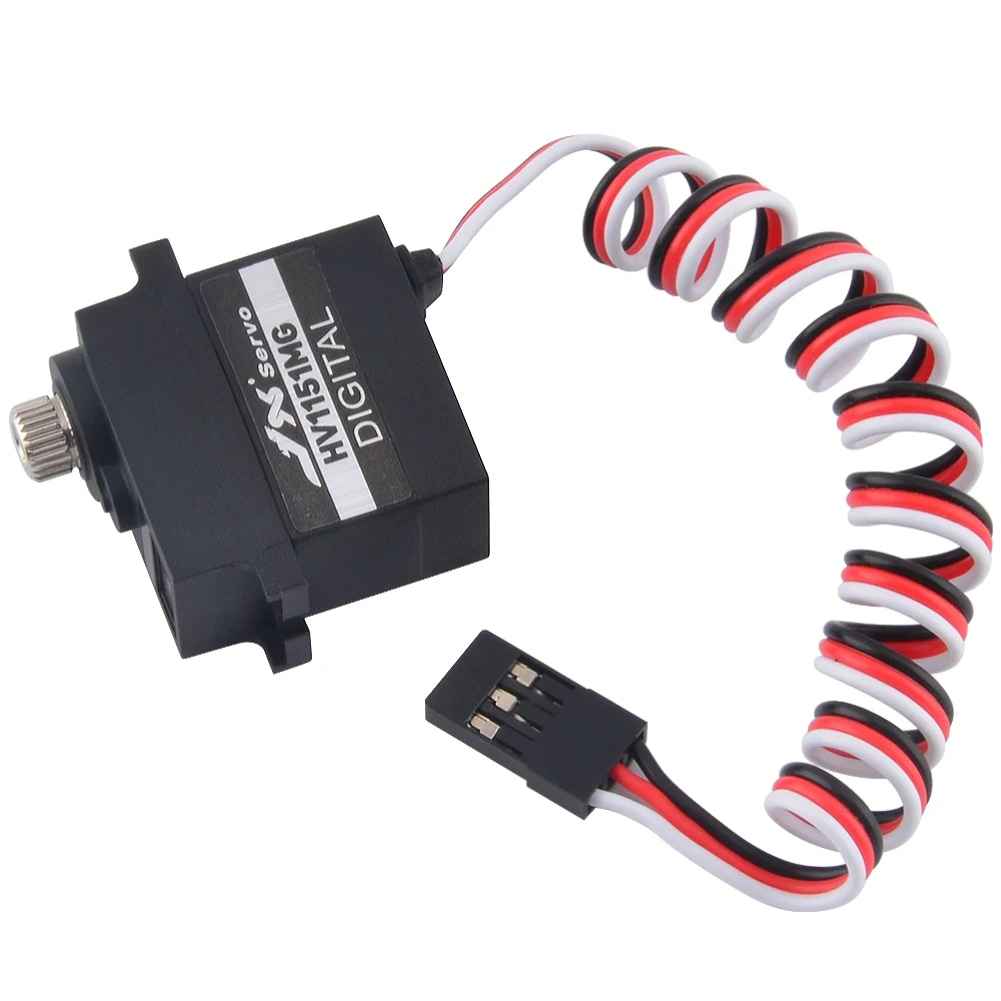

Wire length:360mm
Wire gauge No and plus type: 26AWG, JR plug
Black: Negative Red: Positive White: Signal
FITS:
Fit for Traxxas TRX4
Fit for Boom Racing BRX01
Features:
High Voltage Servo: It can handle a higher voltage up to 8.4V, that provides a quick idle speed and a high torque up at 6V 3.5Kg/cm; 8.4v 4.5Kg/cm.
Waterproof Design: Fully waterproofed, making it perfect for Rc Car Traxxas TRX4 and Boom Racing BRX01 Crawler Parts.
Advanced Control System: Consist of a PWM control for precise control.
Reliability: Longer lifetime of over 15000 times without load, and metal gear material ensures durability.
Compatibility: It is compatible with any rig that requires a shift servo, perfect for power consumption remote control vehicles.

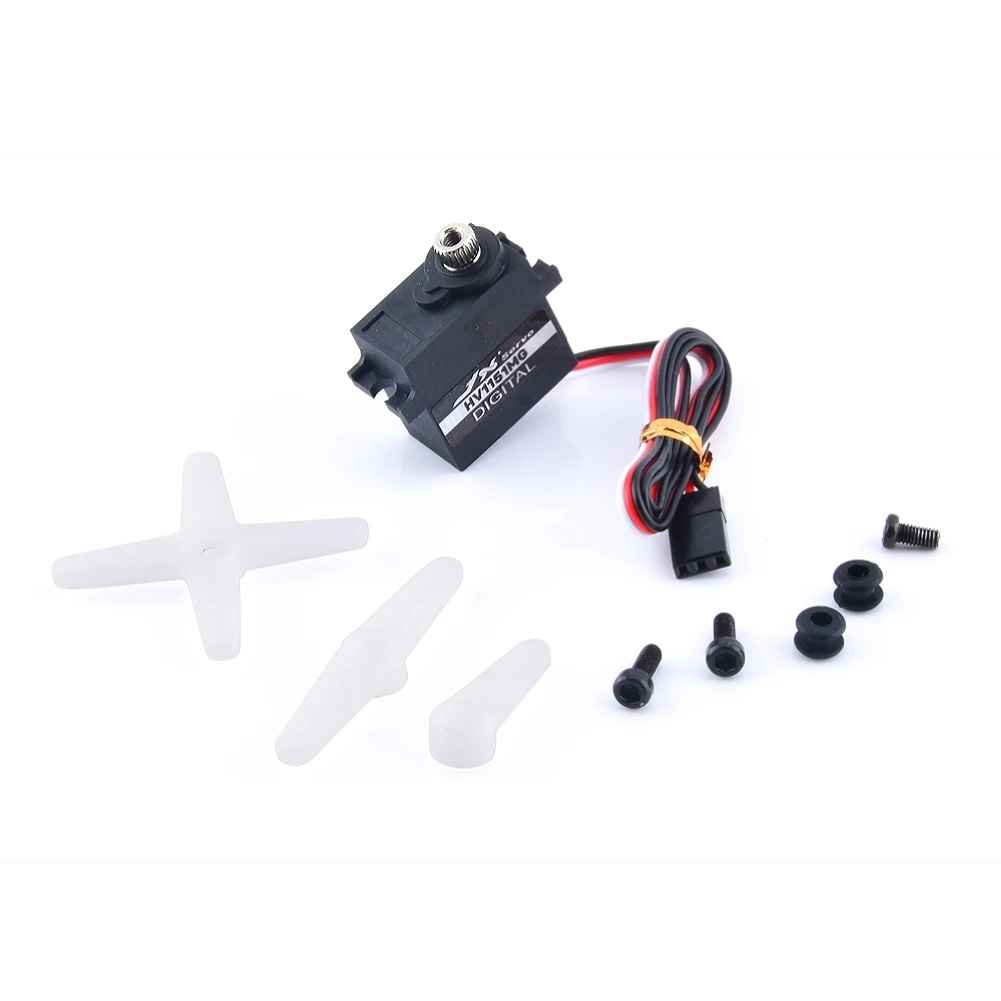

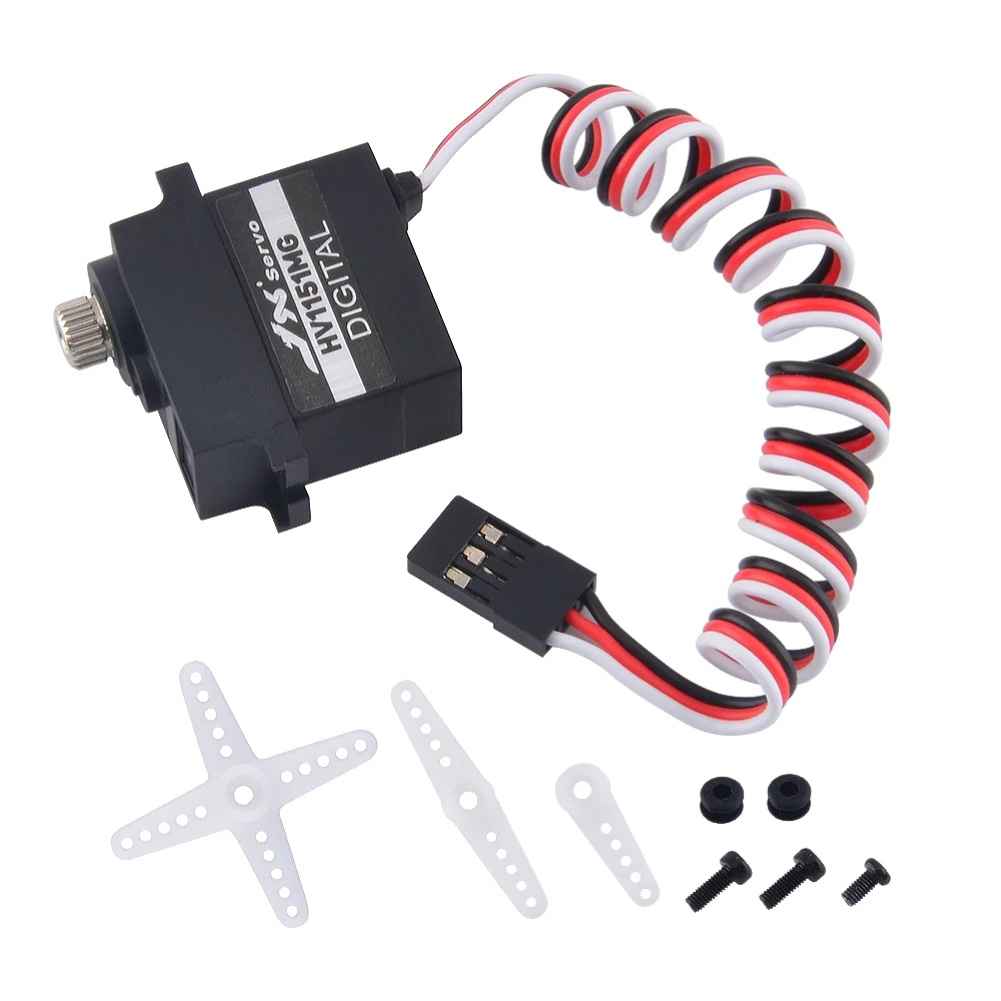

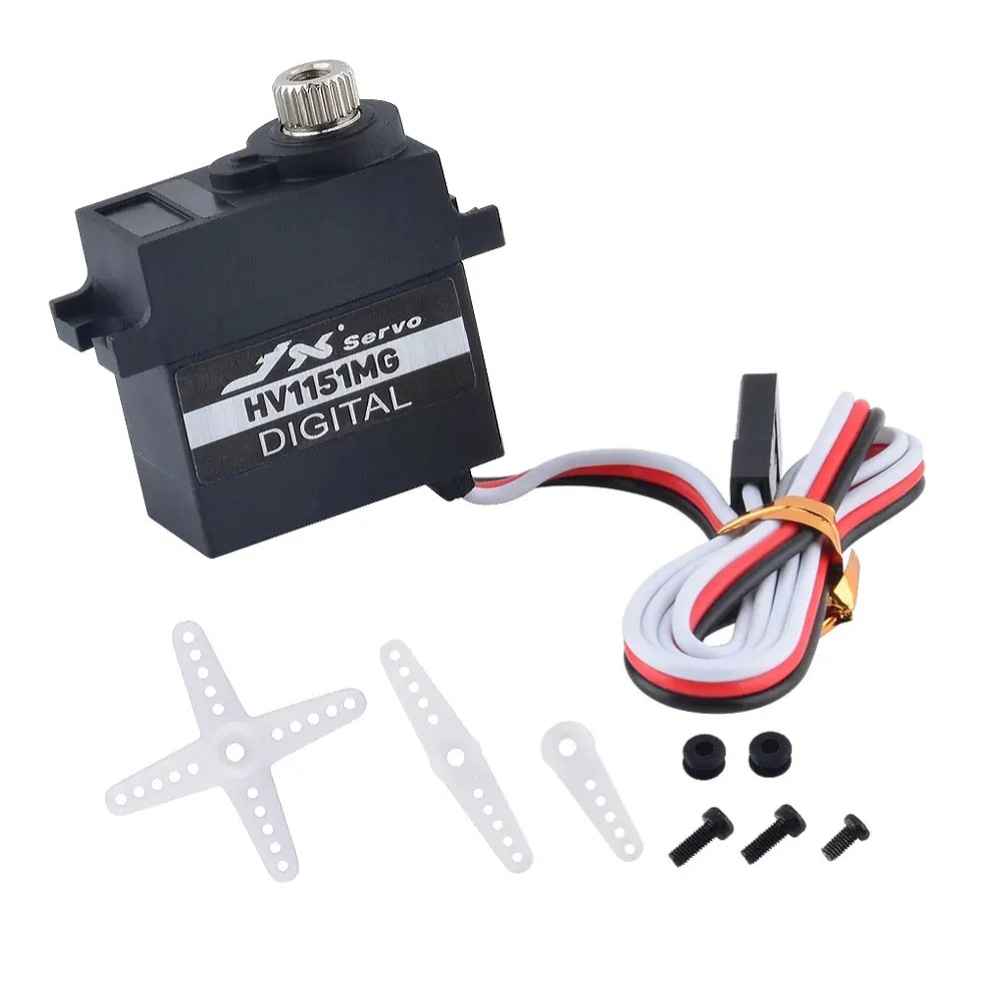

Package Included:
1 x Servo
1 x Set of Accessories (includes servo kit, servo plastic arm, and screws)
