SPT Servo SPT5435LV-180 35KG Large Torque Metal Gear Digital Servo For RC Robot Arm RC Car
The SPT SPT5435LV-180 digital servo is designed for high-performance applications, offering a large torque capacity of 35KG. With a core motor and metal gears, it ensures durability and precision. The servo operates within a voltage range of 4.8V to 6.0V, providing a swift operating speed of 0.14”/60° at 6.0V. It features a 180° rotation angle and a dead band of 4μs, making it ideal for RC cars and robot arms. The servo’s compact dimensions of 40.5 x 20 x 40mm and lightweight design of 200g make it easy to integrate into various projects. Equipped with a 260mm JR connector wire and dual ball bearings, this servo delivers smooth and reliable performance.
Description:
Brand: SPT
Product: SPT5435LV-180 32KG 180°Digital Servo
Dead Band: 4μs
Neutral Position:1500μs/330Hz
Motor: Core Motor
Remote Control Angle: 90°
500-2500us Angle:180°/PWM
Voltage Range: 4.8V-6.0V(BEC≥3A)
Operating Speed(4.8V): 0.16”/60°
Operating Speed(6.0V): 0.14”/60°
Stall Torque(4.8V): 29 kg.cm
Stall Torque(6.0V): 35 kg.cm
Dimensions: 40.5*20*40mm
Weight: About 200g

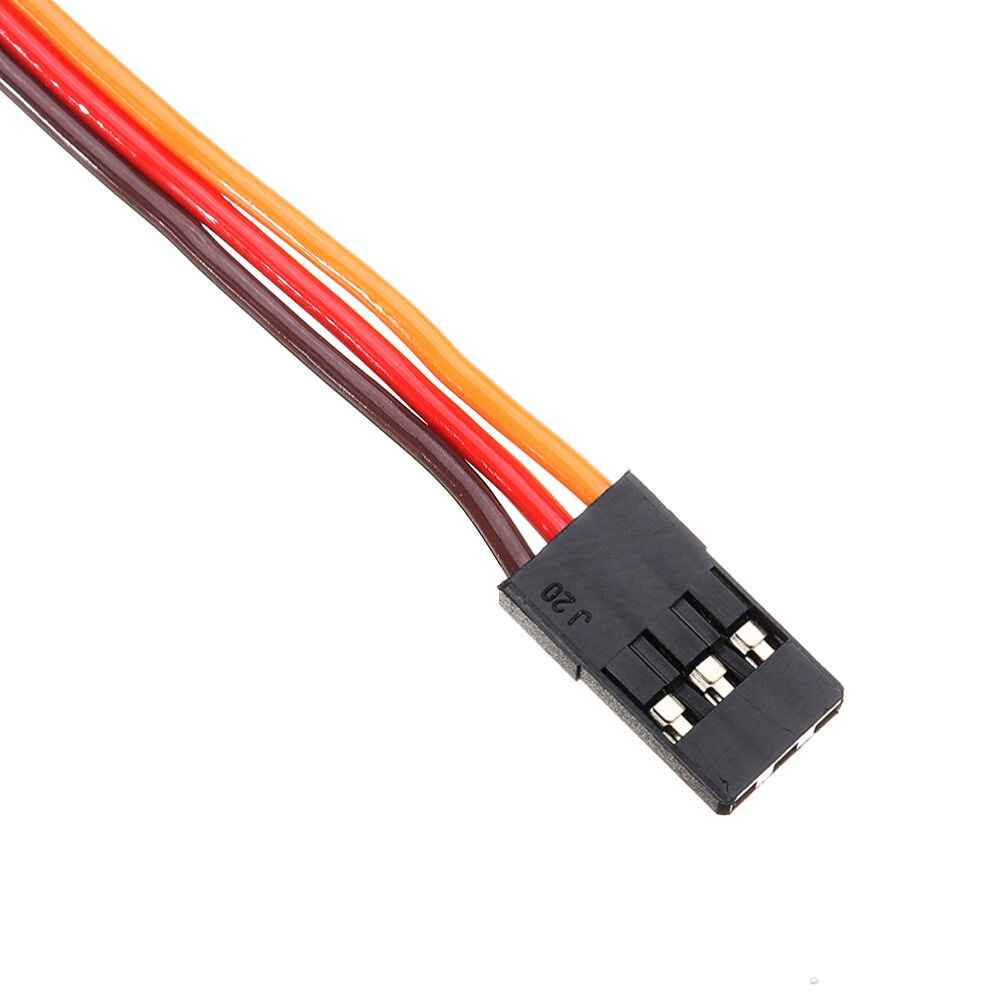

Connector Wire Length: JR 260 mm
Bearing: 2BB
Application: For RC Car, RC Robot Arm
Package:
1* SPT SPT5435LV-180 32KG 180°Digital Servo

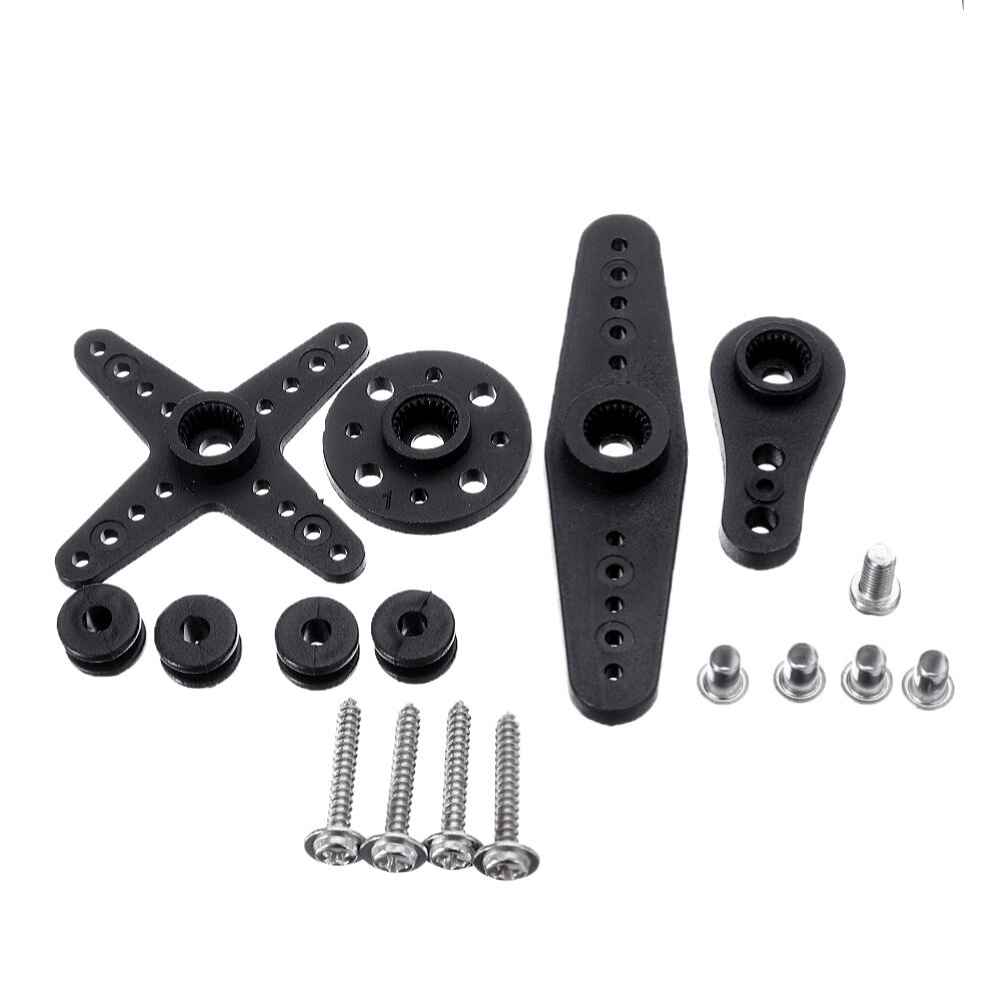

1* Servo Arm Set
Package Included:
1 x SPT SPT5435LV-180 32KG 180° Digital Servo 1 x Servo Arm Set
