Description

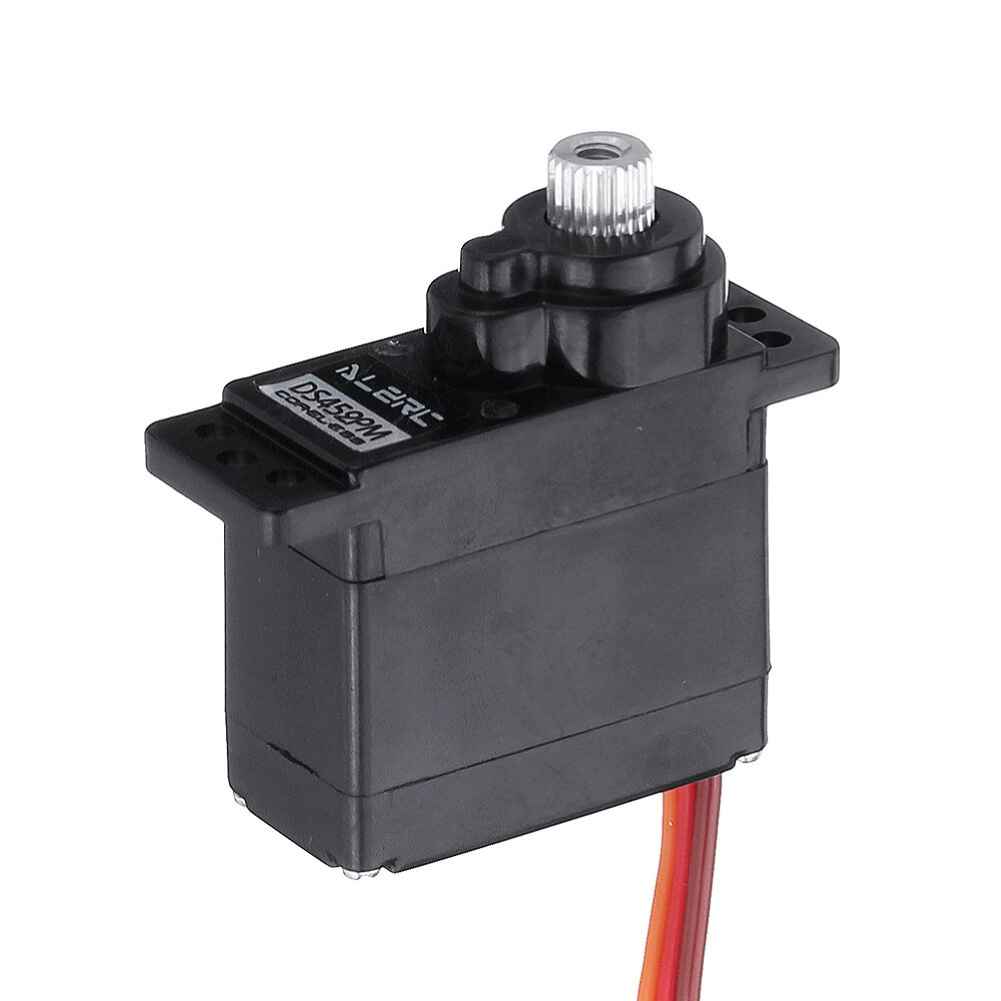

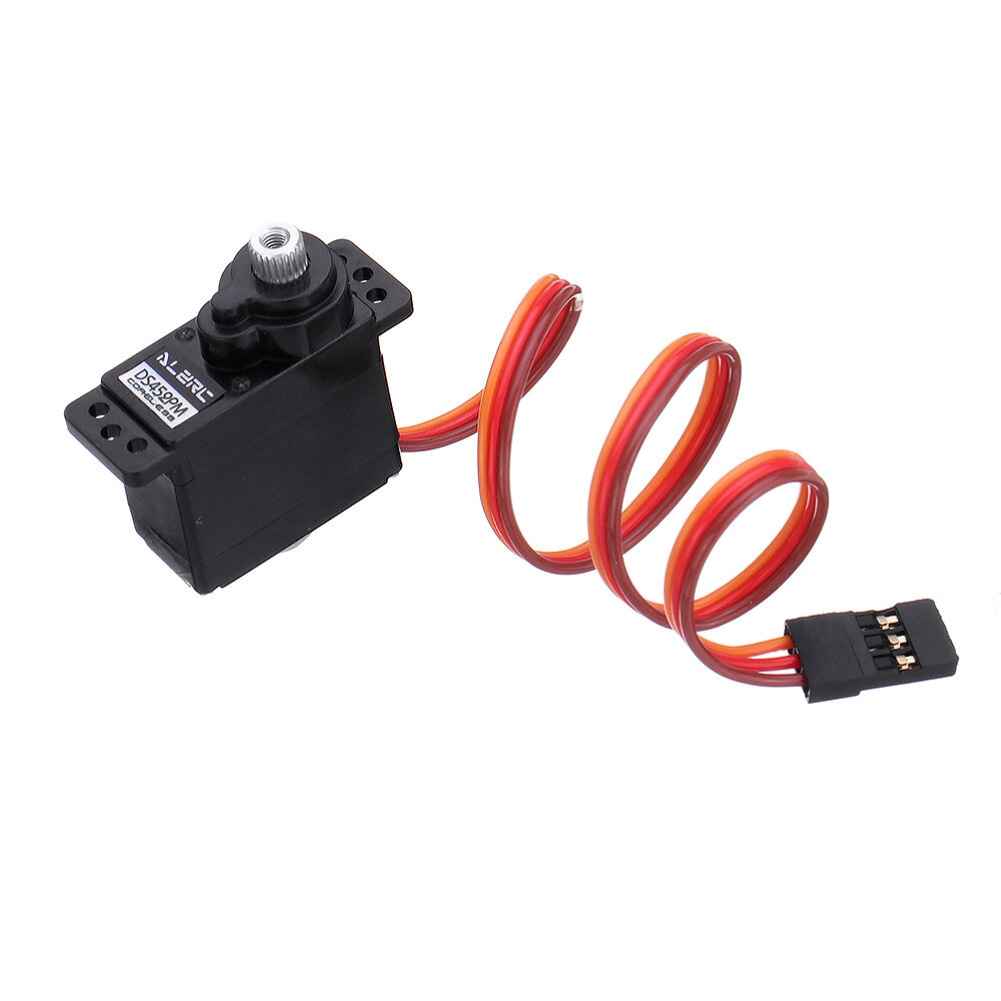

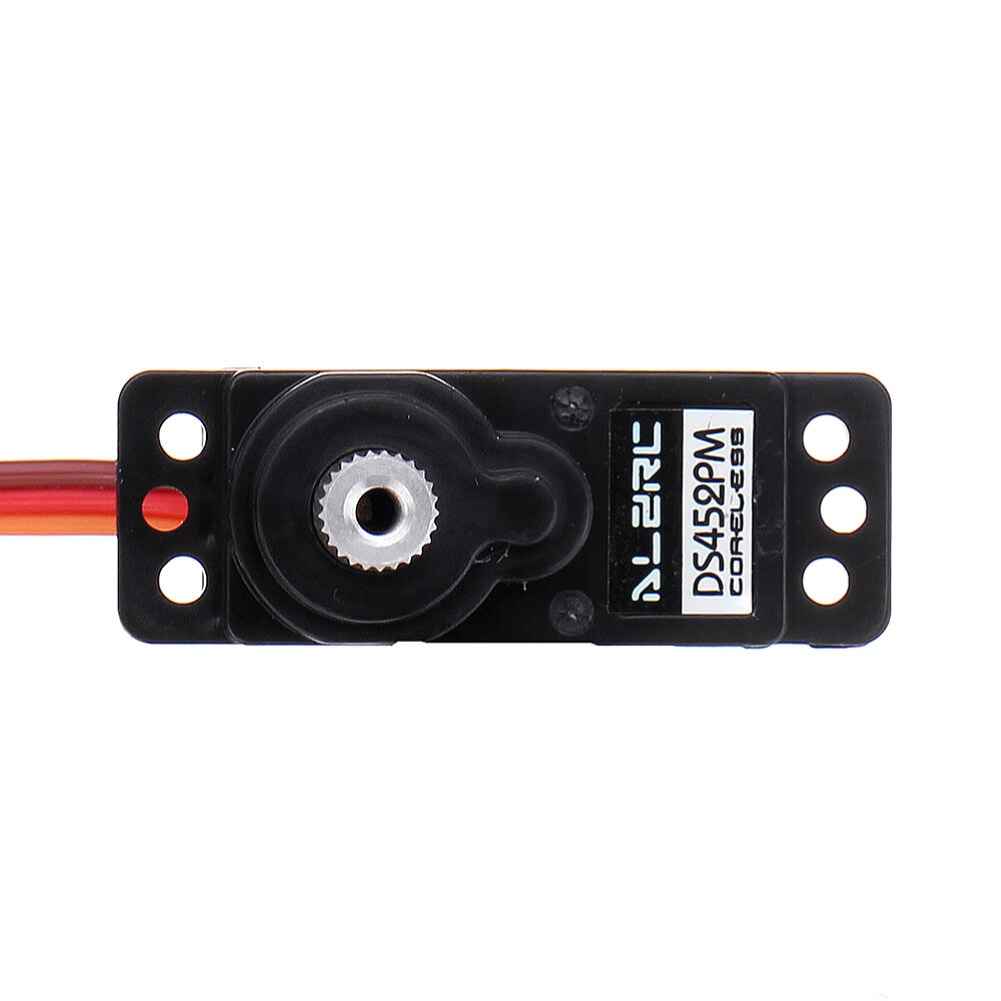

ALZRC DS452PM Swashplate Coreless Metal Gear Digital Servo For 360 450 Class RC Helicopter RC Airplane
The ALZRC DS452PM Digital Servo is designed for 360 and 450 class RC helicopters and airplanes. It features a coreless metal gear for enhanced durability and precision. With an operating voltage range of 4.8-8.4V and a working frequency of 1520us/333Hz, this servo offers excellent performance. It boasts a fast operating speed, ranging from 0.14 sec/60° at 4.8V to 0.09 sec/60° at 7.4V, and a torque of up to 2.6kg.cm. Weighing just 12g, it is lightweight yet powerful. The servo includes a 220mm connector wire, making it easy to install.
Description:
Brand: ALZRC
Product: DS452PM Digital Servo
Operating Voltage Range: 4.8-8.4V
Operating Temperature Range: -20 ~ +60
Working Frequency: 1520us/333Hz
Dead Band: 2us
Operating Speed:
0.14 sec/60@4.8V
0.11 sec/60@6.0V
0.09 sec/60@7.4V
Torque:
1.8kg.cm @4.8V
2.2kg.cm @6.0V
2.6kg.cm @7.4V
Weight: 12g
Bearing Material: Metal

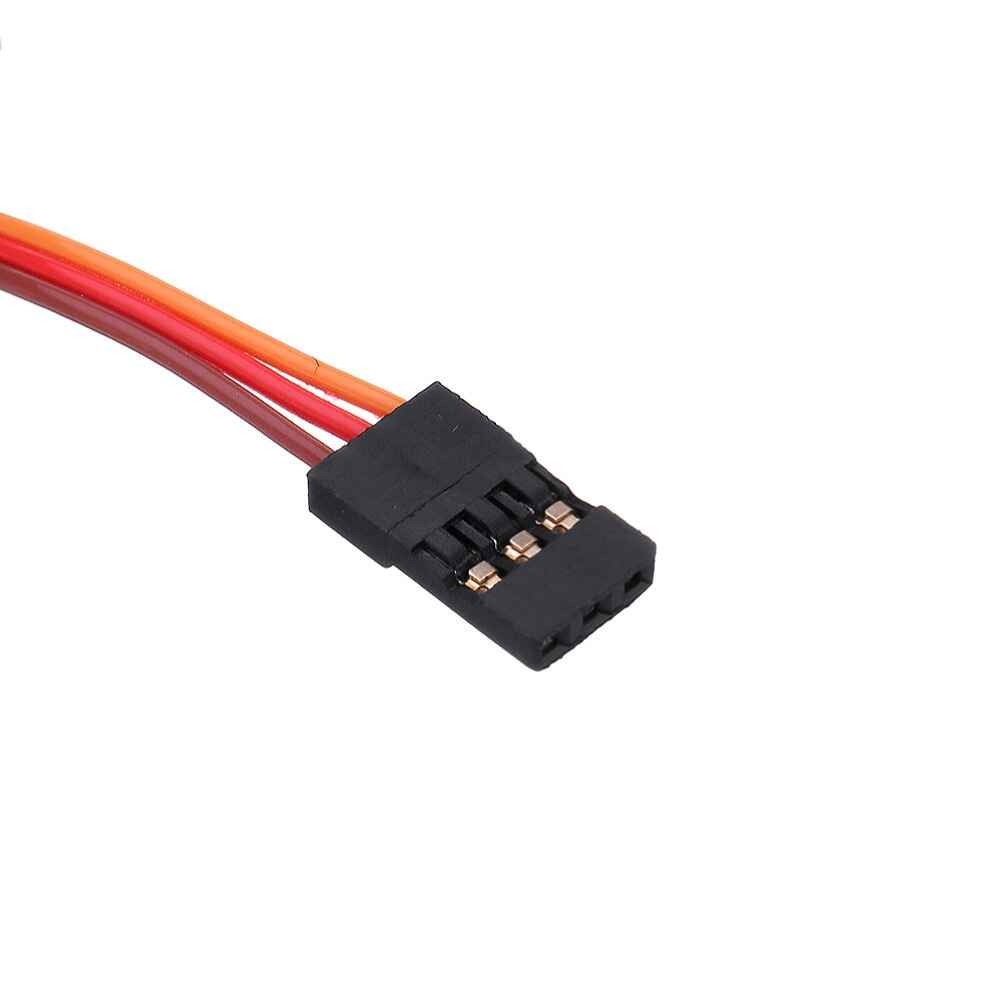

Connector Wire Length: 220mm
Application: For 360,450 Class RC Helicopter, RC Airplane
Package:
1* ALZRC DS452PM Digital Servo
Package Included:
1 x ALZRC DS452PM Digital Servo
