JX DC6015 14.32KG DC Metal Gear High Torque Standard Angle Digital Servo For RC Model Transmitter Radio

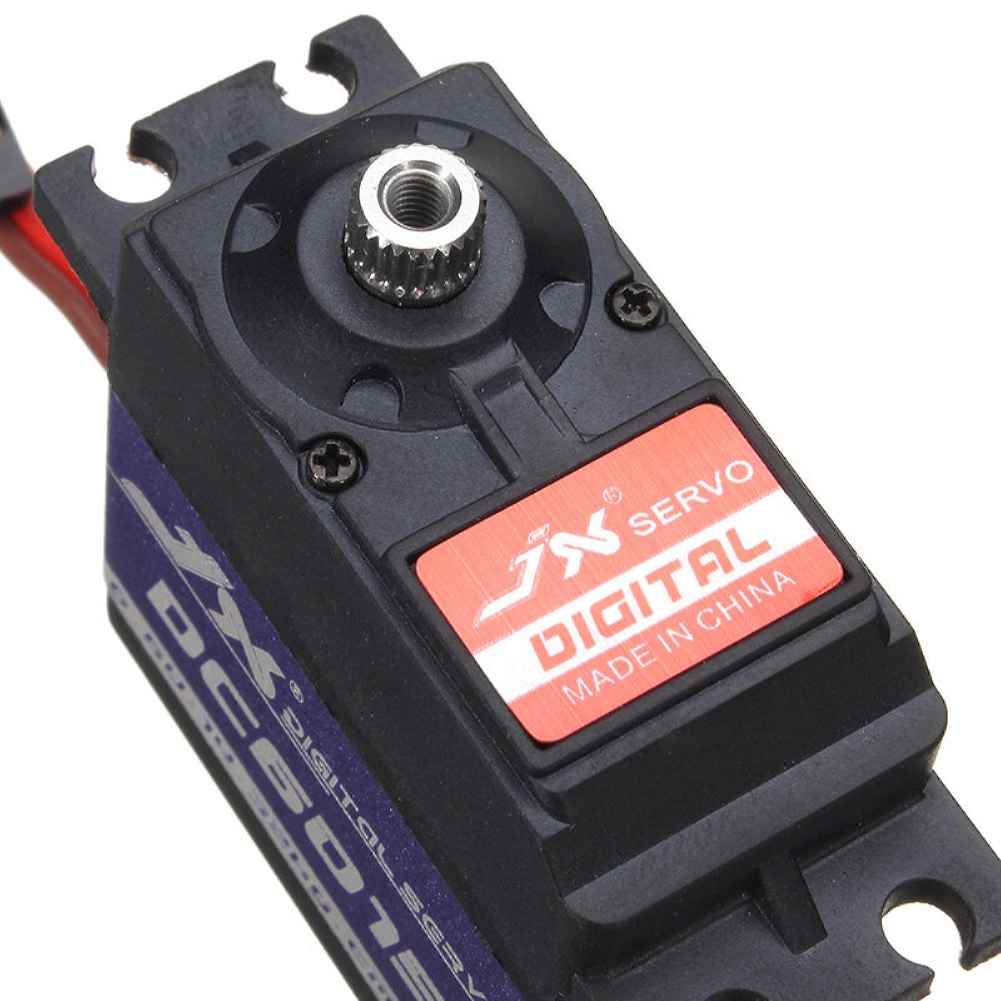

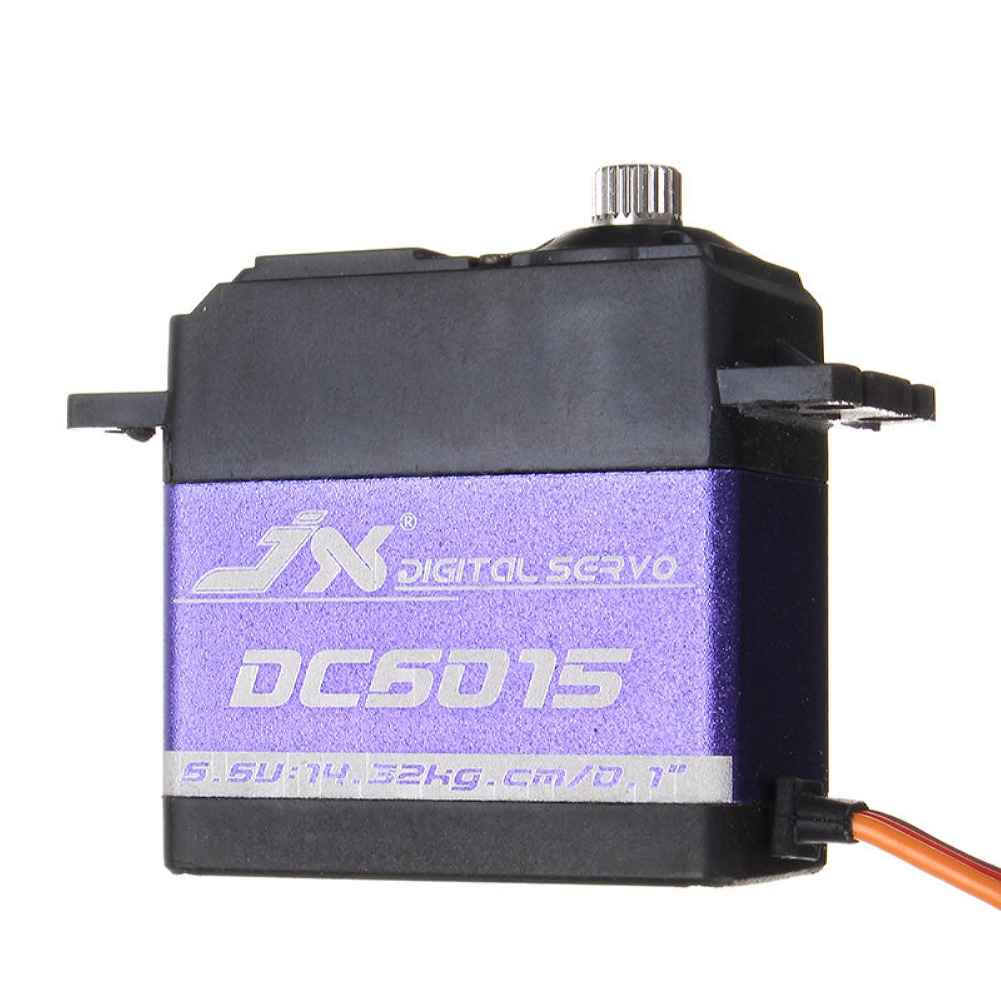

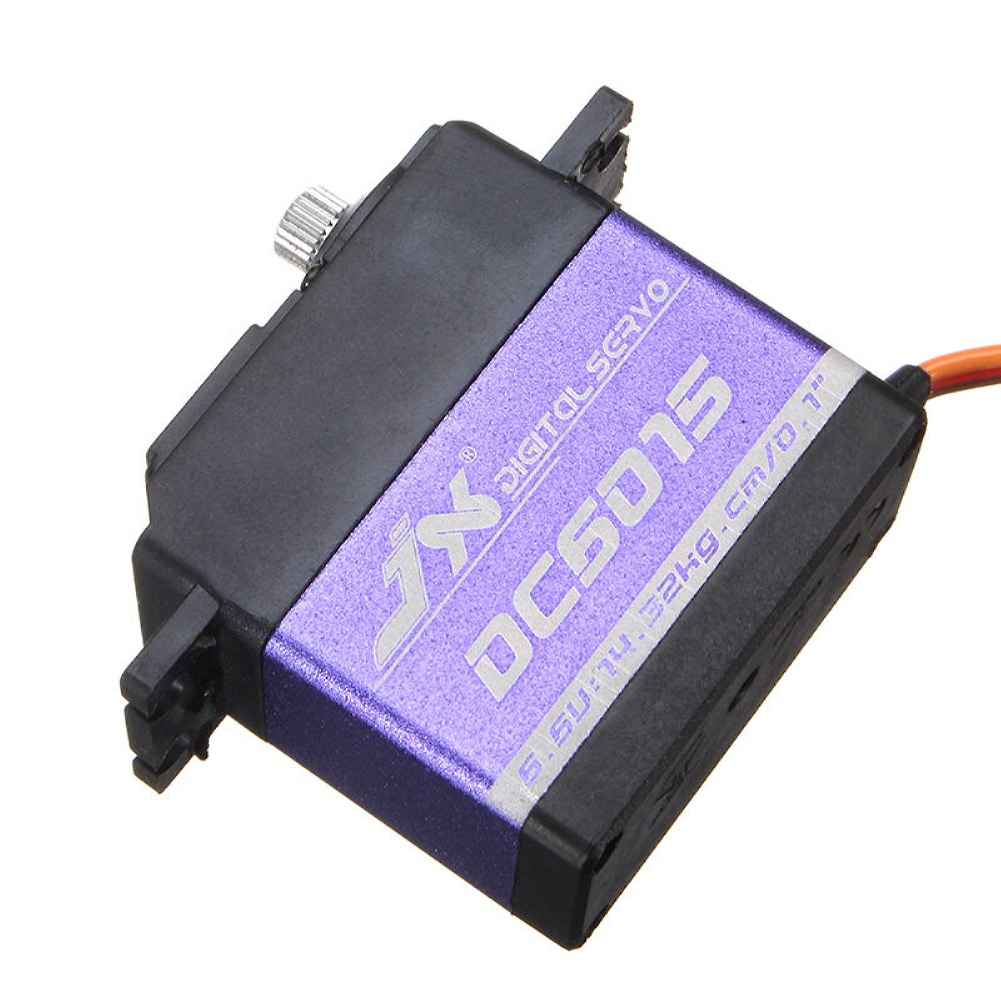

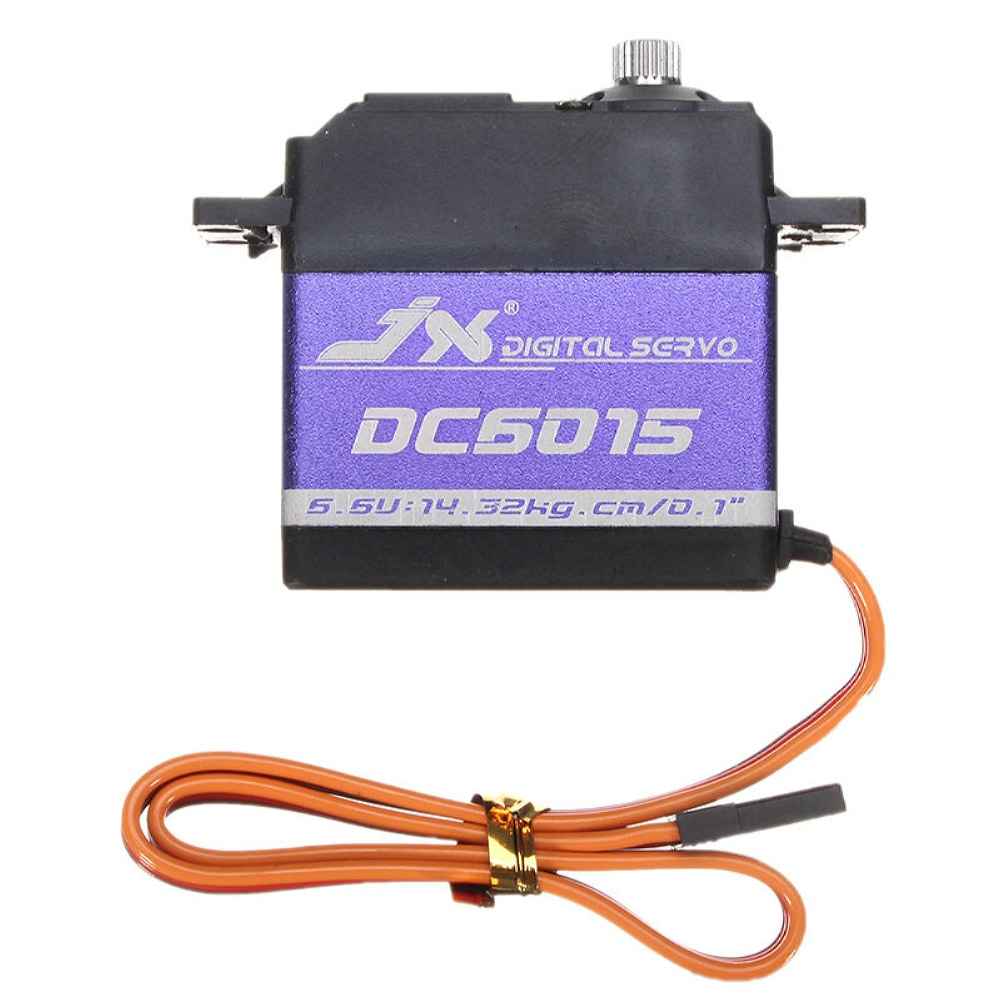

The JX DC6015 Digital Servo offers exceptional performance for RC model enthusiasts. With a high-quality core motor, it delivers impressive operating speeds of 0.12 sec/60° at 4.8V and 0.1 sec/60° at 6.6V. The servo provides a stall torque of 10.7 kg-cm at 4.8V and 14.32 kg-cm at 6.6V, ensuring powerful and reliable operation. Its compact dimensions of 40.3 x 20.2 x 40.3 mm and a lightweight design of 62 g make it an ideal choice for various RC applications. The servo features a JR connector wire length of 265 mm and is equipped with 2BB bearings for smooth performance. The package includes a servo parts set for easy installation and maintenance.
Description
Dead band: 2μs 1520μs / 330hz
Motor: high quality core motor
Operating Speed (4.8V): 0.12sec/60°
Operating Speed(6.6V):0.1sec/60°
Stall Torque (4.8V): 10.7kg-cm
Stall Torque(6.6V):14.32kg-cm
Dimensions:40.3X20.2X40.3mm
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Package

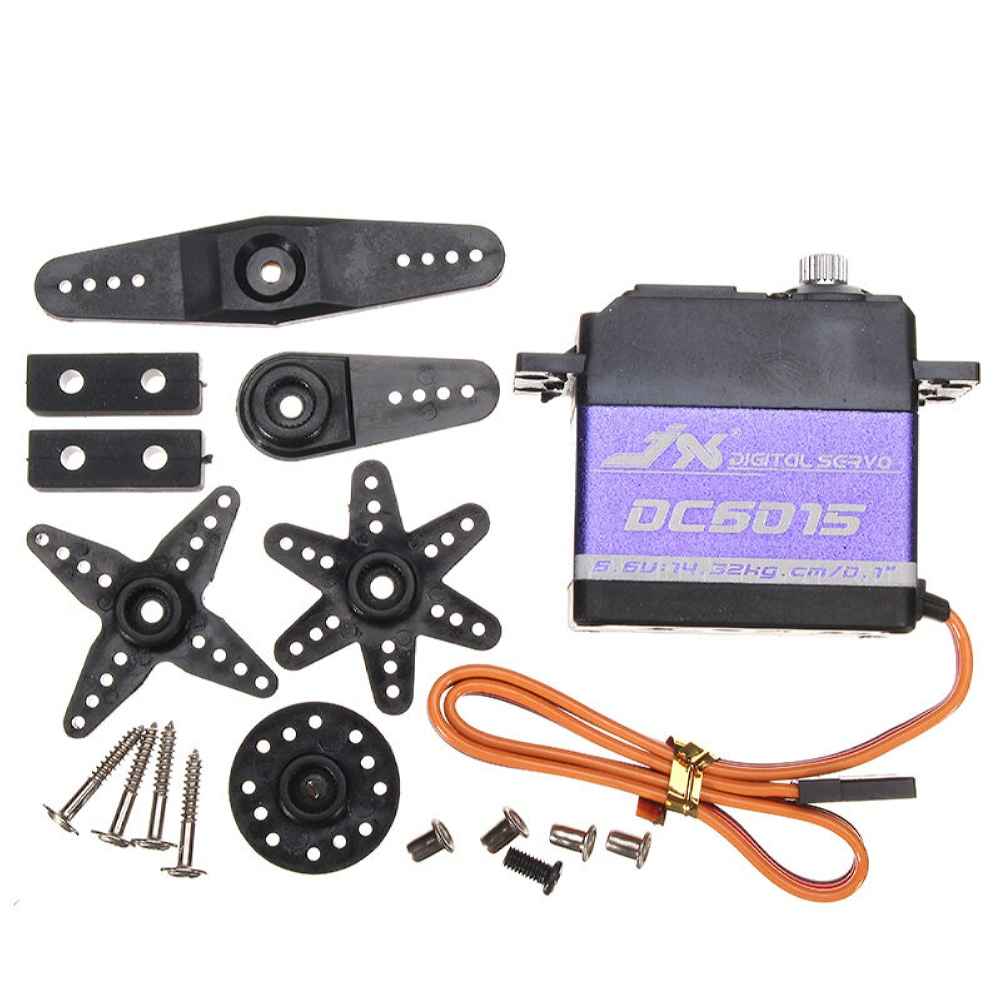

1x DC6015 Digital Servo

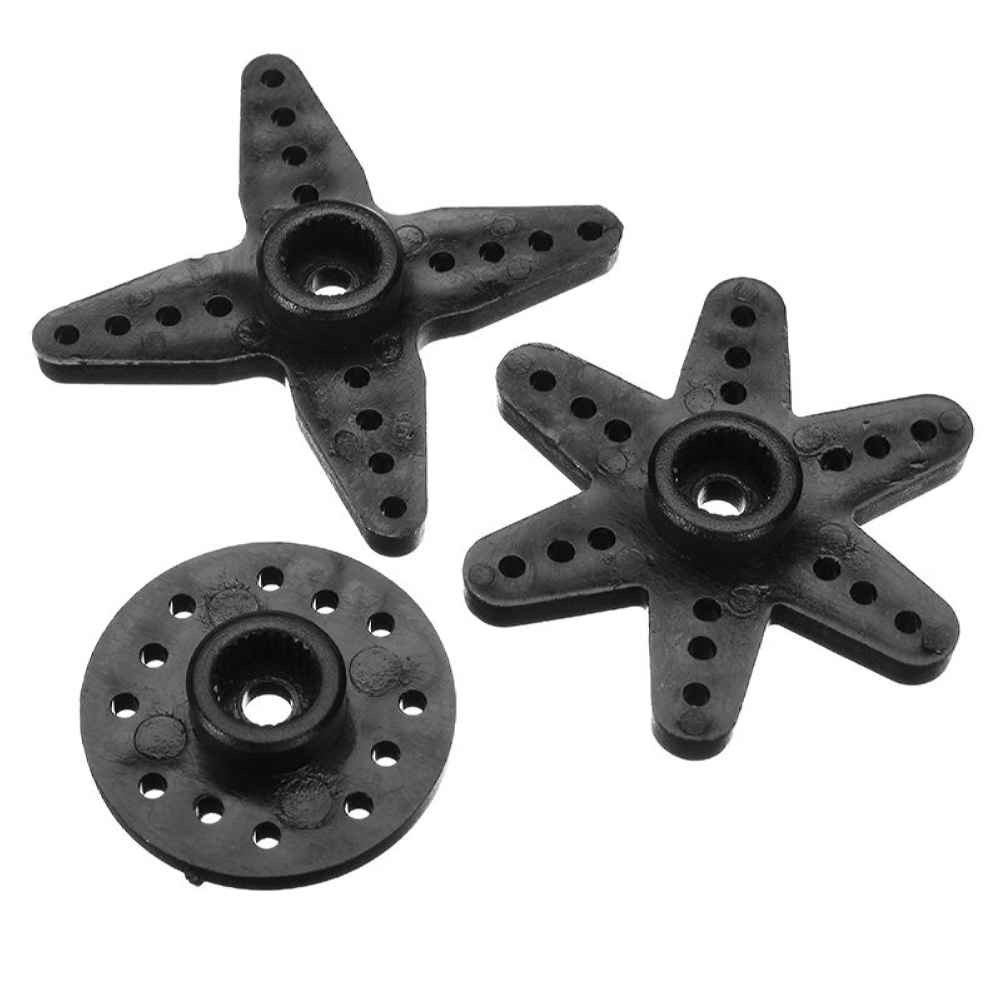

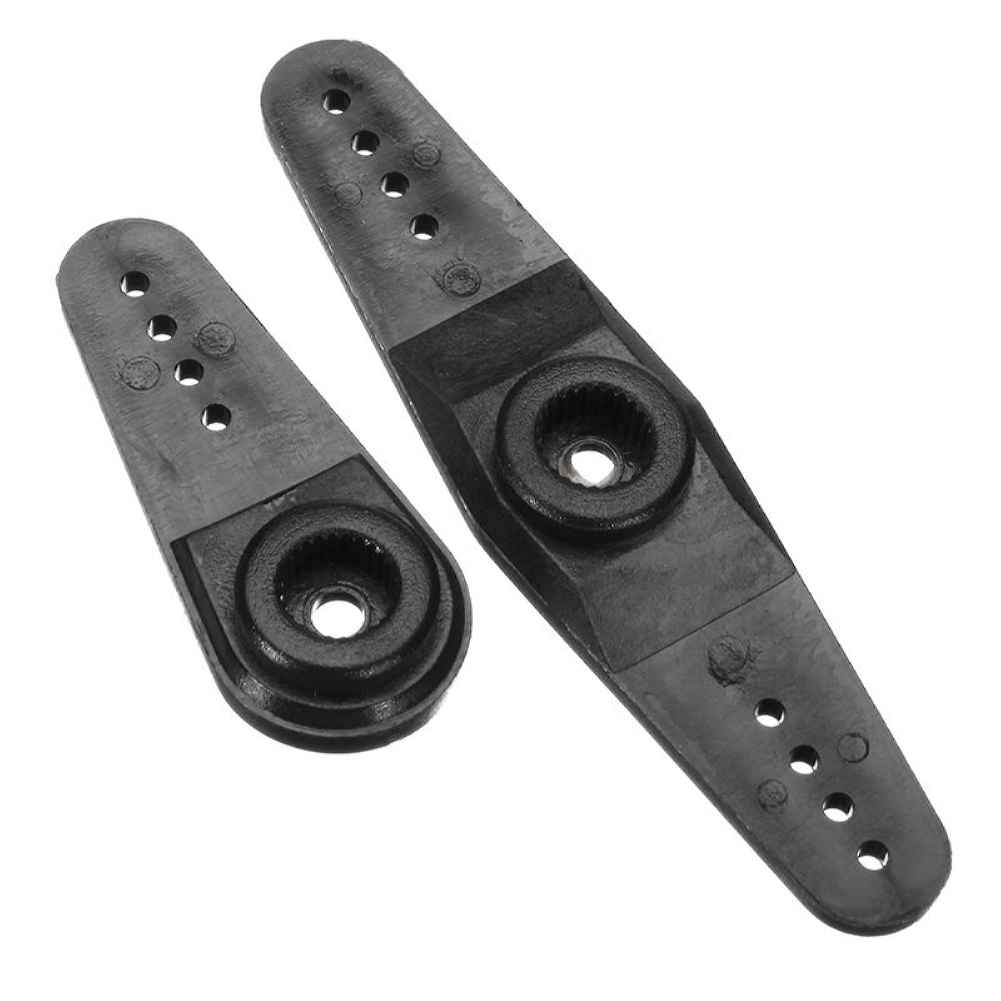

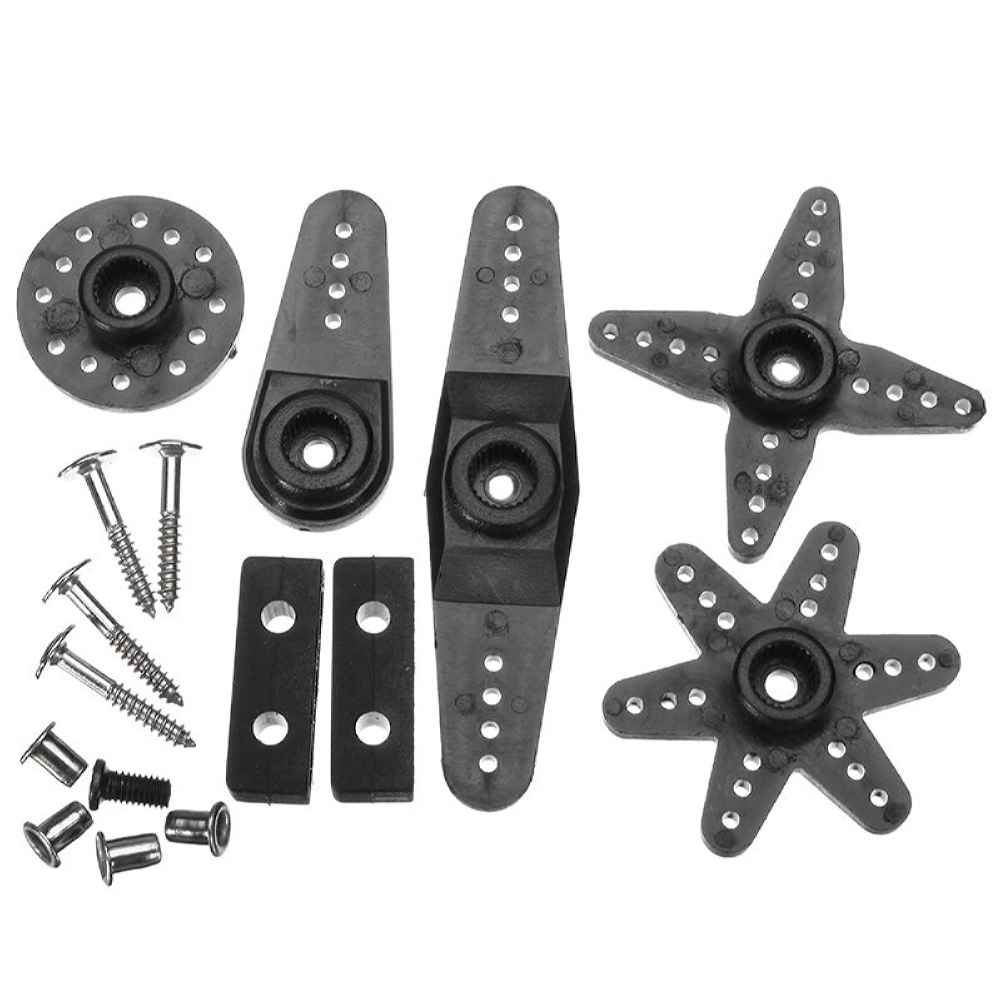

1x Servo Parts Set
,,,,,
Package Included:
1 x DC6015 Digital Servo
1 x Servo Parts Set
