Description

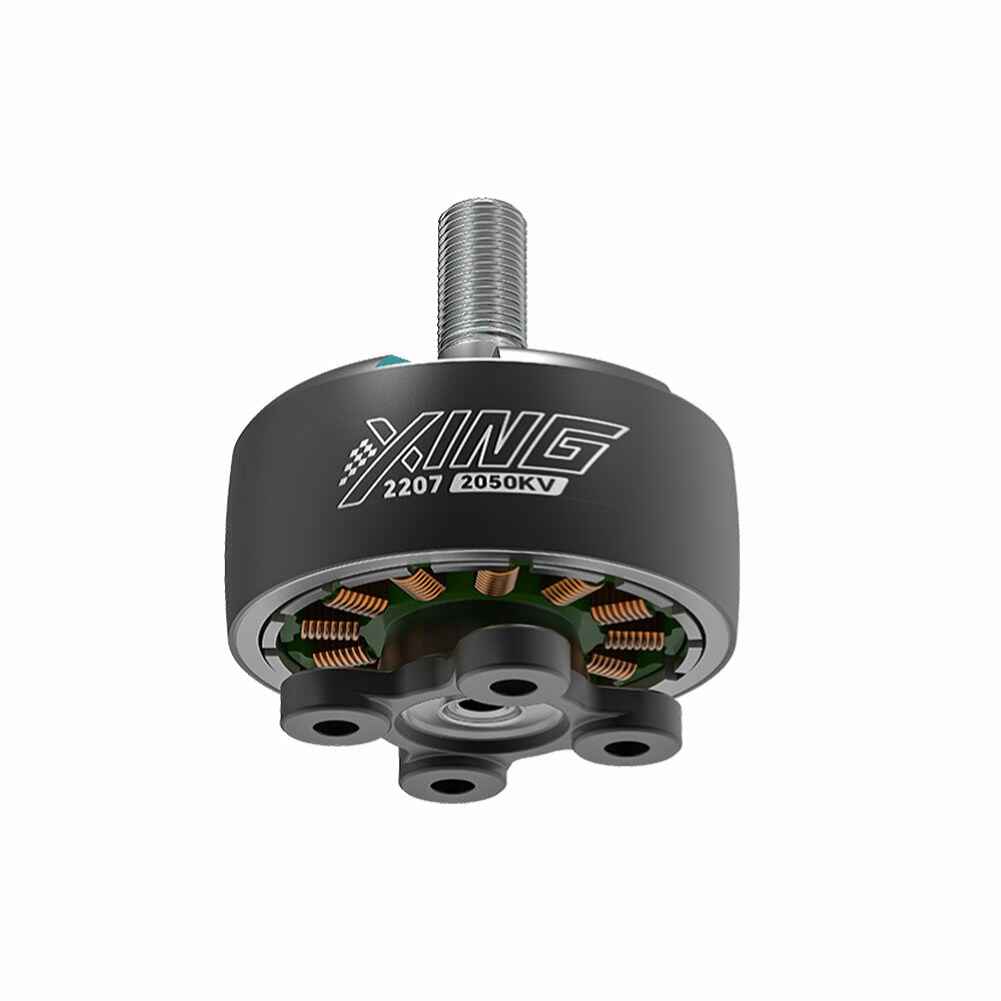

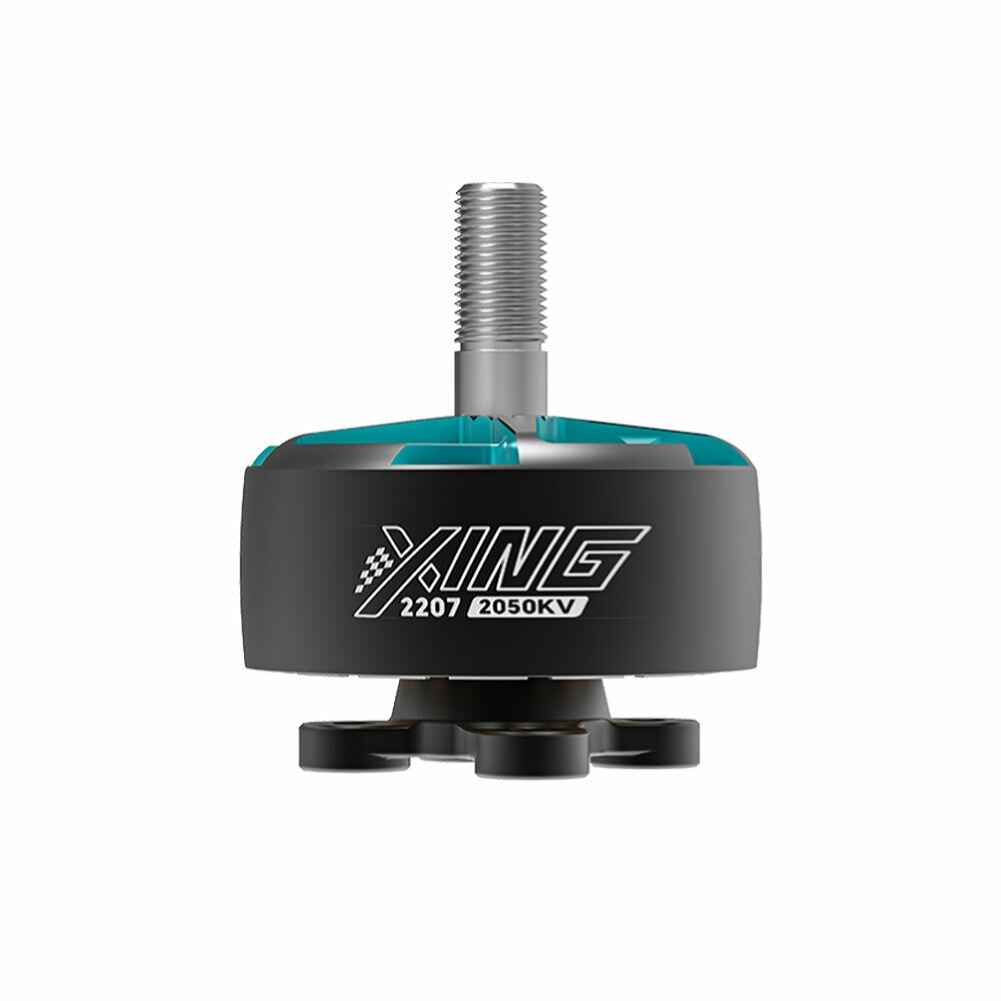

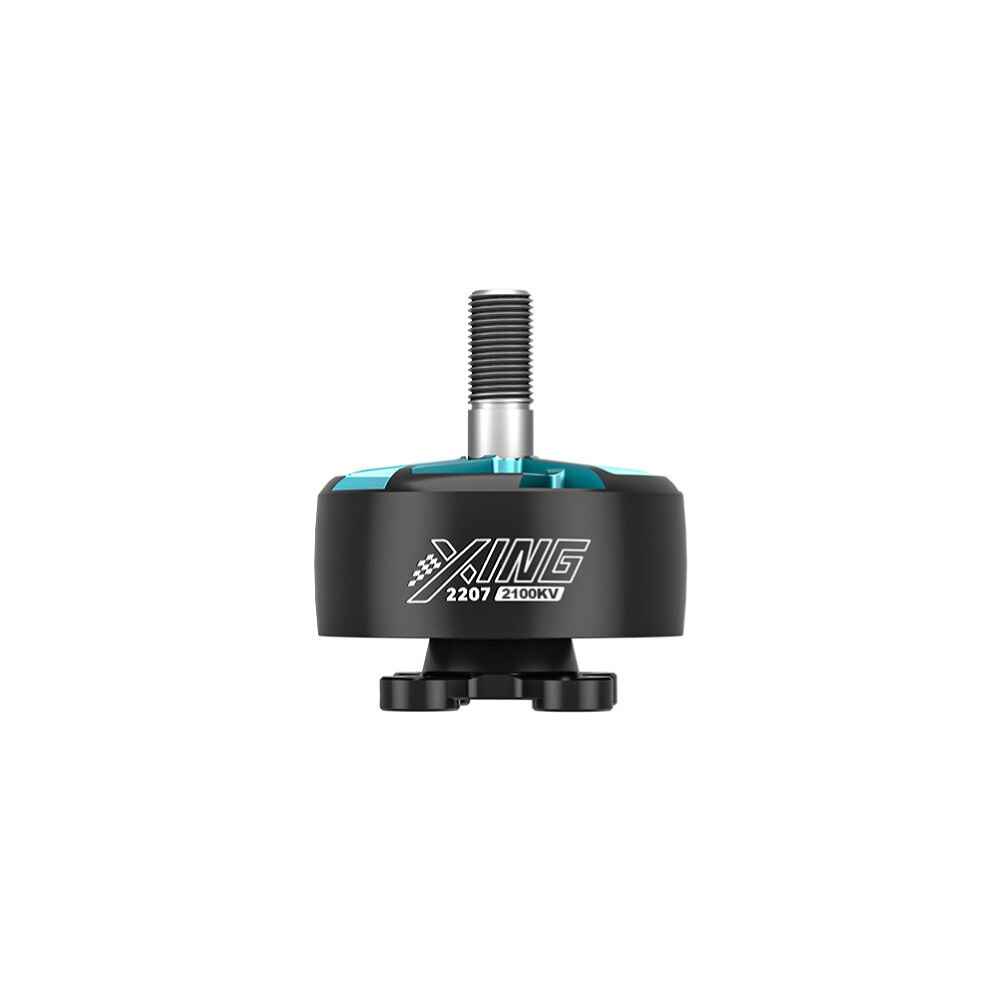

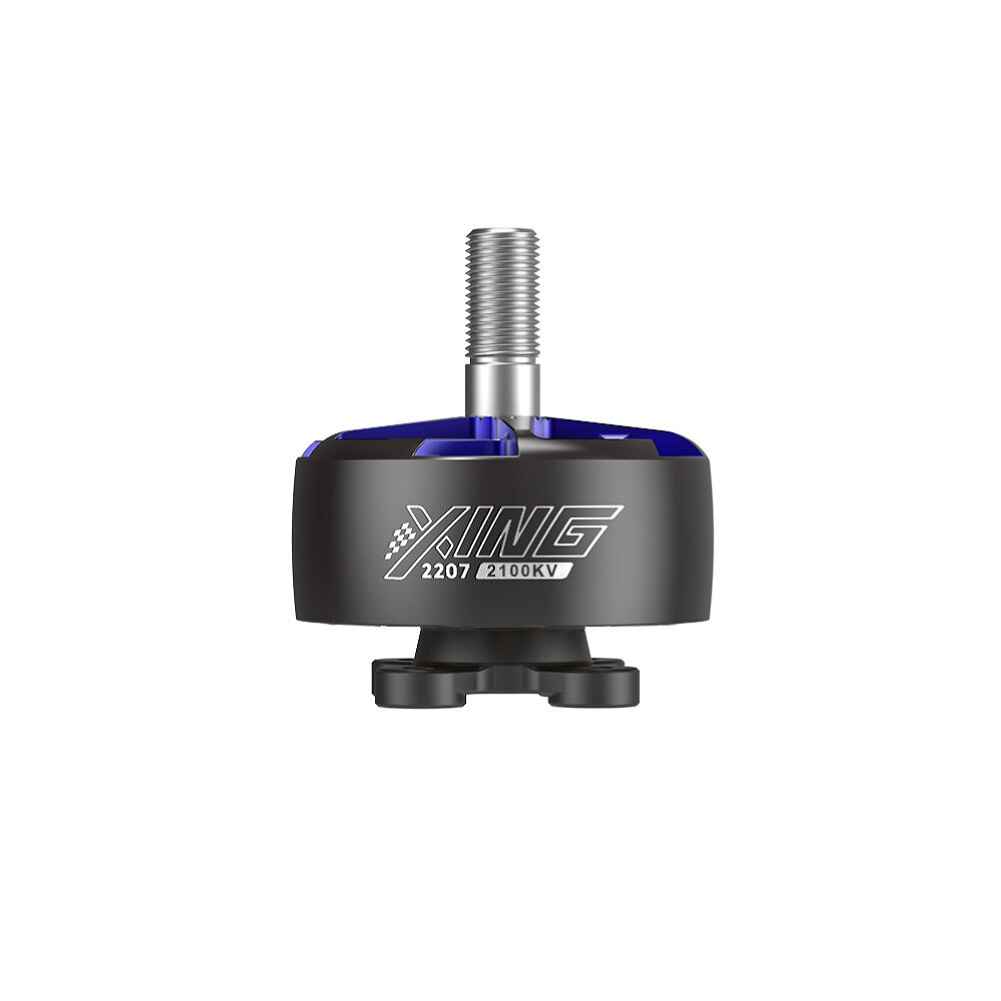

iFlight XING R5 2207 2050KV / 2100KV 6S Brushless Motor 5mm Shaft for RC Drone FPV Racing
The iFlight XING R5 2207 Brushless Motor is engineered for high-performance FPV racing drones, offering options of 2050KV or 2100KV. Weighing just 34.6g with wires, it features a robust 5mm shaft and a 12.5mm protruding length. This motor delivers outstanding power with a maximum wattage of 1166.4W and peak current of 49.53A at 25.2V input. The innovative N52H curved arc magnets enhance response time, while the small air gap and stator lamination boost efficiency. Constructed with a durable bell and shaft joint, it ensures longevity, making it ideal for competitive racing drones.
Specifications:
Brand: iFlight
Model: R5 2207
KV: 2050KV / 2100KV (Optional)
Weight(included wire): 34.6g
Dimension: 28.2*31.5mm
Interphase Resistance: 56.3m棒
Input Volts: 25.2V
Peak Current: 49.53A
Max Watt: 1166.4W
Mounting Holes: 16*16 嫉3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 12.5mm
Lead: 150mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: 嫉9*嫉4*4
Winding: Single Strand copper winding
Features:
Race-Optimized: This motor is specifically designed for Race drones, for example, Mach R5 Racing drone.
Superior Response Time: New center-slotted N52H curved arc magnets help drastically reduce the motor’s response time.
High-Quality Materials: Built with high-quality materials and a durabl bell and shaft joint for longer life.
Enhanced Efficiency: The small air gap and stator lamination help increase efficiency and power.
High Power: Capable of handling a maximum power of 1166.4W, making it perfect for high-performance drones.
Drawing Picture and Test Table
Package Included:
1 x Xing 2207 Brushless Motor
4 x M3 8 screws
1 x M5 Nut
