DarwinFPV F411 F4 Flight Controller OSD with 5V BEC & 4in1 30A ESC 3-4S Stack for Cineape 25 BabyApe II RC Drone FPV Racing

Description

20x20mm DarwinFPV F411 F4 Flight Controller OSD with 5V BEC Output & 4in1 30A ESC 3-4S Stack for Cineape 25 BabyApe II RC Drone FPV Racing

The DarwinFPV F411 3-4S 30A Stack is the most budget-friendly option in the FPV world, ideal for entry-level FPV drone enthusiasts. Designed to minimize damage, the stack is coated with glue to protect against metal particles, sand, and moisture. It features a built-in barometer, SD card slot, and multiple interface resources, supporting lightweight flight needs. The integrated LC filter reduces VTX interference, enhancing image stability during acceleration and deceleration. Compatible with most receiver protocols, this stack is perfect for assembling your own FPV racing drone.

Introduction:
DarwinFPV F411 3-4S 30A Stack is currently the cheapest stack in the FPV world, designed to reduce the budget of entry-level FPV drone as much as possible. At the same time, we have also filled the flight control and ESC with glue, which greatly reduces the risk of damage to components caused by frequent blow-ups by novices.
In a word, if you want to assemble the stack by yourself, DarwinFPV F411 3-4S 30A stack is the most cost-effective one , none of them!
Features:
1) Compared with traditional stacks, we have treated the DarwinFPV 3-6S F411 3-4S 30A stack with glue to protect it, which greatly reduces the risk of damage to the stack due to contact with metal particles, fine sand and gravel, weeds or dewdrops, etc.
2) DarwinFPV 3-6S F411 3-4S 30A stack has built-in barometer and SD card slot, and reserves rich interfaces resource, which meet the needs of lightweight flight.
3)The FC integrates LC filter, which greatly reduces the VTX interference caused by system voltage changes when the drone accelerates and decelerates, and greatly improves the image stability.
Specification:
Brand: DarwinFPV
Model: F411 FC 30A ESC Stack
Item Name: F4 Flight Controller and 30A 4in1 ESC Stack

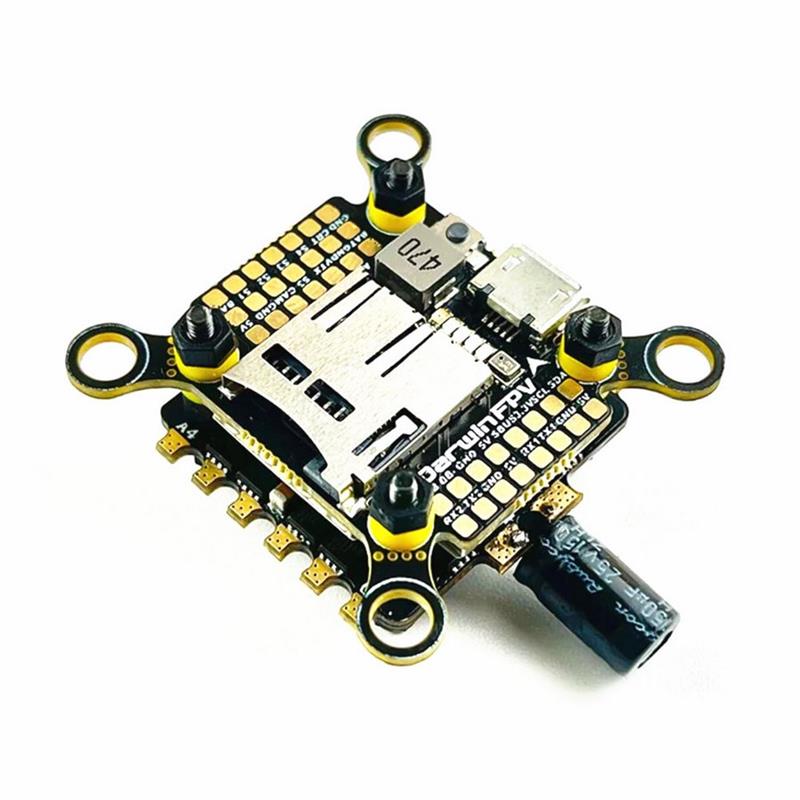

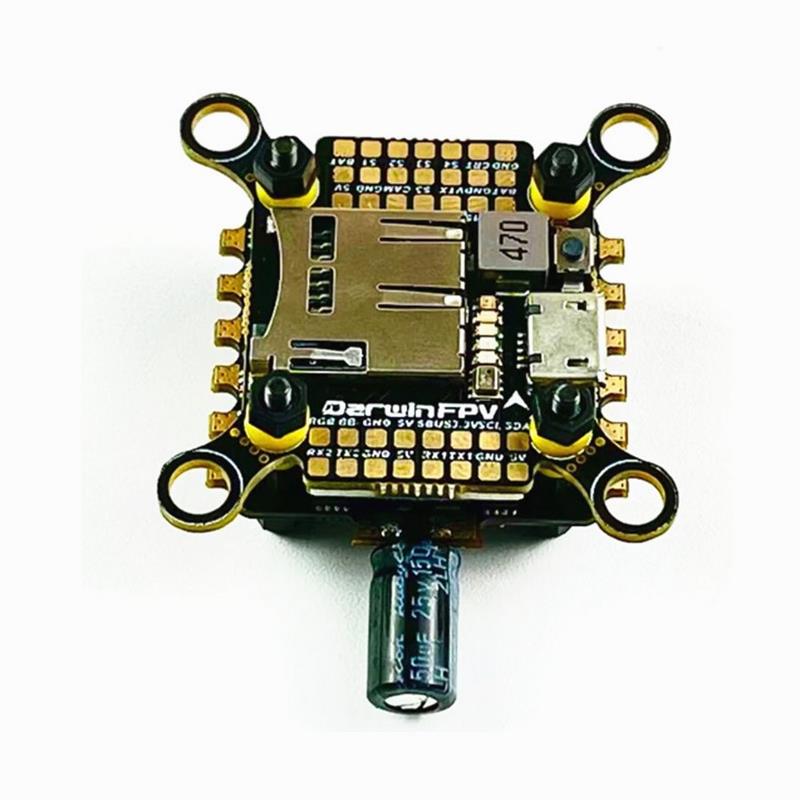

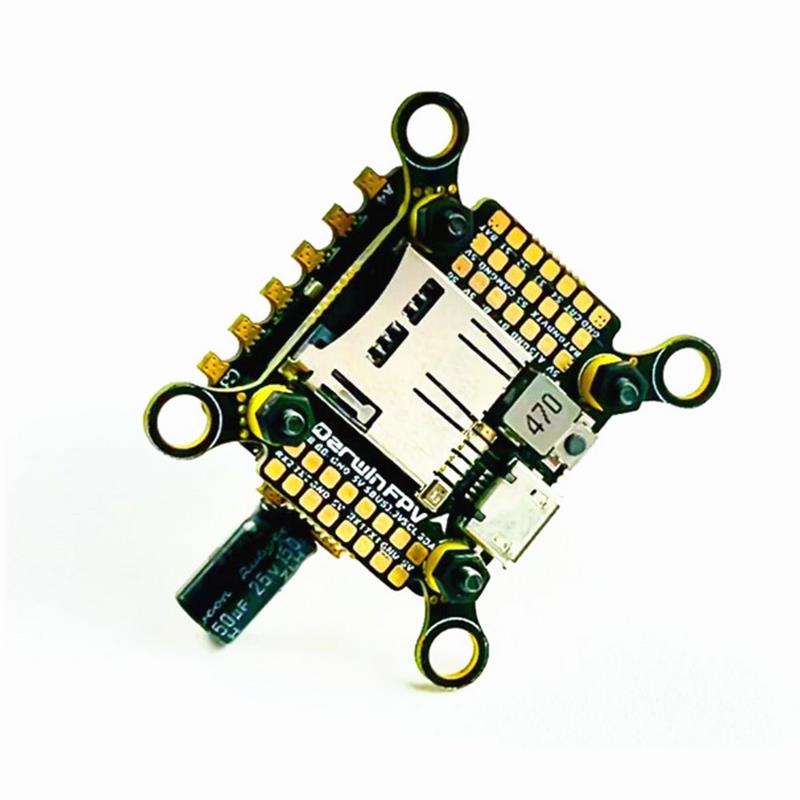

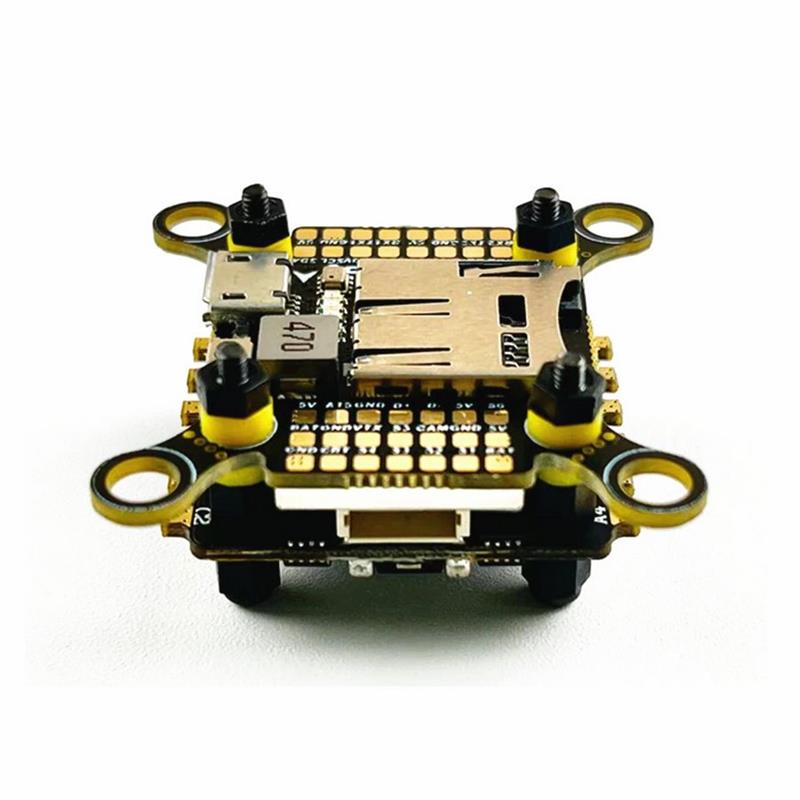

F411 Flight Controller

MCUㄩSTM32F411
GyroㄩMPU6500
OSDㄩAT7456E
Black boxㄩbuilt-in SD Card slot
FirmwareㄩDARWINF411
BEC outputㄩ5V
Input Voltageㄩ3-6S LIPO
Reserved Connector: 1x SBUS(RX1 inverter)﹜2x Uarts(1,2ㄘ﹜2x Softserial﹜1x I2C﹜1x RGB﹜1x Buzzer﹜1x USER(A15)﹜1x USB
Pcb Sizeㄩ37mm x 37mm
Mounting Holesㄩ20mm x 20mm﹜30.5mm x 30.5mm
– It supports receivers of most protocols on the market, such as PPM, PWM, IBUS, SBUS, SPEKTRUM and CRSF of ELRS.

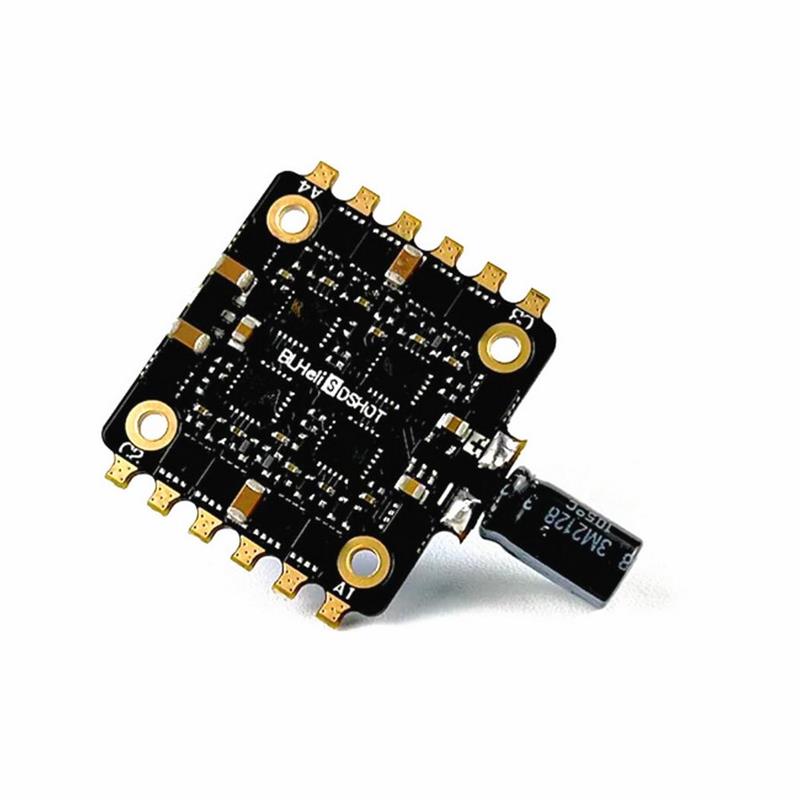

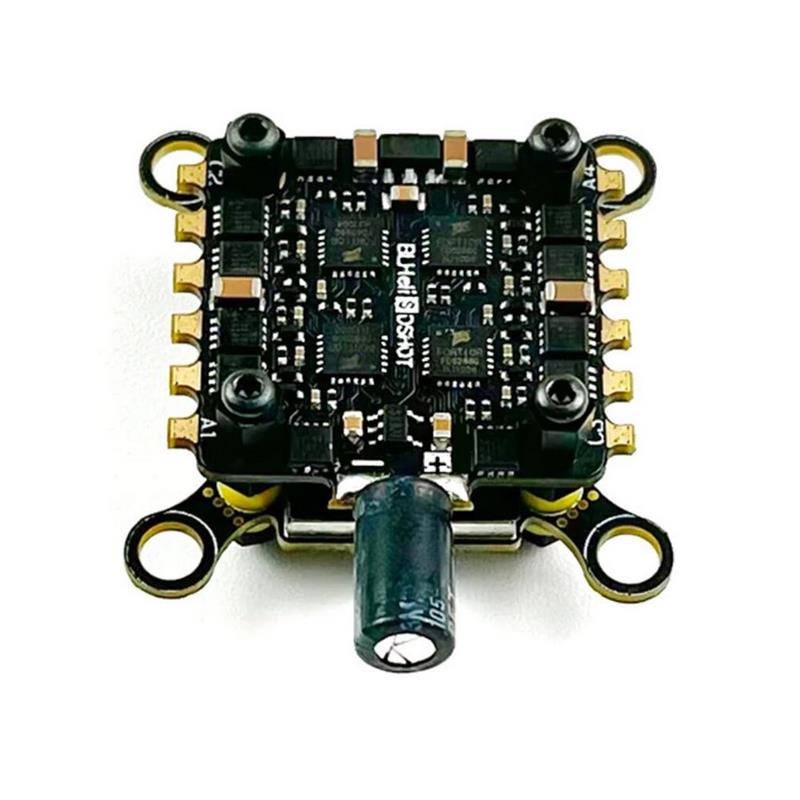

30A 4in1 ESC

MCUㄩEFM8BB21
Continuous Currentㄩ30A
Peak Currentㄩ35A ㄗ10Sㄘ
BEC outputㄩNon
Input voltageㄩ3-4S LIPO
Throttle SignalㄩDshot600﹜Oneshot125
Current Sensorㄩ Non
MOSㄩ3 x3
TargetㄩG_H_30
PCB Sizeㄩ29mm x 31mm
Fixed Holeㄩ20mm x 20mm

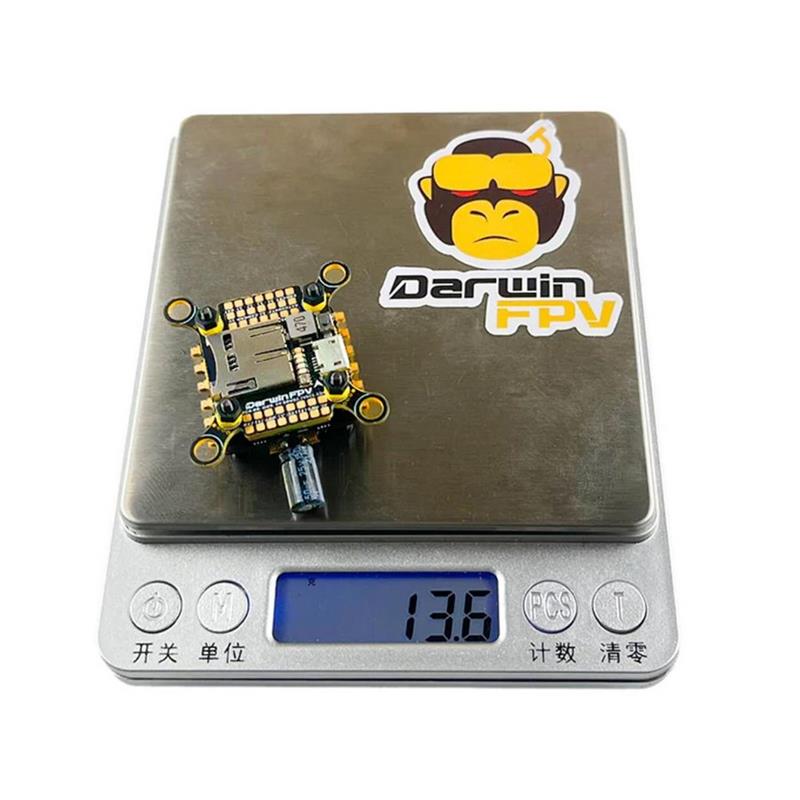

Weightㄩ4.9g

Attention:
Because the black box function of the target firmware ‘DARWINF411’ is currently not compatible with Btaflight 4.3.0 and 4.3.1 (the black box function is expected to be added to the official version 4.3.2) If you need to use the black box urgently, please upgrade to the 4.4.0 development version or downgrade to 4.3.0_RC3 and below firmware version.

Package Included:
1 x F411 Flight Controller
1 x 30A 4in1 ESC
1 x 20AW power cable
1 x XT30
1 x cable pack
1 x 1.8cm 6Pin single SH1.0 wire
1 x sticker
