FlyfishRC Volador II VX3/VX3.5 T700 Carbon Fiber Frame Kit for DJI O4 Air Unit, 3 Inch/3.5 Inch FPV Racing Drone

Description

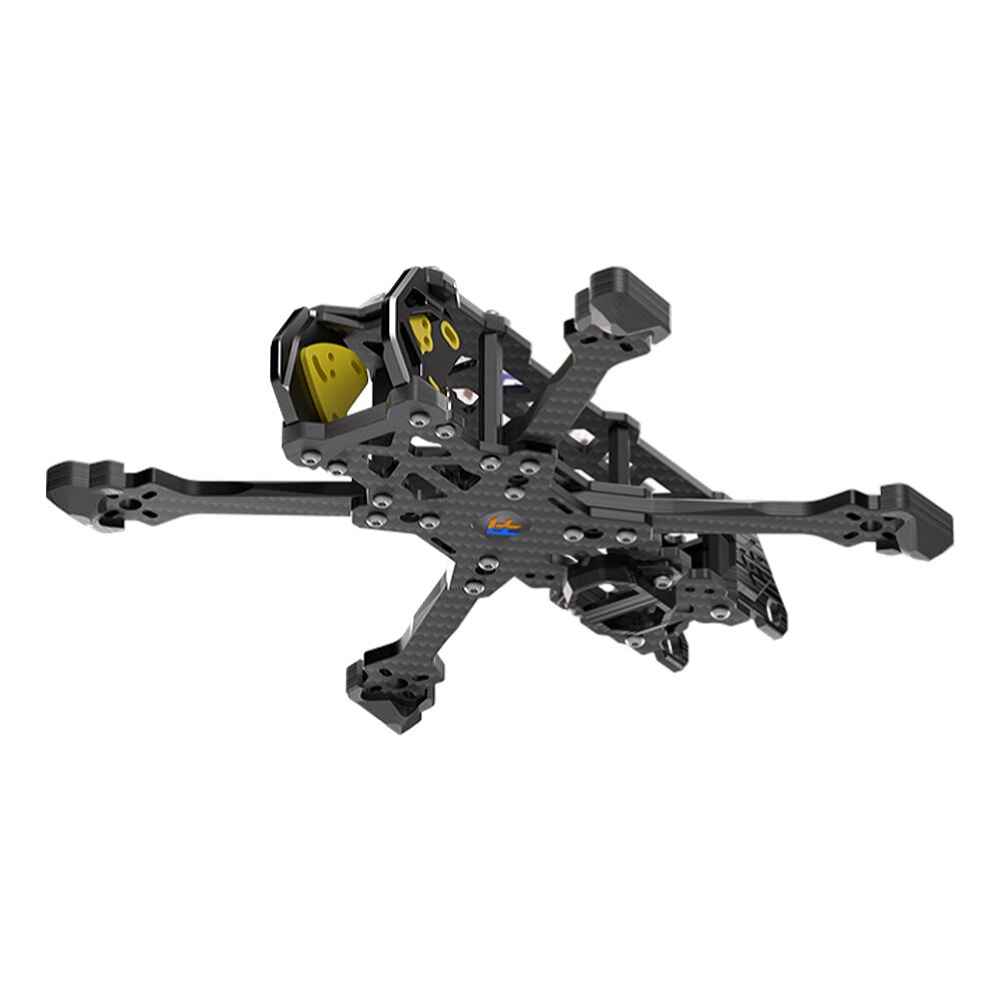

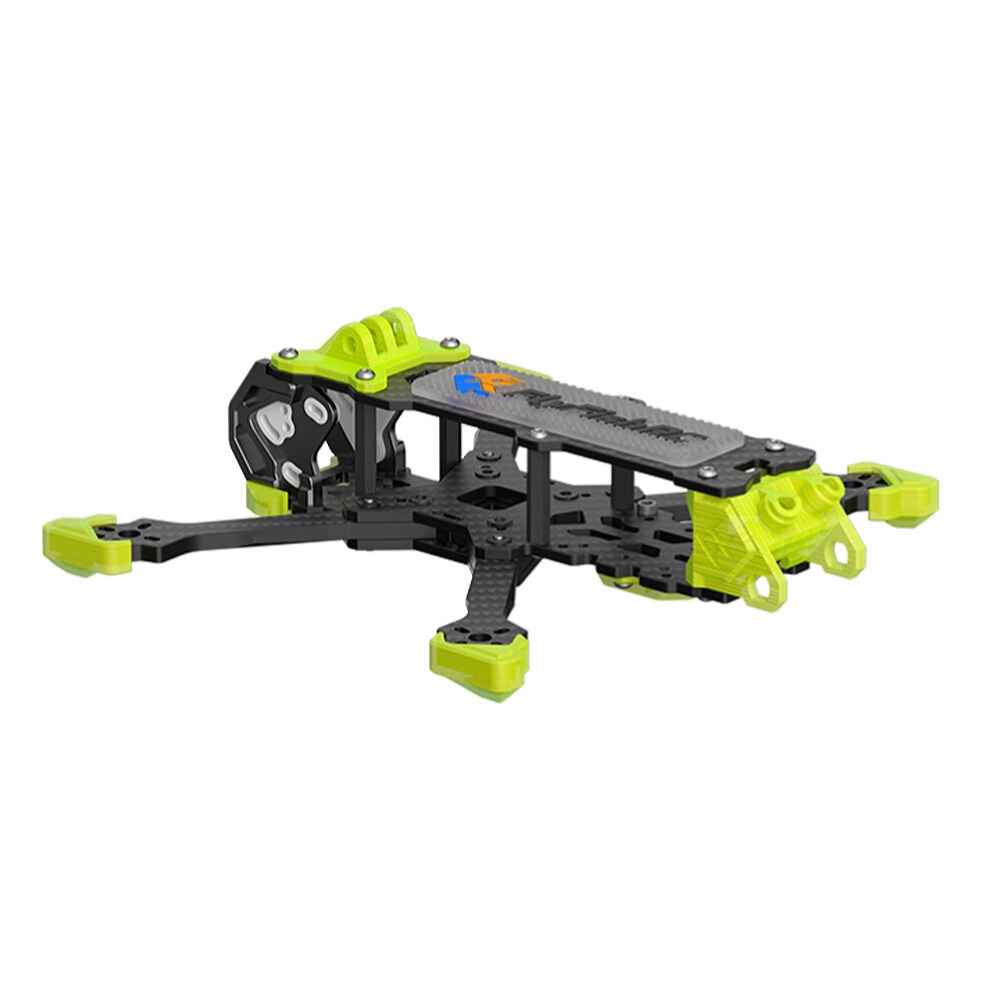

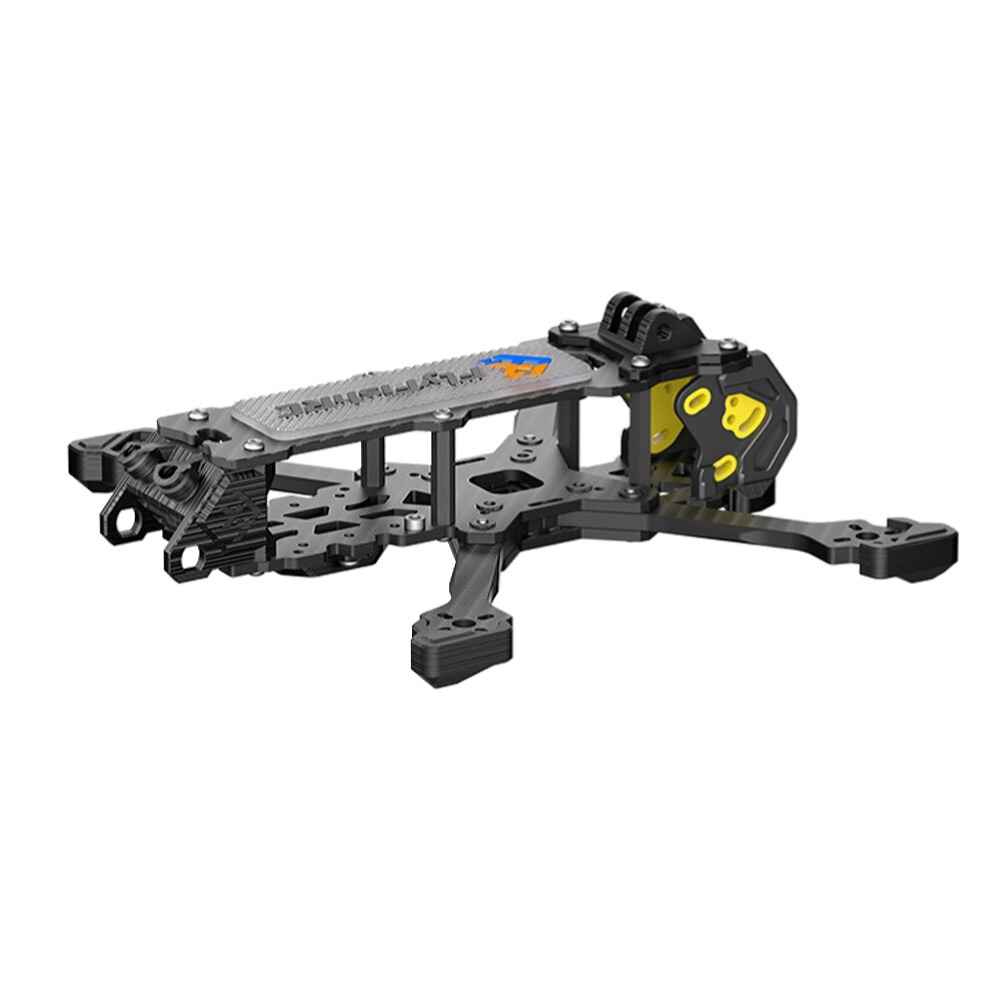

FlyfishRC Volador II VX3 144mm / VX3.5 160mm Wheelbase 3 Inch 3.5 Inch T700 Carbon Fiber Frame Kit Support DJI O4 Air Unit for DIY RC FPV Racing Drone

Discover the FlyfishRC Volador II VX3 and VX3.5 frame kits, engineered for an exceptional FPV flying experience. These frames offer the agility of a 5-inch drone in a compact size, featuring a Squashed X design for superior control. Built with T700 carbon fiber and CNC aluminum alloy, the frame ensures durability and a sleek finish. The design supports both analog and HD systems, with integrated TPU components for a tidy setup. A unique silicone damping board is included for the DJI O4 Air Unit, reducing unwanted vibrations. The kit includes all necessary accessories for easy assembly, with Loctite thread-locking adhesive to enhance reliability.

Description:We are pleased to announce the birth of our Volador VX3 inch frames for FPV flying, these frames provide a 5-inch flying experience and are highly compatible and simple in their structural design. Necessary accessories are provided to make assembly easy, convenient, and organized.The frame is designed with a Squashed X configuration, allowing for maximum control and compatibility with a range of analog and HD systems available in the market. The high-quality TPU components are cleverly designed to facilitate a more integrated and neat installation, ensuring that even pilots with a degree of OCD will be satisfied with the cleanest possible appearance.We have also designed a silicone damping board plugin specifically for the installation of the DJI O4 Air Unit camera. This will eliminate any possible jello in the DVR and is also compatible with cameras in 19mm/20mm format.The frame is made of high-strength CNC aluminum alloy components and the highest quality T700 carbon fiber plates, with a super smooth surface and uniformly chamfered edges. Say goodbye to damaged cables and battery straps! And, isn’t it just more beautiful to look atThe frame comes equipped with all the necessary accessories for analog and HD builds, and hardware with Loctite thread-locking adhesive is provided to increase reliability. The tight structural design minimizes resonance.
Specifications:
Brand: FlyfishRC
Model: Volador II
Item Name: 3 Inch / 3.5 Inch X-Type Frame Kit
Wheelbase:144mm / 160mm
Arm Thickness: 3.5mmTop plate thickness: 2mmMiddle plate thickness: 2.5mmBottom plate thickness: 2.5mmKeystone thickness: 3.5mmCNC Side plate thickness: 5mmPropeller size: 3~3.5 inchMaterial: T700 carbon plateFPV cam spacing: 19mm/20mmVX3 Weight: 68.3g(with TPU parts)VX3.5 Weight: 70.5g(with TPU parts)Colour: Yellow/BlackVX3 Total Dimensions:118mm*135mmVX3.5 Total Dimensions:127.5mm*148mmStack mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
Recommend Parts ( NOT Included):FC & ESC: 25.5*25.5mm SpeedyBee F405 AIOBrushless Motor: Happymodel EX1204 1204 5000KV 2-4S / 6500KV 2-3S Brushless Motor /
Happymodel EX1404 1404 2750KV 3500KV 3-4S / 4800KV 3S 1.5mm Shaft Brushless MotorPropeller: GEMFAN 3016 3 Inch 3-blade PC Propeller / HQProp T3.5×2.5×3 3525 3.5 Inch Propeller VTX & Camera: DJI O4 Air Unit
Lipo Battery: URUAV 15.2V 660mAh 90C 4S LiPo Battery

Package Included:
1 x Volador VX3/VX3.5 Frame Kit (Optional)
