Rcinpower GTS V4 2207 Brushless Motor, 2040KV/1960KV, 5-6S, for FPV RC Racing Drone

Price range: 49.26$ through 55.66$

  • High-quality design for durability and performance
  • Available in 1960KV and 2040KV options
  • Compact size ideal for mini quadcopters
  • Easy installation with various ESC compatibility

Description

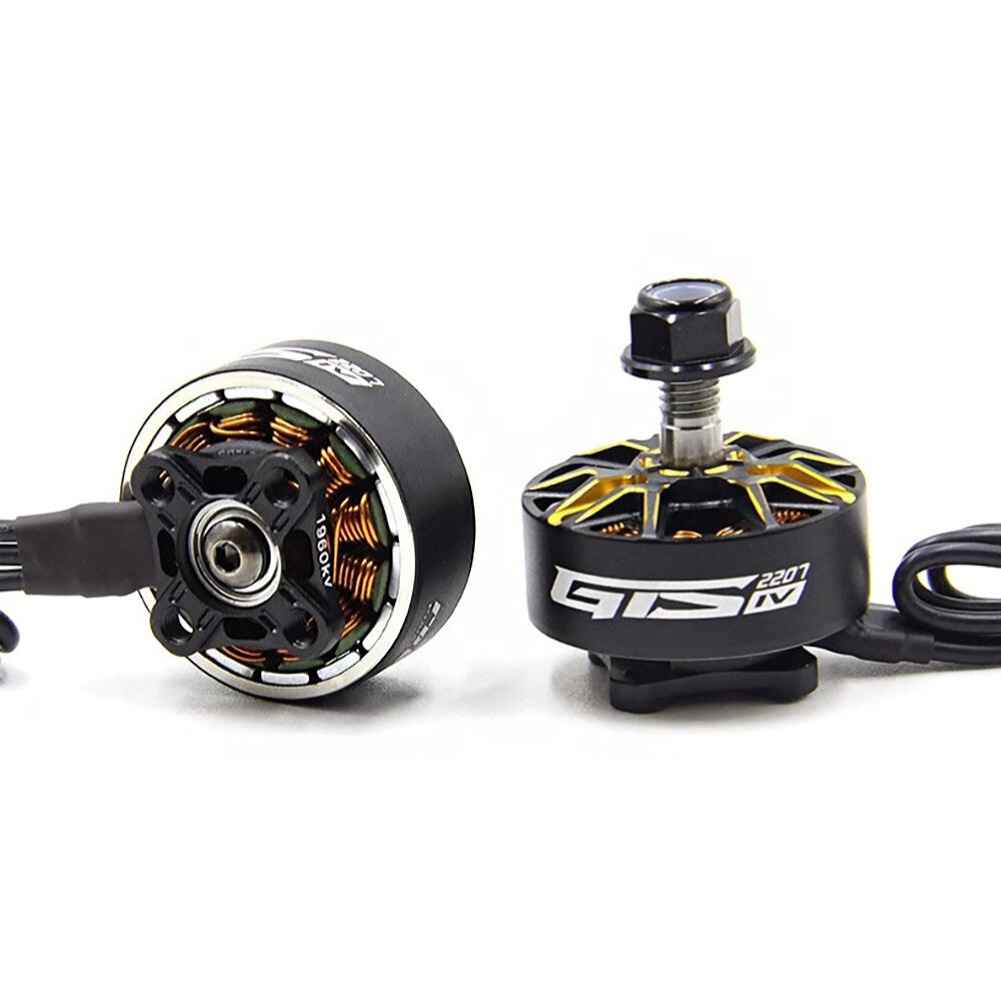

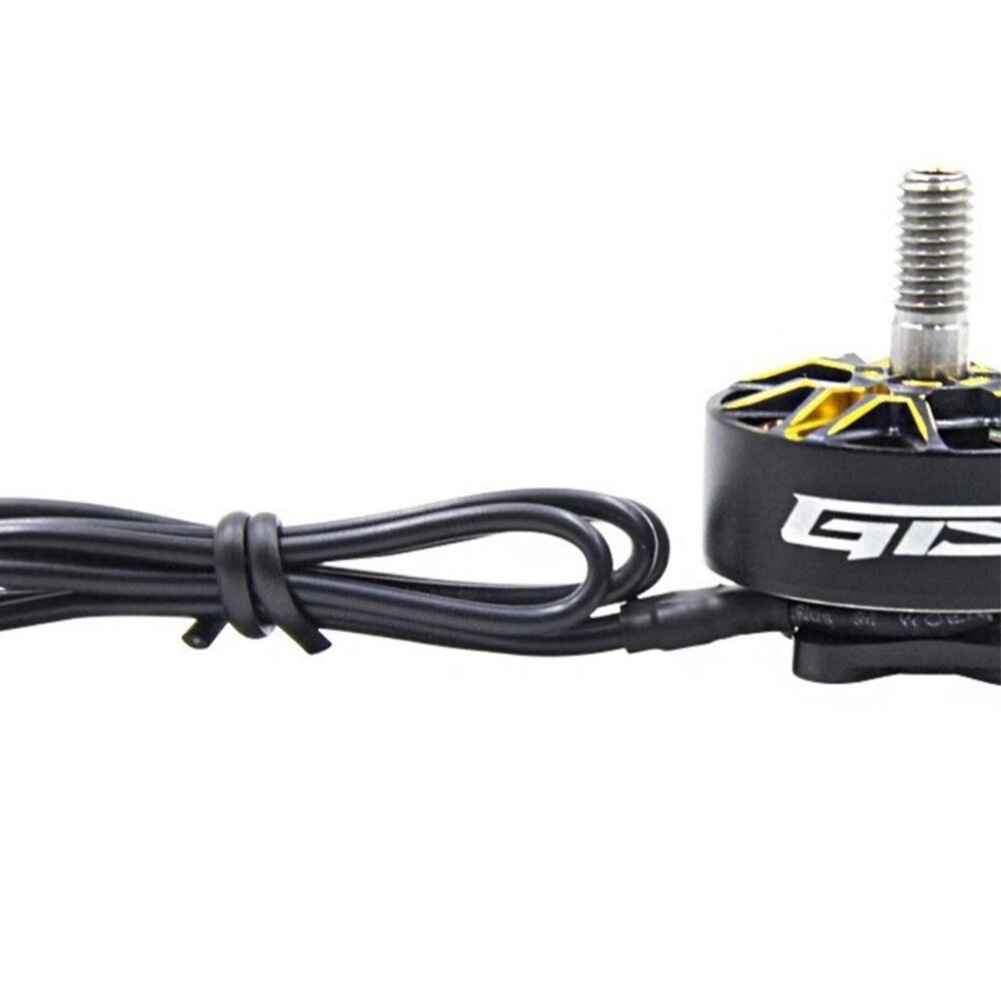

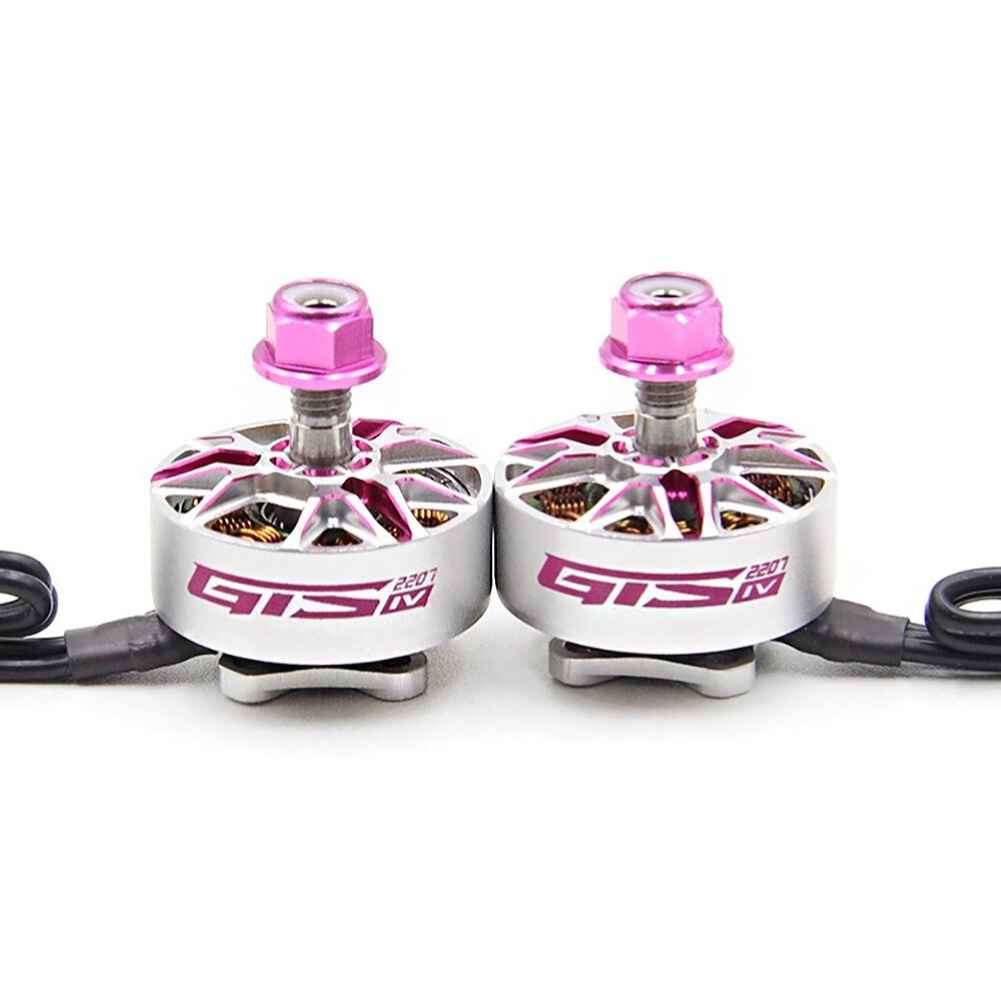

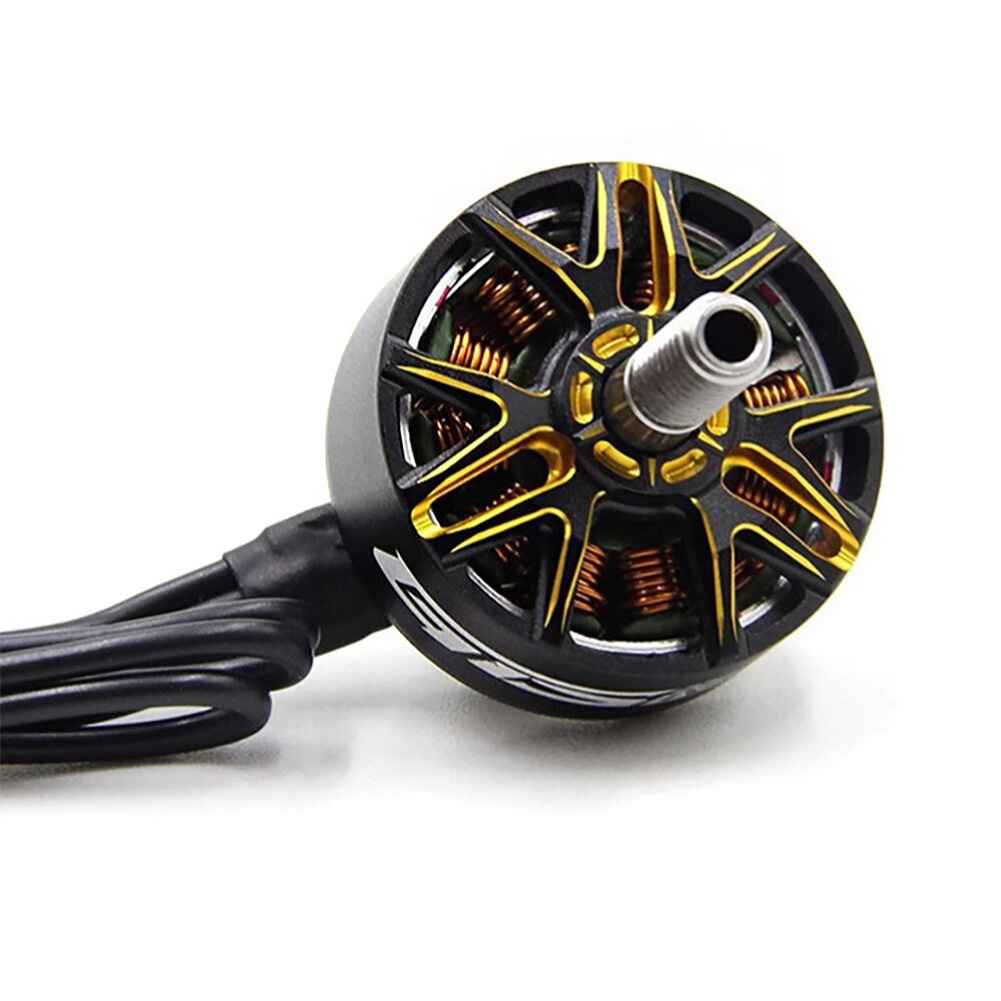

Rcinpower GTS V4 2207 2040KV 1960KV 5-6S Brushless Motor for FPV RC Racing Drone

The Rcinpower GTS V4 2207 brushless motor is designed for FPV RC racing drones, offering high performance with optional KV ratings of 1960KV and 2040KV. This motor is built with a 12N14P configuration and a hollow 4mm shaft, providing durability and precision. With a stator diameter of 22mm and length of 7mm, it is compact and perfect for mini quadcopters or toothpick drones. The motor supports 5-6S Lipo batteries and delivers a maximum continuous power of 1200W to 1300W, depending on the KV version. It ensures easy installation and is compatible with various flight controllers and electronic speed controllers (ESC).

Specifications:
Brand: Rcinpower
Model: GTS V4 2207
Optional KV: 1960KV / 2040KV
Optional Color: Black / Siliver
Quantity: 1PC ( CW Screw Thread)

1960KV Version

KV: 1960
Configu-ration: 12N14P
Stator Diamter: 22mm
Stator Length: 7mm
Shaft Diameter: 4mm(Hollow)
Motor Dimension(Dia.*Len): 嫉27.3*30.3mm
Weight(g): 29.9 (2cm Wire)
Idle current(10)@10V(A): 1
No.of Cells(Lipo): 5~6S
Max Continuous Power(W) 5S: 1200
Internal Resistance: 58m棒
Max Current(5S): 50.2A
Max.Effciency Current: (6-9A)>86%

2040KV Version

KV: 2040
Configu-ration: 12N14P
Stator Diamter: 22mm
Stator Length: 7mm
Shaft Diameter: 4mm(Hollow)
Motor Dimension(Dia.*Len): 嫉27.3*30.3mm
Weight(g): 29.9 (2cm Wire)
Idle current(10)@10V(A): 1.1
No.of Cells(Lipo): 5~6S
Max Continuous Power(W) 5S: 1300
Internal Resistance: 56m棒
Max Current(5S): 54A
Max.Effciency Current: (7-10A)>86%

Features:
– High-quality Design: Made with precision and durability for long-lasting performance.
– Versatile KV Options: Choose from 1960KV, 2040KV to suit your specific needs.
– Compact Size: It ideal for mini quadcopters or toothpick drones.
– Easy Installation: Designed for easy installation and compatibility with various flight controllers and electronic speed controllers (ESC).

Package Included:

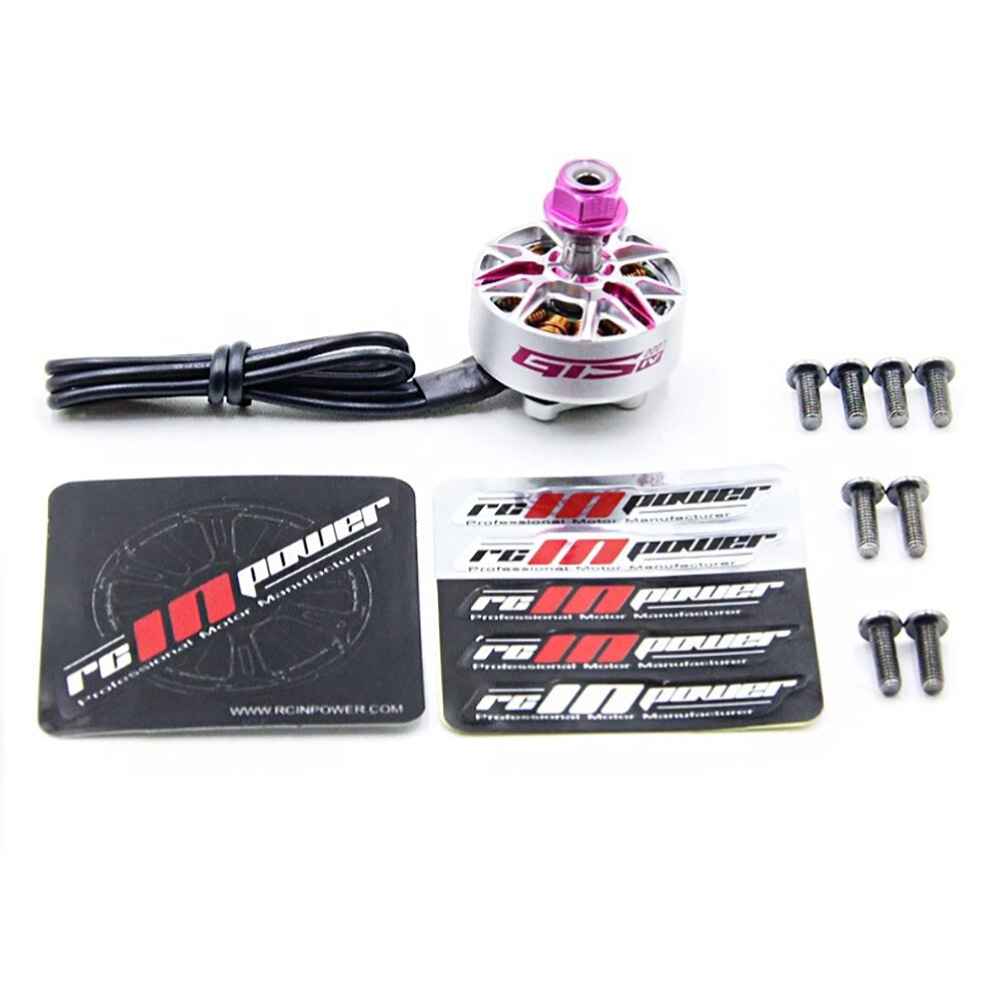

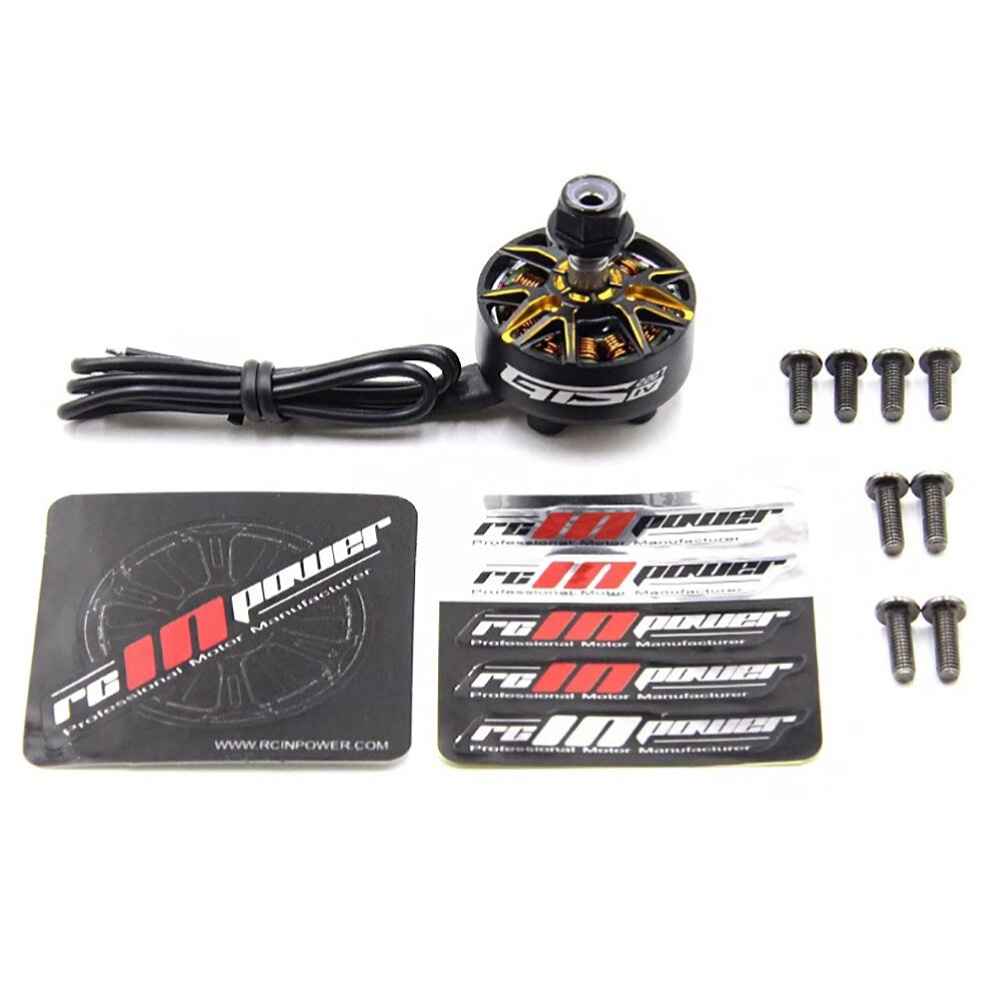

1 x Rcinpower GTS V4 2207 2040KV/1960KV 5-6S Brushless Motor 1 set x Screws

Recommended Category:
Toys & Games > Hobbies > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Multi Rotor Parts

Additional information

Weight0.062 kg
KV

1960KV, 2040KV

Color

Black, Silver
