Description
Happymodel SE0802 0802 16000KV 19000KV 25000KV 1-2S Brushless Motor for Mobula7 Mobula6 RC Drone FPV Racing

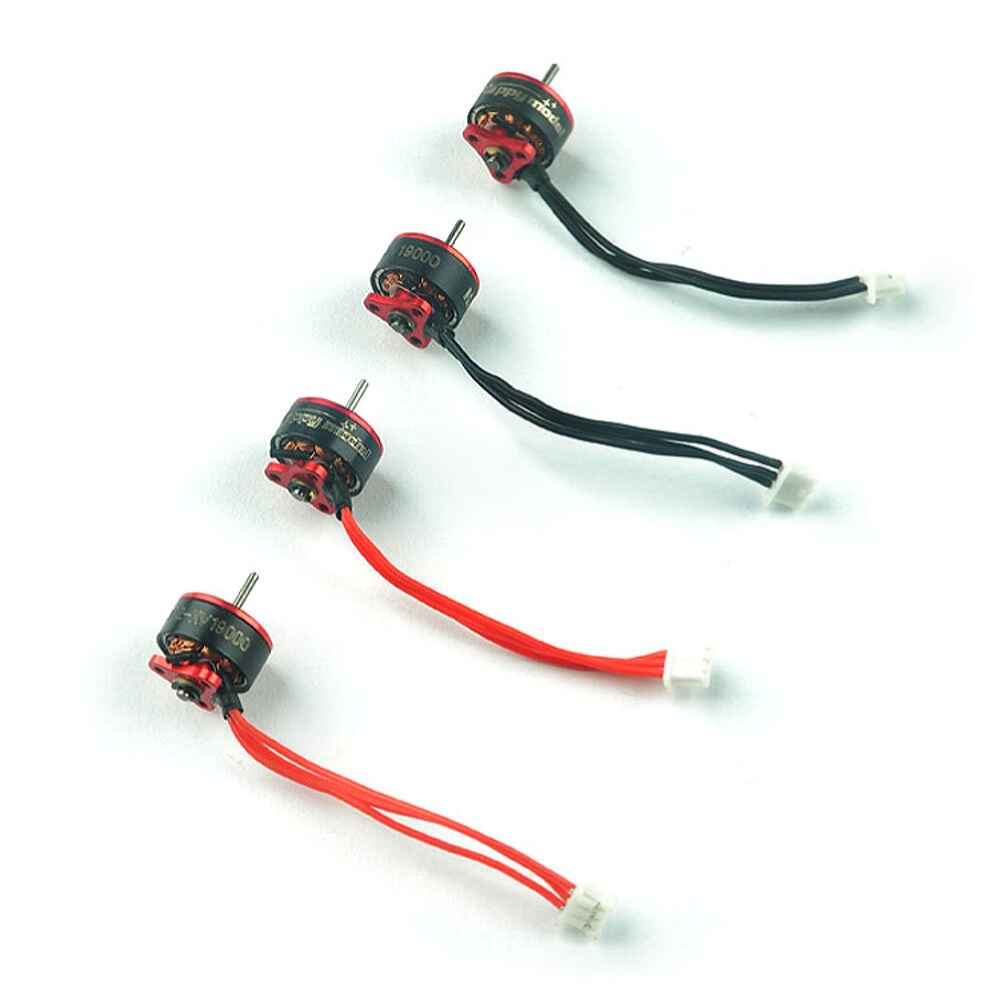

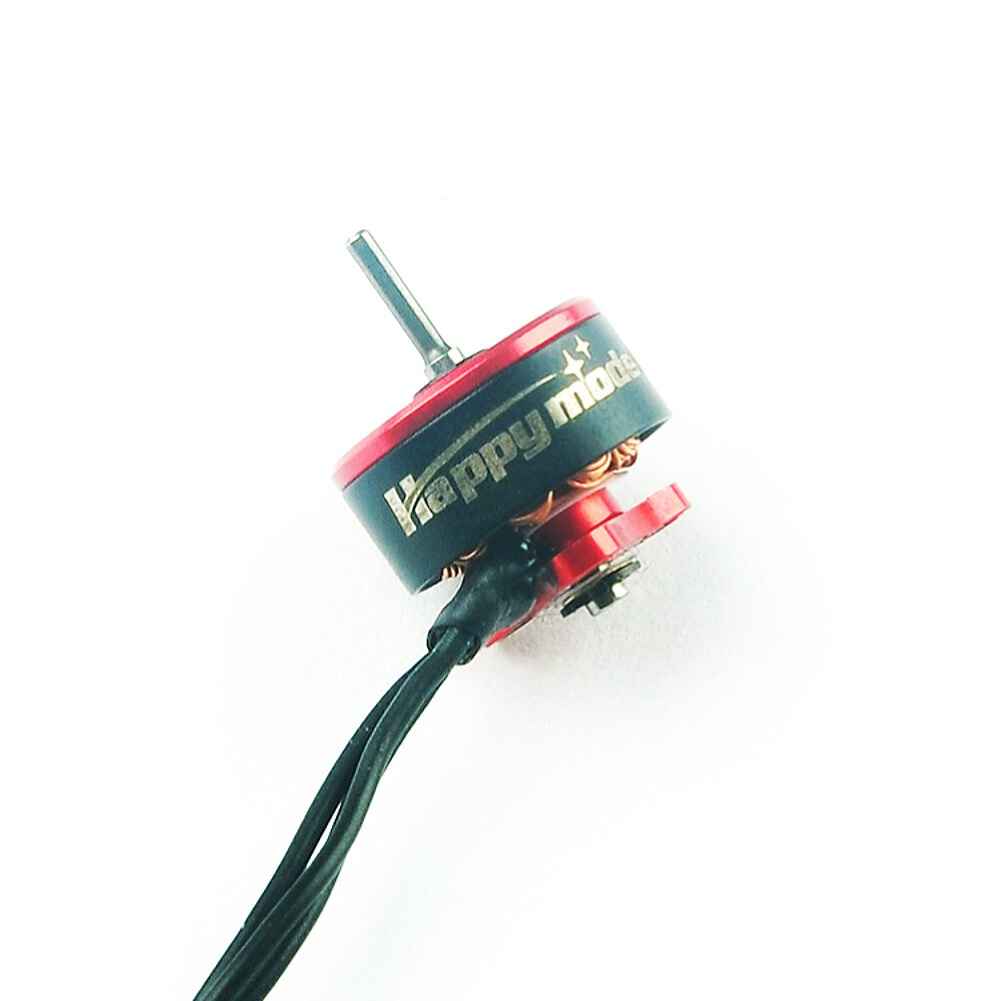

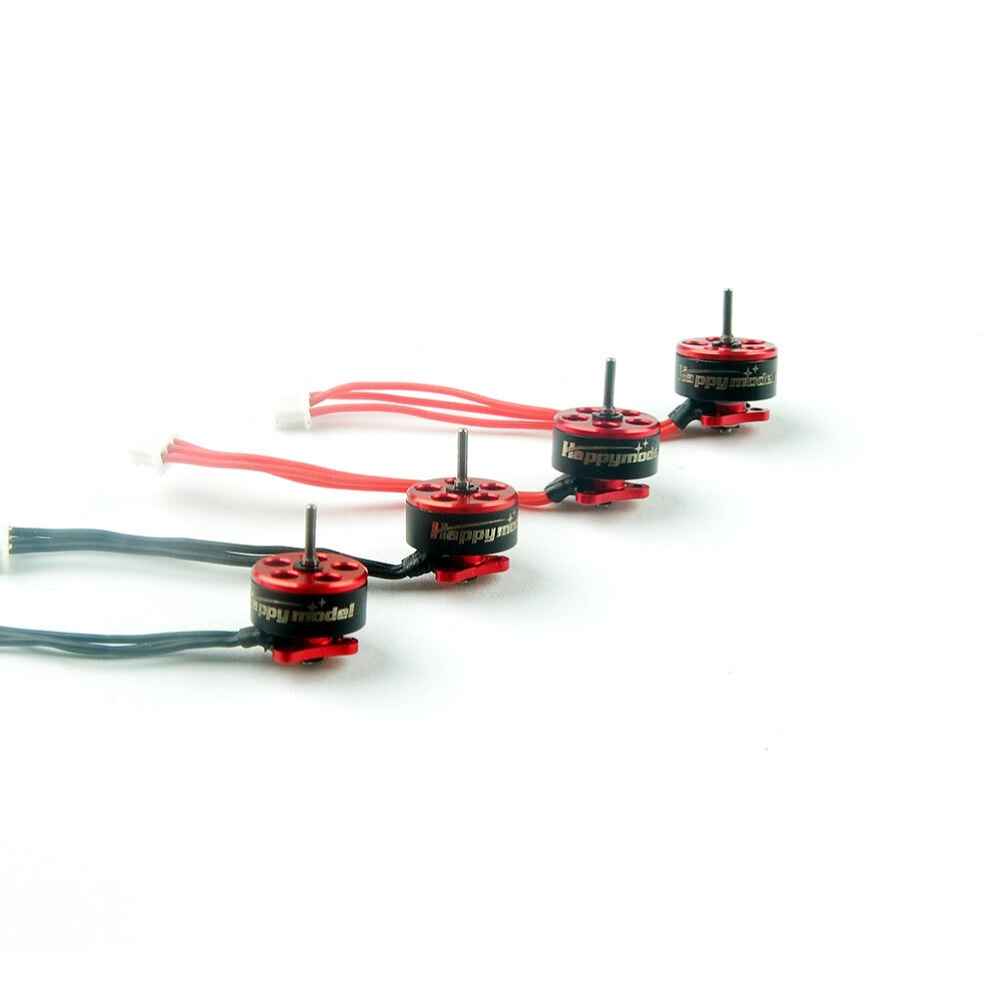

The Happymodel SE0802 Brushless Motor is designed for FPV racing drones like Mobula7 and Mobula6. Available in three KV options〞16000KV, 19000KV, and 25000KV〞this motor is compatible with 1-2S Lipo batteries. It features a 9N12P configuration, a 1.0mm shaft diameter, and weighs just 1.9g. The SE0802 motor is engineered with a double E-clip design to prevent the motor bell from detaching during flight, ensuring reliability and performance. It also boasts excellent dynamic balance, making it a perfect choice for high-speed drone racing.
Specification:
Brand name: Happymodel
Item name: SE0802 1-2S brushless motor
KV: 16000KV, 19000KV 25000KV (option)
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): ?10.5mm*14.9mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1-2S
Wire length(include connector): 40mm

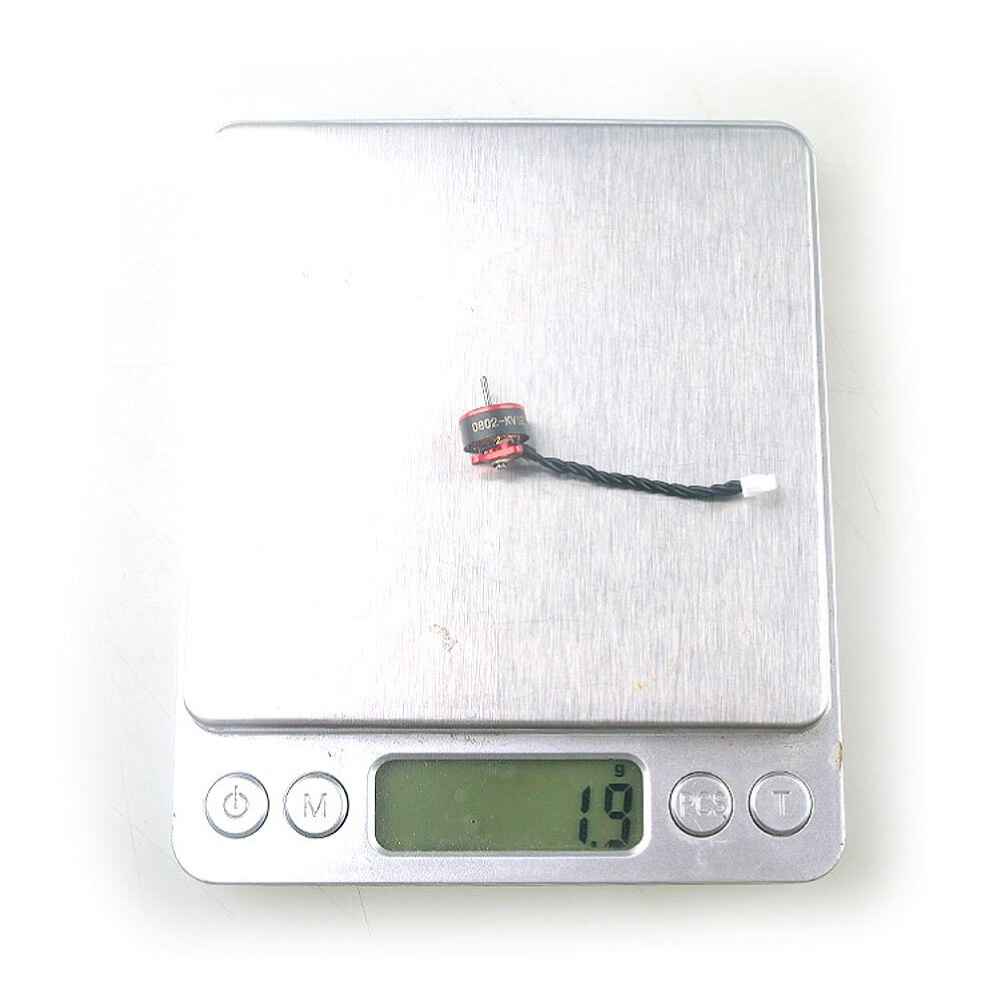

Weight: 1.9g
16000KV Suit for Mobula7 2S Whoop FPV Racing Drone
19000KV Suit for Snapper7 1S Whoop FPV Racing Drone
25000KV Only Support 1S Lipo
Features:
Super tiny only 1.9g
Double E-clip design, prevent Motor bell to flying off
Good Dynamic balance
Package Included:
1 x SE0802 brushless motor
