Description
HGLRC SPECTER 1202.5 11000KV 1-2S Brushless Motor for DIY 2-3 Inch RC FPV Racing Drone
The HGLRC SPECTER 1202.5 11000KV Brushless Motor is designed for 2-3 inch RC FPV racing drones, offering robust performance with its 7075 aviation aluminum construction. This motor supports a maximum continuous current of 12A and operates within an input voltage range of 3.7V-7.4V (1-2S). The innovative rotor design, featuring an anodized two-color process, ensures a sleek appearance. Equipped with customized N52H curved magnetic steel, the motor delivers high torque and strong magnetism. Its super high-temperature resistant copper wire winding ensures stable operation, while the imported silicon steel sheets enhance efficiency by reducing heat generation.
Specifications:
Brand: HGLRC
Product Name: SPECTER 1202.5 11000KV Brushless Motor
Motor: 11000KV
Slot Pole: 9N12P
Maximum Continuous Current: 12A (5s)
Maximum Power: 88W
Input Voltage: 3.7V-7.4V (1-2S)
ESC: >10A
Recommended Propeller: 2-3 inches
Motor Size: ?15.84mx 8.9mm
Mounting Hole: 4*M2-9

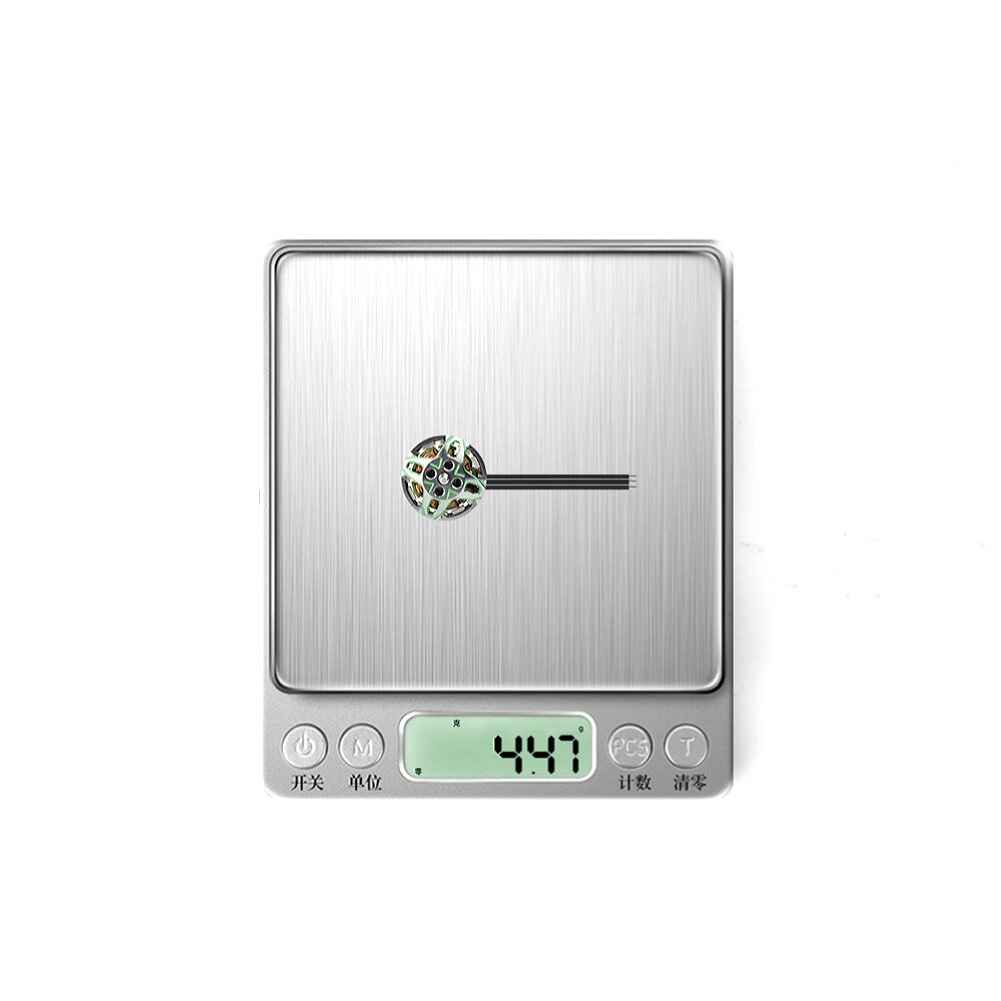

Weight: 4.47呼0.3g (including wire)
Features:

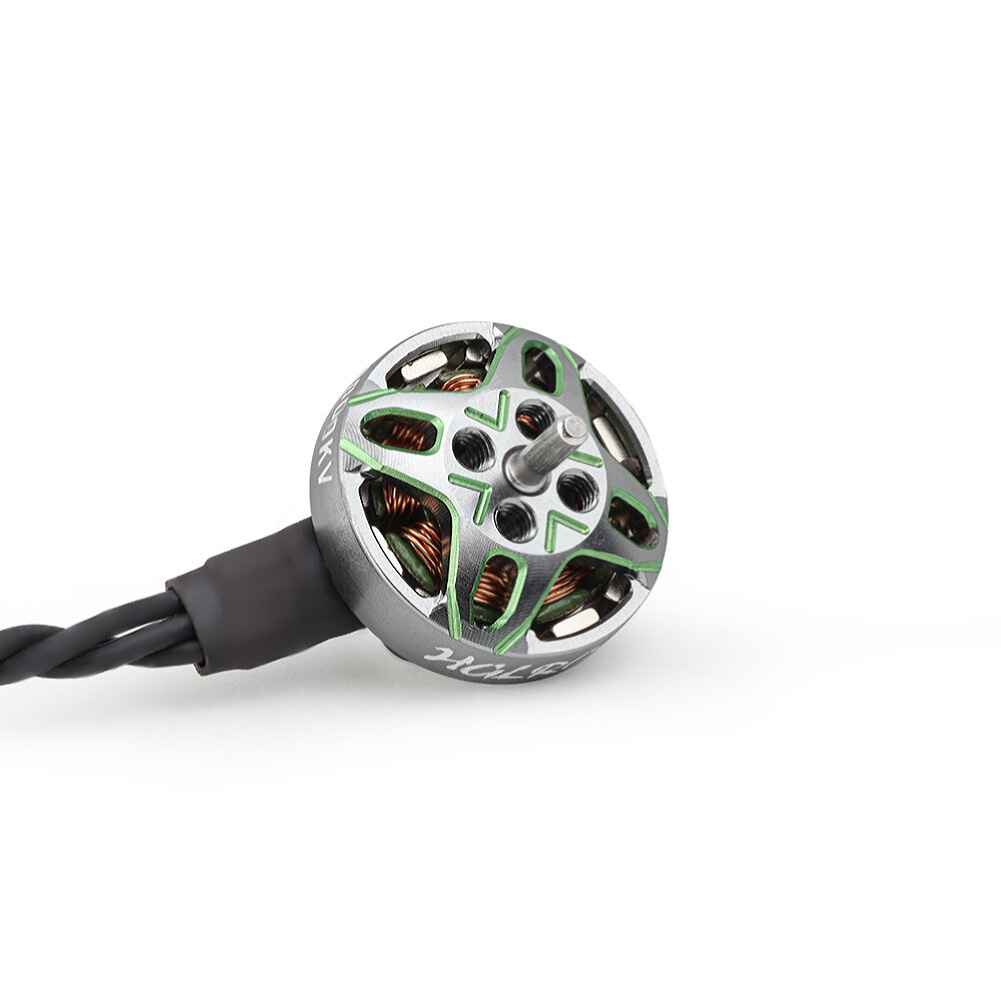

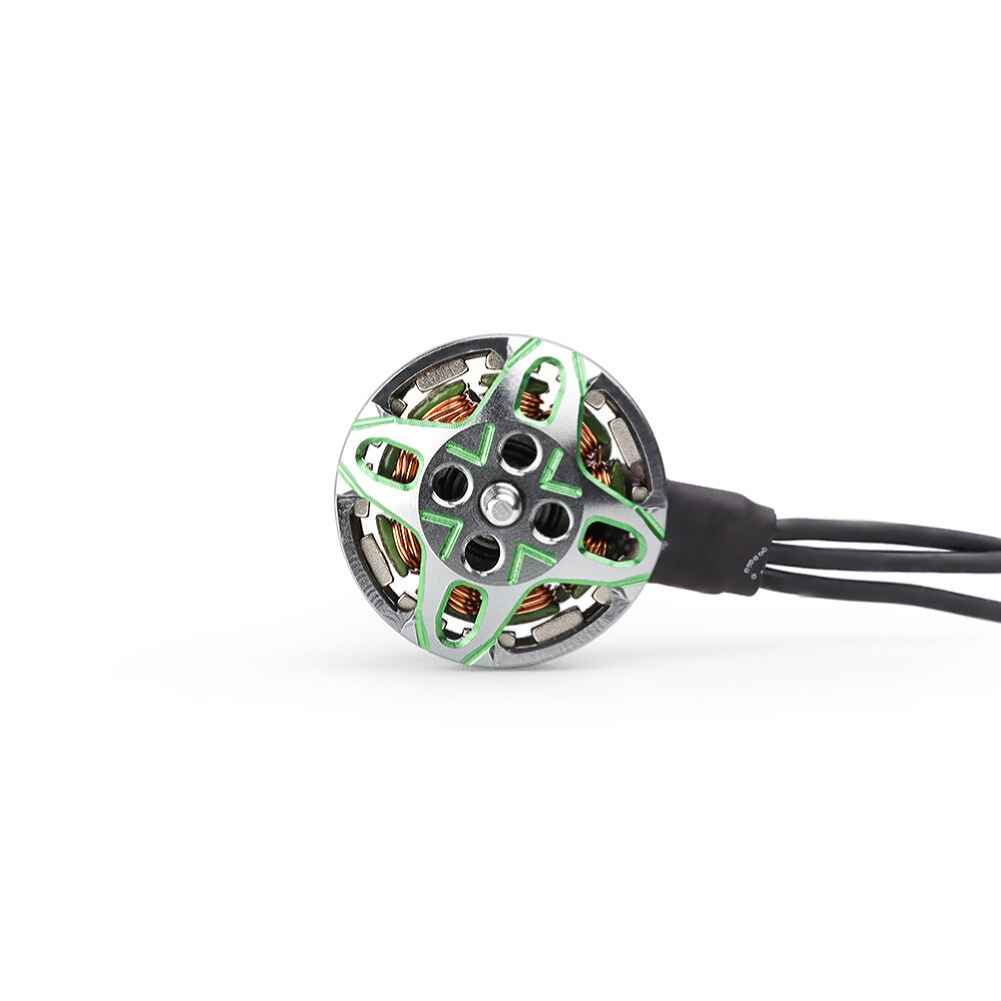

Brand New Rotor Design: Anodized two-color process gives it a fresh appearance.
7075 Aviation Aluminum Material: High-strength one-piece rotor for robust performance.
Customized N52H Curved Magnetic Steel: Ensures strong magnetism and high torque.
Super High-Temperature Resistant Copper Wire Winding: Makes the motor run more stably.
Imported Silicon Steel Sheets: Reduces loss stator, decreases heat generation, and improves efficiency.
Package Included:
1 x 1202.5 11000KV motor
4 x M2x5mm screws
2 x M2X7mm screws
