GEPRC SPEEDX2 1404 Brushless Motor 3000KV/4600KV for 2-4 Inch RC FPV Racing Drones

Sale!

GEPRC SPEEDX2 1404 Brushless Motor 3000KV/4600KV for 2-4 Inch RC FPV Racing Drones

Price range: 97.78$ through 101.38$

High-performance GEPRC SPEEDX2 1404 Brushless Motor
Optional 3000KV or 4600KV for versatile use
Compatible with 2-4 inch lightweight RC FPV drones
Durable N52H magnets and NSK/NMB bearings
Lightweight design with strong power output

Quantity

4 PCS

3000KV 4600KV

SKU: RC2007595 Category: Multi Rotor Parts Tags: 2-4 inch drone motor, 3000KV motor for drones, 4600KV motor for FPV, GEPRC brushless motor, high-performance FPV motor, lightweight drone motor, RC racing drone motor, SPEEDX2 1404 motor Brand: GEPRC

Description

4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone

The GEPRC SPEEDX2 1404 Brushless Motor is designed for high-performance RC FPV racing drones. Available in 3000KV and 4600KV options, this motor is compatible with 2-4 inch lightweight models. It features a 9N12P configuration, N52H magnets, and NSK/NMB bearings for enhanced durability and efficiency. With a maximum wattage of 160W to 180W and peak current ratings of 10A to 14.3A, it provides strong power output. The motor is lightweight at 10.5g, including wires, and is equipped with a 1.5mm shaft diameter and 4mm shaft protruding length. The SPEEDX2 1404 ensures optimal performance with recommended ESCs of 12A/20A for 2-4S LiPo batteries.

Specifications:
Brand: Geprc
Model: SPEEDX2 1404
Item Name: 1404 3000KV 4S 4600KV 3-4S Brushless Motor

Optional KV Version

3000KV

Model: SPEEDX2 1404 3000KV Motor
Configuration: 9N12P
Dimension: 嫉18.2mm*13.8mm
Shaft Diameter: 嫉1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm侈M2佩
Lead: 160mm/26AWG
Input Volts: 14.8V侈4S LiPo)
Winding: Single strand copper winding

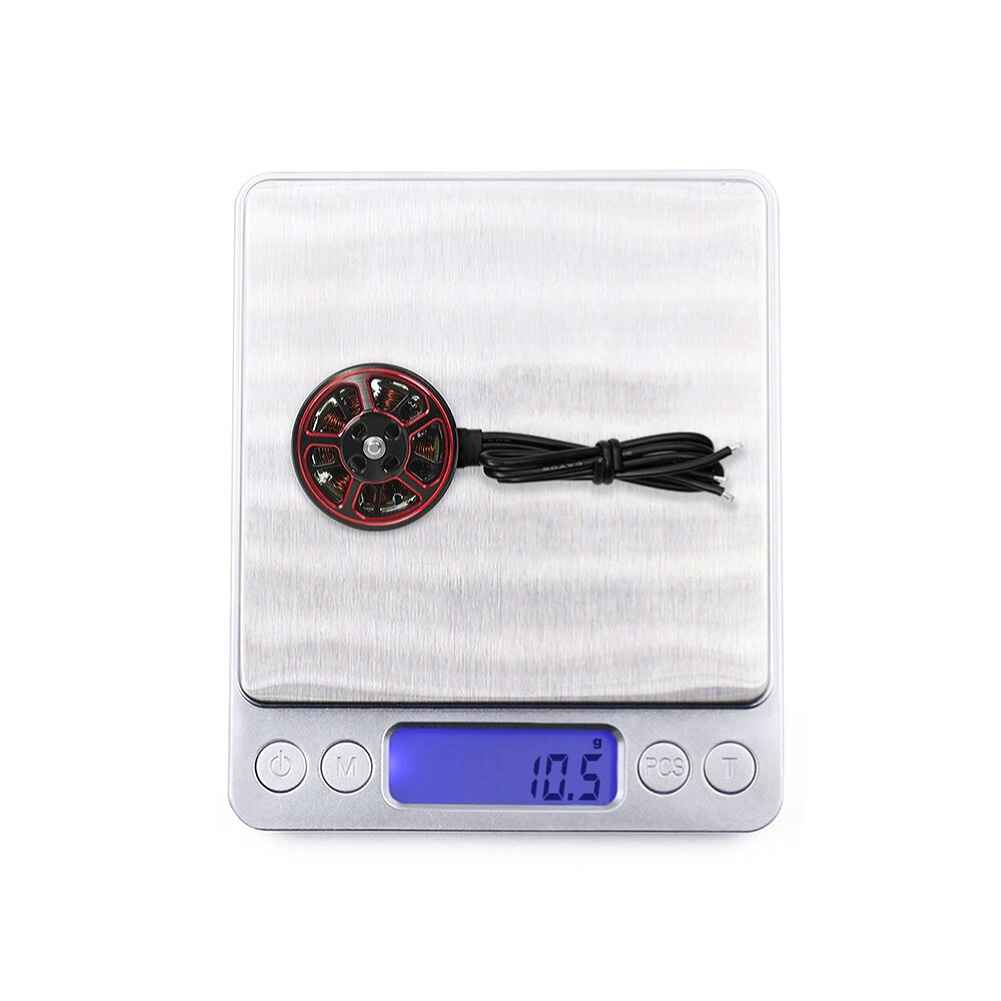

Weight: 10.5g (included wire)
Max Watt: 160W
Peak current: 10A/3﹍
Interphase resistance: 0.33棒
Magnet: N52H
Bearing type: NSK/NMB
Recommend ESC: 12A/2-4S侈7.4V-14.8V佩
Suitable for: 3 inch 藩 4 inch lightweight models

4600KV

Model: SPEEDX2 1404 4600KV Motor
Configuration: 9N12P
Dimension: 嫉18.2mm*13.8mm
Shaft Diameter: 嫉1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm侈M2佩
Lead: 160mm/26AWG
Input Volts: 11.1V 藩 14.8V侈3S 藩 4S LiPo)
Winding: Single strand copper winding
Weight: 10.5g (included wire)
Max Watt: 180W
Peak current: 14.3A/3﹍
Interphase resistance: 0.19棒
Magnet: N52H
Bearing type: NSK/NMB
Recommend ESC: 20A/2-4S侈7.4V-14.8V佩
Suitable for: 2 inch 藩 3 inch lightweight models

Features:
Red with black color is obviously high-end.
Use bearings with excellent performance and strong anti-wear ability.
Lightweight silhouette, strong power.
Suitable for 2-inch-4-inch lightweight chassis.

Package Included:
1 x SPEEDX2 1404 3000KV OR 4600KV Motor 1 set x Screws
