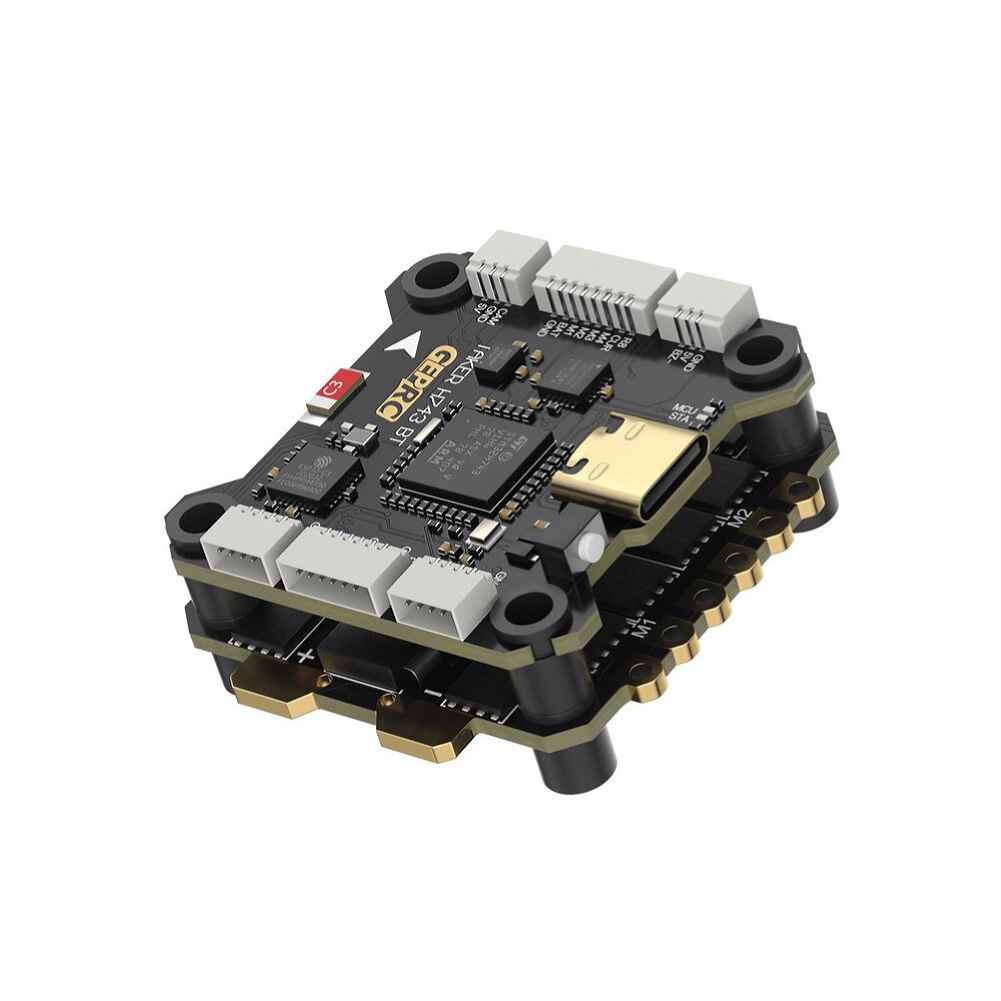

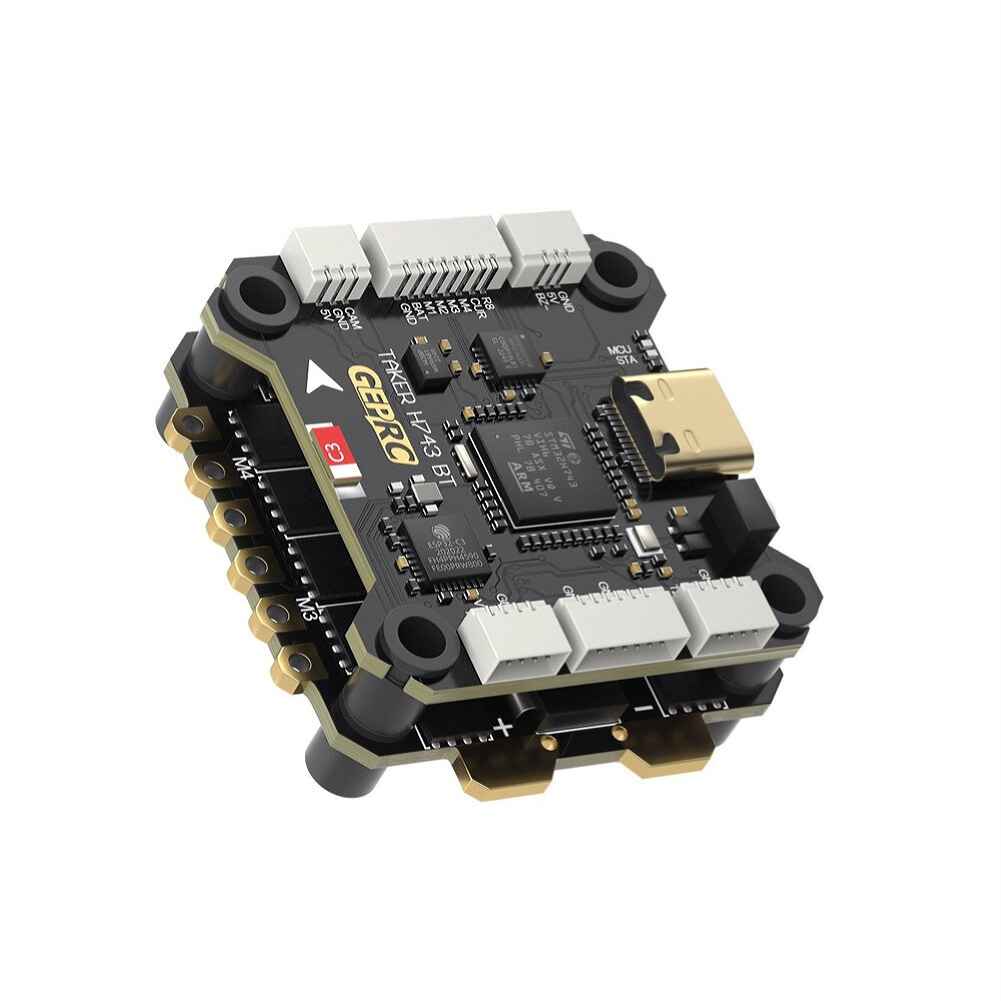

GEPRC TAKER H743 BT Dual Gyro Flight Controller & 3-6S 50A 4in1 ESC Stack for RC FPV Racing Drone

Description

30.530.5mm GEPRC TAKER H743 BT Dual Gyro Flight Controller & 3-6S 50A 4in1 ESC 32Bit Stack for RC FPV Racing Drone

The GEPRC TAKER H743 BT 32Bit 50A Stack is an advanced system designed for RC FPV racing drones. It features a powerful STM32H743VIH6 chip with a Cortex-M7 core, running at up to 480MHz, which supports both racing and freestyle flights. The dual gyroscope setup, comprising MPU6000 and ICM42688-P, ensures precise control. Integrated Bluetooth allows for wireless parameter adjustments, while the built-in 512MB black box offers extensive data storage. Compatible with Betaflight, INAV, and Ardupilot, it provides flexibility for various flight modes. The stack includes a dual BEC with 5V@3A and 12V@2.5A outputs, ensuring stable power supply. With the GEP-BL32 50A 96K 4in1 32Bit ESC, it delivers smooth flight experiences.

Description:
The TAKER H743 BT 32Bit 50A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, itㄙs well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the GEP-BL32 50A 96K 4IN1 32Bit ESC, it delivers an exceptionally smooth flight experience.
Feature:
1. Adopts the high-performance STM32H743 as the main controller
2. Equipped with MPU6000 and 42688-P dual gyroscopes
3. 512MB high-capacity black box storage
4. Bluetooth parameter tuning
5. Upgraded Type-C USB interface
6. Plug-and-play, no soldering required
7. Integrated barometer
8. Features 7 UART ports
9. Independent BEC with 12V@2.5A and 5V@3A outputs
10. Equipped with the GEP-BL32 50A 96K 4IN1 32Bit ESC for a smooth flight experience
Note: pre-installed with BL32 test firmware, extensively tested for safety and reliability
(AM32 also supported; customer flashing required)
Specification:
Brand: GEPRC
Model: TAKER H743 BT 32Bit 50A Stack

Item

Parameter

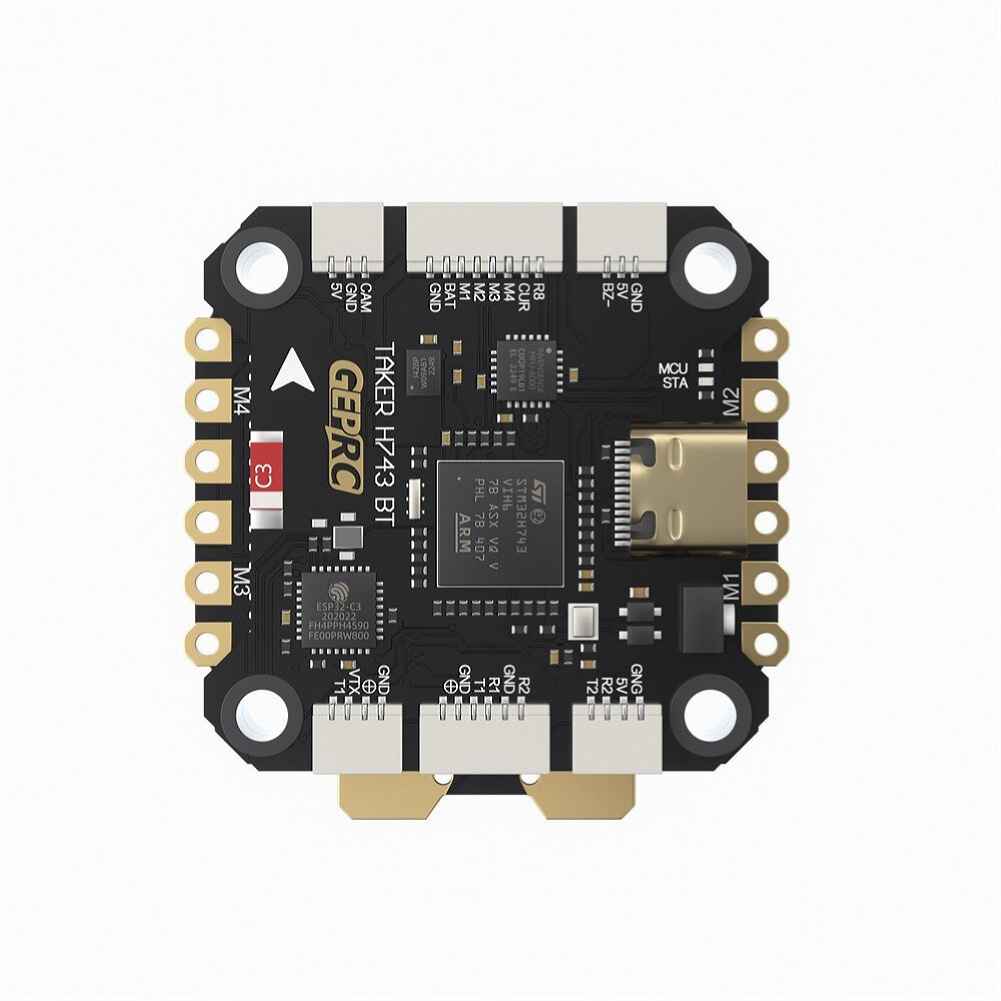

TAKER H743 BT Flight Controller

FC model: TAKER H743 BT Flight Controller
MCU: STM32H743
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRC_TAKER_H743
Dimension: 38.5沁38.5mm, mounting hole size 30.5沁30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

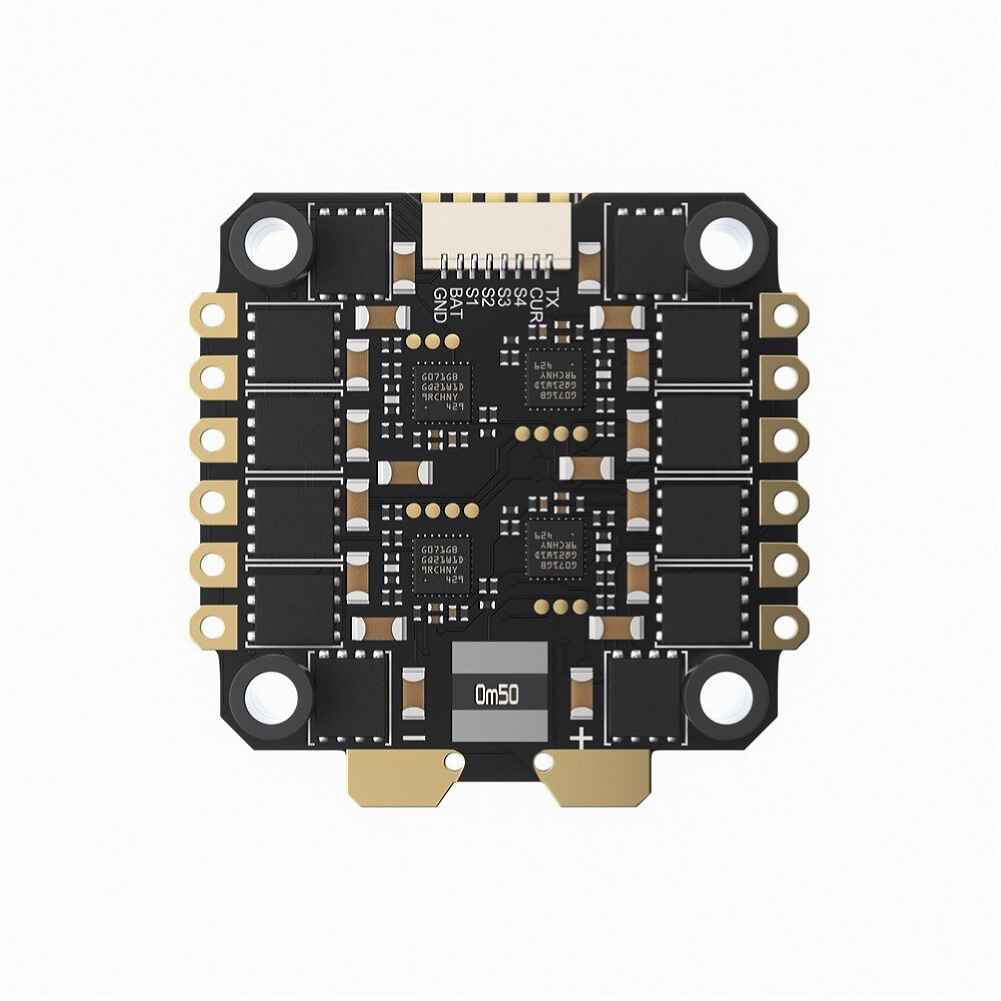

GEP-BL32 50A 96K 4IN1 ESC

Input Voltage: 3-6S Lipo
Continuous Current: 50A
Peak Current: 55A侈5 seconds佩
Supported Protocol: Dshot 150/300/600
Size: 42.5沁42.1mm, hole 30.5沁30.5mm
Weight: 14g
Target: ST_G0_05 藩 31.92

Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 x XT60 power cable
4 x M3 30 screws
4 x M3 25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
