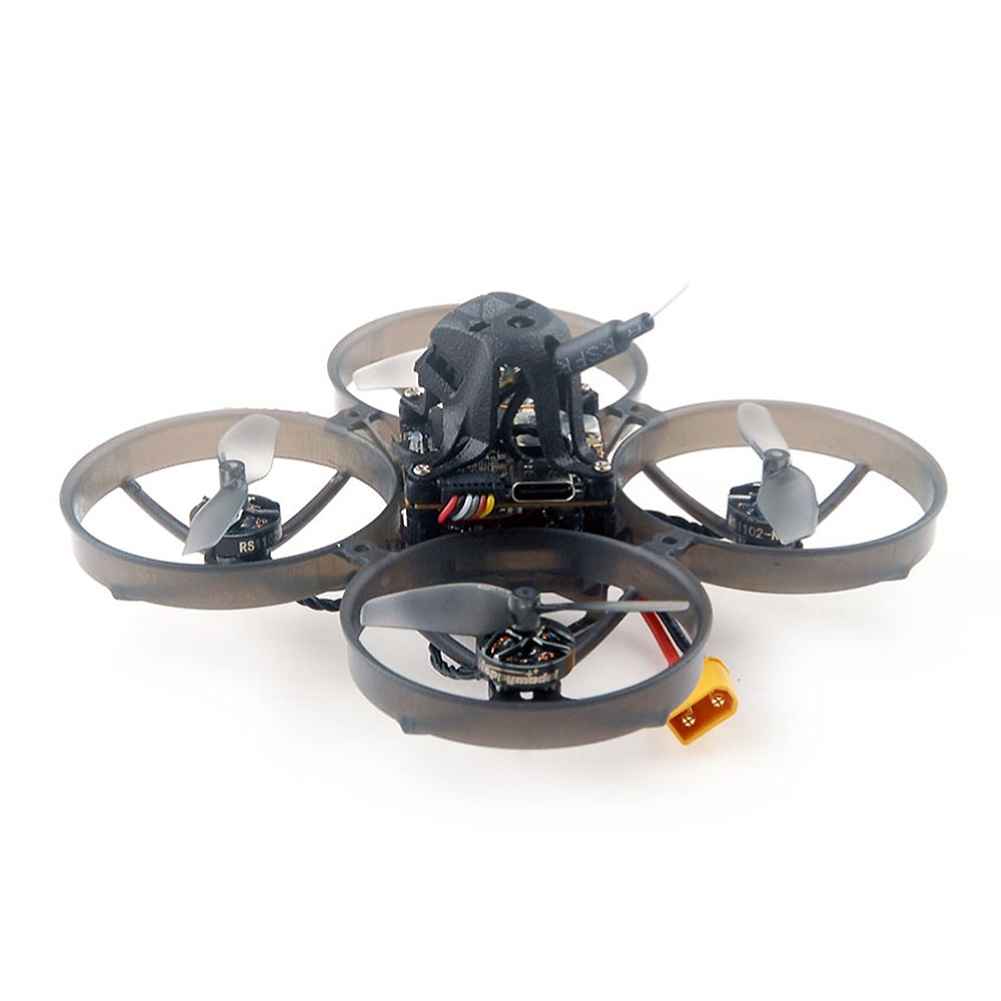

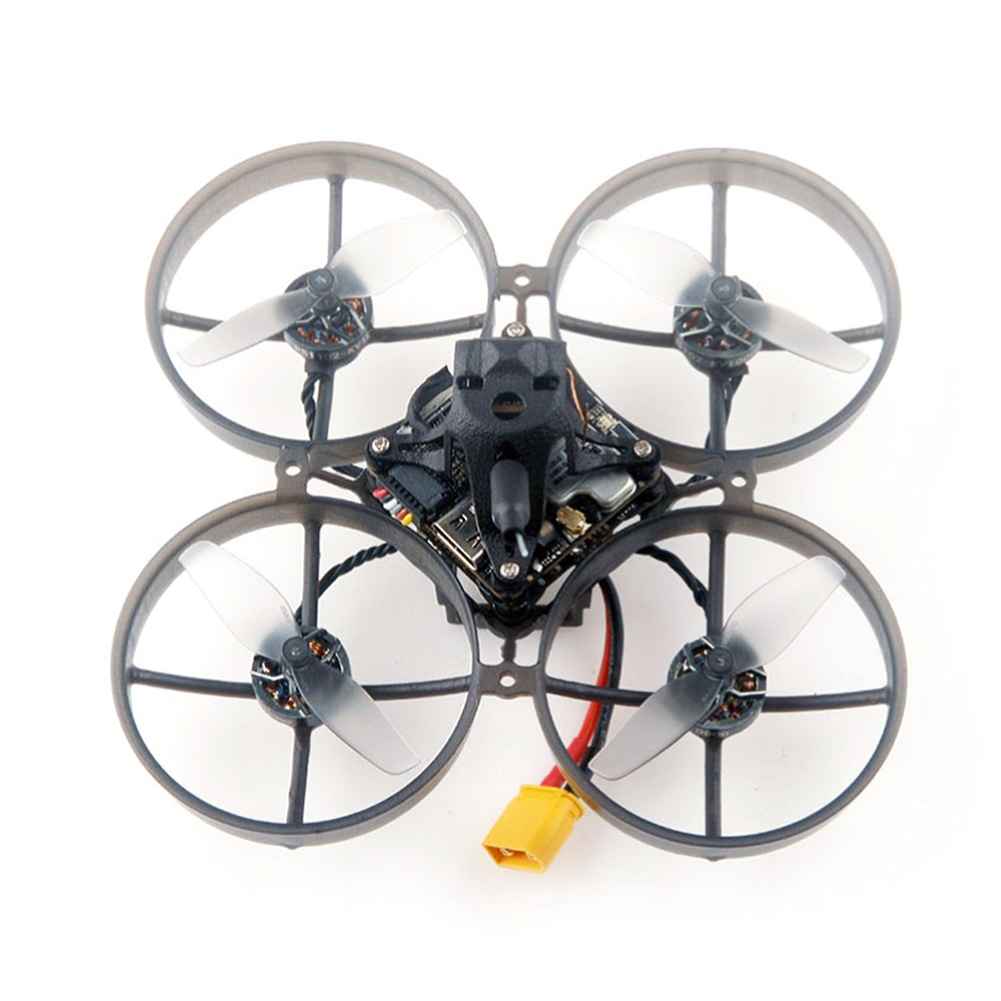

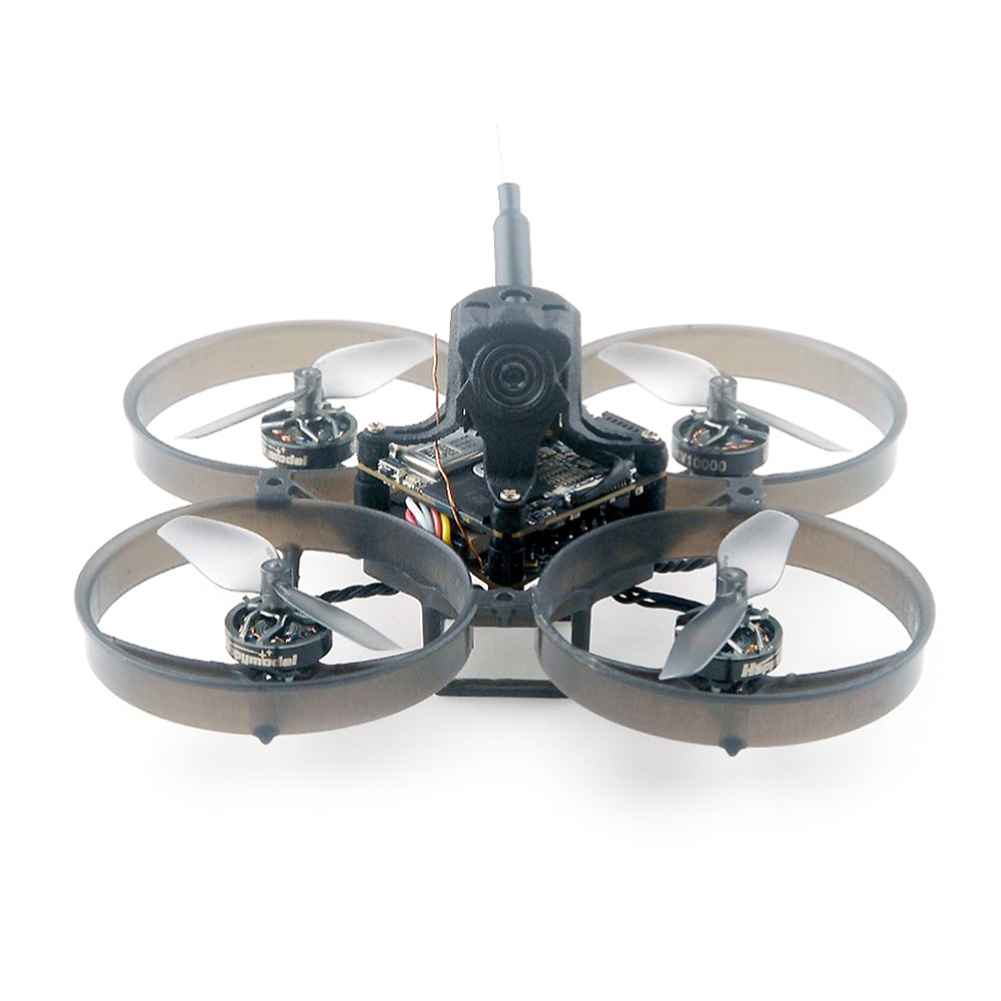

Happymodel Mobula7 80mm 2S Micro Whoop FPV Racing Drone BNF with DJI O4 Air Unit, CrazyF4HD ELRS FC, Indoor/Backyard Flying

Description

Happymodel Mobula7 80mm 2S Micro Whoop FPV Racing Drone BNF with CrazyF4HD ELRS FC DJI O4 Air Unit HD Digital System

The Happymodel Mobula7 80mm 2S Micro Whoop FPV Racing Drone is designed for an exceptional flying experience. Equipped with the new DJI O4 air unit, it delivers outstanding FPV footage. The RS1102 KV10000 motors and HQPROP 45mm propellers ensure powerful and smooth flight, making it perfect for indoor and backyard FPV flying. The drone supports a 2S battery and features a lightweight design for agile maneuvers. The built-in UART ExpressLRS receiver provides a stable control link, while the CrazyF4HD ELRS flight controller ensures reliable performance. This drone is a great choice for enthusiasts seeking a high-quality FPV experience.

Introduction:
The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor and HQPROP 45mm propellers ,bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
Features:
– Equipment with New DJI O4 air unit
– 2S battery support Powerful and Smooth freestyle flying
– UART ExpressLRS receiver support stable control link
– Lighter and small for indoor FPV
Specifications:
Brand: Happymodel
Model: Mobula7
Item Name: DJI O4 2S FPV Drone

Motor

Mode: RS1102 KV10000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:?1.5mm
Motor Dimension(Dia.*Len):?13.5mm*14mm
Weight(g):2.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.25g
Material: Poly Carbonate
Pitch:0.9
Props Dia:45mm
Hub Thickness:5mm
Shaft:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

DJI O4 Air Unit

Weight:
Air Unit (camera module included): Approx. 8.2 g
Transmission Module: 30沁30沁6 mm (L沁W沁H)
Camera Module: 13.44沁12.36沁16.50 mm (L沁W沁H)
Camera Cable Length: 50mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency varies by region. Refer to local regulations.
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Live View Quality: 1080p at 30/50/60/100fps

Recommend Battery(Not Include): GNB 2s 380/450/550mah

Package Included:
1 x Happymodel M80 Frame
1 x CrazyF4HD ELRS Flight Controller
4 x RS1102 KV10000 Brushless Motors
1 x HQPROP 45MMX2 Bi-Blade Propellers (4cw+4ccw)
1 x DJI O4 Air Unit
1 x Canopy
1 x Screwdriver
