Description

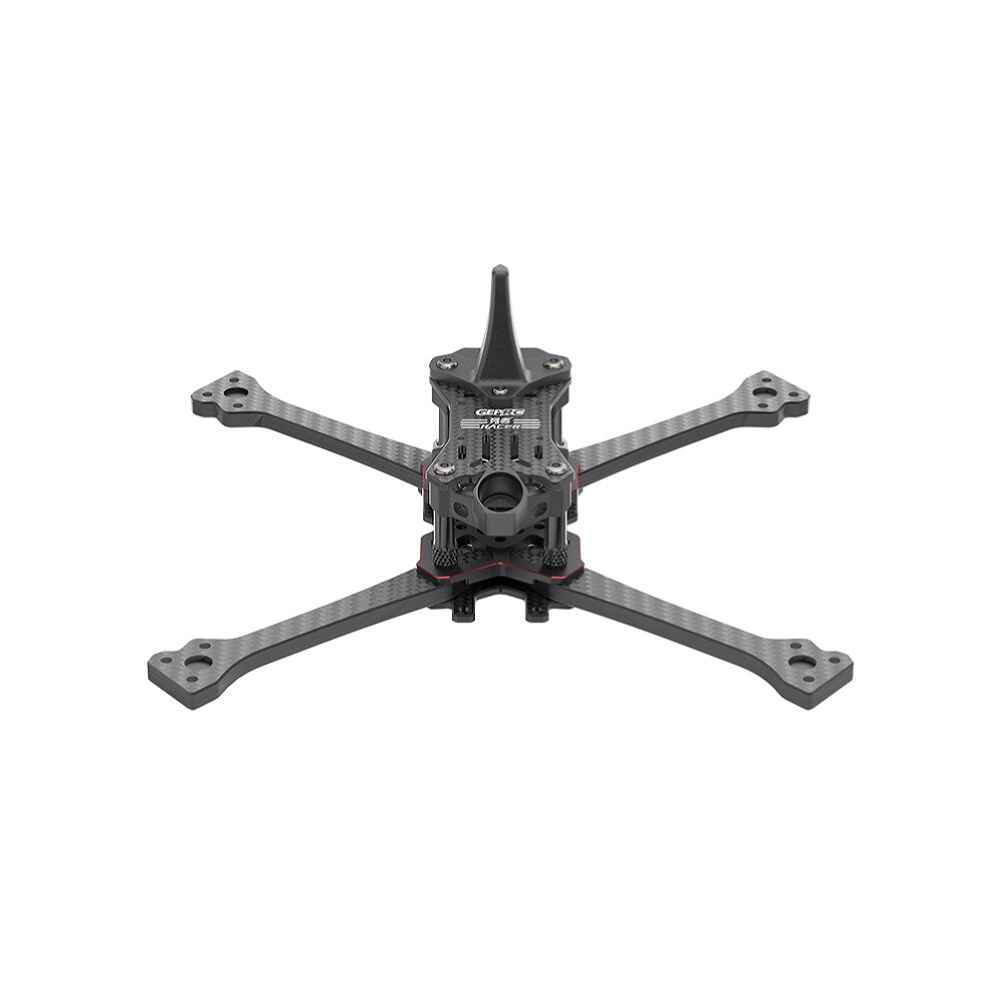

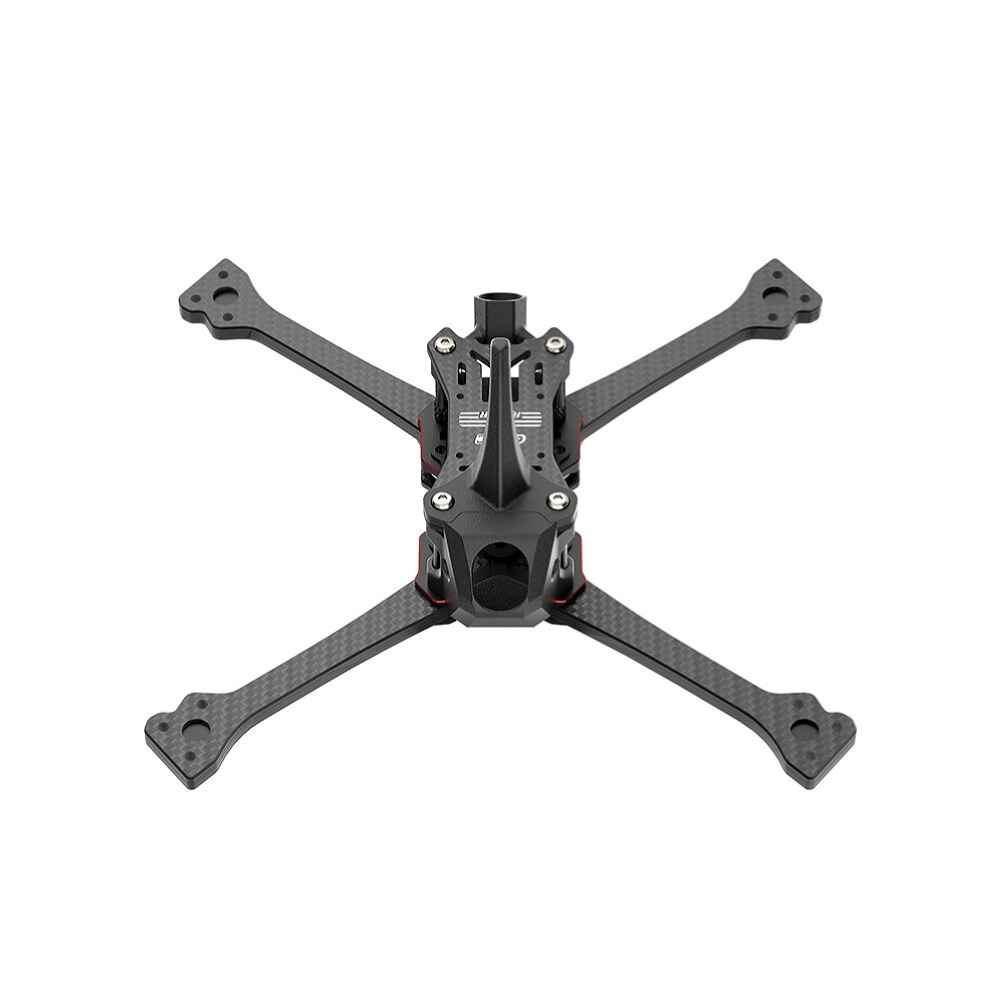

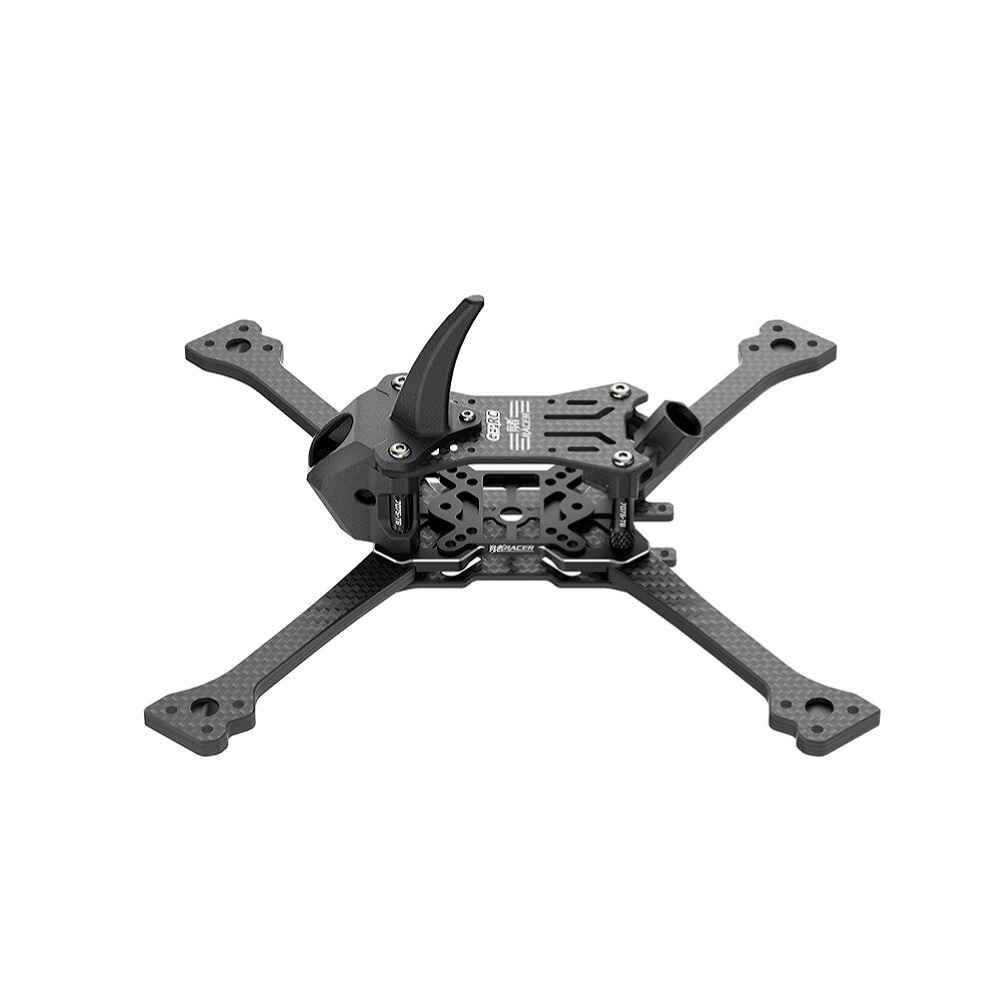

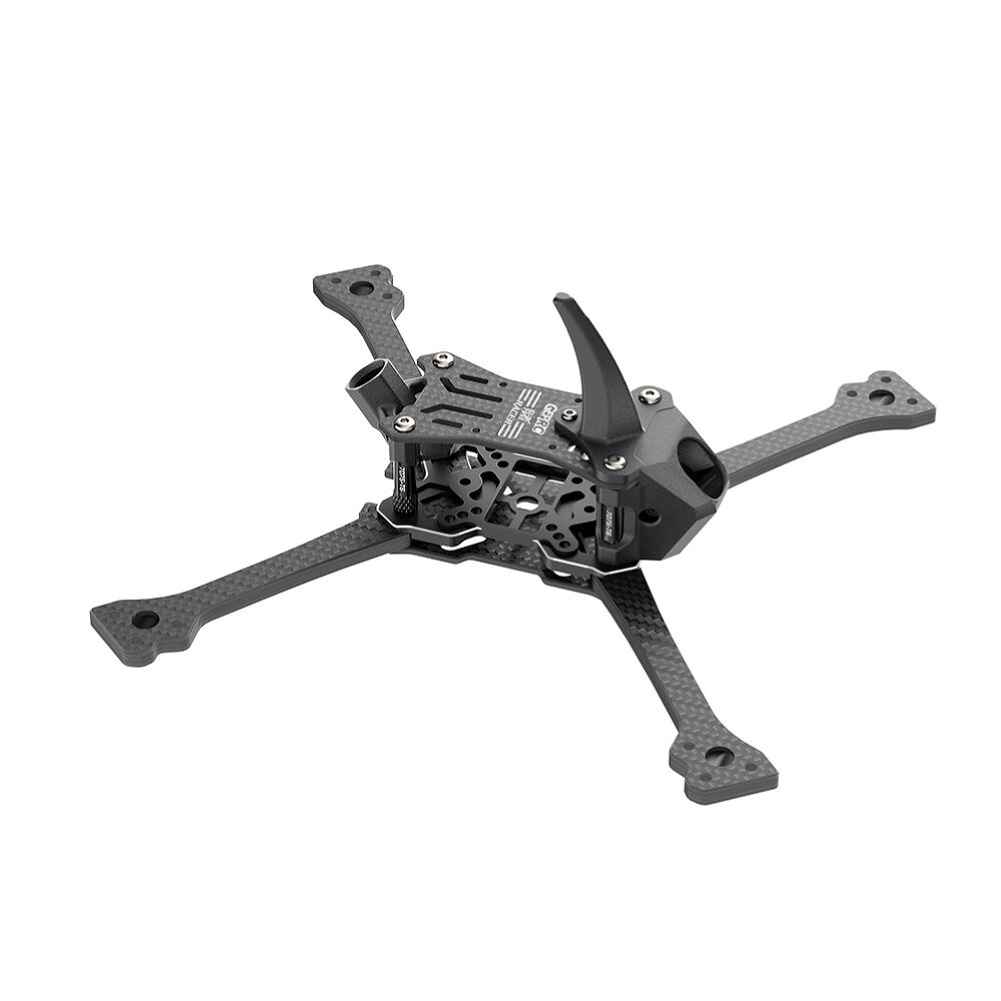

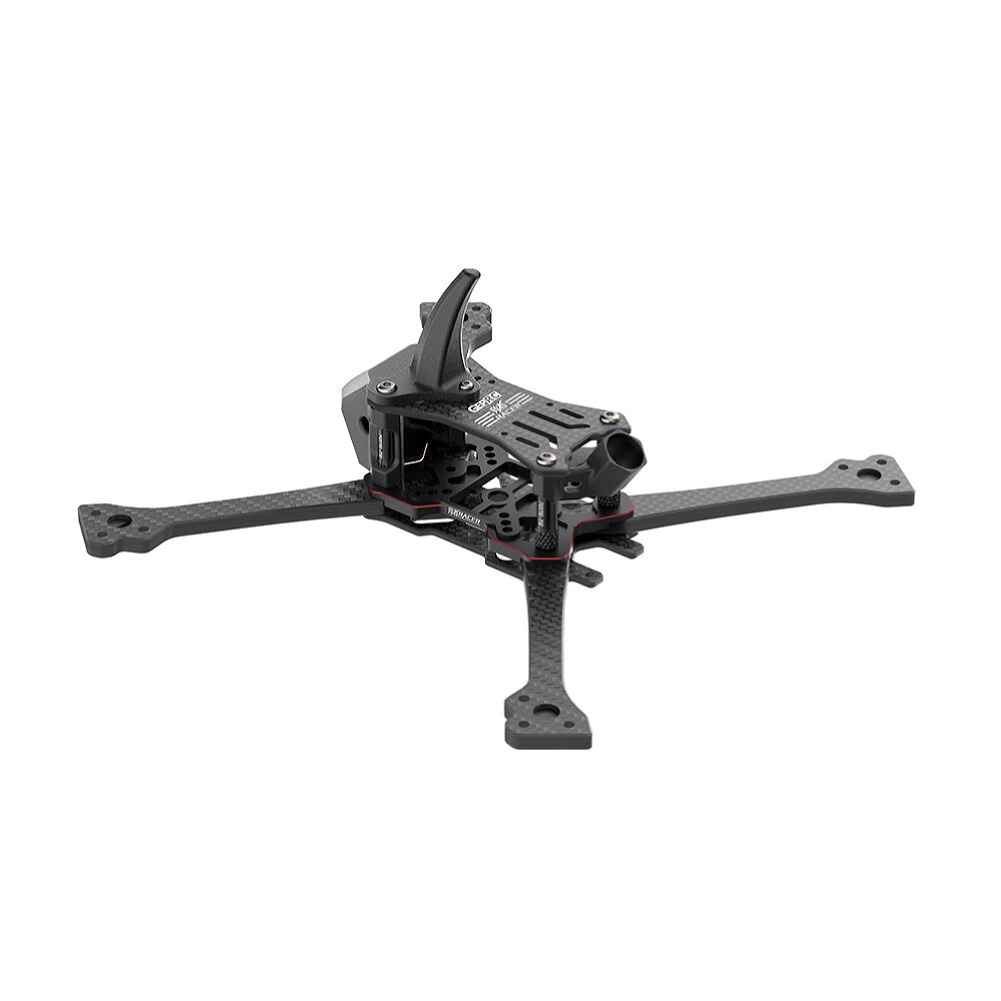

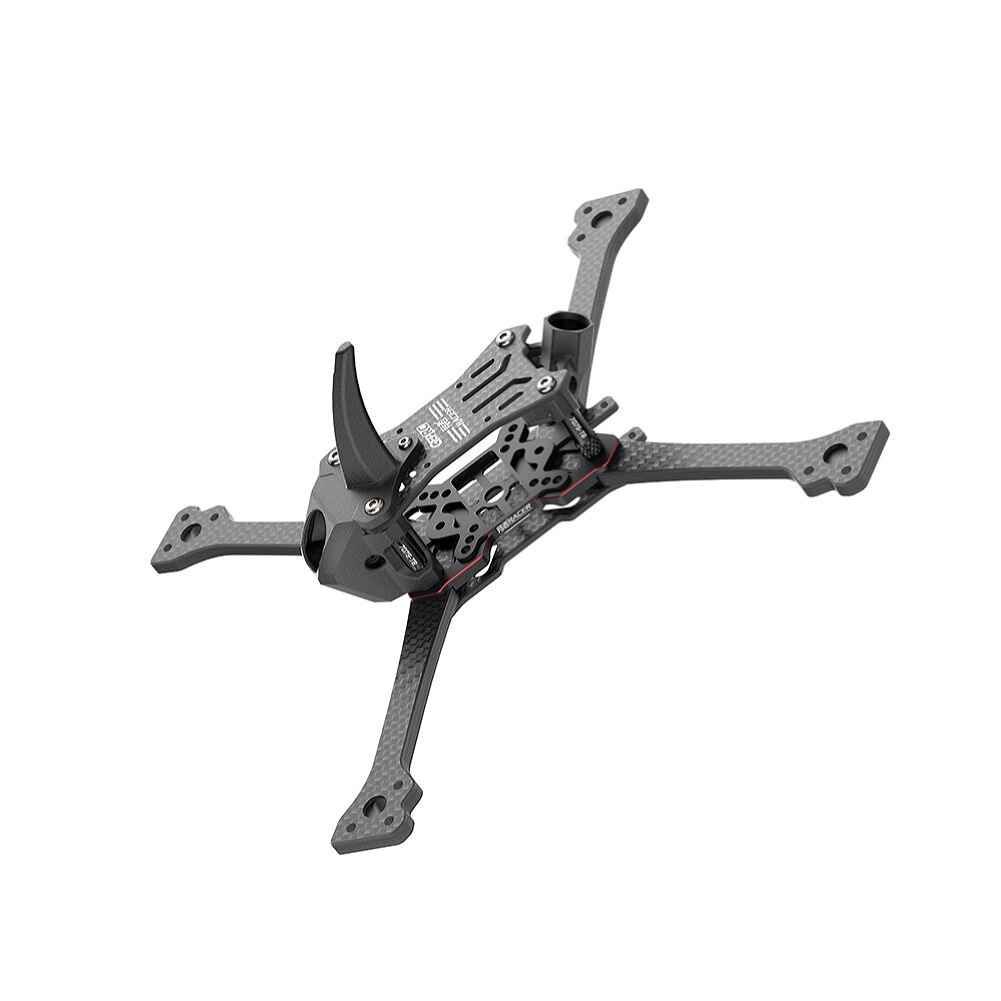

GEPRC RACER 208mm Wheelbase Carbon Fiber 5 Inch Frame Kit Support HDZero for RC Drone FPV Racing
The GEPRC RACER 208mm Wheelbase Carbon Fiber Frame Kit is designed for FPV racing drone enthusiasts. This unassembled frame kit features a robust construction with high-strength 7075 aviation aluminum alloy and premium T700 carbon fiber plates, ensuring durability and rigidity. The innovative shark fin support design allows for easy flipping after crashes, while the quick-release arm design simplifies maintenance. With multiple mounting options, including a 25.5mm M3 screw FC hole, this frame kit is compatible with the latest GEPRC 25.5MM stack. The kit includes essential components like top and bottom plates, a camera mount, and more, providing a solid foundation for building a high-performance FPV racing drone.
Notice: It is empty frame kit, comes unassembled. Need build by buyers.
Specifications:
Brand: Geprc
Model: RACER
Frame: GEP-RACER Frame
Color: Silver Edge / Red Edge
Dimensions: 175沁173mm
Wheelbase: 208mm
Top plate: 2.0mm
Aluminum plate: 2.0mm
Bottom plate: 2.0mm
Arm thickness: 5.0mm
Aluminum column size: M3*6*24mm
FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm
VTX mounting hole: 20mm*20mm
Motor mounting hole: 16mm*16mm
Camera installation space: 14mm
Propeller: 5 inches

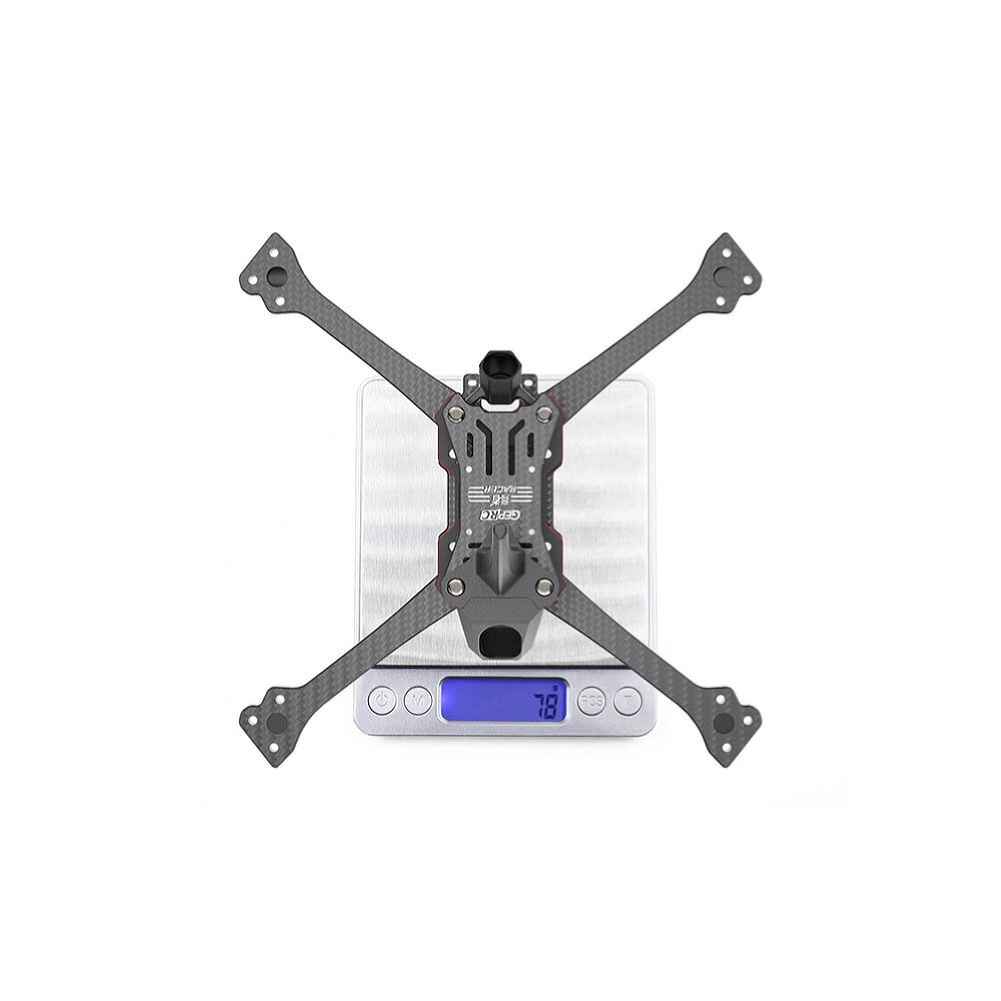

Weight: 78g呼2g
Features:
Constructed with high-strength 7075 aviation aluminum alloy splint for durability.
Utilizes premium T700 carbon fiber plate material ensuring a rigid structure.
Shark fin support design ensures easy flipping over after a crash.
Convenient maintenance with the quick-release design of the arm.
25.5mm*25.5mm M3 screw FC hole,matching the newest GEPRC 25.5MM stack.
Recommend Parts ( Not Included):
Package Included:
1 x Top plate
1 x Bottom plate
1 x Aluminum plate
1 x Camera mount
1 x VTX antenna mount
1 x Shark fin print
4 x M3 6 24mm aluminum column
2 x 20 250mm battery cable ties
2 x Battery anti-skid pads
1 x Screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
