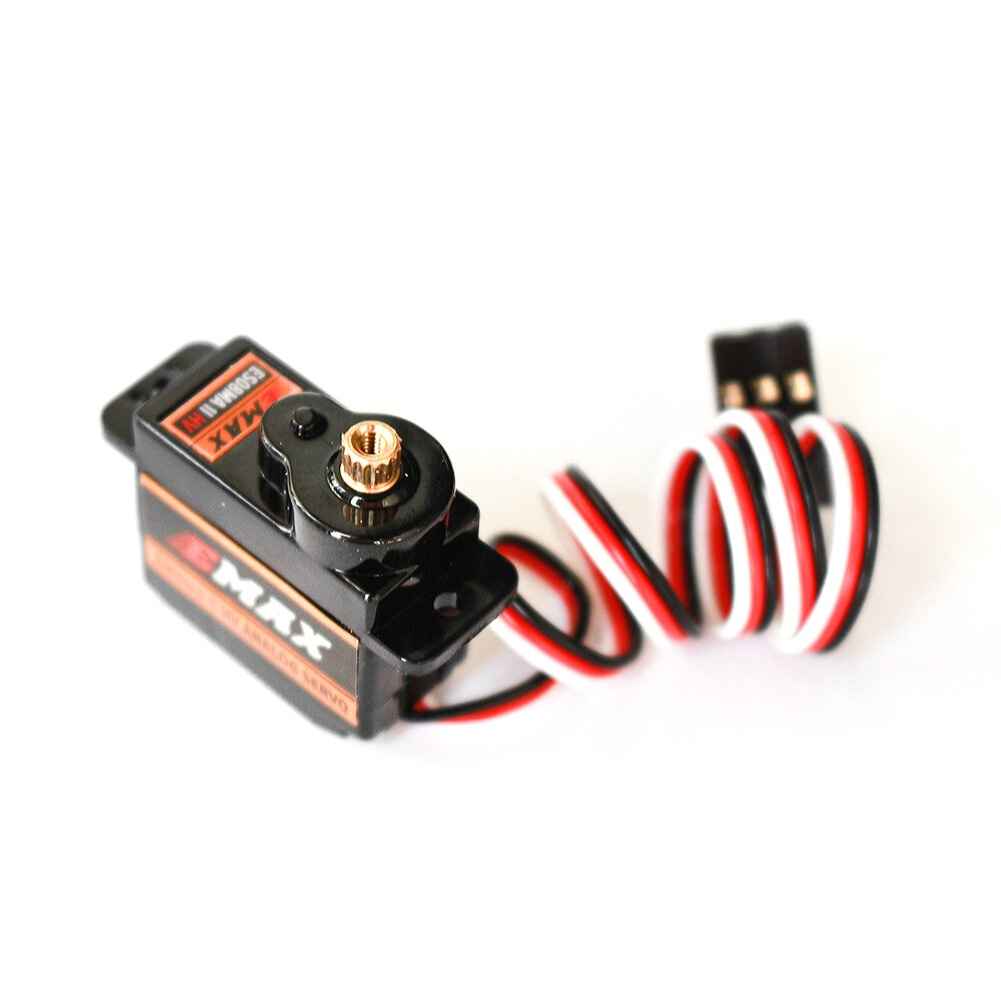

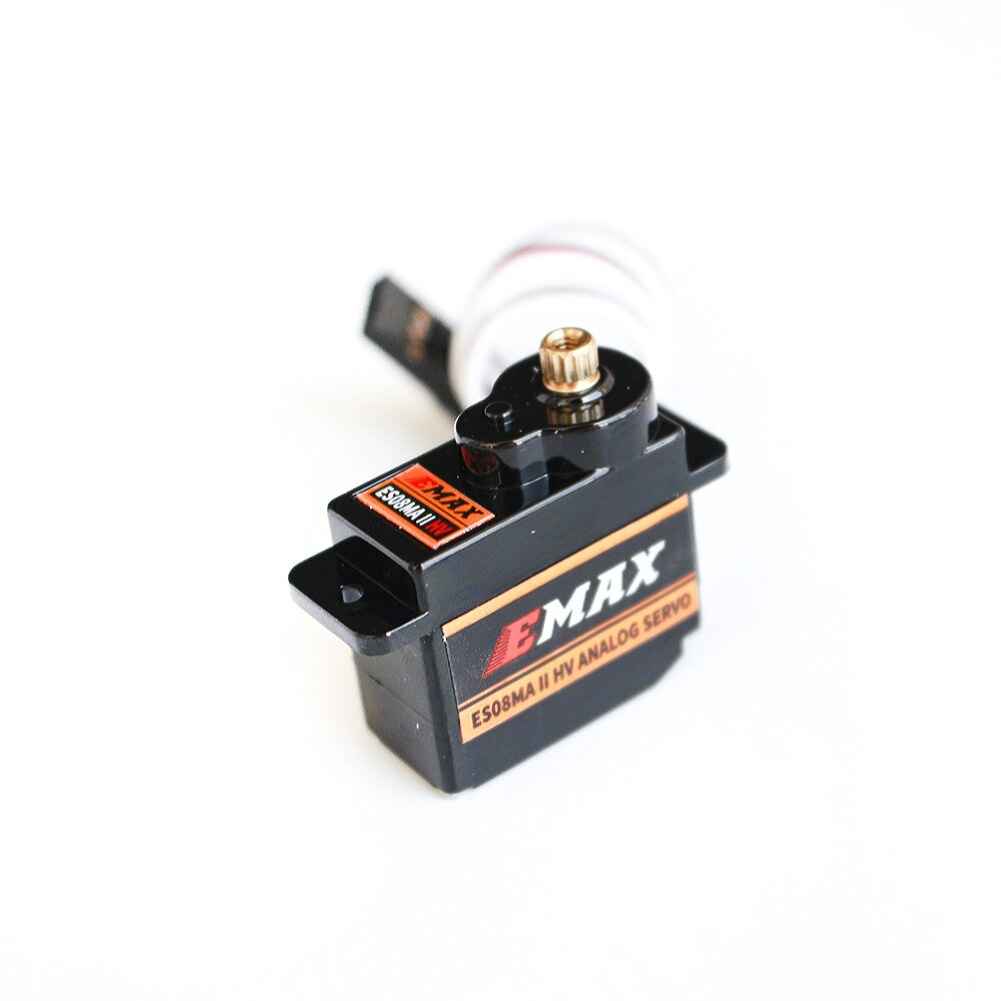

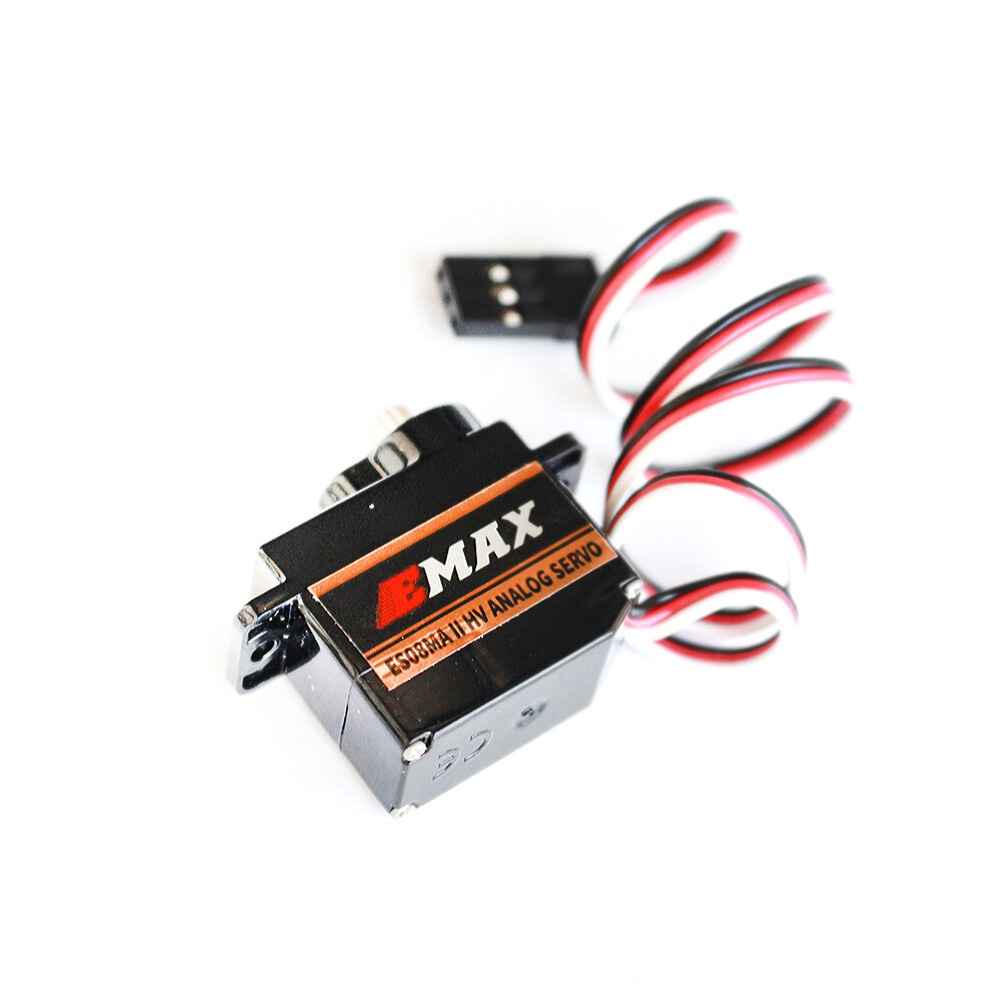

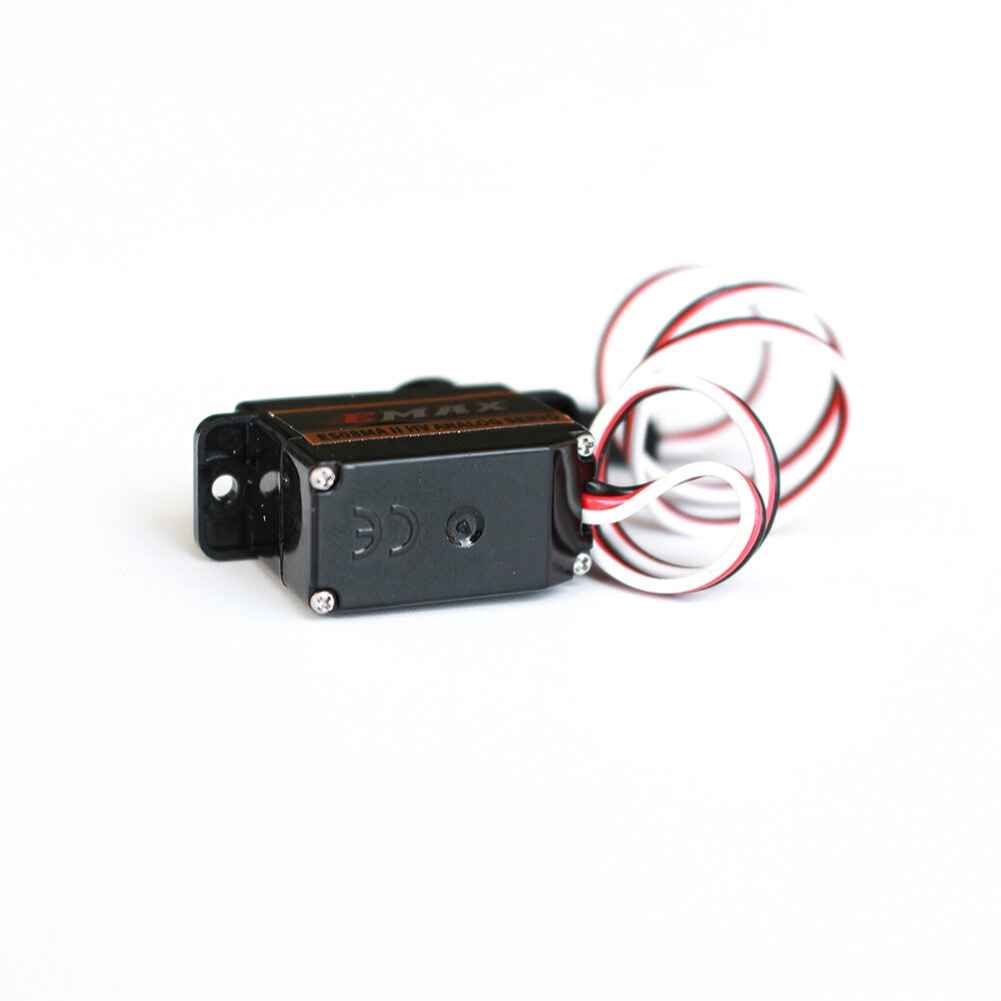

EMAX ES08MA II HV High Voltage Servo
The EMAX ES08MA II HV High Voltage Servo is designed for precise control in RC hobbies. It operates efficiently across a range of temperatures, from -20簞C to 70簞C in storage and -10簞C to 60簞C during operation. This servo delivers a swift operating speed of 0.17 sec/60簞 at 6.0V and 0.12 sec/60簞 at 8.4V, with a stall torque of up to 2.0kg.cm. It features a metal gear type and a 15T output gear spline, ensuring durability and reliability. The servo is equipped with a 250mm JR connector wire and supports PWM control for accurate and responsive movements. With a maximum travel angle of 170簞, this servo is ideal for various RC applications.
Specifications:
Storage Temperature Range:-20﹠~70﹠
Operating Temperature Range:-10﹠~60C
Electrical Specification (Function of the Performance)
Operating Speed (at no load): 6.0V:0.17 sec/60‵/ 8.4V:0.12 sec/60‵
Running Current (at no load): 6.0V:150mA Max/ 8.4V:200mA Max
Stall Torque: 6.0V:1.4kg.cm Max/ 8.4V:2.0kg.cm Max
Maximum Current: 6.0V:0.4A Max/ 8.4V:0.5A Max
Idle Current:6.0V: 6.5mA/ 8.4V:6.5mA
Overall Dimensions:See Drawing Below
Weight:12呼1g
Connector Wire Gauge:JR
Connector Wire Length:250呼8mm(W/O Connector)
Output Gear Spline:15T
Bearing:NO
Gear Type:Metal
Extreme Angle:360‵
Control System:PWM
Operating Travel券95‵ 呼10‵( when 1000-2000譙 sec )
Neutral Position券1500 譙 see
Rotating Direction:Counter Clockwise / Pulse Traveling 1500 to 1900譙 sec
Pulse Width Range:600-2400譙 sec
Maximum Travel:170‵呼10‵(600-2400譙 sec )

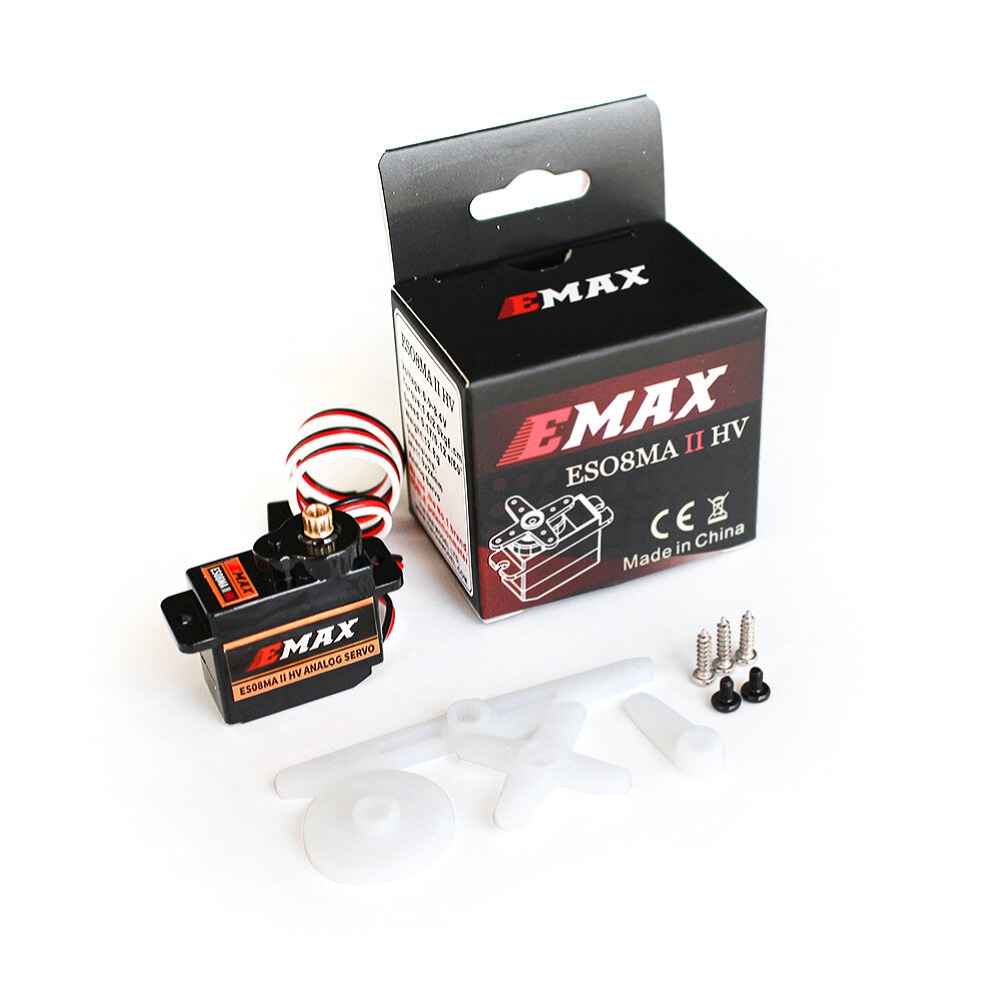

Package Included:
1 x EMAX ES08MA II HV High Voltage Servo
