Radiolink F722 F7 Multi-rotor Flight Controller with DJI 6 Pin Port for FPV Racing Drone, Supports Betaflight INAV, 2-8 Axis

Sale!

Radiolink F722 F7 Multi-rotor Flight Controller with DJI 6 Pin Port for FPV Racing Drone, Supports Betaflight INAV, 2-8 Axis

Original price was: 57.98$.Current price is: 44.06$.

High-performance STM32F722RET6 processor for reliable operation
ICM42688 gyroscope and BMP280 sensor for accurate control
Supports DJI and CADDX for clear image transmission
Optimized PCB design for efficient high current handling
Compatible with 2-8 axis multi-rotor configurations

SKU: RC2020937 Category: Multi Rotor Parts Tags: 2-8 axis support, Betaflight INAV support, DJI 6 pin port, FPV racing drone controller, high-definition image transmission, multi-rotor aircraft controller, Radiolink F722 flight controller, STM32F722RET6 processor Brand: Radiolink

Description

Radiolink F722 F7 2-8 Axis Multi-rotor Aircraft Flight Controller with DJI 6 Pin Port for FPV Racing Drone Support Betaflight INAV

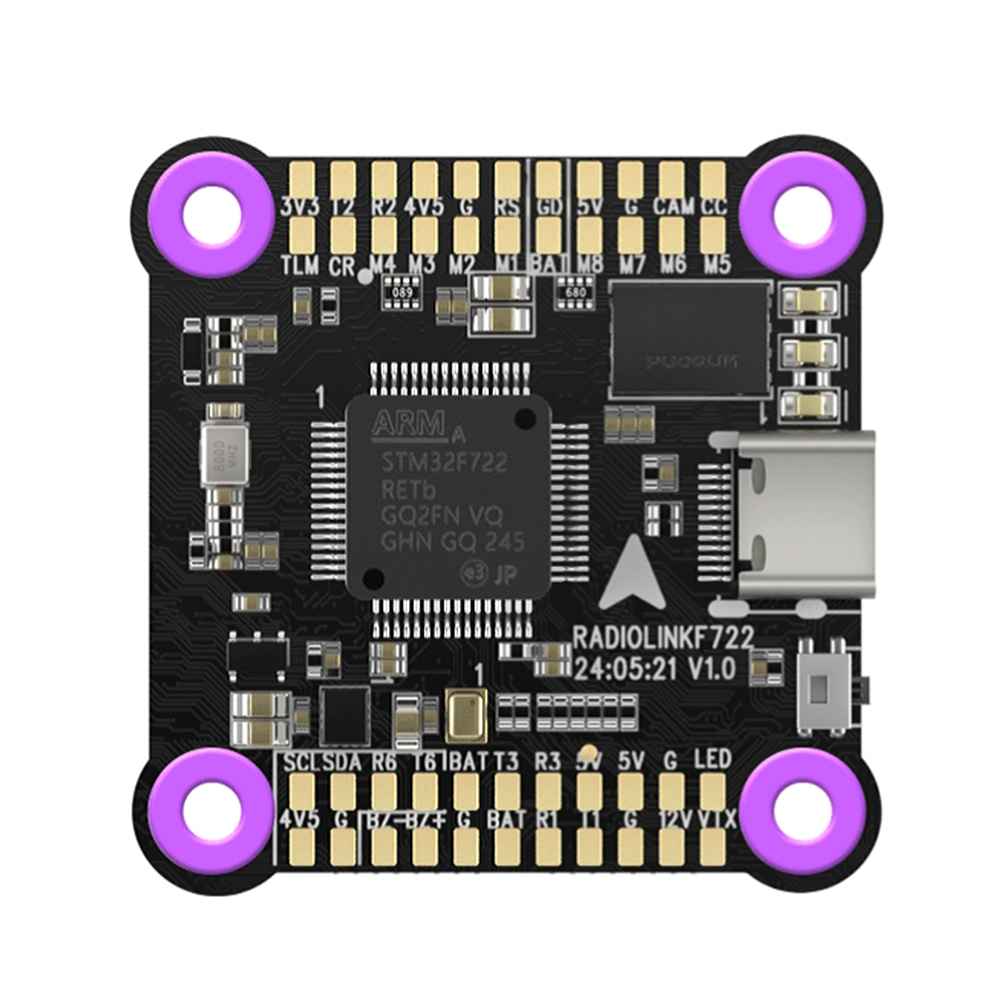

The Radiolink F722 F7 Flight Controller is engineered for FPV racing drones, offering robust performance with its STM32F722RET6 processor. It features precise flight control through the ICM42688 gyroscope and BMP280 pressure sensor. This controller supports high-definition digital image transmission compatible with DJI and CADDX systems, ensuring clear visuals. Its optimized PCB design allows for efficient high current handling with minimal noise, enhancing sensor accuracy. The unit undergoes rigorous testing through unique automation software to guarantee efficiency and quality. With support for 2-8 axis configurations, including X8 models, it provides versatile connectivity options and real-time flight data display without needing external modules.

Features:
1. High-Performance Processor: Integrated STM32F722RET6 for ultra-fast processing and reliable performance.
2. Accurate Sensing: Equipped with ICM42688 gyroscope and BMP280 pressure sensor for precise flight control.
3. Enhanced Image Transmission: Supports DJI and CADDX high-definition digital image transmission for clear visuals.
4. Efficient PCB Design: Optimized PCB layout ensures high current handling with low noise for accurate sensor data.
5. Comprehensive Testing: Unique automation software testing system ensures high efficiency and quality control.
Specifications:
Brand: Radiolink
Model: F722
Main Processor: STM32F722RET6
Gyroscope: ICM42688
Pressure Sensor: BMP280/DPS310
Black Box Capacity: 128MB
Power Supply: MP2491C (MPS)
BEC Output: 3.3V, 4.5V, 5V, 12V
Channels: Up to 8 Channels Output
Throttle Signals: Supports DShot, OneShot, and PWM
Functions:
1. Real-time Flight Data: Display real-time flight direction and position via OSD without external modules.
2. Multiple Axis Support: Adaptable to 2-8 axis multi-rotor configurations, including X8 models.

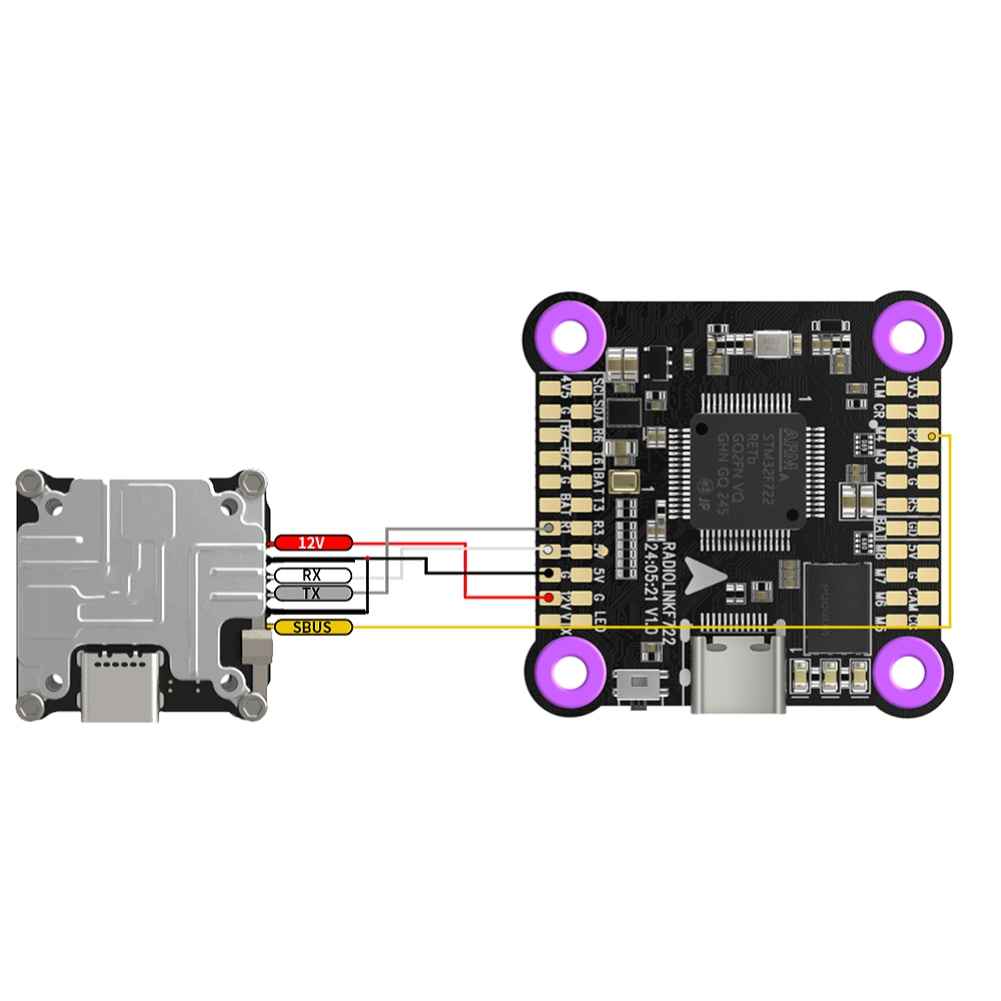

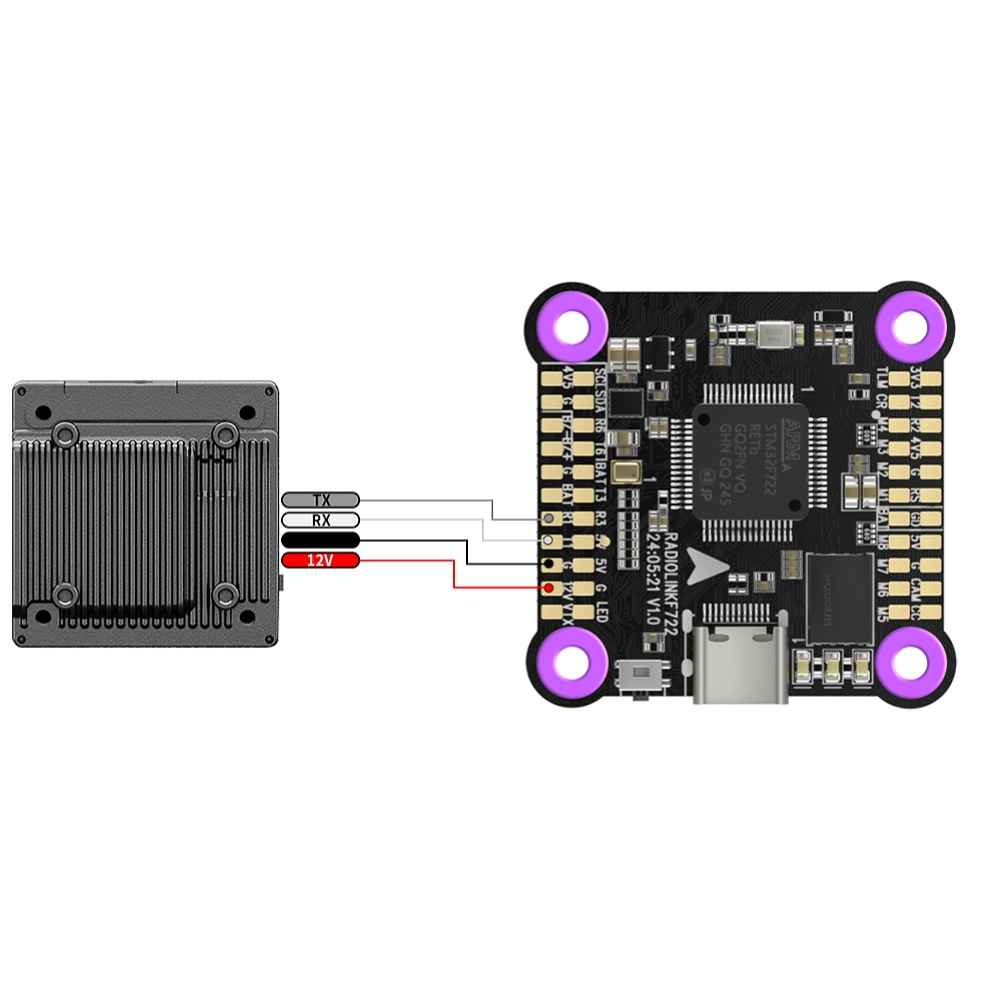

3. Plug-and-Play Imaging: Offers seamless plug-and-play support for DJI and CADDX image transmission.
4. Full Functionality Testing: Each unit undergoes extensive software-based testing for reliable operation.
5. Versatile Connectivity: Combines socket interface and solder pads for easy external device connections.

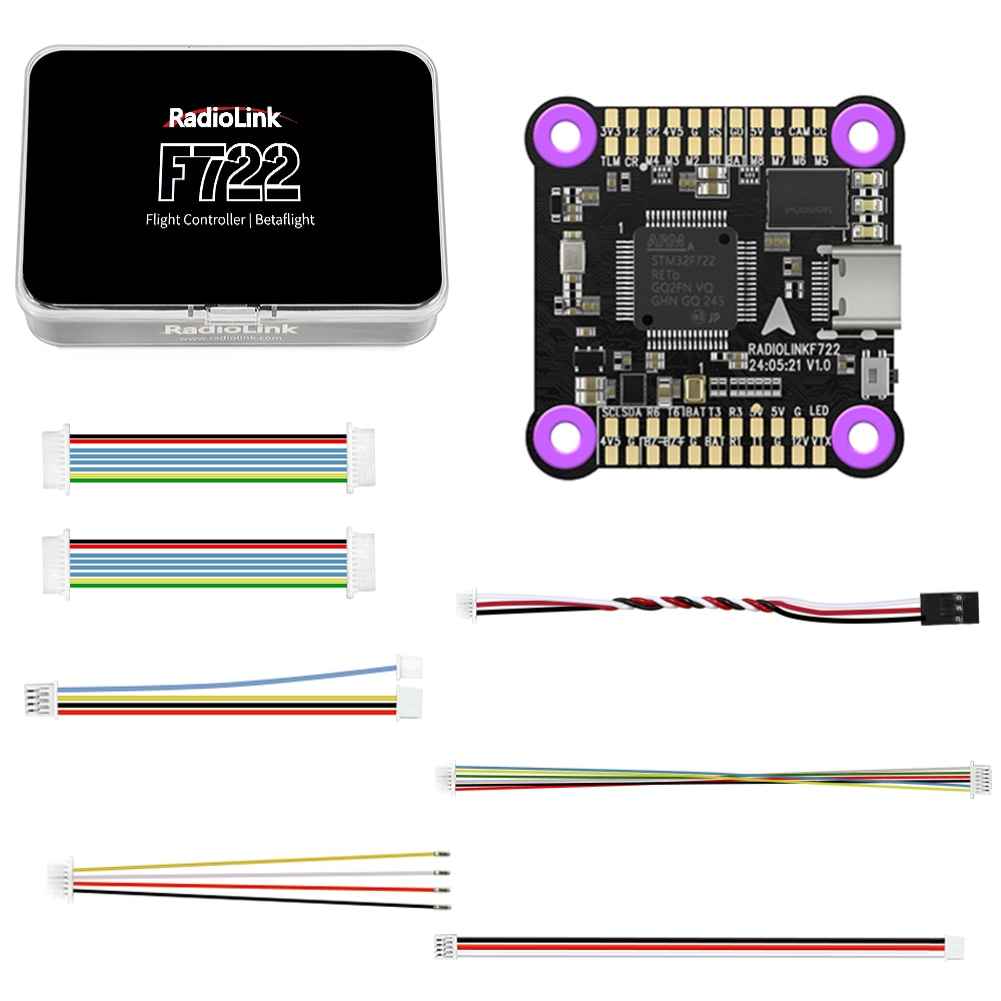

Package Included:
1x F722(Flight Controller) 2x ESC Connect Cable 1x Camera Connect Cable 1x ELRS Receiver Connect Cable 1x Analog Video Transmission Connect Cable 1x GPS Connect Cable 1x R8SM Receiver Connect Cable 1x Receiver Connect Cable 1x RadioLinkF722Package Box
