HGLRC Wind5 Lite V2 195mm 5 Inch Frame Kit for RC FPV Racing Drone, Carbon Fiber, Quick-Release Design

Description

HGLRC Wind5 Lite V2 195mm Wheelbase 5 Inch Frame Kit for RC FPV Racing Drone

The HGLRC Wind5 Lite V2 is a premium 5-inch frame kit designed for competitive RC FPV racing drones. Featuring a compact 195mm wheelbase, this lightweight frame is crafted from high-strength Toray-T700 carbon fiber and 7075 aviation-grade aluminum, ensuring durability and resistance to impacts. The innovative quick-release arm design allows for easy maintenance, while the frame supports easy installation of HDZero digital VTX with 20×20 M3 mounting holes. The default configuration includes a FOXEER predato 5NANO camera mount and RHCP mini hammer antenna compatibility. Note that this is an empty frame kit and requires user assembly.

Note:– It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.– It Comes unassembled. Need build by buyers.
— The default configuration includes FOXEER predato 5NANO 45-degree camera mount/analog RHCP mini hammer antenna (the frame antenna mount is only compatible with the new HGLRC mini hammer antenna, if you need a digital antenna, you can purchase it yourself). Description:

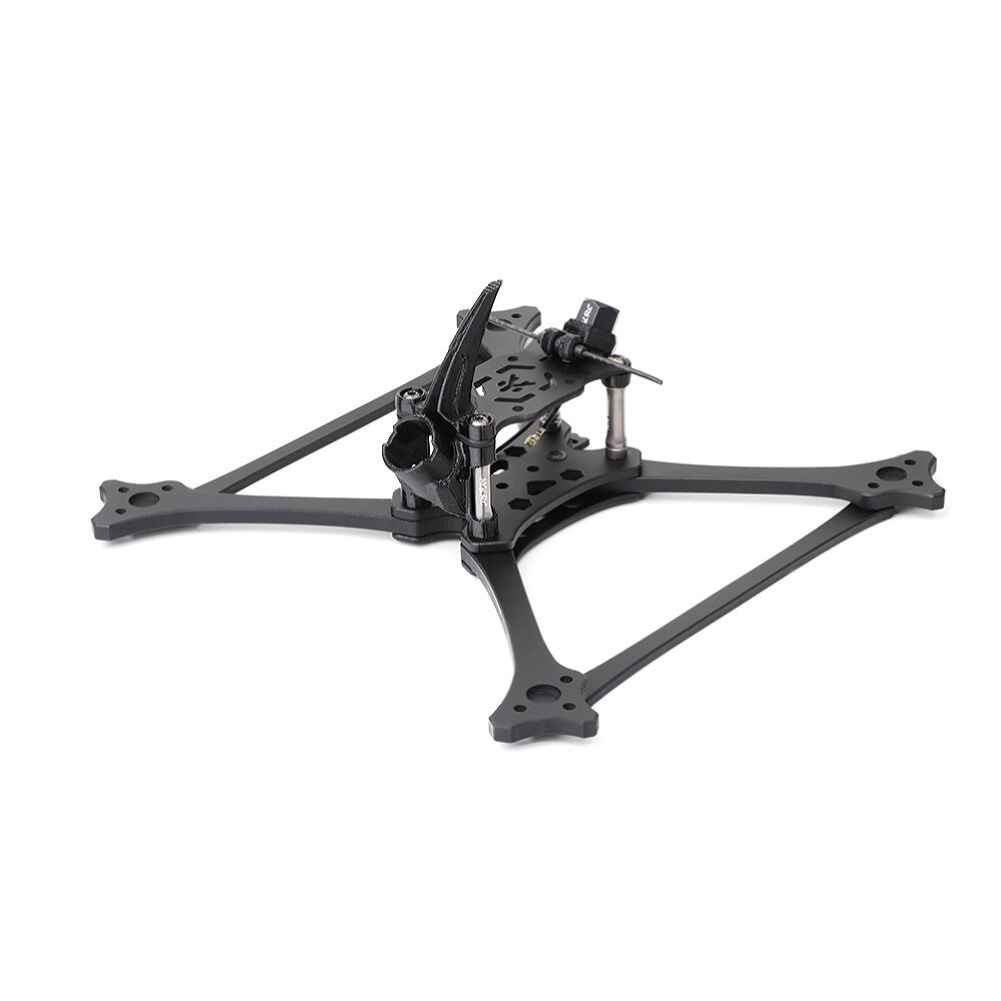

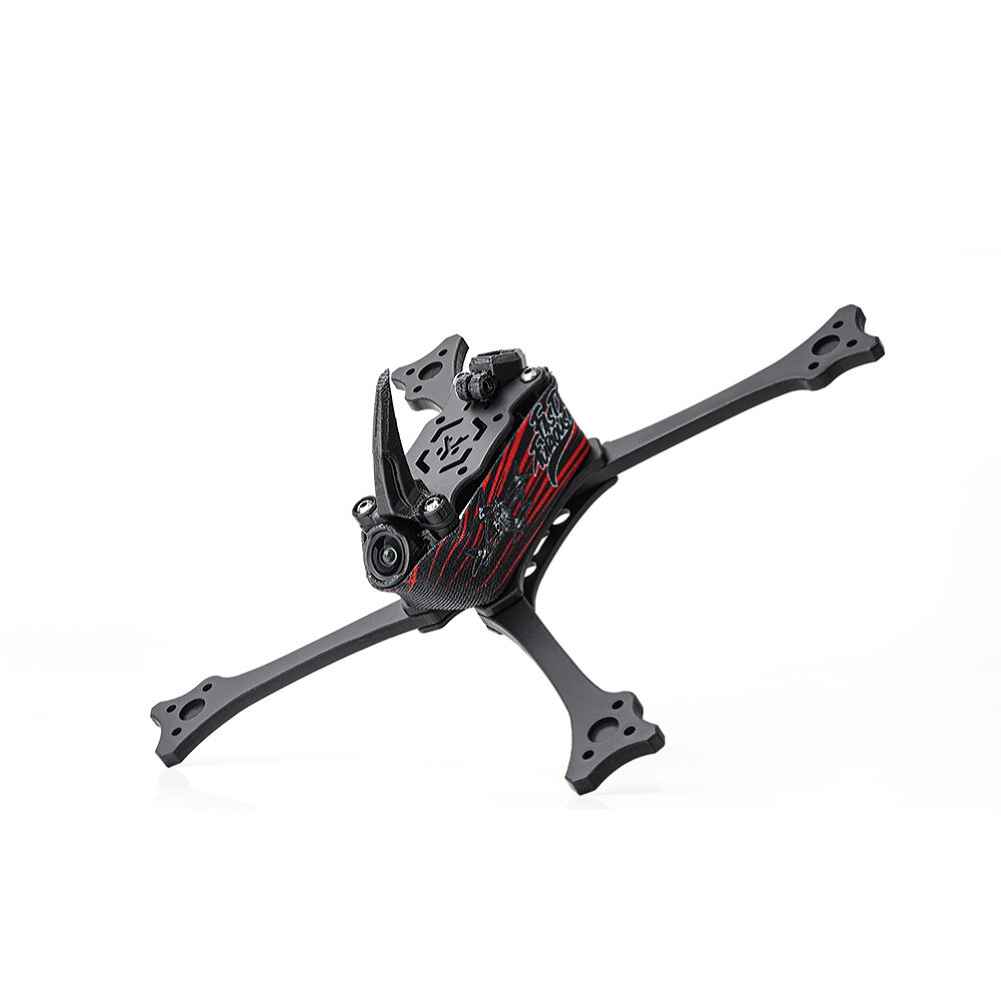

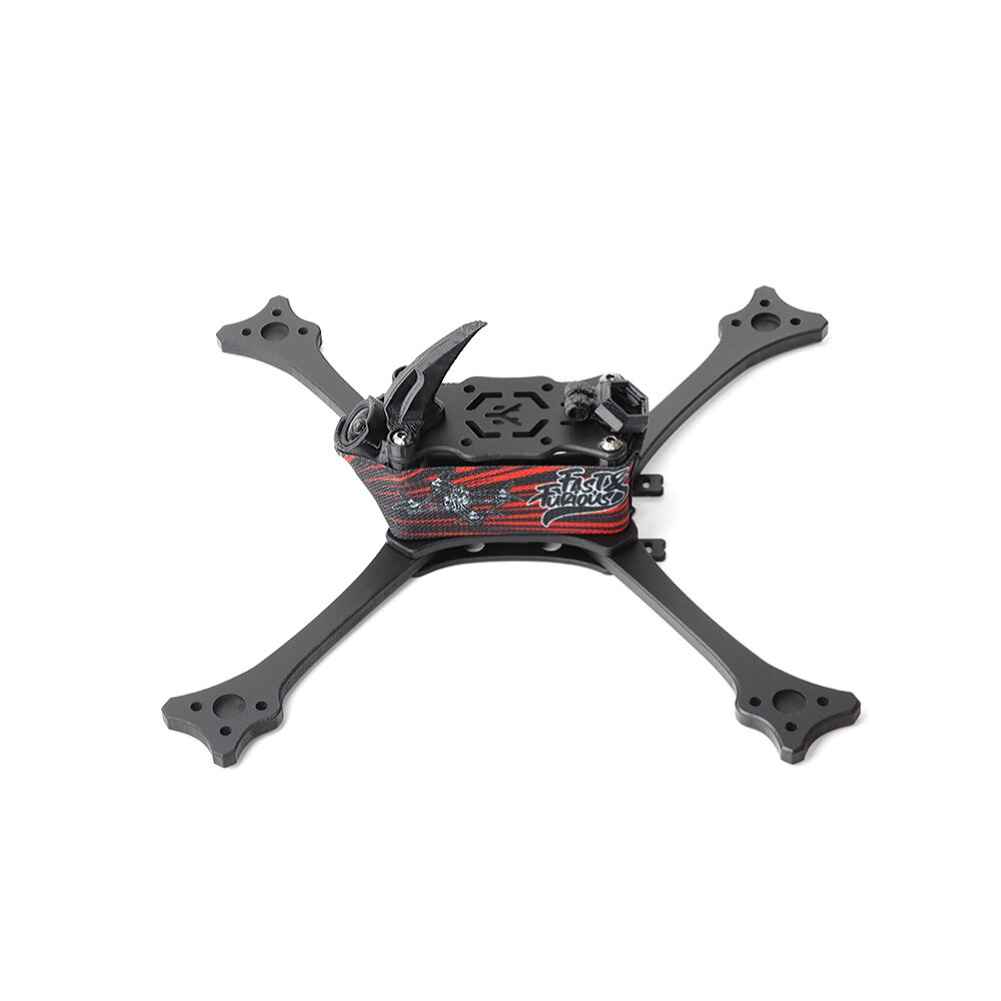

Wind5 Lite V2 is a lightweight racing frame designed for racing drone competitions. It is designed as a positive X structure with a wheelbase shortened to 195mm, which provides a better flying feel.
The frame uses Toray-T700 carbon fiber + 7075 aviation-grade aluminum columns, and is equipped with an arm protection rod design. The frame structure is more solid/explosion-resistant, and supports quick-disassembly of the arm for easy daily maintenance.
Features:
— The frame is made of high-strength Toray-T700 carbon fiber material;
— Customized high-strength 7075 aviation-grade limit aluminum parts to prevent empty space;
— Customized high-strength 7075 aviation-grade aluminum columns to better protect cameras/stack and other equipment;
— The arm quick-release design only requires one screw to quickly remove the arm for easy maintenance;
— The top plate reserves 20×20*M3 holes for easy installation of HDZero digital VTX;
— The default arm protection bar is standard to reduce the loss of the drone;
— The default standard is a new design simulated RHCP mini hammer antenna;
— The default standard is a 15*250mm non-slip battery strap, which is in place in one step.
Specification:
Brand: HGLRCModel: Wind5 Lite V2Item Name: 5 Inch Frame Kit
Material: Toray-T700 spray paint
Frame Wheelbase: 195mm
Installation Space: 26mm
Flight Controller Mounting Hole: 20X20*M3
VTX Mounting Hole: 20X20*M3
Motor Mounting Hole: 16X16*M3
Frame Size (L*W*H): 172.5mm沁169mmx70mm
Default Standard: FOXEER predato 5NANO 45-degree camera mount
Frame Thickness: top plate 2mm / middle plate 3mm / bottom plate 2mm / arm 5mm / protective rod 3mm
Single Frame Weight: 69.5g (including printed parts/aluminum column/screws)
Recommended parts: (not included)
ESC: SPECTER 60A
Flight Controller: SPECTER F722 MINI
Motor: SPECTER 2306.5-1900KV
Camera: FOXEER predato 5NANO/Runcam Nano4
Propeller: Gemfan 51466

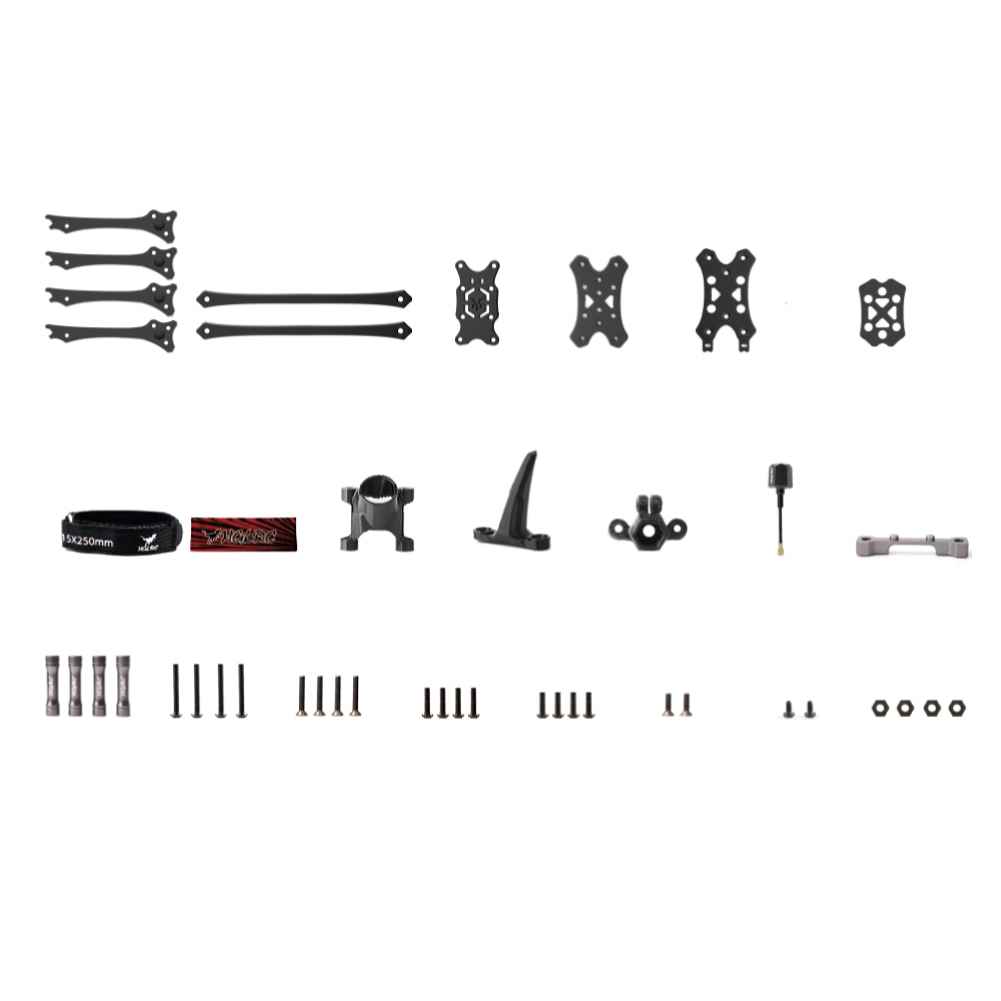

Package Included:
1 x Battery anti-slip sticker
2 x Arm protection bar
1 x Top plate
1 x Middle plate
1 x Bottom plate
4 x Arm
2 x Battery Strap 15 250mm
1 x Dustproof belt
1 x Camera mount
1 x TPU shark fin
1 x Antenna mount
1 x Antenna
1 x CNC arm limiter
4 x M3 25mm 7075 aluminum column
4 x Round head M3 25mm
4 x Countersunk head M3 16mm
4 x Round head M3 12mm
4 x Round head M3 10mm
2 x Countersunk head M3 10mm
2 x Round head M2 4mm
4 x M3 Nylon nut
