Description

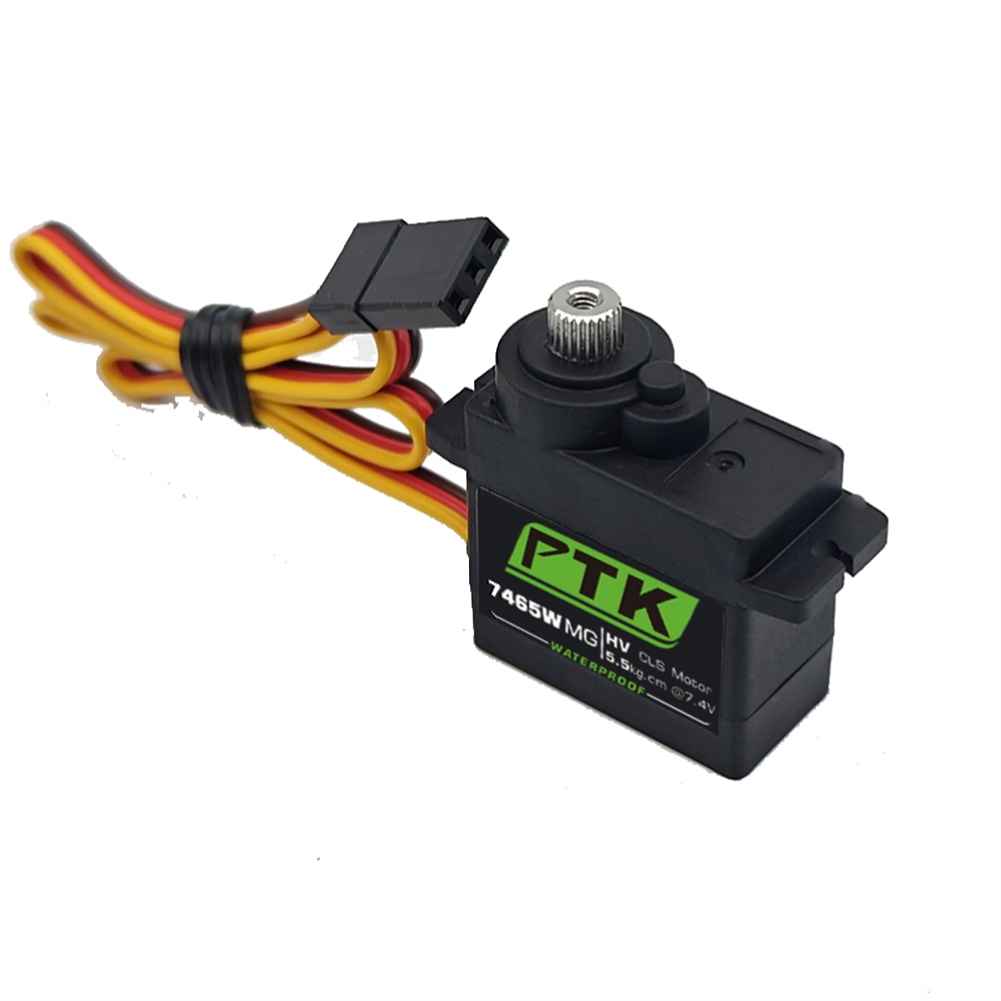

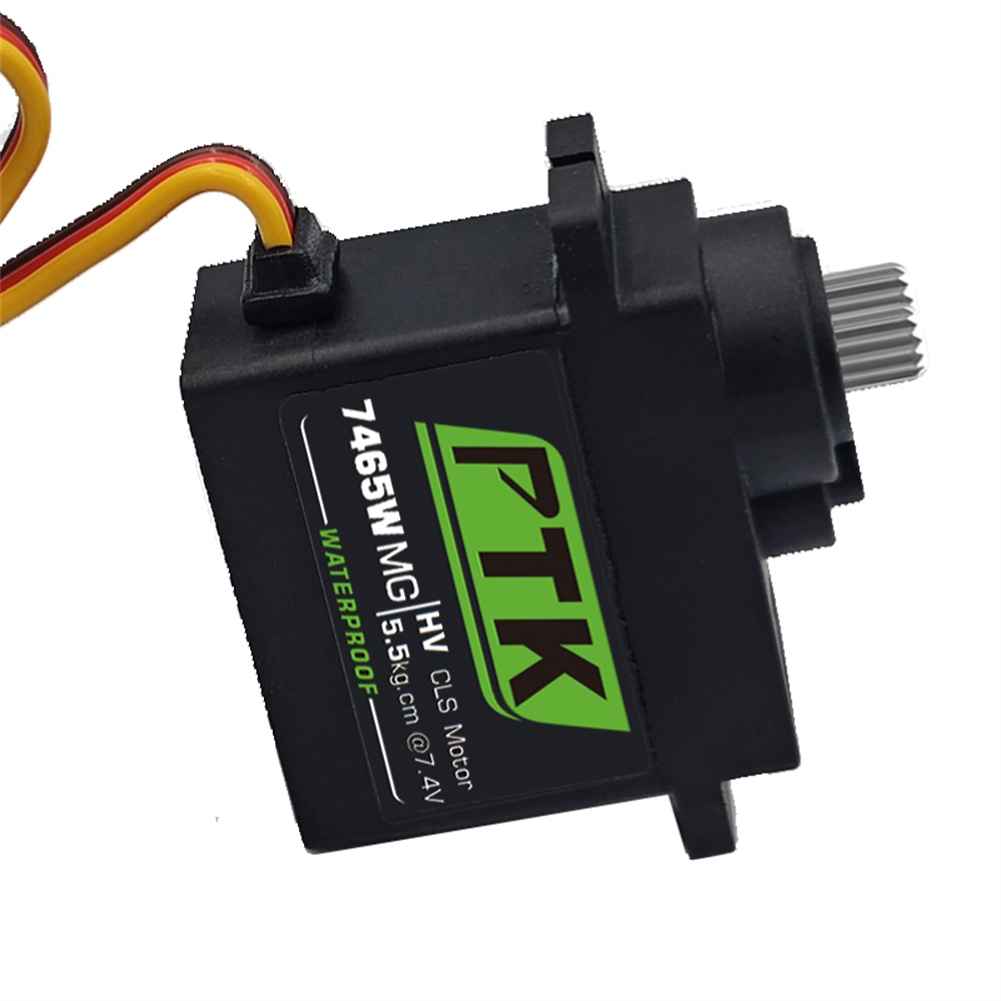

PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
The PTK 7465W MG 25T is a robust 9g digital waterproof RC servo designed for use in robots, fixed-wing aircraft, and car models. It operates on a control signal of PWM with a working frequency of 1520弮s/333Hz and supports a voltage range from 4.8V to 8.4V. This servo offers a stall torque ranging from 3.8 Kg.cm to 5.8 Kg.cm and a no-load speed from 0.11 sec/60簞 to 0.07 sec/60簞. It features a coreless motor and aluminum 7075 gear material, ensuring durability and high performance. The servo’s dimensions are 23.9 x 12 x 26.6 mm, and it weighs just 12g. The 245mm servo lead length provides ample reach for various applications.
Specifications:
Control Signal: PWM
Working Frequence: 1520譙s/333Hz
Default Travel Angle: 500譙s/1500譙s/2500譙s (-90‵/0‵/+90‵)
Operating Voltage: DC 4.8V-8.4V
Test Voltage: 5.0V / 6.0V / 7.4V / 8.4V
Stall Torque: 3.8 Kg.cm / 4.5 Kg.cm / 5.5 Kg.cm / 5.8 Kg.cm
No-load speed: 0.11 sec/60‵ / 0.092 sec/60‵ / 0.075 sec/60‵ / 0.07 sec/60‵
No-load current: 46 mA / 53 mA / 56 mA / 63 mA
Stall current: 1 A / 1.15 A / 1.4 A / 1.6 A
Dead band: 2譙s
Dead band: 25T ?4.9
Servo lead length: 245mm (呼5mm)佾9.64 in
Type of motor: Coreless Motor
Gear material: Aluminum 7075
PCB type: Digital
Appearance dimension: 23.9*12*26.6 mm佾 0.94*0.47*1.04 in
Weight: 12g (呼0.5g)佾0.42 oz
Bearing: 1BB

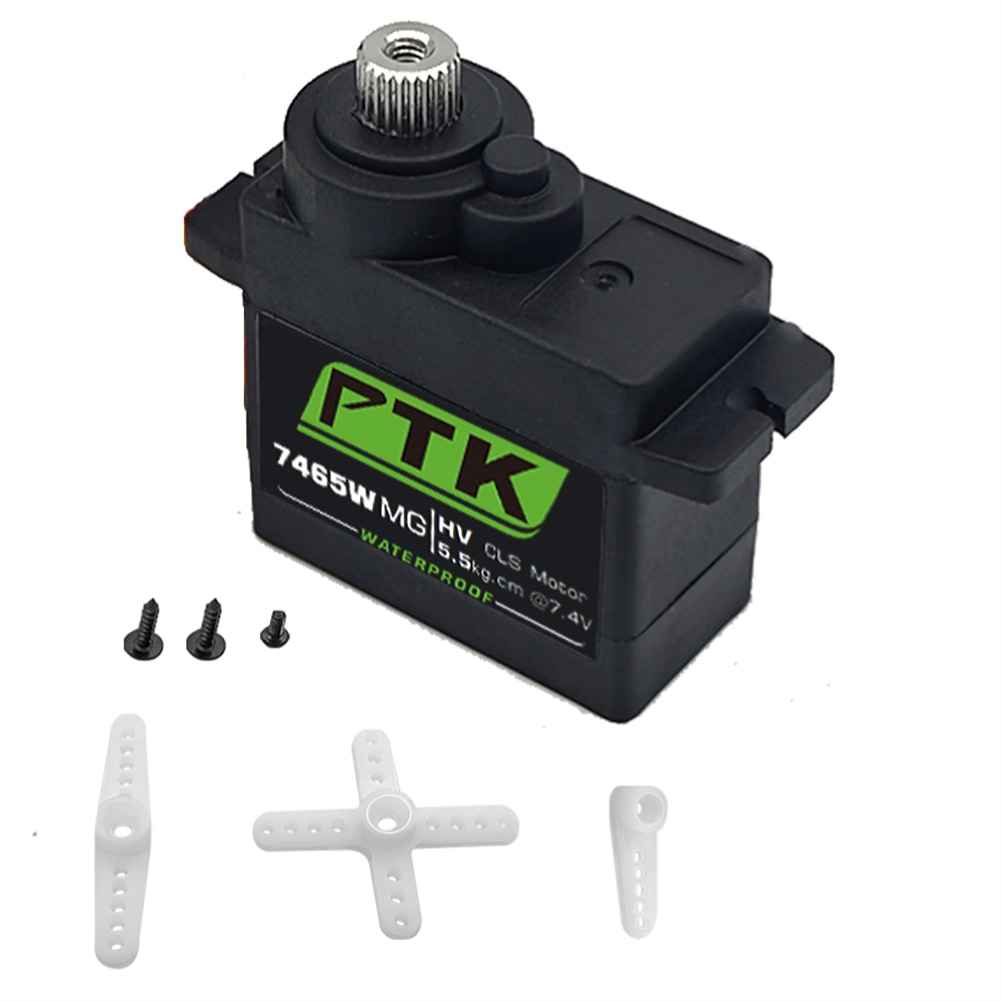

Package Included:
1 x 9g Digital Waterproof RC Servo
