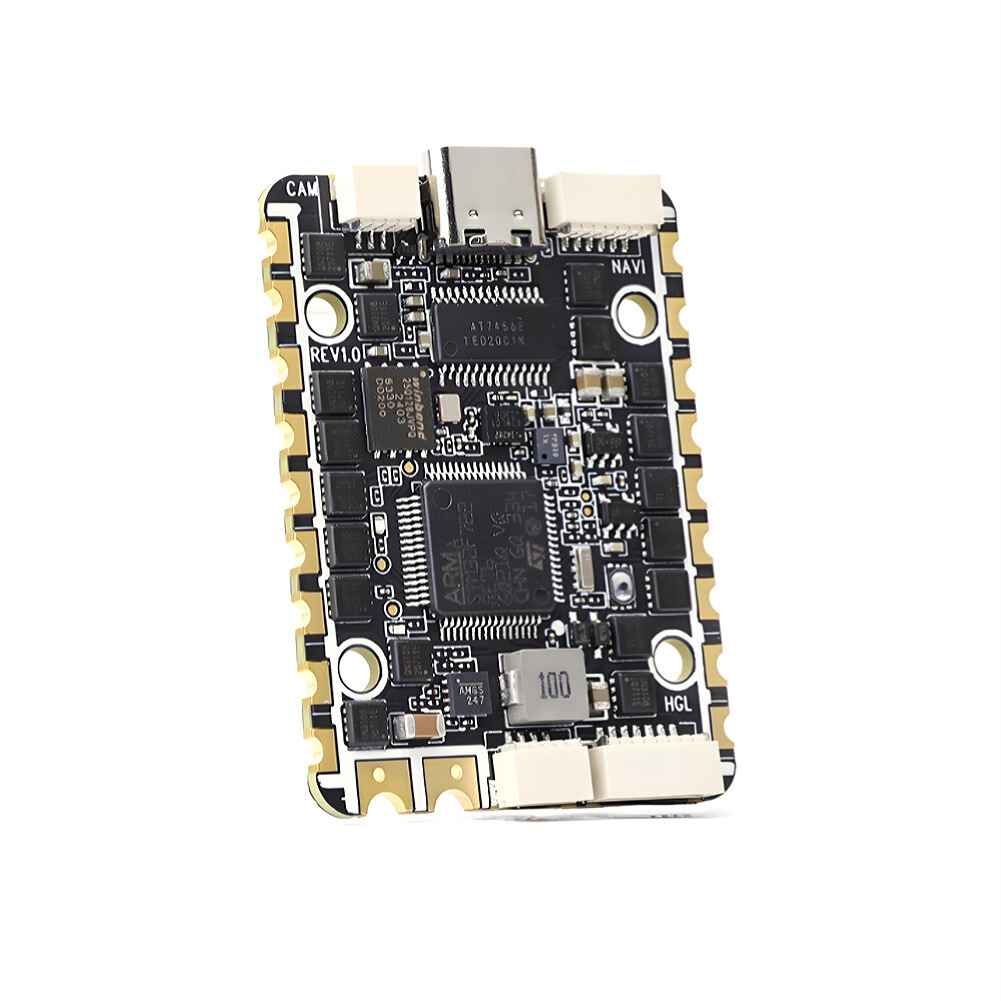

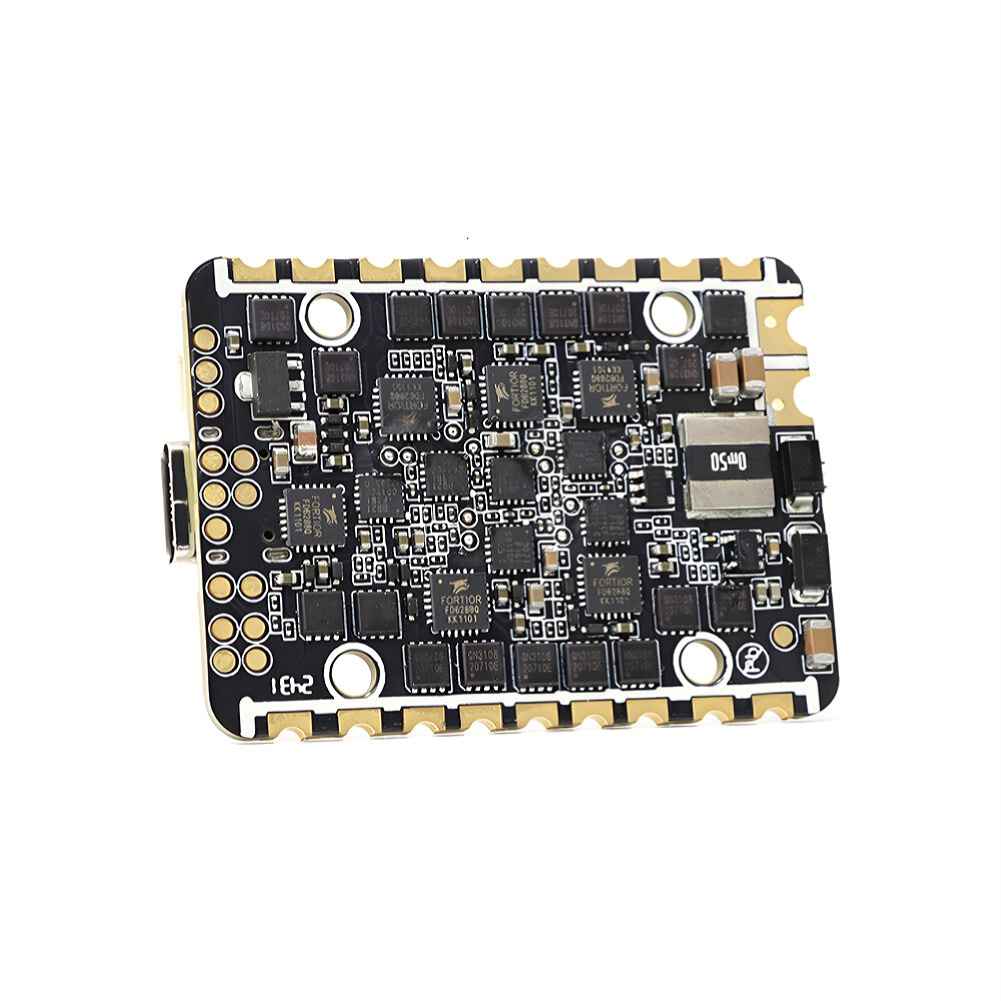

25.525.5mm HGLRC SPECTER F722 Flight Controller 40A 2-6S Brushless ESC 6-way AIO for Rekon Y6 RC FPV Racing Drone
The HGLRC SPECTER F722 Flight Controller features a compact design with integrated ESC, eliminating complex wiring. It supports a 6-channel ESC output suitable for Y6 and six-axis control types, with each channel handling up to 40A for optimal flight performance. Compatible with HD VTX Air Units or analog VTX terminals, it includes an STM32F722 MCU, ICM42688P gyroscope, and DPS310 barometer. The controller supports 2S-6S LiPo batteries with a working voltage of 7.4V to 26.1V. The firmware includes HGLRCF722AIO_X6 4.4.3 for the flight controller and F-H-40- Bluejay 0.19 for the ESC, ensuring smooth operation.
Feature:
– Small size, flight control and ESC two-in-one, no complicated wiring required.
– 6 channel ESC output, supports Y6, six-axis and other mixed control types.
– Single-channel current can withstand up to 40A current, providing the best performance for flight.
– Support HD VTX Air Unit or analog VTX terminal direct plug.
Specification:
Brand: HGLRC
Model: SPECTER F722 AIO
Item Name: F7 Flight Controller 40A 4-6S 6in1 ESC
Flight Controller MCU: STM32F722
Gyroscope: ICM42688P
Mounting Hole: 25.5沁25.5mm, M2
Barometer: dps310
Working Voltage: 7.4V?26.1V (2S-6S lipo)
Maximum Working Current of Single ESC: 40A
Flight Controller Firmware: HGLRCF722AIO_X6 4.4.3
ESC Firmware: F-H-40- Bluejay, 0.19, 48kHz
Black Box: 16MB
UARTS: 3

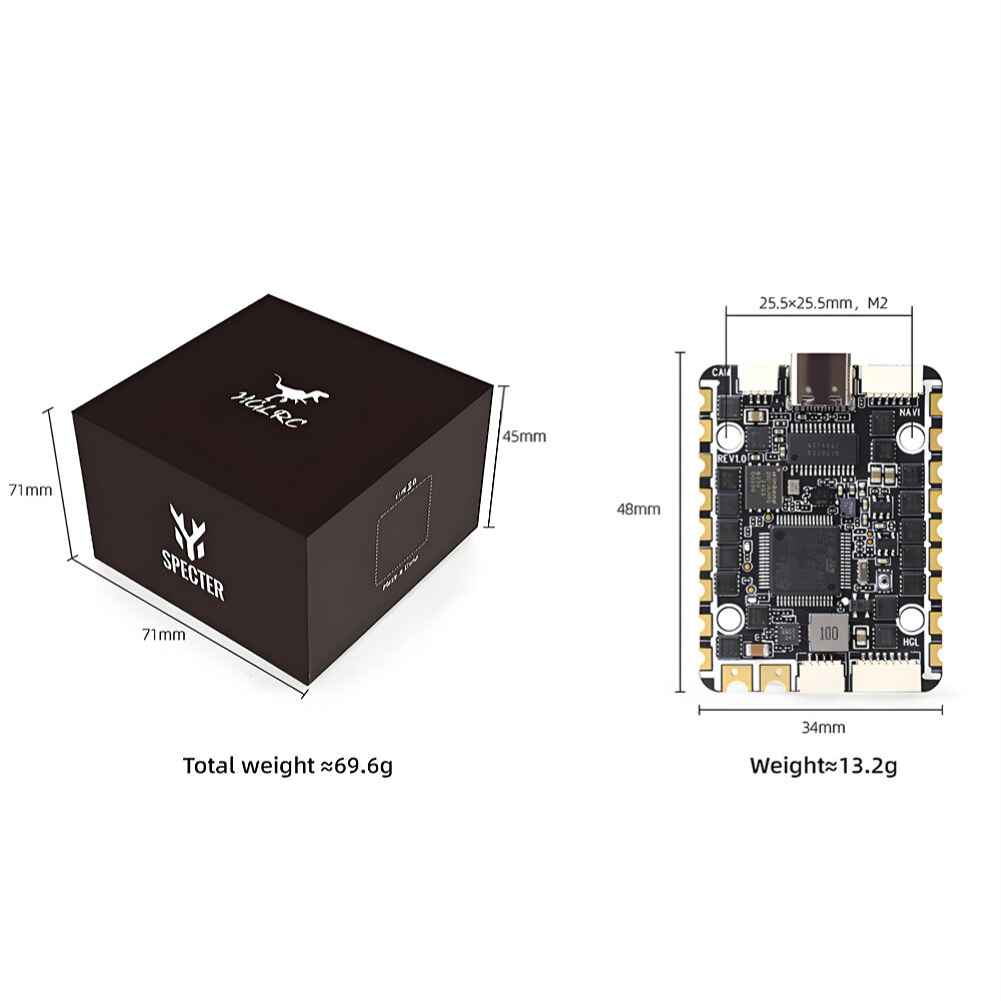

Size: 34沁48mm
Weight: 13.2g

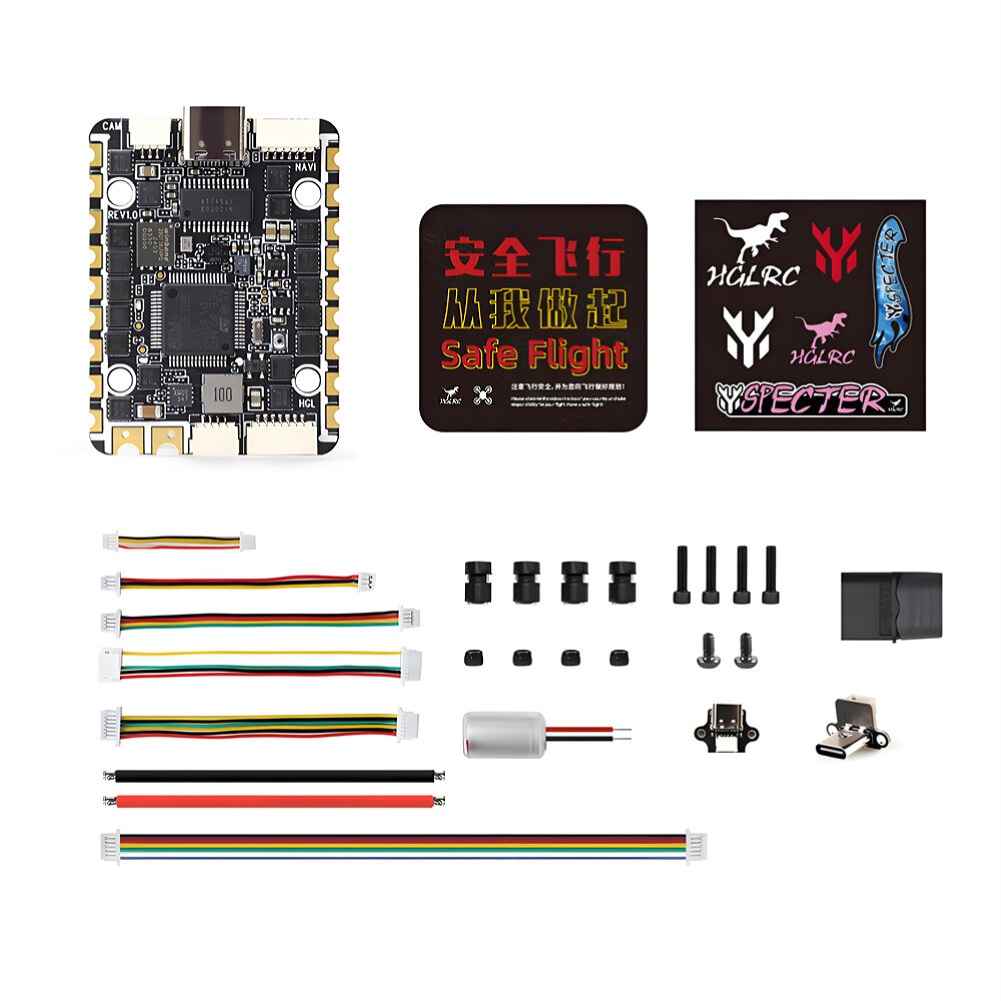

Package Included:
1 x SPECTER F722 40A 4S-6S 6 channel AIO V2 flight controller
1 x 30AWG 70MM single-head SH1.0-7P/single-head SH1.0-6P DJI cable
1 x 30AWG cable length 70MM, single-head GH1.25-6P/single-head SH1.0-7P VTX cable
1 x 30AWG cable length 140mm double-head SH1.0-6P GPS cable
1 x 30AWG cable length 70mm double-head SH1.0-4P receiver cable
1 x 30AWG cable length 60mm single-head SH1.0-3P/single-head SH1.25-3P camera cable
1 x 16AWG cable length 7mm red and black power cable
4 x M2 6.6 Shock-absorbing ball
4 x Cup head hexagon socket M2 10 black nickel-plated screws
4 x Anti-loosening self-locking M2 nuts
1 x Type C male and female adapter module
