Description

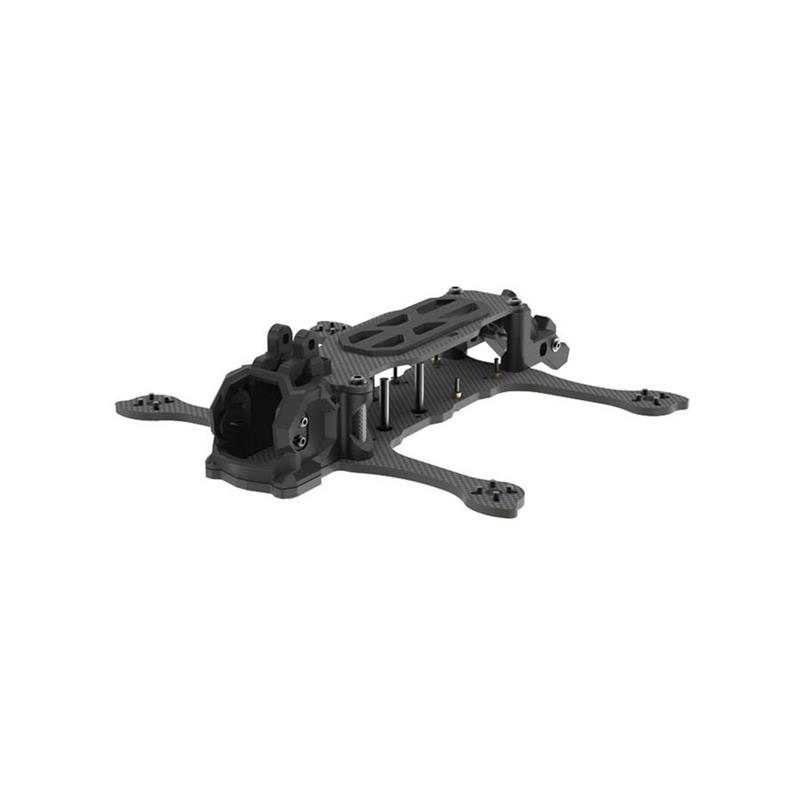

iFlight iH3 168mm Wheelbase 3 Inch DIY Frame Kit H Tpye Support DJI O3 Air Unit for RC Drone FPV Racing
Introducing the iFlight iH3, a premium cruise drone frame kit designed for an exceptional flying experience. This 3-inch DIY frame kit features a sturdy H-shaped structure and an Anti-Spark Filter, ensuring optimal balance and stability during high-intensity operations. The iH3 is compatible with the DJI O3 Air Unit and GoPro naked cameras, allowing for thrilling flight footage. With a 168mm wheelbase and 3mm thick arms, it offers robustness and versatility. The frame supports various motor and VTX mountings, making it suitable for freestyle and mid-to-long-range cruising. Weighing just 110 grams, it is designed for maximum power with recommended 4S batteries (not included).
Introdutcion:
Let’s meet the iH3, a new high-quality cruise drone that offers an exceptional flying experience at an affordable price.
Its H-shaped frame structure and Anti-Spark Filter ensure balance and stability even during intense operations. Moreover, it is compatible with GoPro naked for more exciting flight footage.
Specifications:
Brand: iFlight
Model: iH3 ( Support DJI O3 Version)
Product Name: 168mm Wheelbase 3 Inch DIY Frame Kit
Geometry: H-shaped
Frame wheelbase: 168 mm
Frame Dimensions (L℅W℅H): 135℅100℅40 mm (From Canopy)
Arm Thickness: 3mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Motor Mountingㄩ9x9mm/12x12mm
VTX Mountingㄩ20*20 朴2mm/ 25.5*25.5 朴1.6mm
Weight: 110 grams
Recommended batteries: ( NOT Included)
1050mAh 4S // Maximum power, ready for freestyle with stick feel of a 5inch and great range for Mid-LongRange cruising.
850mAh 4S // Great weight to power ratio for your daily adventure.
Packing List:
1 x iH3 Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
1 x Battery strap
Package Included:
1 x iH3 Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
1 x Battery strap
