Holybro Pixhawk 6C PX4 Flight Controller for Multi-Rotor RC Drone, High-Performance H7 Processor, Integrated Vibration Isolation

Sale!

Holybro Pixhawk 6C PX4 Flight Controller for Multi-Rotor RC Drone, High-Performance H7 Processor, Integrated Vibration Isolation

Original price was: 283.98$.Current price is: 231.44$.

High-performance STM32H743 32 Bit Arm Cortex-M7 processor
Redundant IMUs from Bosch & InvenSense for accurate data
Innovative vibration isolation system reduces noise
Temperature-controlled IMUs for optimal performance
Supports multiple voltage inputs with current limiters

Flight Controller

Plastic

SKU: RC2022184 Category: Multi Rotor Parts Tags: Bosch InvenSense IMU, high-performance drone processor, Holybro Pixhawk 6C controller, multi-rotor RC drone flight controller, redundant IMU drone controller, STM32H743 32 Bit Arm Cortex-M7, temperature-controlled IMU, vibration isolation system drone Brand: Holybro

Description

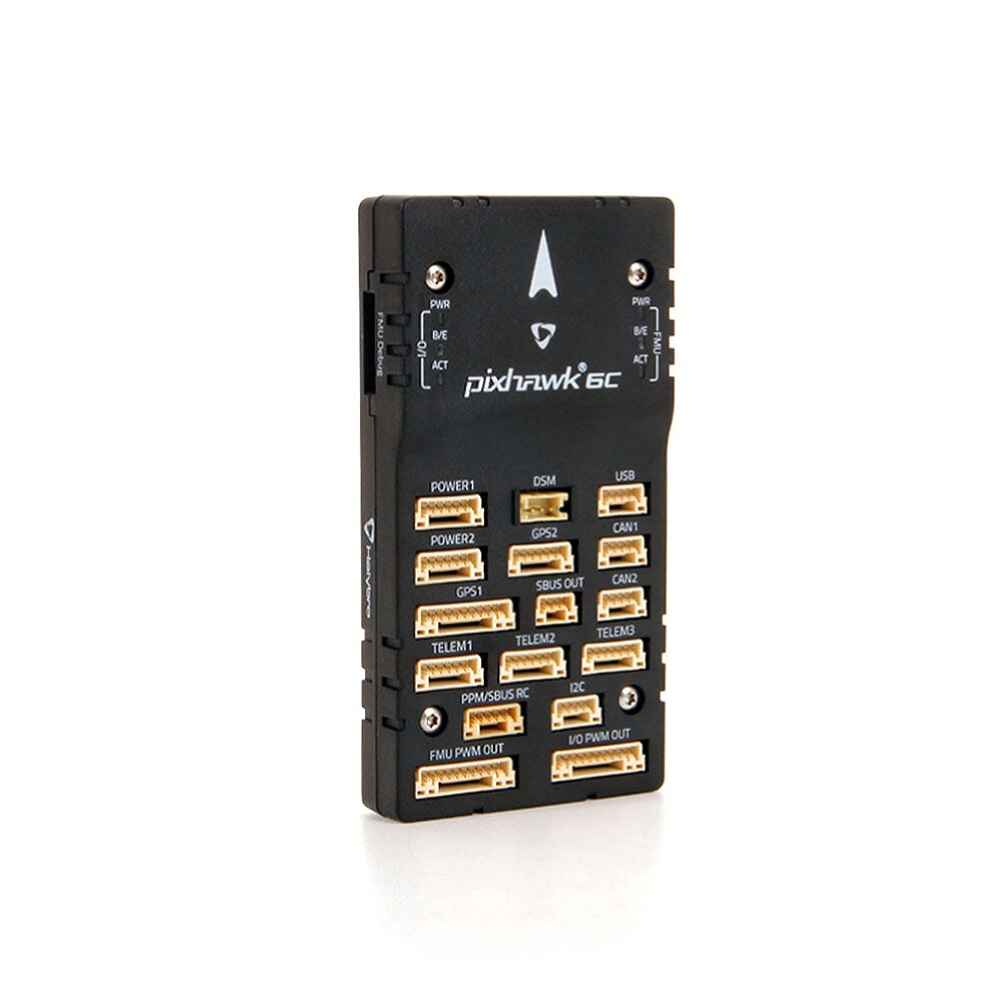

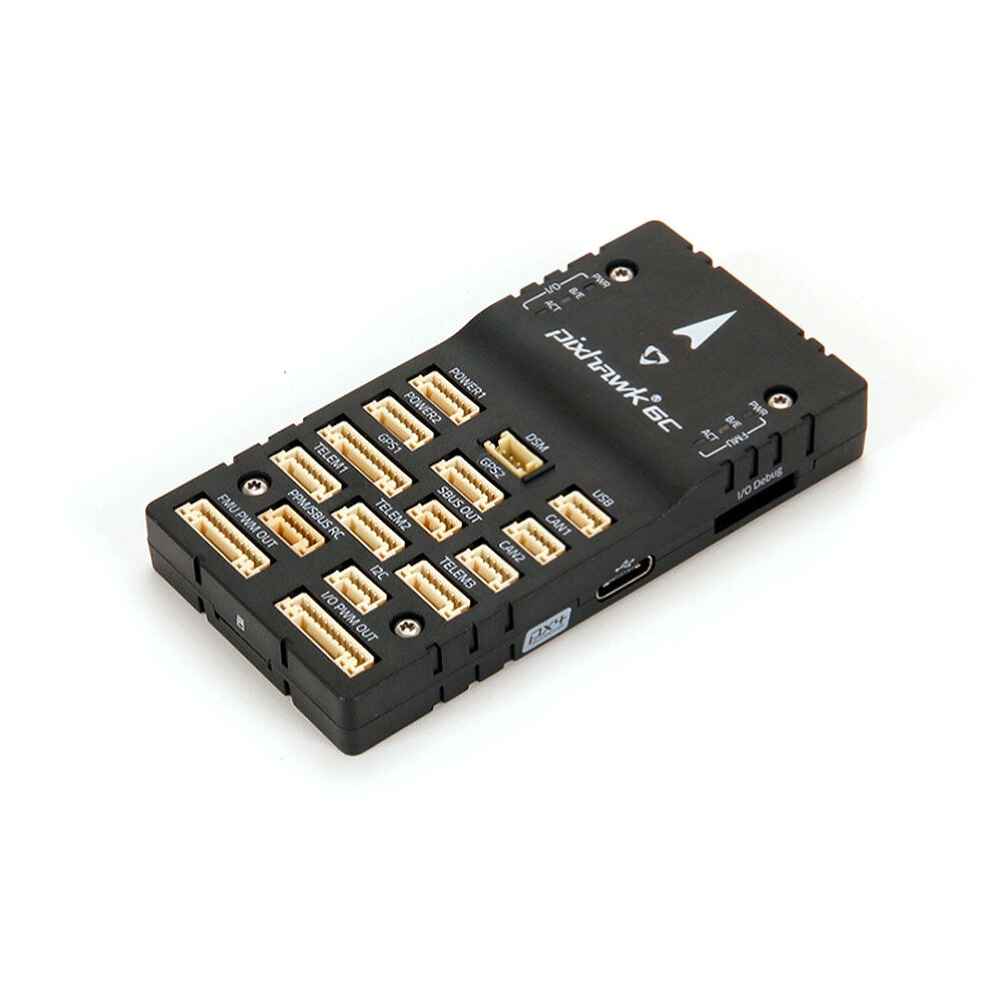

Holybro Pixhawk 6C PX4 Flight Controller for Multi-Rotor RC Drone

The Holybro Pixhawk 6C PX4 Flight Controller is a robust solution for multi-rotor RC drones. It features a high-performance STM32H743 32 Bit Arm Cortex-M7 processor with a clock speed of up to 480 MHz, providing exceptional processing power. The controller is equipped with redundant inertial measurement units from Bosch & InvenSense, ensuring precise and reliable data. Its innovative vibration isolation system minimizes high-frequency vibrations, enhancing accuracy. The Pixhawk 6C is designed with a low-profile form factor and includes an onboard heating resistor to maintain optimal IMU temperature. This controller supports various voltage inputs and has current limiters for safe operation.

Specifications:
Brand: Holybro
Model: Pixhawk 6C

Processors & Sensors

FMU Processor: STM32H743
32 Bit Arm Cortex-M7, 480MHz, 2MB Memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM
On-board Sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611

Electrical Data

Voltage Ratings:
Max Input Voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
Telem1 Max Output Current Limiter: 1.5A
All Other Port Combined Output Current Limiter: 1.5A

Mechanical Data

Dimensions: 84.8 * 44 * 12.4 mm
Weight (Aluminum Case) : 59.3g
Weight (Plastic Case) : 34.6g

Features:
— High performance H7 Processor with clock speed up to 480 MHz.
— New cost-effective design with low-profile form factor.
— Redundant inertial measurement unit (IMU) from Bosch & InvenSense.
— Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings.
— IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs.

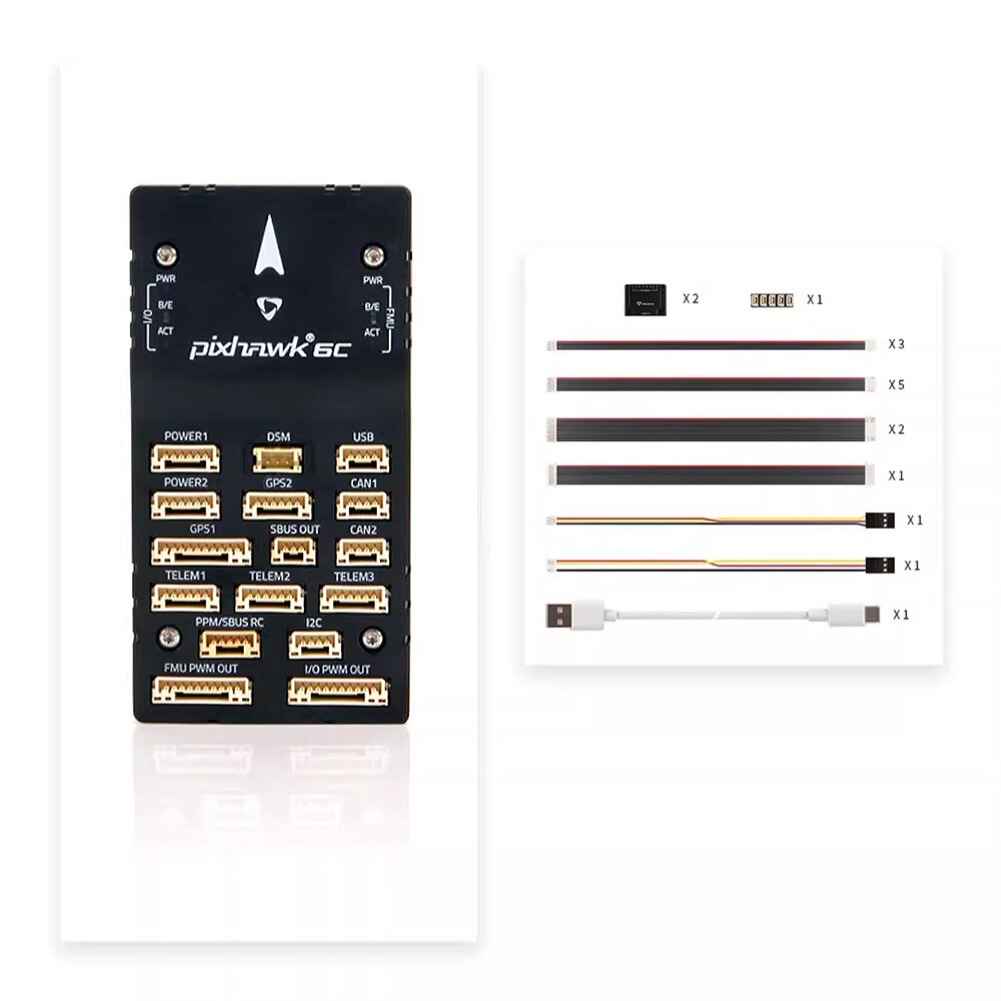

Package Included:
1 x Holybro Pixhawk 6C PX4 Flight Controller
