TEOSAW APEX X5/X6/X7 Frame Kit for DJI O4 Pro FPV Racing Drones, 5/6/7 Inch, Multi-Size Compatibility

Description

TEOSAW APEX X5/X5 Max 5 Inch / X6/X6 Max 6 Inch / X7/X7 Max 7 Inch Frame Kit Compatible with DJI O4 Pro FPV Racing Drones

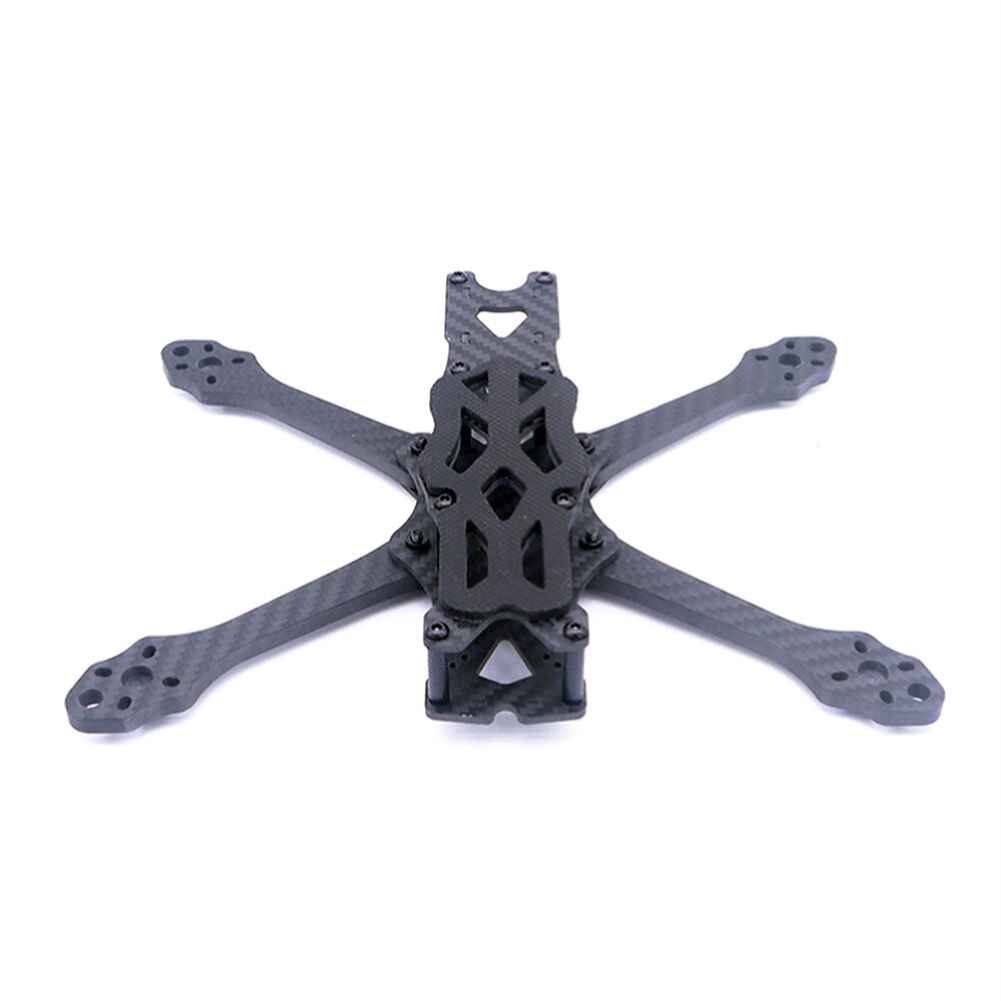

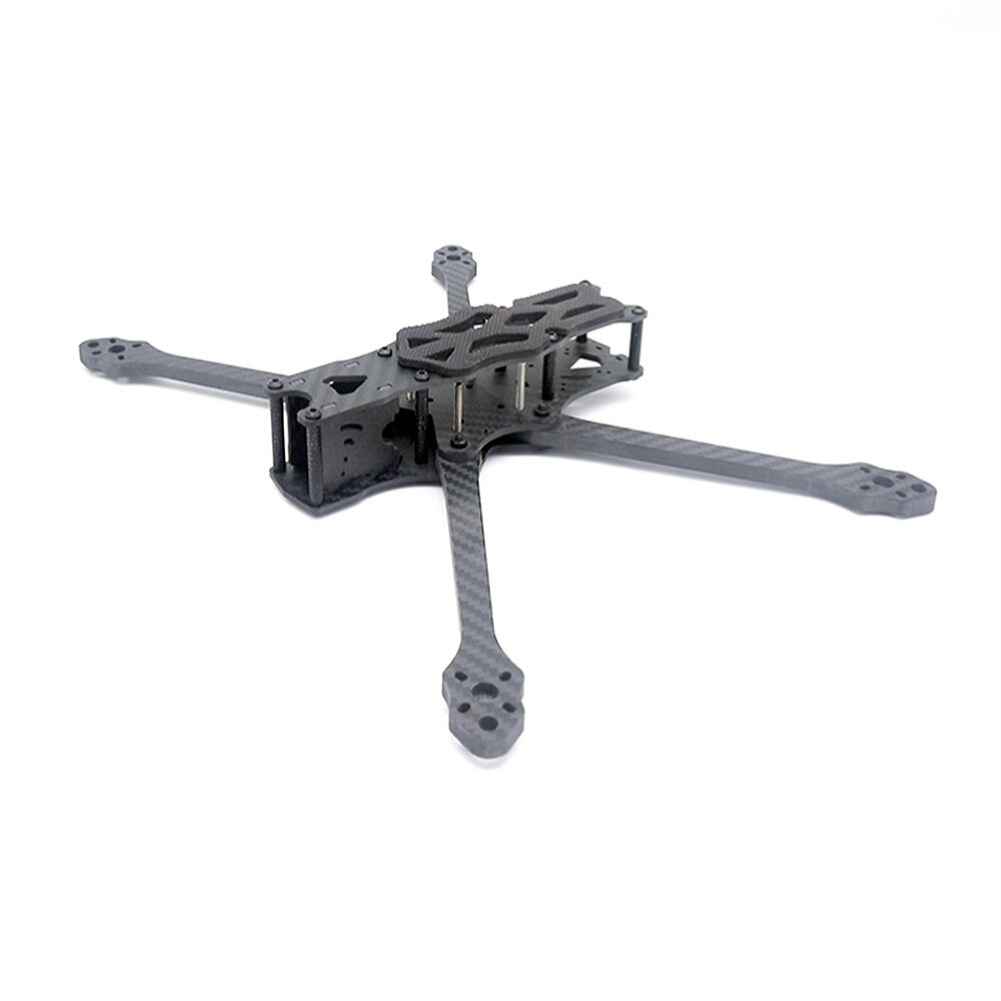

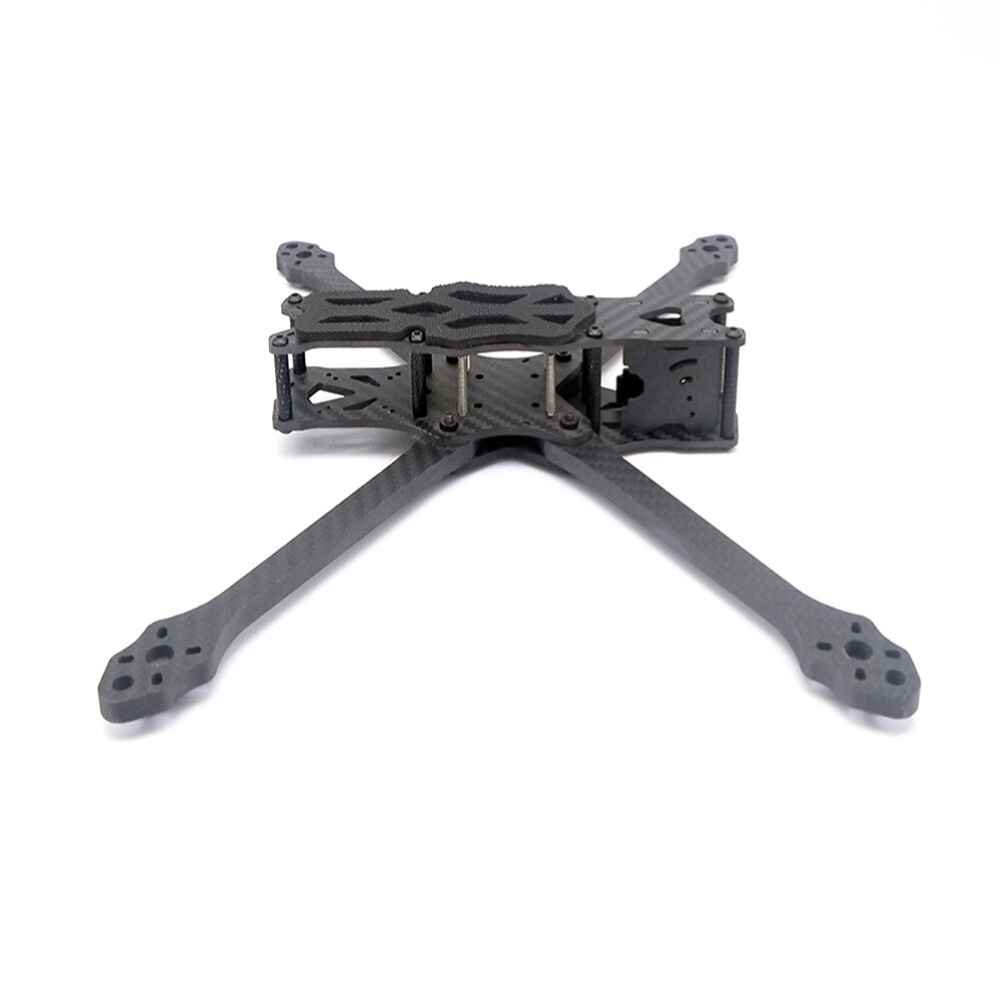

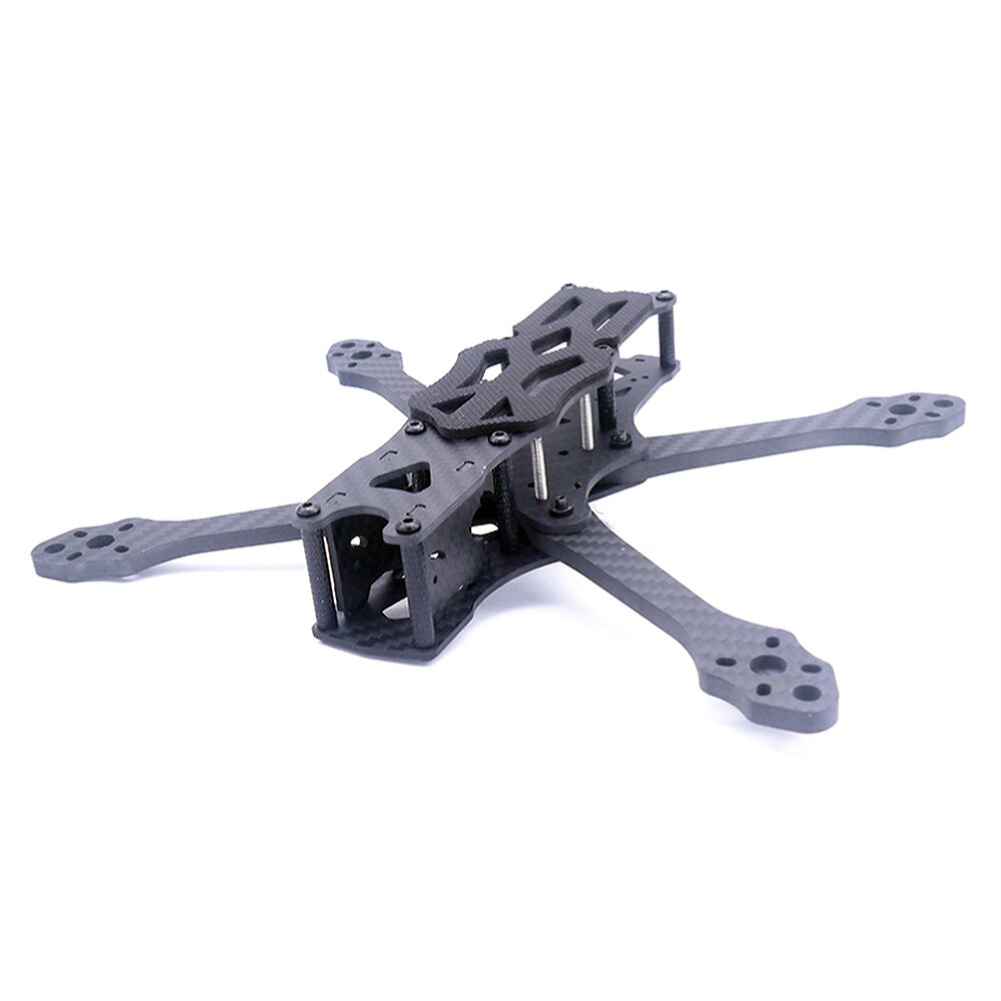

The TEOSAW APEX Frame Kit is designed for FPV racing enthusiasts using DJI O4 Pro drones. Available in 5, 6, and 7-inch sizes, it supports models APEX X5, X5 Max, X6, X6 Max, X7, and X7 Max. This unassembled frame kit features a robust X-Type Split structure with varying dimensions to accommodate different racing needs. The frame is crafted from high-quality 3K (T700 Grade) material, ensuring durability and performance. It supports a range of image transmission units, including DJI O4 Pro Air Unit, DJI O3 Air Unit, and VISTA Air Unit. The frame also includes multiple mounting options for flight controllers, motors, and cameras, providing flexibility for customization.

Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
Specification:
Brand: TEOSAW
Model: APEX X5 / X5 Max / X6 / X6 Max / X7 / X7 Max
Item Name: 5 Inch / 6 Inch / 7 Inch Frame Kit

Model

APEX X5 (Supports O4 Pro)

APEX X5MAX (Supports O4 Pro)

APEX X6 (Supports O4 Pro)

APEX X6 MAX (Supports O4 Pro)

APEX X7 (Supports O4 Pro)

APEX X7MAX (Supports O4 Pro)

Wheelbase:

225mm

275mm

315mm

Dimensions:

Approx.165mm(L) x 213mm(W)x 35mm(H) (excluding printed parts)

Approx. 189mm(L)x 253mm(W)x 35mm(H)(excluding printed parts)

Approx. 212mm(L)x 286mm(W)x 35mm(H)(excluding printed parts)

Weight:

Approx.134g

Approx.159g

Approx.143g

Approx.168g

Approx.151g

Approx.179g

Structure:

X-Type Split

Thickness:

Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm

Supported Propeller Size:

5-5.1 inch

6 inch

7 inch

Flight Controller Mounting Holes:

20*20mm侈M3佩佾30.5*30.5mm侈M3佩

Rear Image Transmission Mounting Holes:

20*20mm侈M2佩佾25.5*25.5mm侈M2佩佾30.5*30.5mm侈M3佩

Camera Mounting Width:

20mm/19mm

Internal Space Height:

Approx.20-28mm

Motor Mounting Holes:

16*16mm侈M3佩佾19mm*19mm侈M3佩

Supported Image Transmission:

DJI O4 Pro Air Unit/DJI O3 Air Unit/VISTA Air Unit/Analog, etc.

Board Material:

3K (T700 Grade)

GPS Mounting:

None

BZ181

None

BZ181

None

BZ181

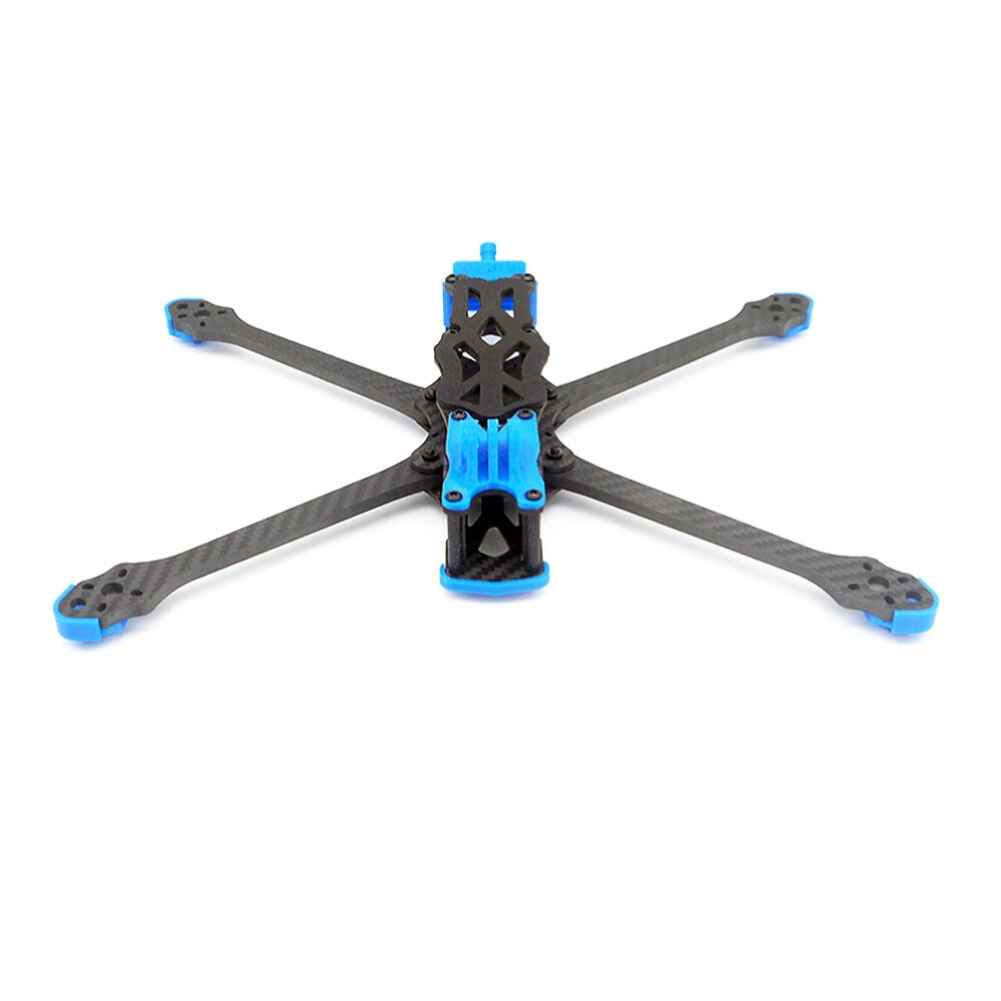

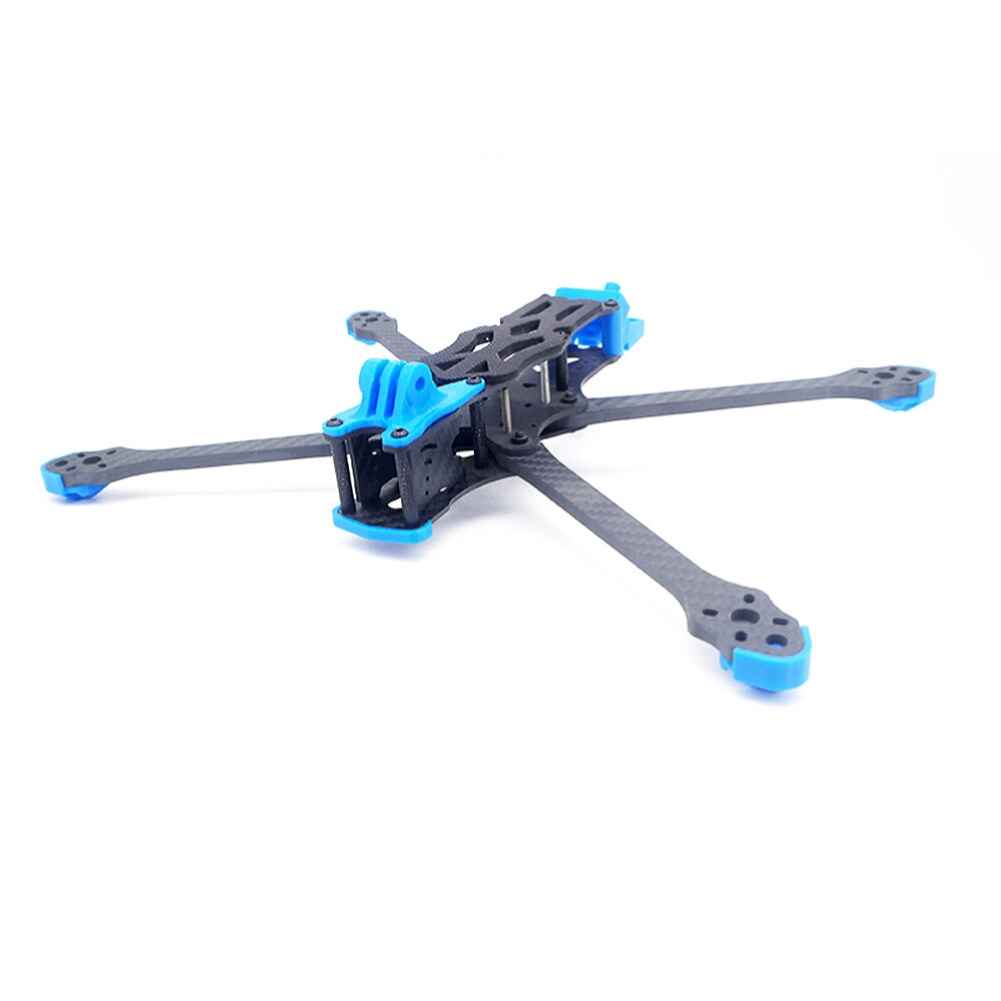

3D Printing Parts List:

None

1 Universal base for sports cameras (such as Gpro),
4 Arm protection bases,
1 Front lip protection base,
1 Universal antenna base (compatible with XT60 power head, BZ181 GPS, ELRS915/2.4, SMA dual-hole, O4 dual antenna, DJI O3 antenna, VISTA antenna, SMA single-hole antenna, etc.)
