Description

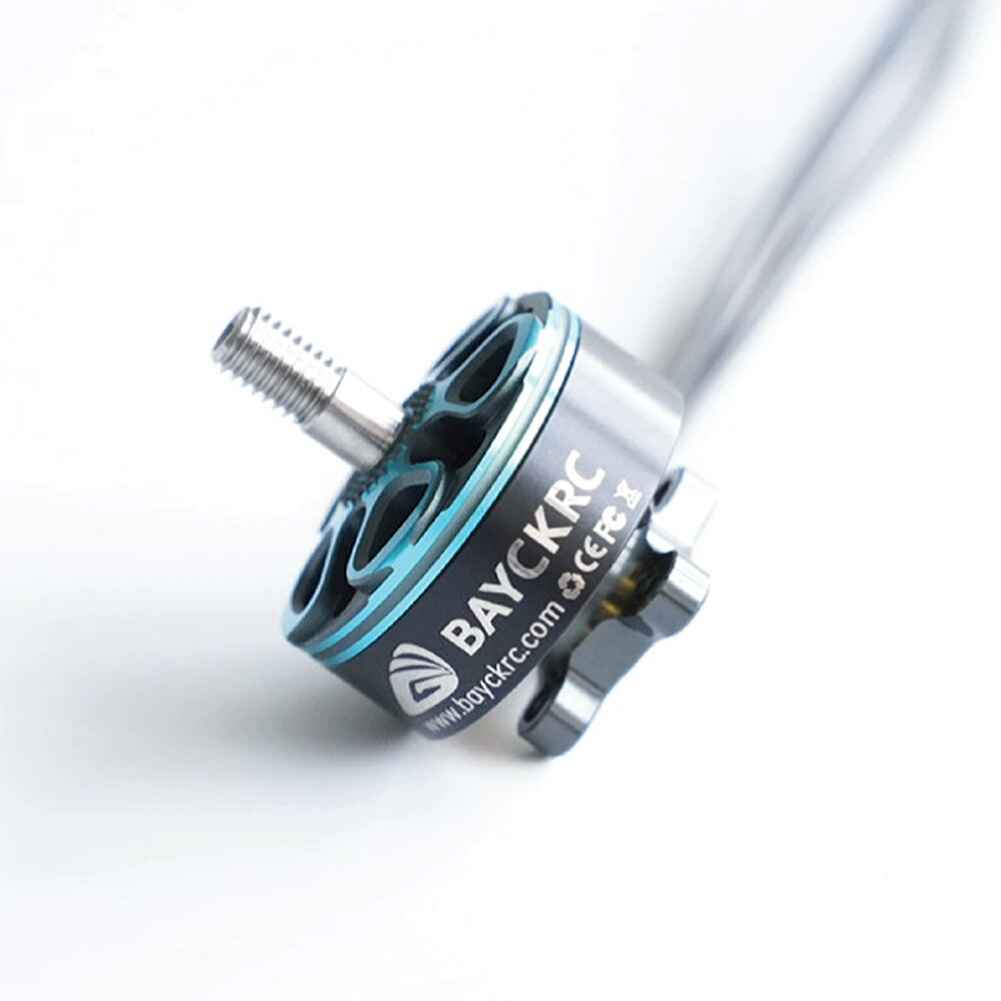

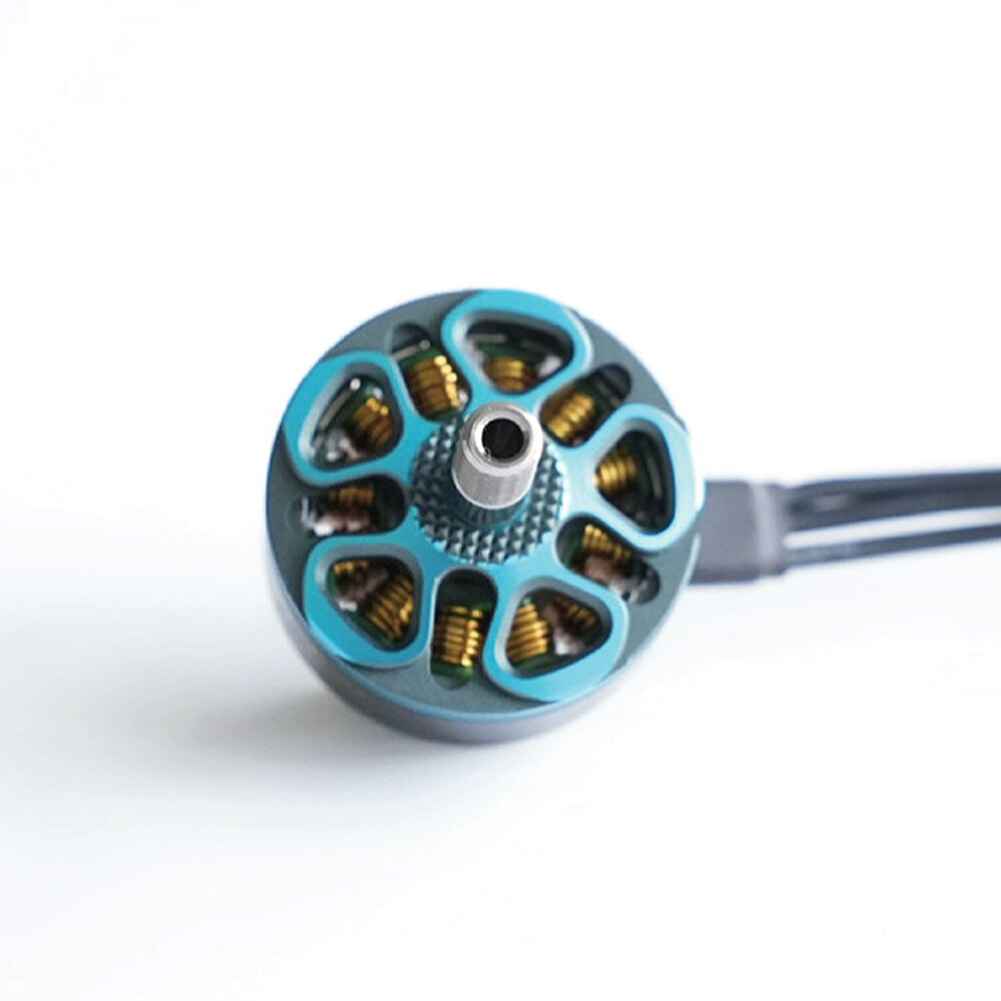

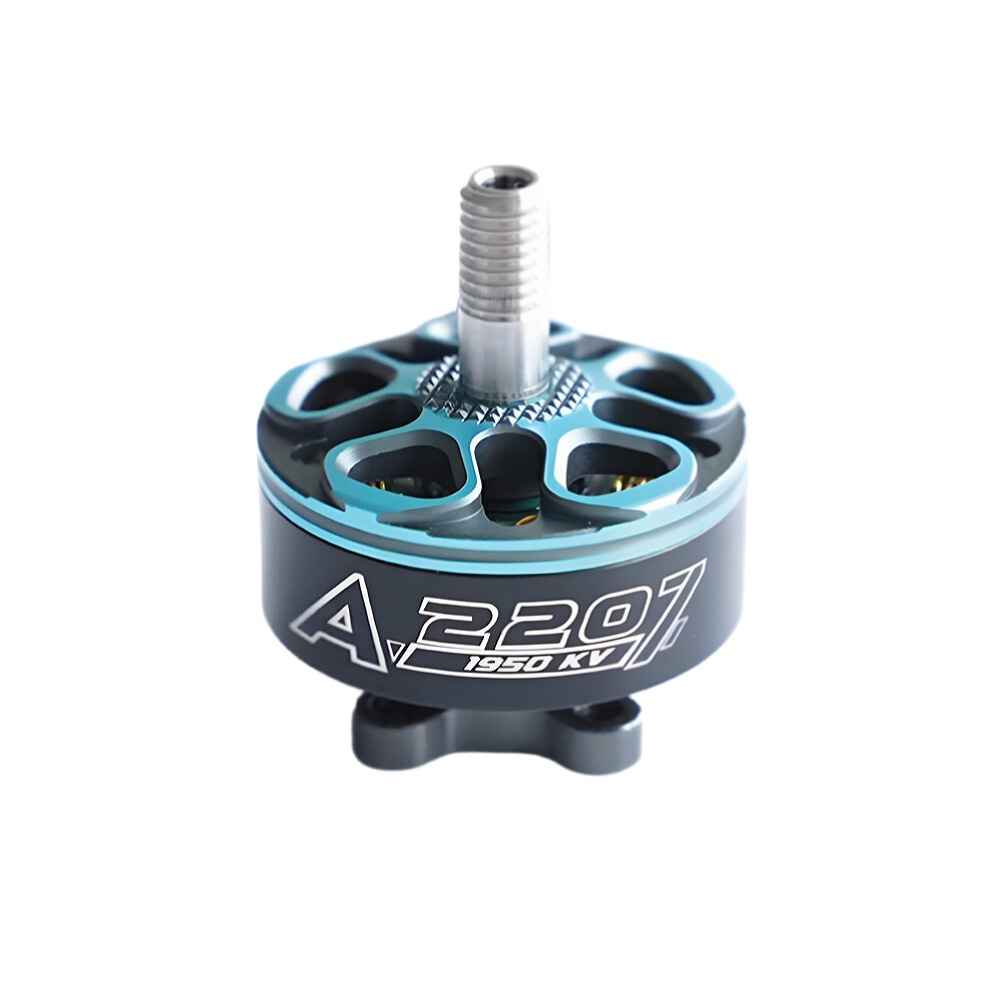

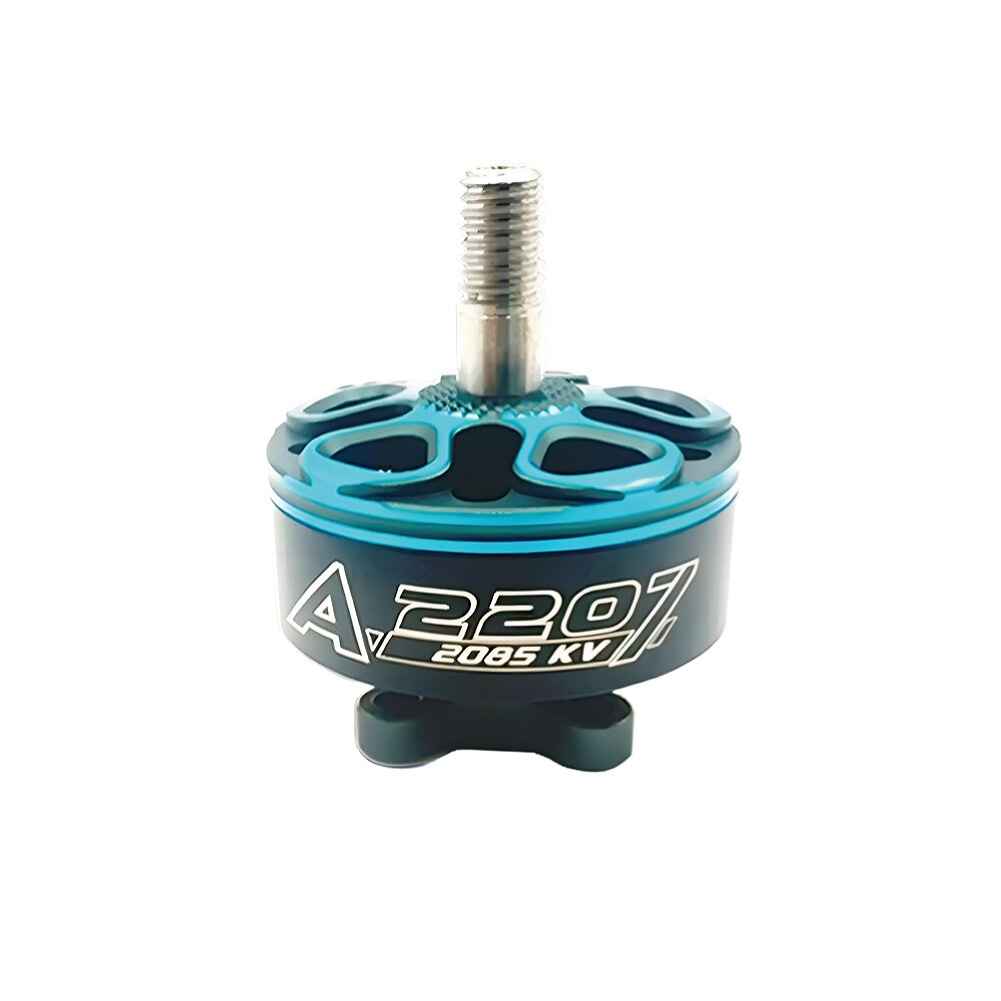

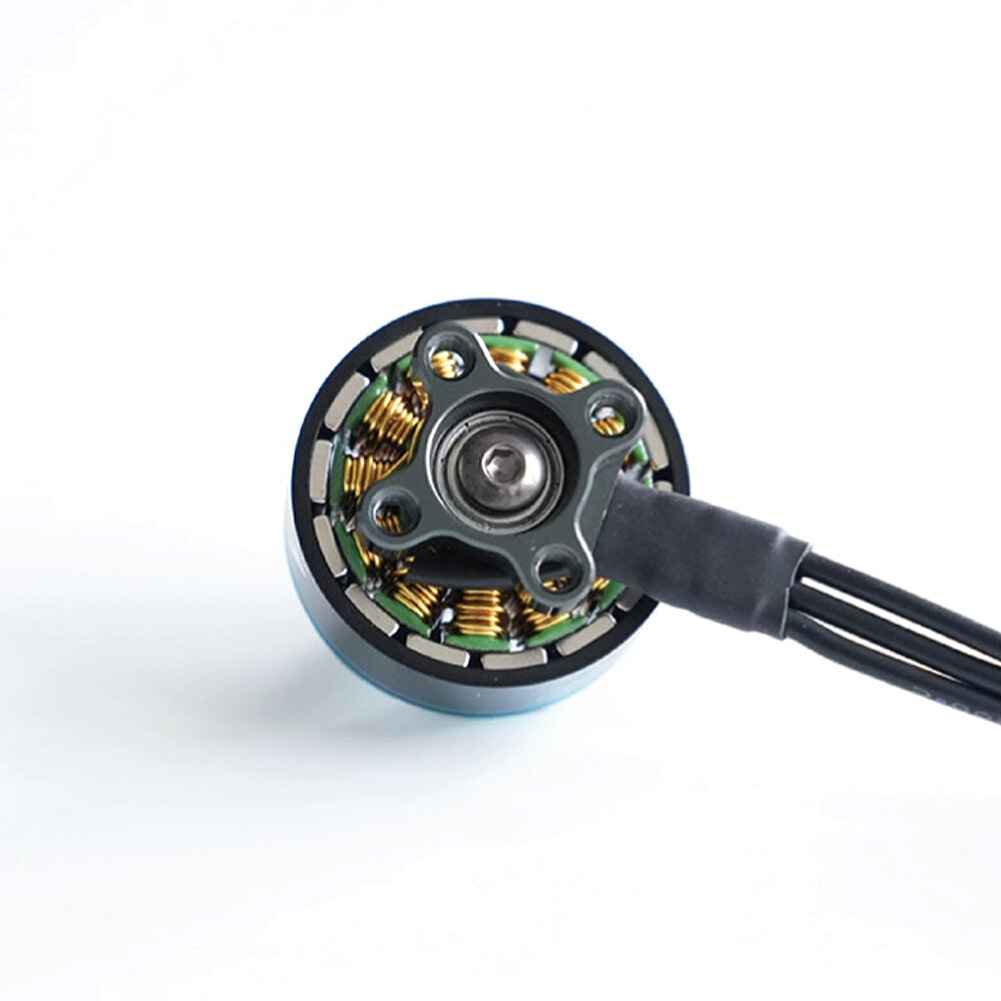

BAYCKRC A Series 2207 2085KV / 1950KV 3-6S Brushless Motor 4mm Shaft for 5 Inch RC FPV Racing Drone
The BAYCKRC A Series 2207 Brushless Motor is designed for 5-inch RC FPV racing drones, offering a choice between 2085KV and 1950KV for optimal performance. It features a robust TC4 shaft with a 4mm diameter and a high-quality NSK684(494) bearing for smooth operation. Weighing just 33.6g with wires, this motor is built with military-grade 260簞C silver-plated enamel copper wire, ensuring durability and efficiency. The motor operates on a 3-6S Lipo battery and is equipped with a 12N14P slot and pole configuration. The Kawaski 0.15 stator and N55SH curved magnet further enhance its power, delivering a peak current of 47.7A and maximum power output of 1144.8W.
Specification:
Brand: BAYCKRC
Model: A Series 2207
KV: 2085KV / 1950KV (Optional)
Shaft: TC4
Shaft Bearing: NSK684(494)
Resistance: 56m棒
Shaft Diameter: 4mm
Motor Weight (Including Wire): 33.6g
Rated Voltage (Lipo): 3-6S
Copper Wire: Military-Grade 260‵C Silver-Plated Enamel Copper Wire
Slots And Poles: 12N14P
Stator: Kawaski 0.15
Magnet: N55SH (Curved Magnet)
Silicone Wire Specification: 22#, 150mm
Motor Weight (Excluding Wire): 31.1g
No-Load Current (10V): 1.3A
Peak Current: 47.7A
Maximum Power: 1144.8W
Package Included:
1 x Motor
