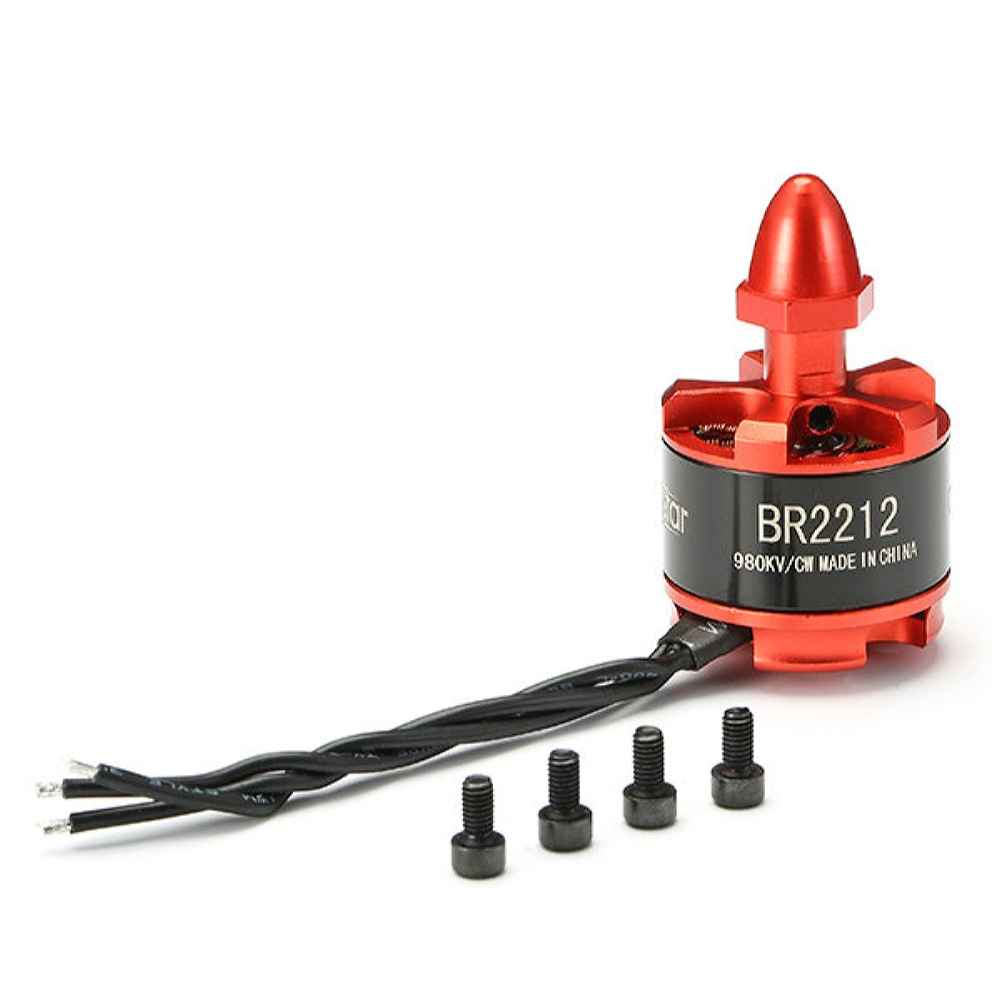

Racerstar Racing Edition 2212 BR2212 980KV 2-4S Brushless Motor For 350 400 RC Drone FPV Racing Multi Rotor
The Racerstar Racing Edition 2212 BR2212 980KV Brushless Motor is designed for 350, 380, and 400 frame kits, ideal for RC drone FPV racing and multi-rotor applications. This motor features a robust design with a height of 30mm and width of 27.7mm, weighing approximately 50g. It operates efficiently with 2-4S lipo batteries, supporting a voltage range of 7.4-14.8V. Equipped with long-lasting Japanese NMB ball bearings and efficient Japanese Kawasaki stator steel, it ensures reliable performance. The motor includes rare earth magnets that remain stable up to 180簞C and is built with oxygen-free pure copper wires. The CNC machined aluminum case and silicone wire leads enhance durability, while patented balance techniques and a unique wiring method ensure optimal functionality.
Racerstar Racing Edition 2212 BR2212 980KV 2-4S Brushless Motor For 350 380 400 Frame Kit
Description:
Brand: Racerstar
Item No: BR2212 980KV Brushless Motor
Height: 30mm
Width: 27.7mm
Weight: about 50g
Shaft: 6mm
Shaft length: 7mm
KV (rpm/V): 980
Voltage: 7.4-14.8V
Battery: 2-4S lipo battery
Tested wiht 11.1V voltage and 1045 prop:
Load current: 10.6A
Pull: 710g
Power: 118W
Efficiency: 6.0 (g/W)

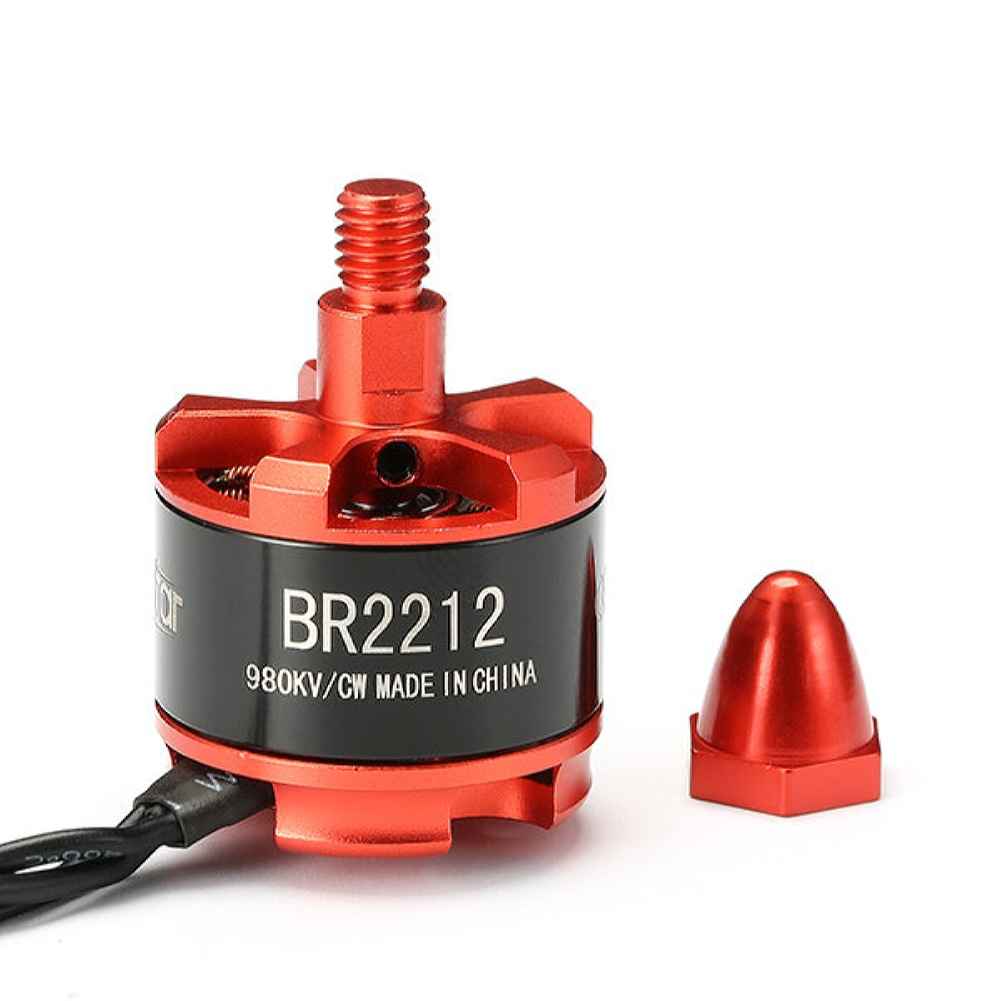

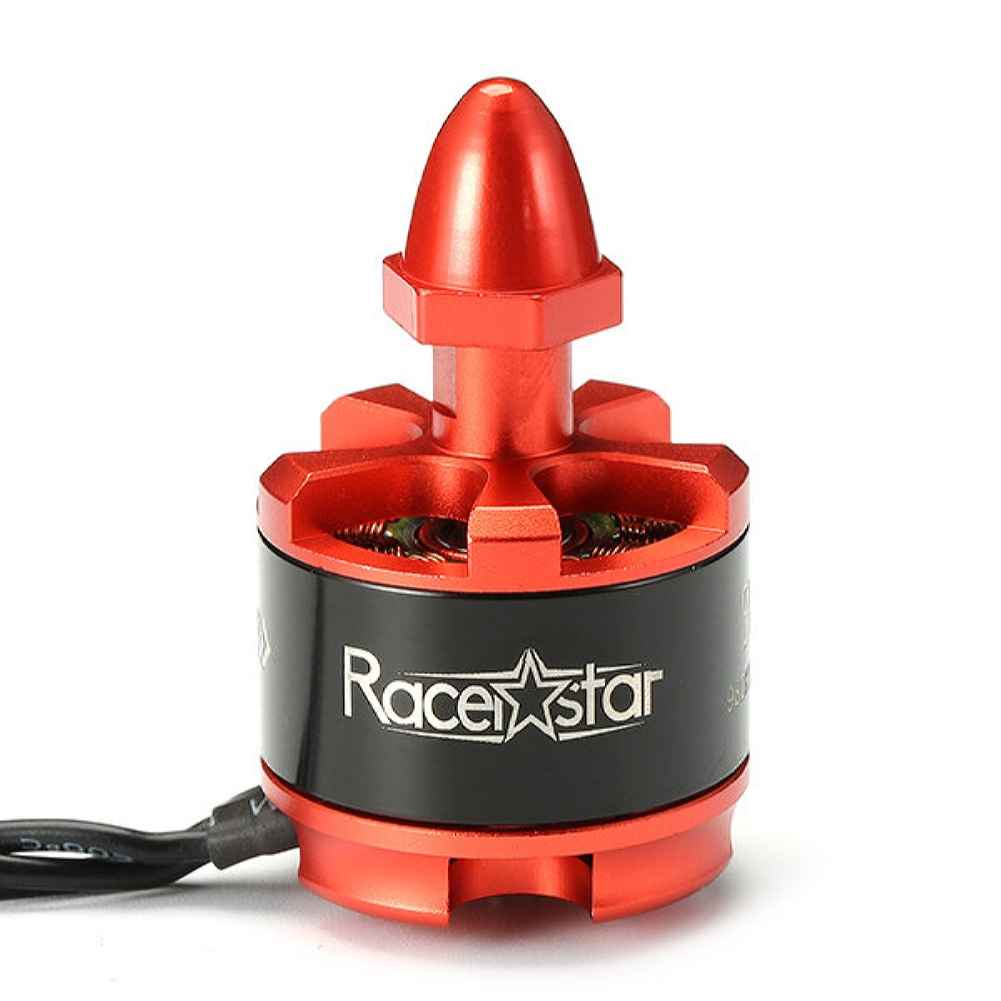

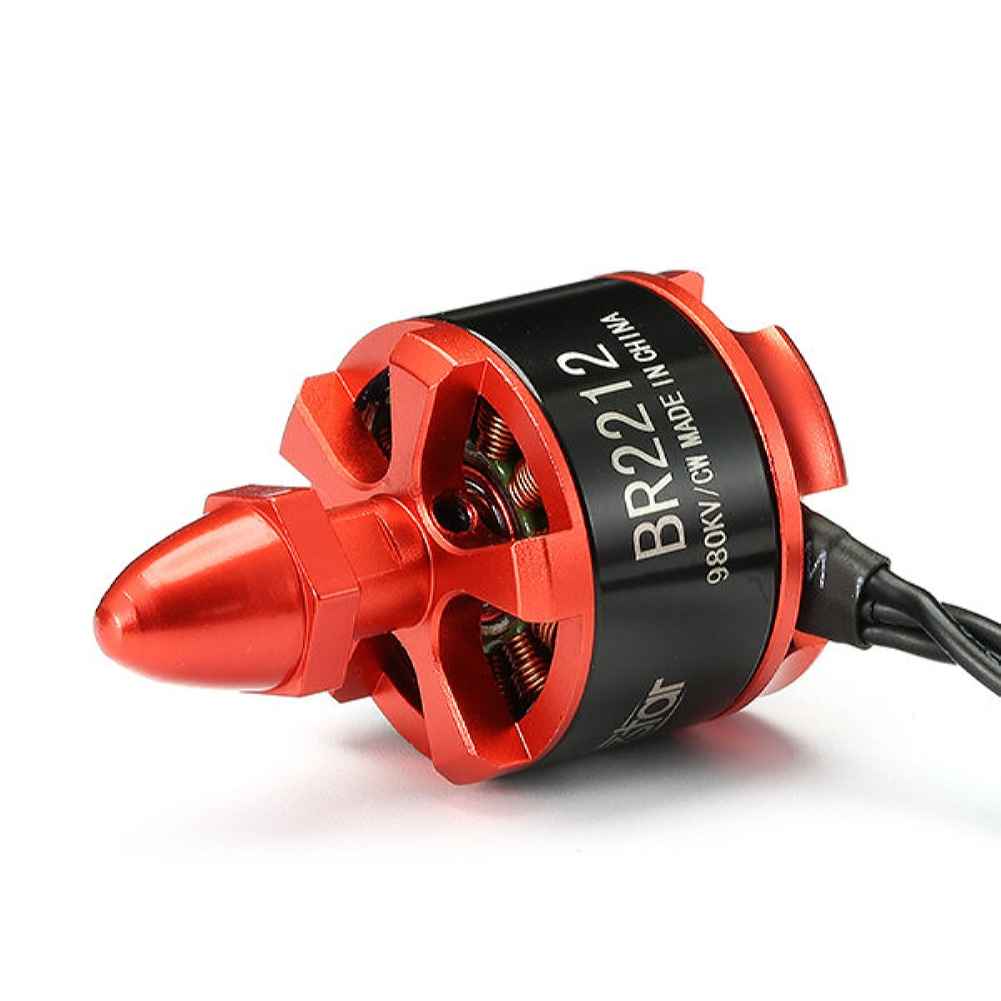

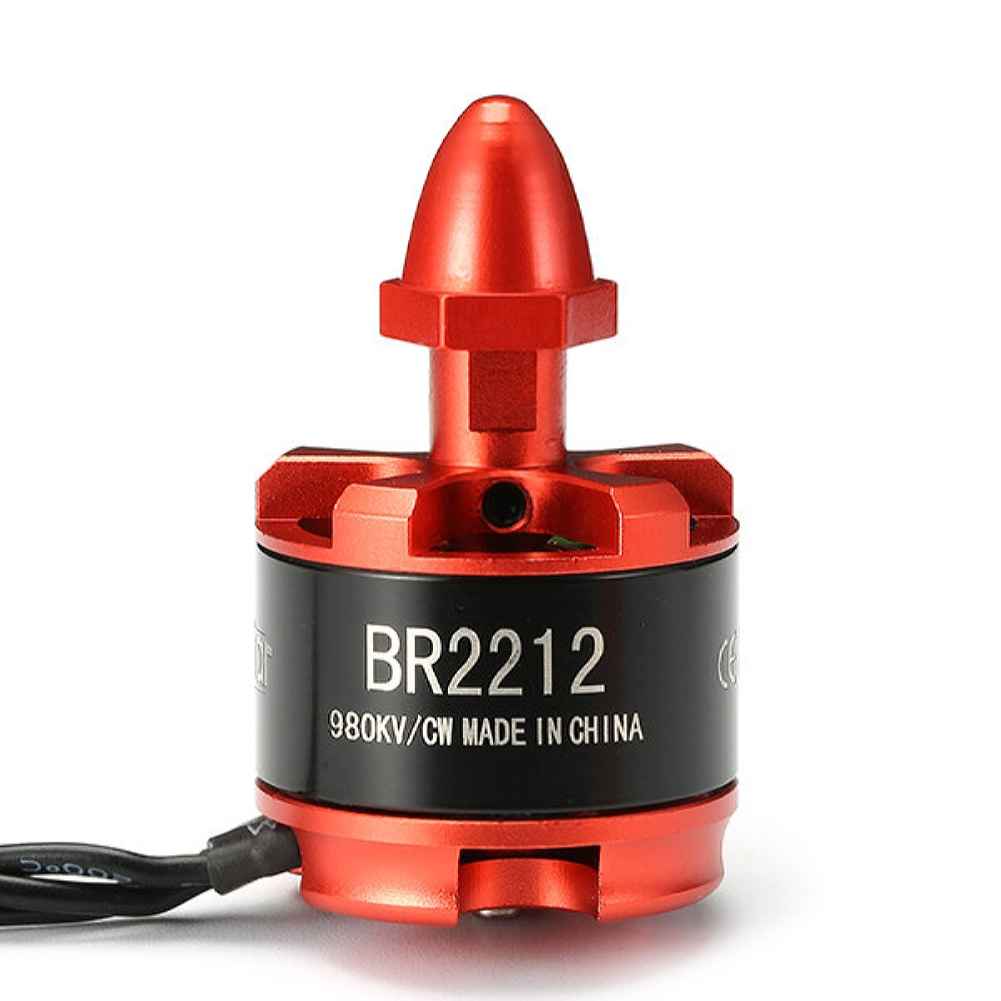

CW screw thread motor comes with red cap

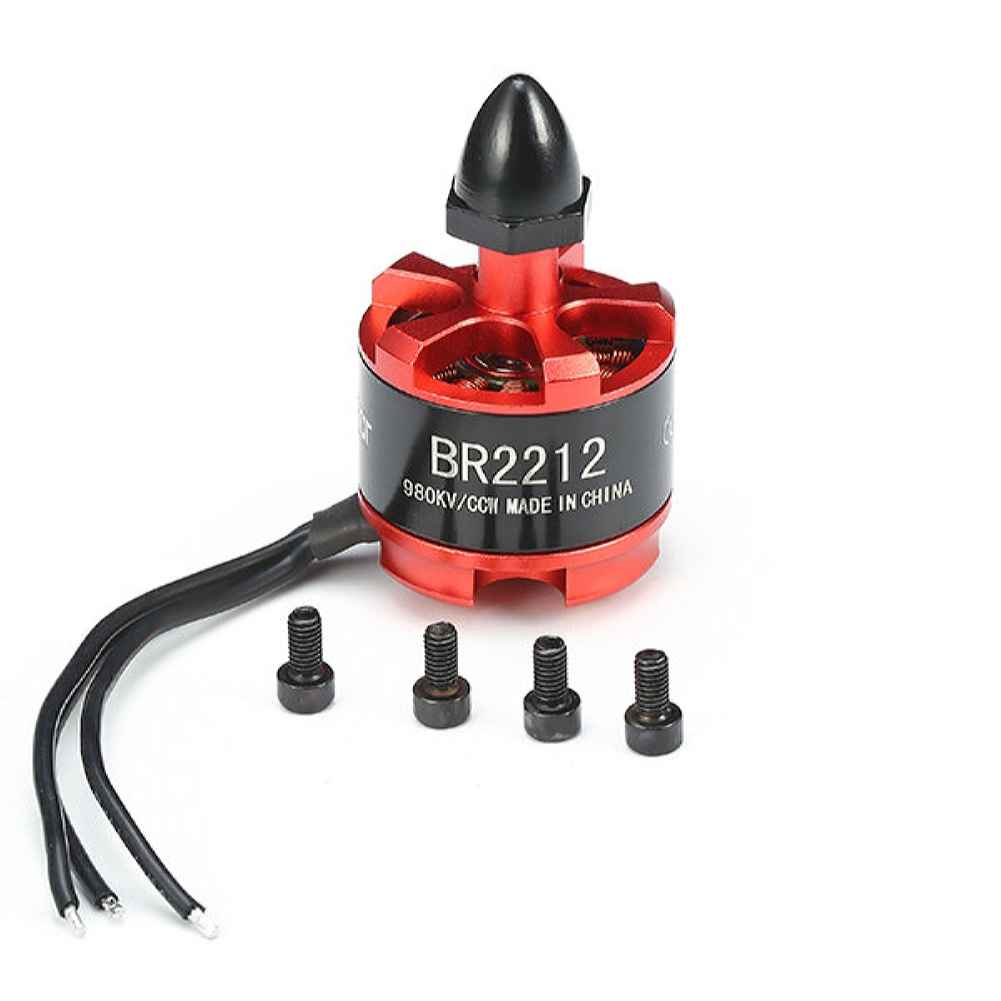

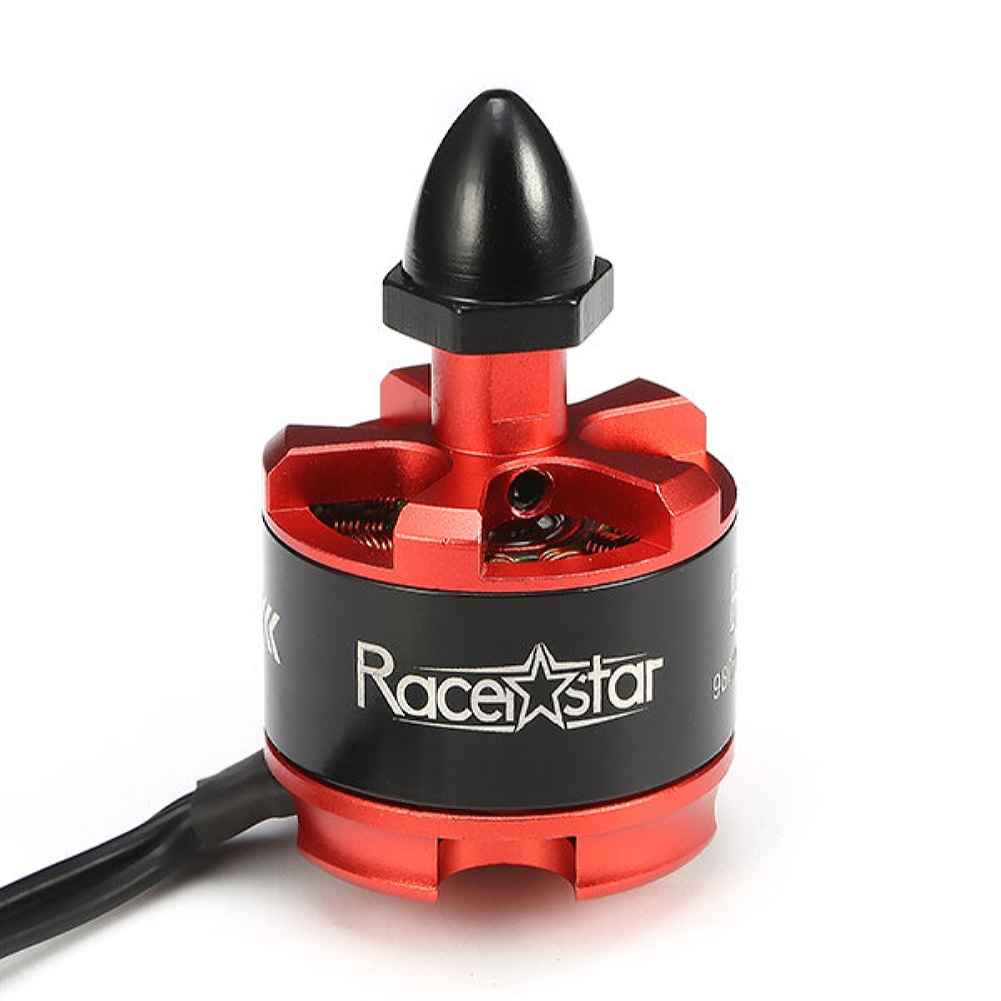

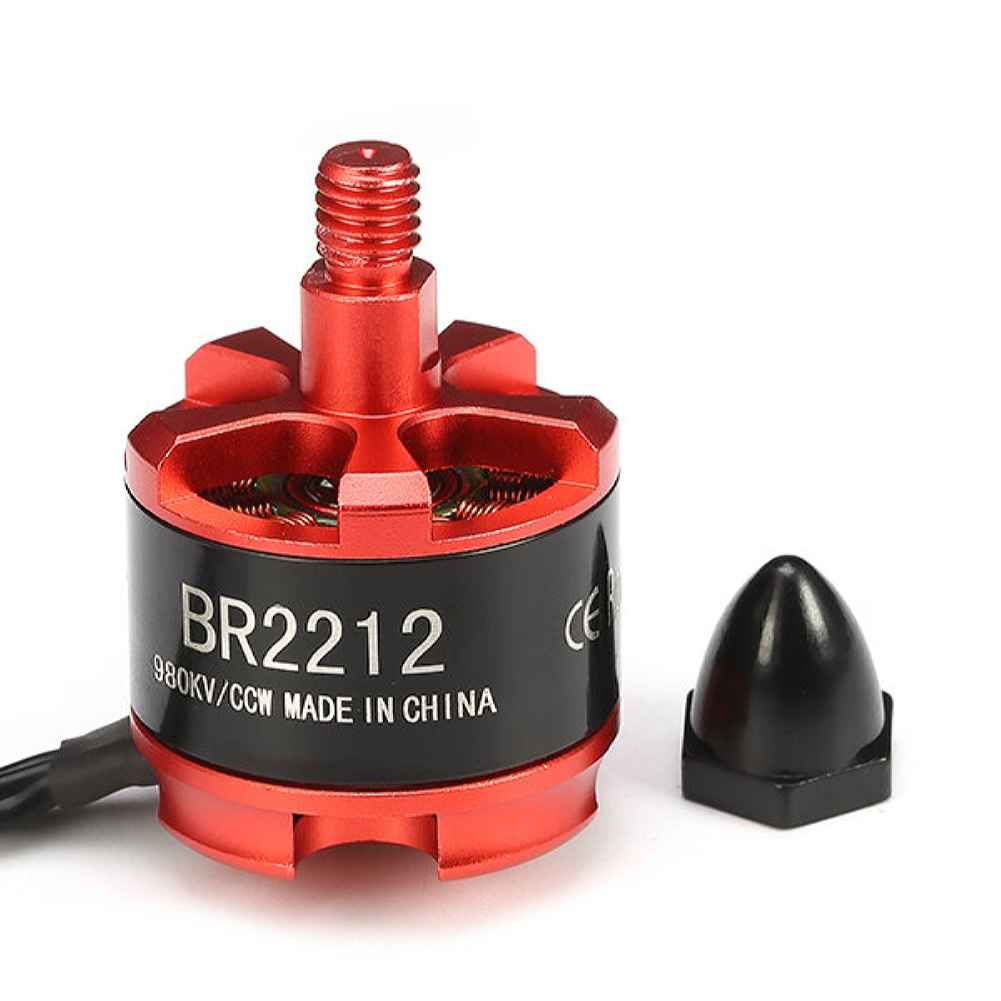

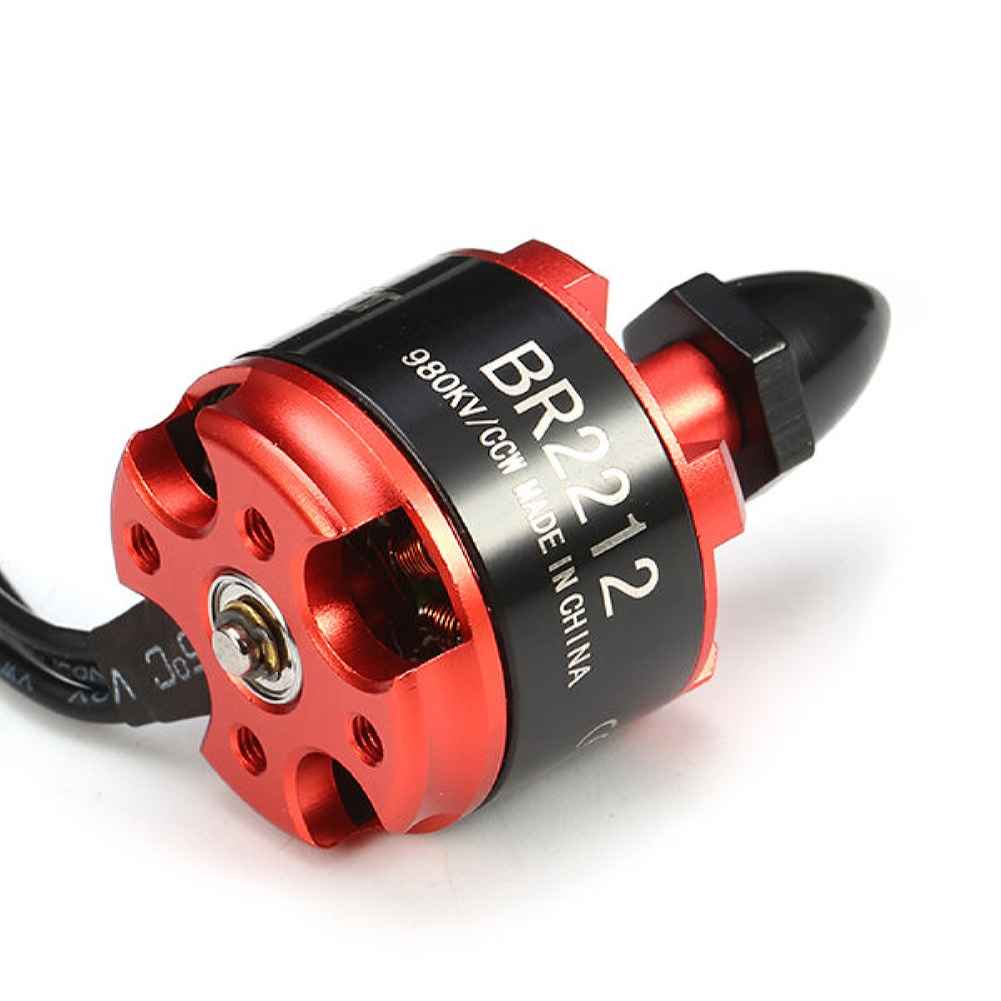

CCW screw thread motor comes with black cap
Features:
Long life Japanese NMB ball bearings
Efficient Japanese Kawasak stator steel
Rare earth magnets stable up to 180
Oxygen free pure commer wires
CNC machined aluminum case
Silicone wire leads
Patented balance techniques
Unique wiring method
Package Included:
1 x Racerstar BR2212 980KV Brushless Motor
