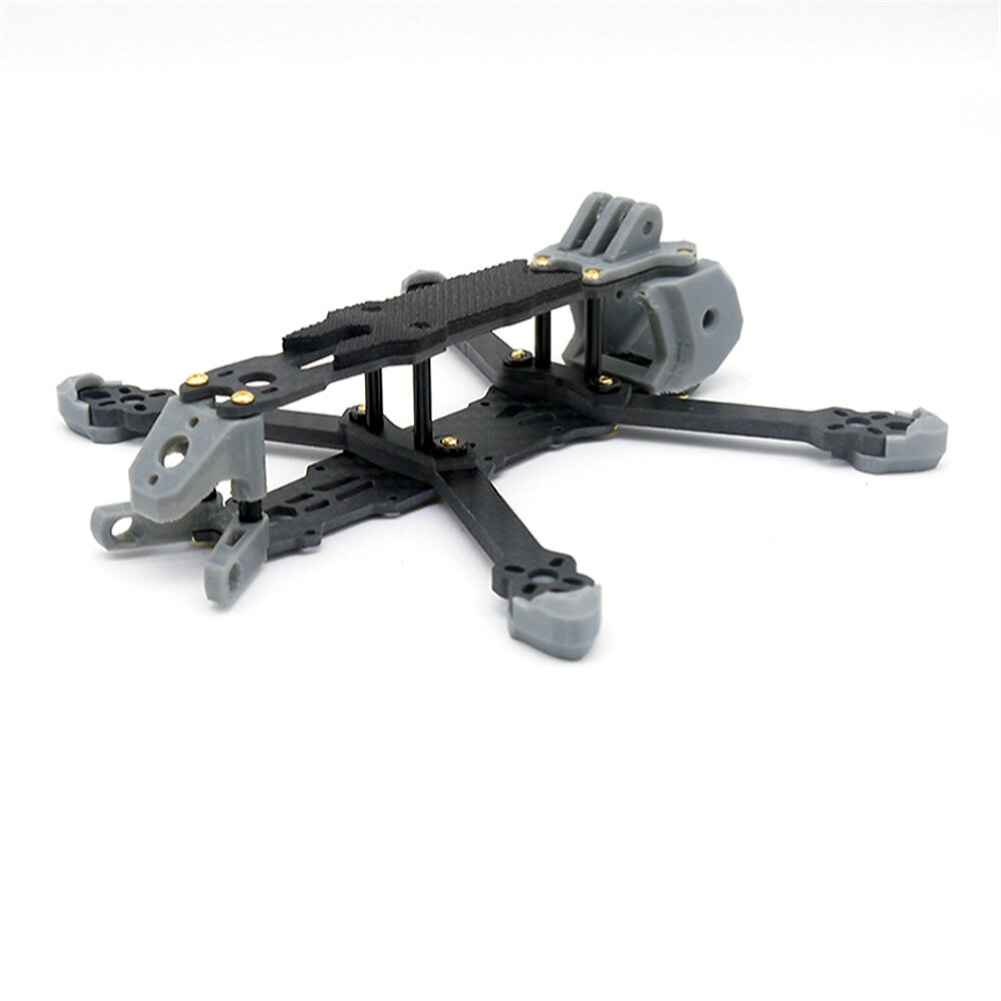

TEOSAW Mark 3 145mm Wheelbase 4mm Arm Thickness Carbon Fiber 3 Inch Freestyle Frame Kit Support 14mm 19mm FPV camera for RC Drone FPV Racing

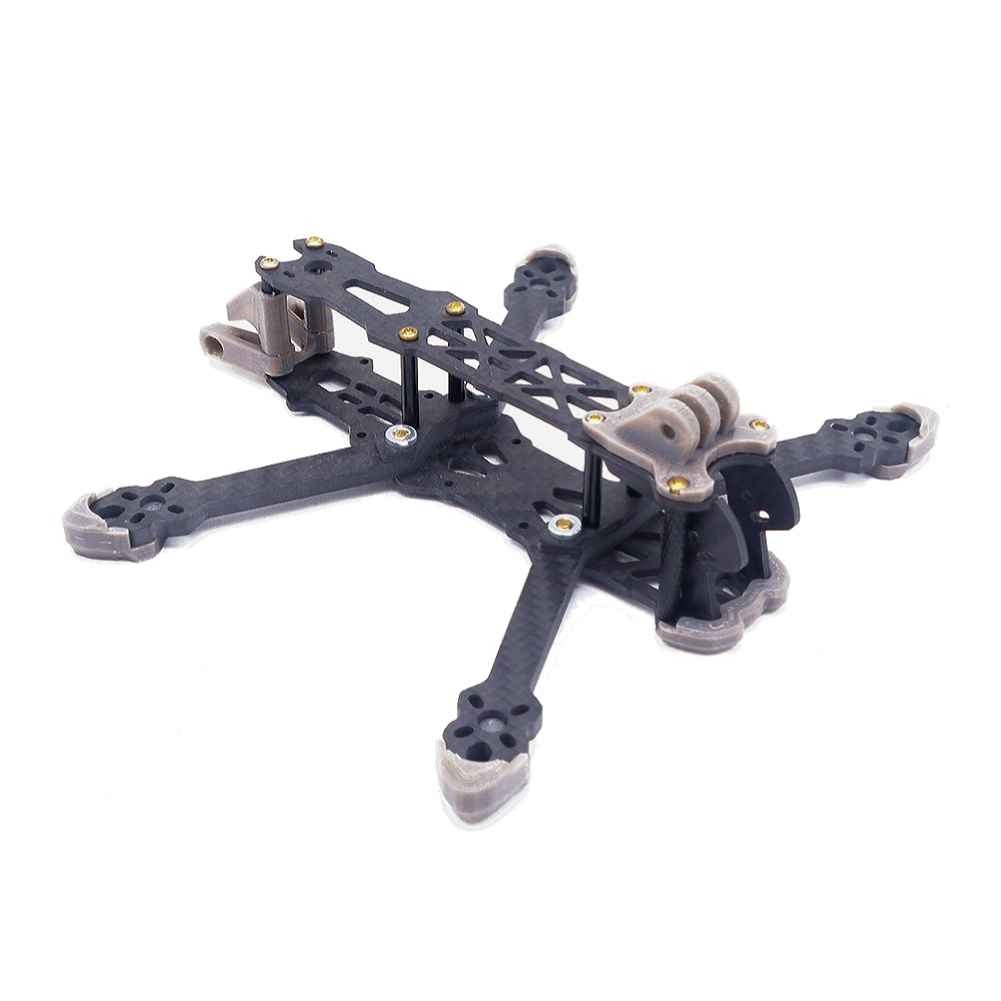

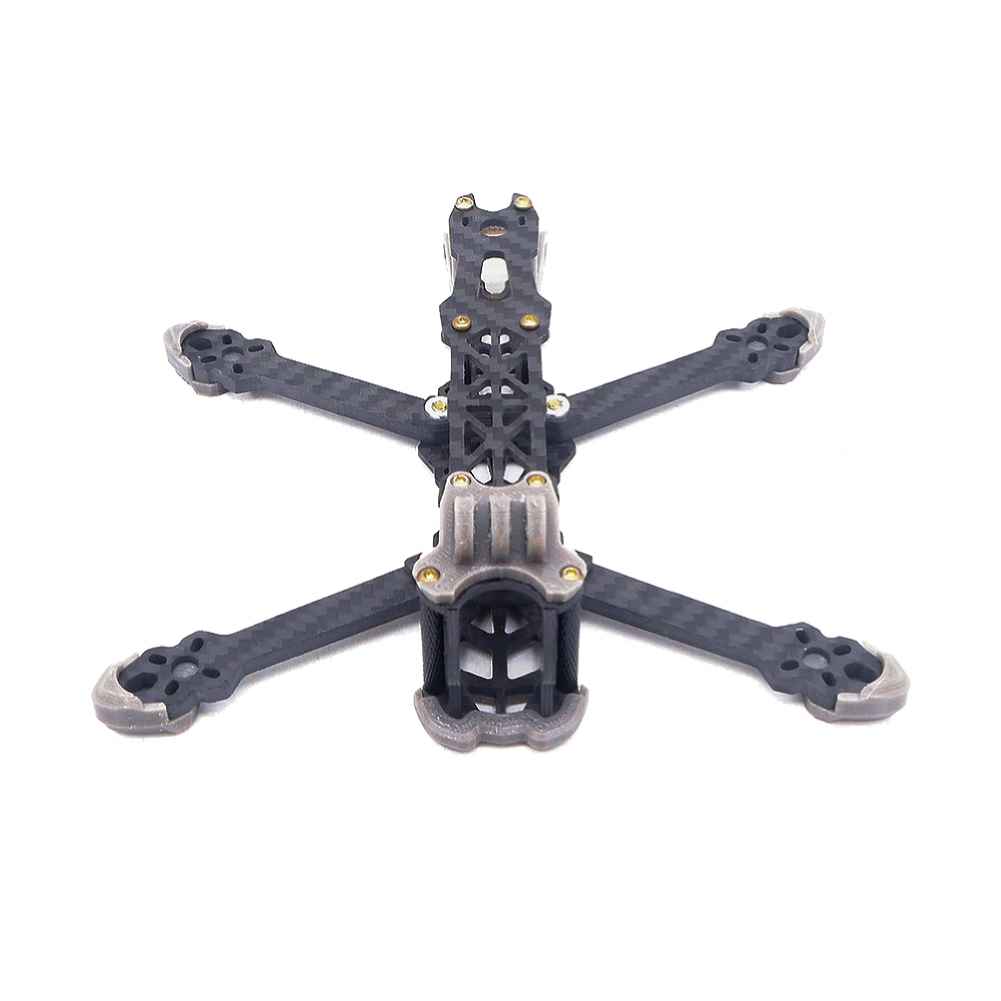

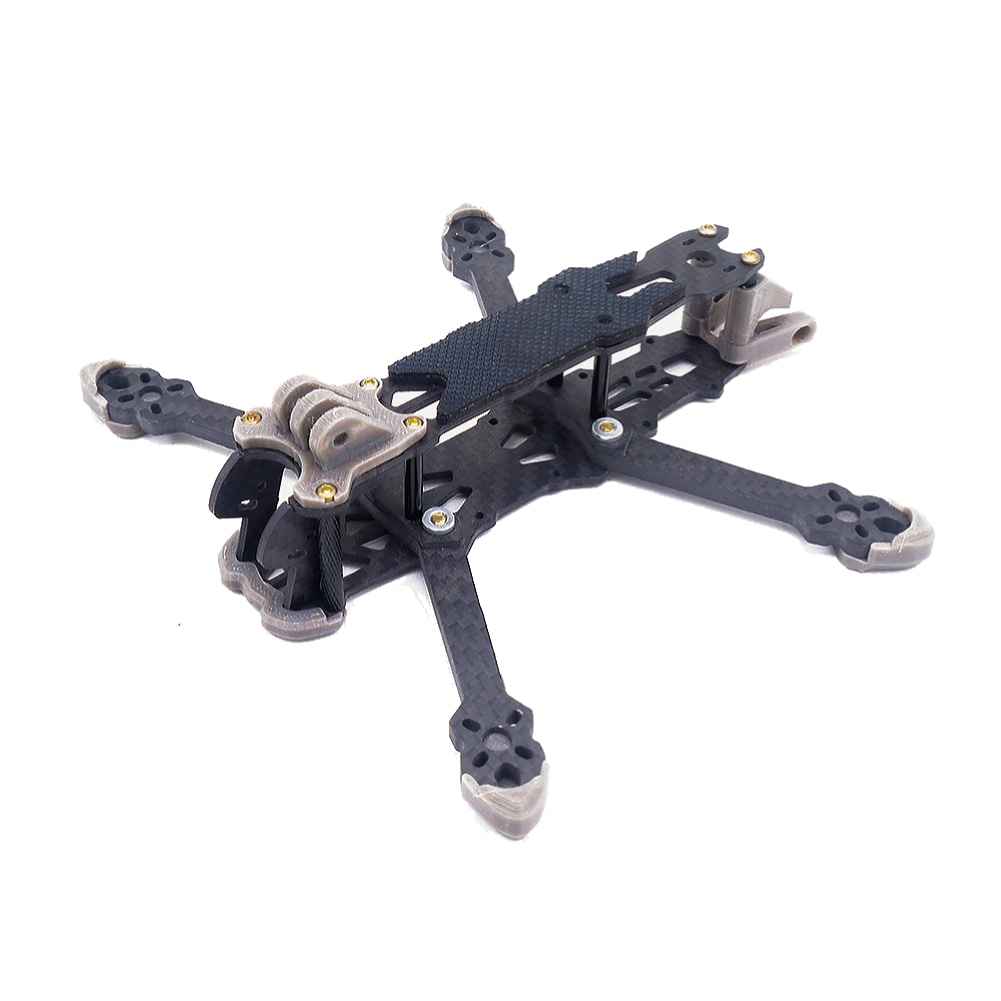

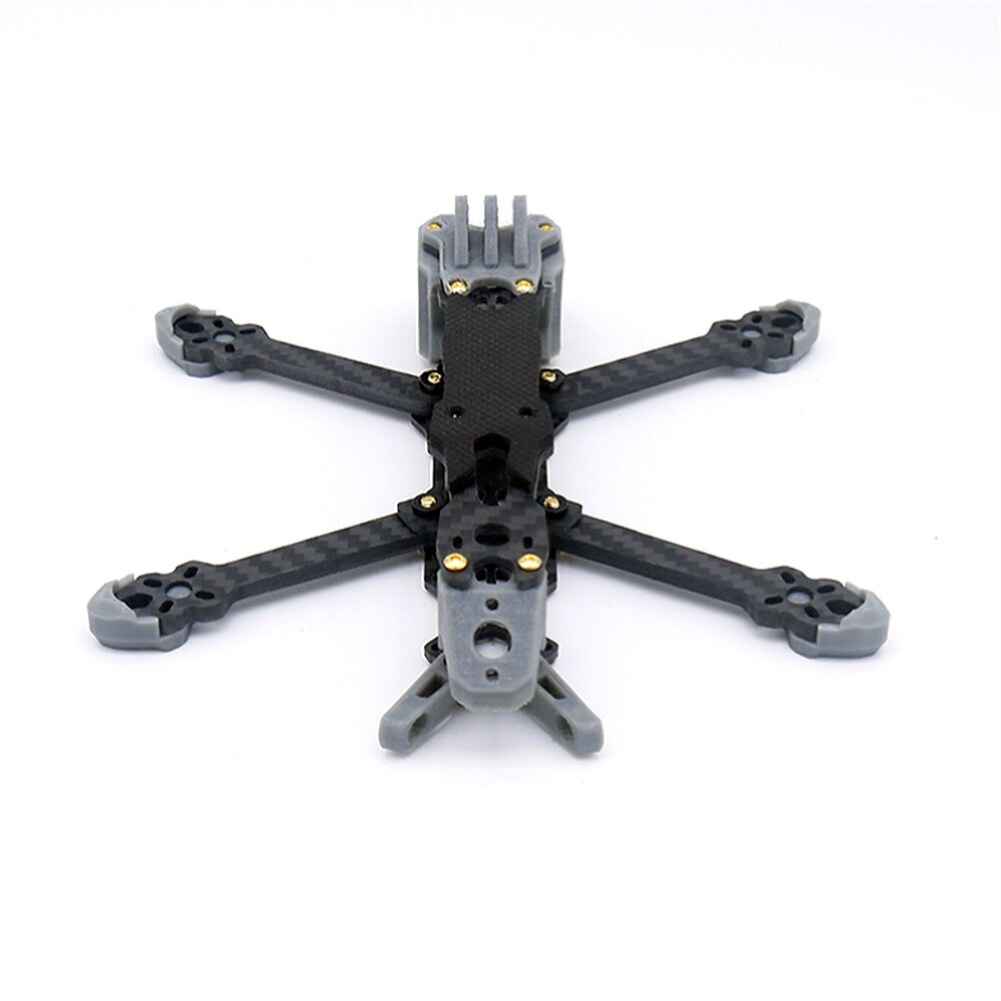

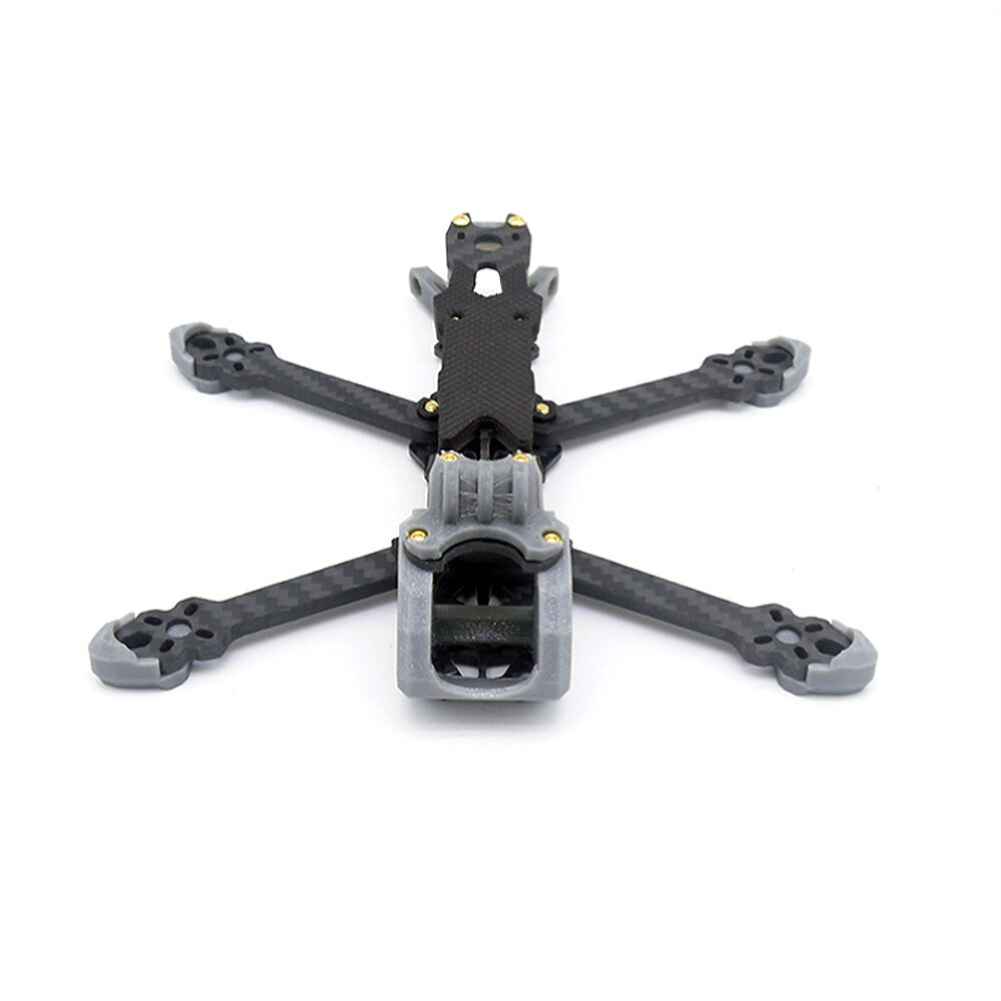

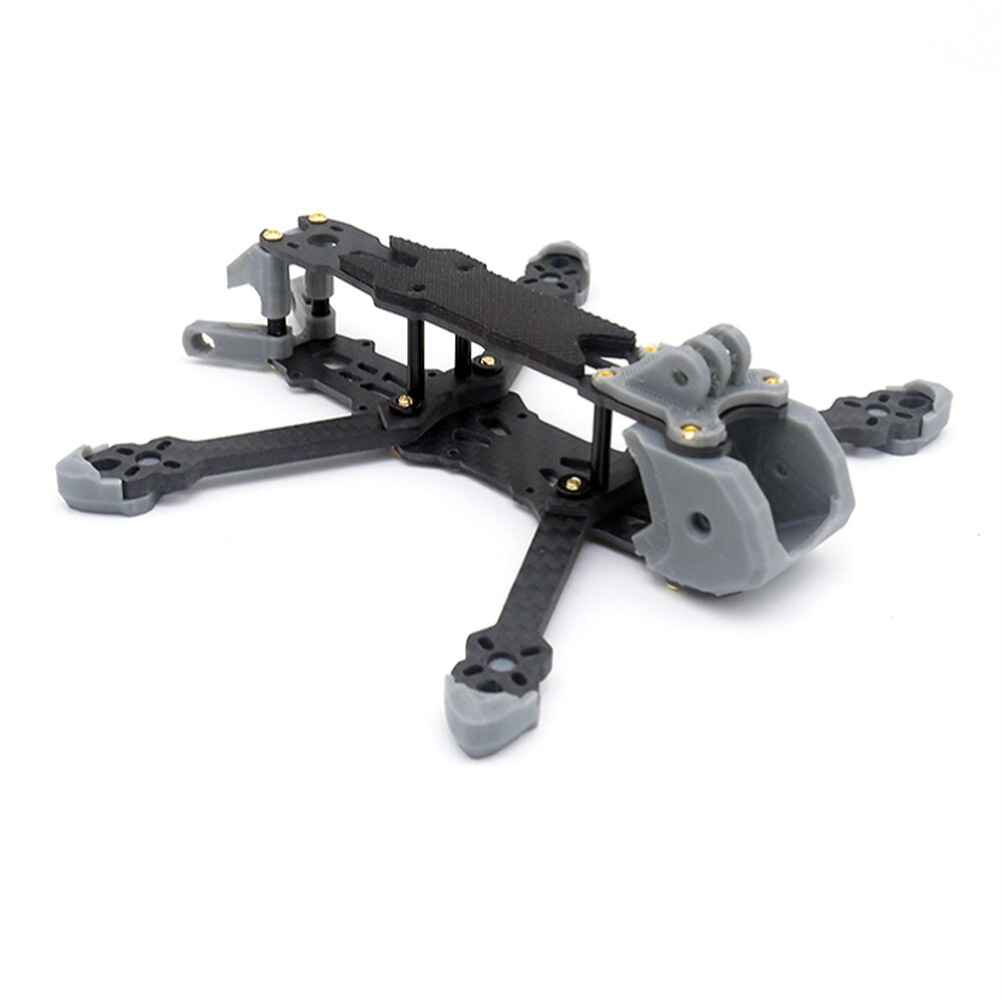

The TEOSAW Mark 3 Inch Frame Kit is designed for RC drone FPV racing enthusiasts. Featuring a 145mm wheelbase and a robust 4mm arm thickness, this carbon fiber frame offers durability and agility. It supports a 3.0-inch propeller and is compatible with VISTA sky end and 915 antennas. The frame includes a camera installation width of 14mm for carbon fiber lens boards and 19mm for 3D printed lens surrounds. With motor installation holes of 9x9mm and 12x12mm, it accommodates various motor series. The flight controller and VTX hole spacing are both 20x20mm (M2), making it compatible with F405 MINI and F722 MINI flight controllers. This lightweight frame, weighing just 49g with a carbon fiber lens board, is perfect for freestyle flying.
Specification:
Item Name: TEOSAW Mark 3 Inch Frame kit
Wheelbase: 145mm

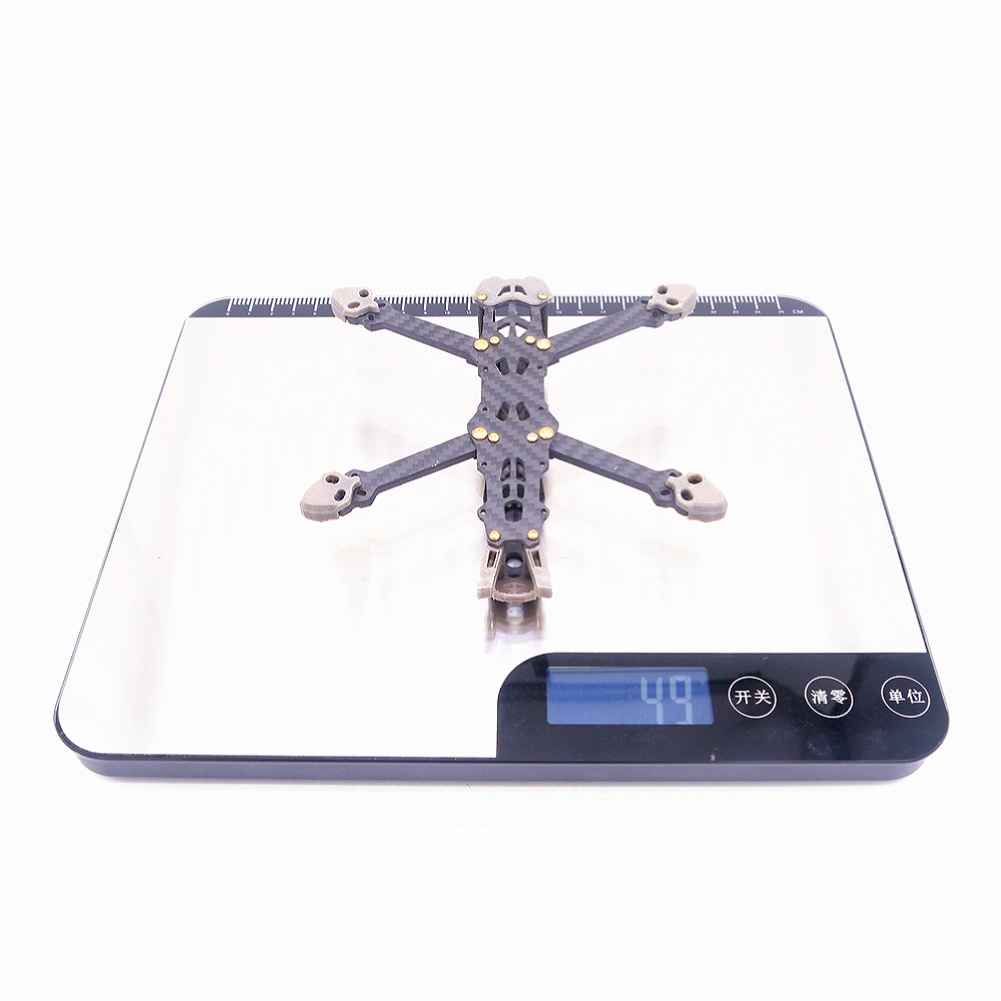

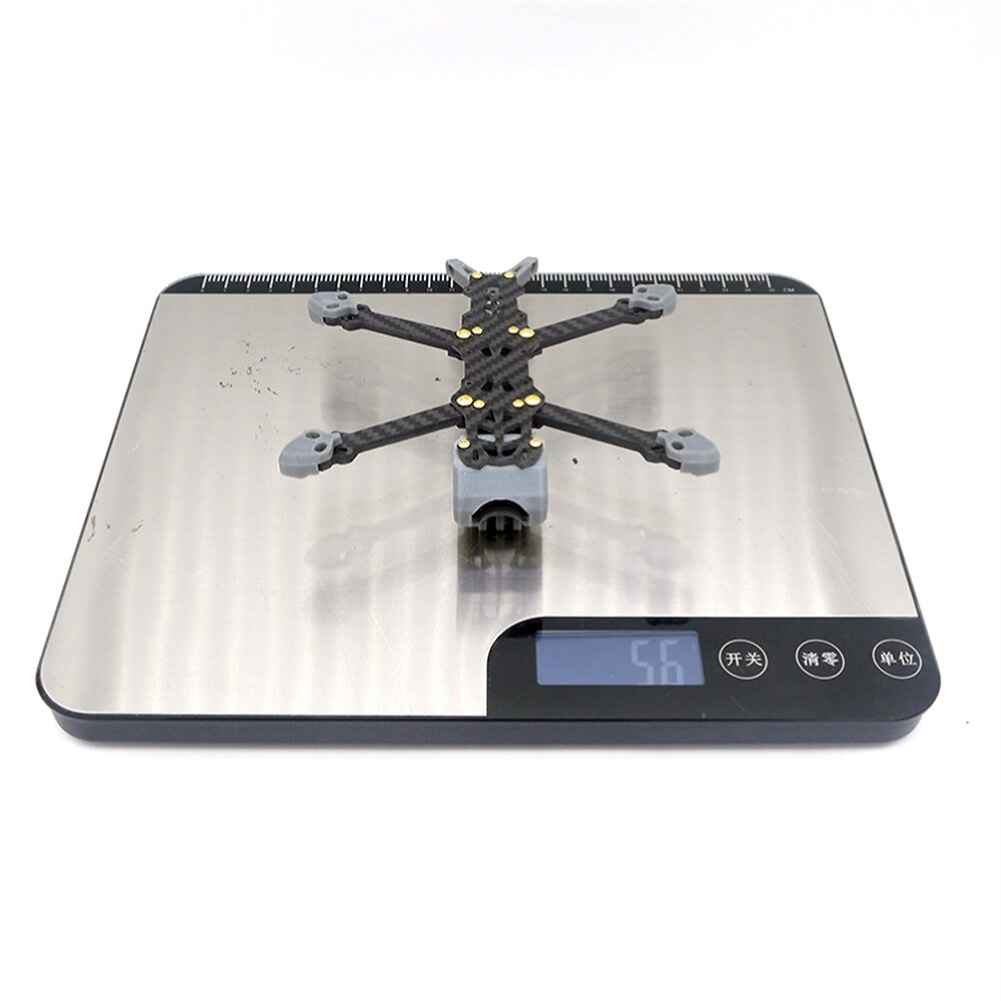

Weight: 49g (carbon fiber lens board) / 56g (3D printed lens surround)Thickness: upper plate 2.5mm, bottom plate 2.5mm, side plate 2.0mm, splint 2.0mm, arm 4.0mmPropeller: 3.0-inch propellerFlight Controller Hole Spacing: 20*20mm (M2)VTX Hole Spacing: 20*20mm (M2)Camera Installation Width: 14mm (carbon fiber lens board) / 19mm (3D printed lens surround)Motor Installation Hole: 9*9mm (M2), 12*12mm (M2)Compatible with VISTA sky endCompatible with 915 antenna
Recommended (Not included):
Motor: 1404/1406/1408/1506/1507/T-motor F2203.5 (M2, 9*9MM, 12*12MM) and other series motorsFlight Controller: F405 MINI flight controller / F722 MINI flight controller (M2, 20*20mm)ESC: MINI 20-40A 4-in-1 ESC (M2, 20*20MM)Battery: 3-4S 380-1300MAH 60-120C
Propeller宛: 3.0-inch propeller
Package Included:
1 x TEOSAW Mark 3 Inch Frame kit
