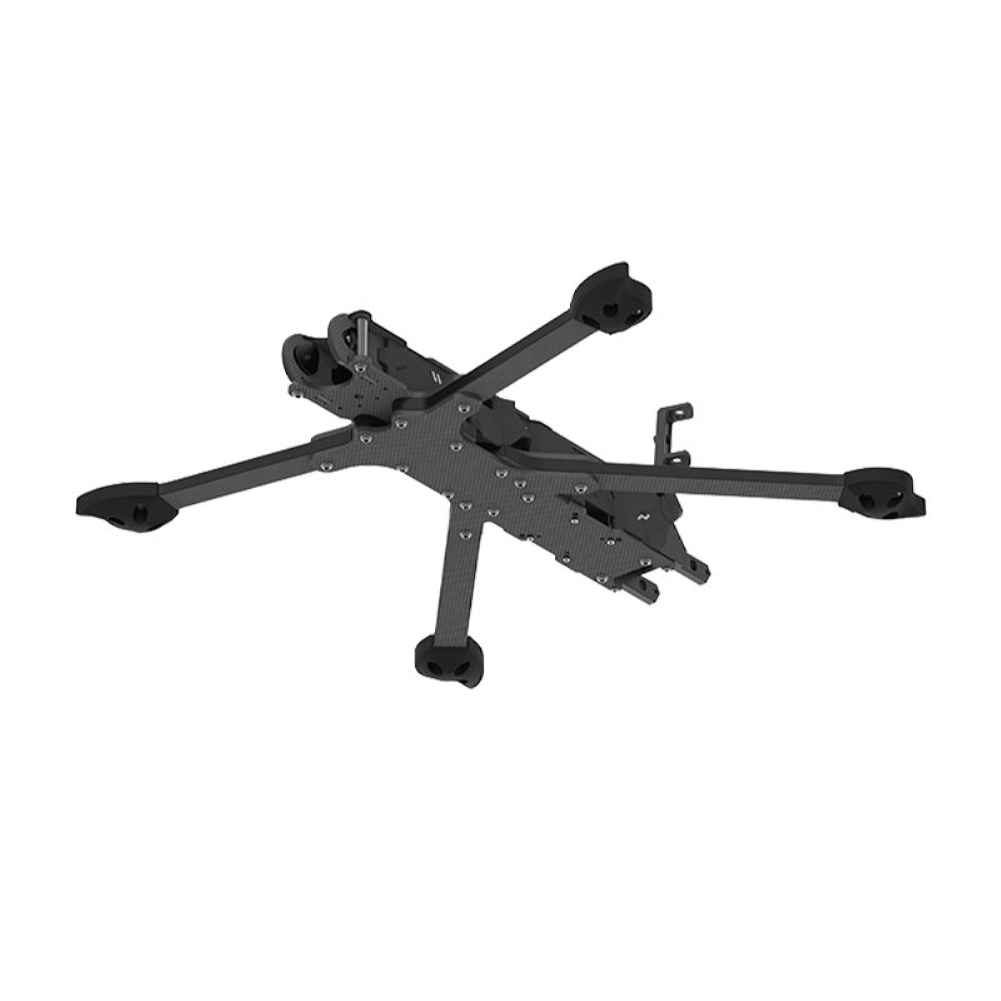

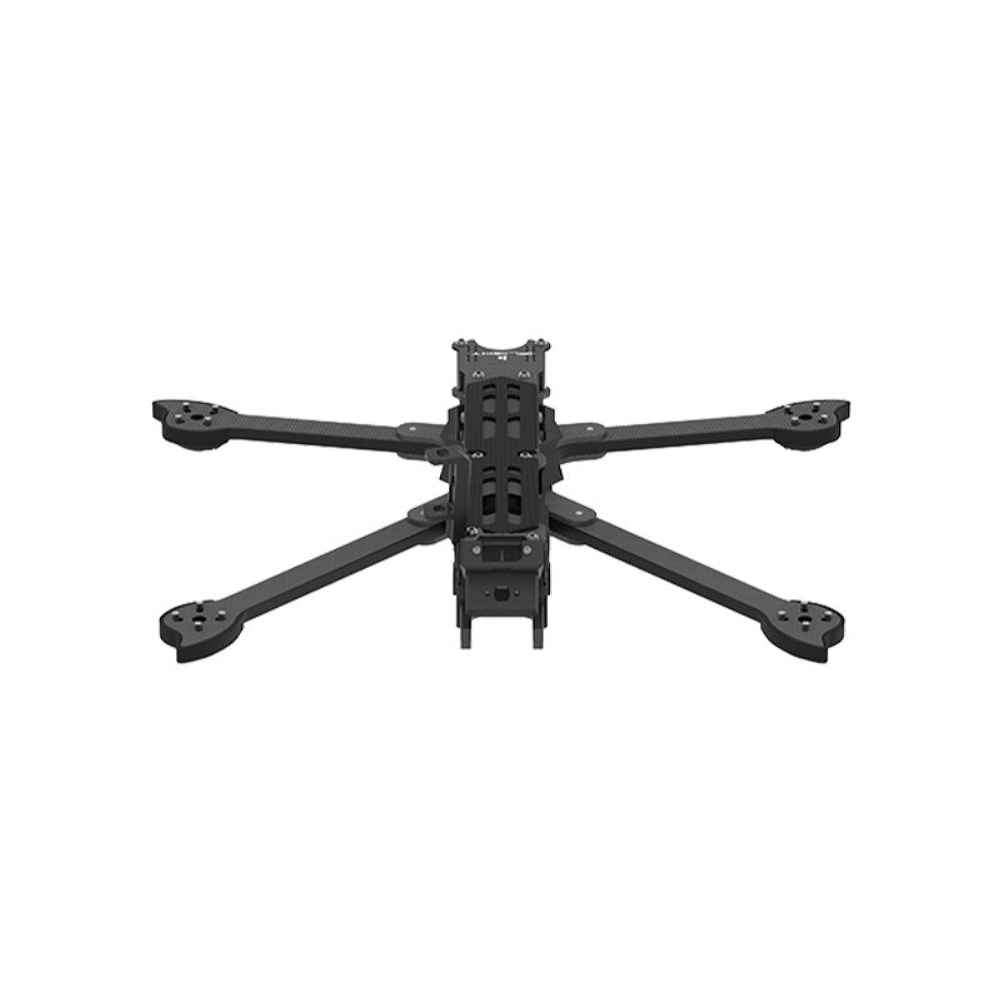

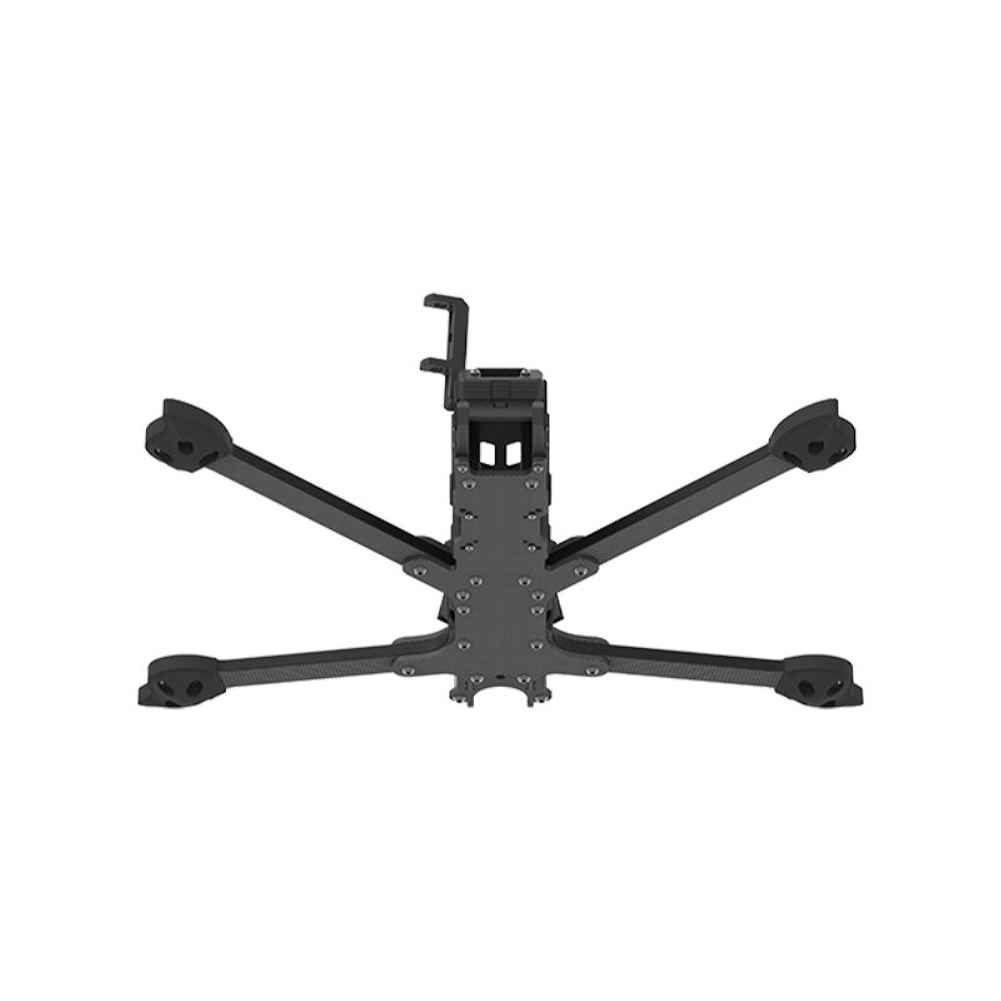

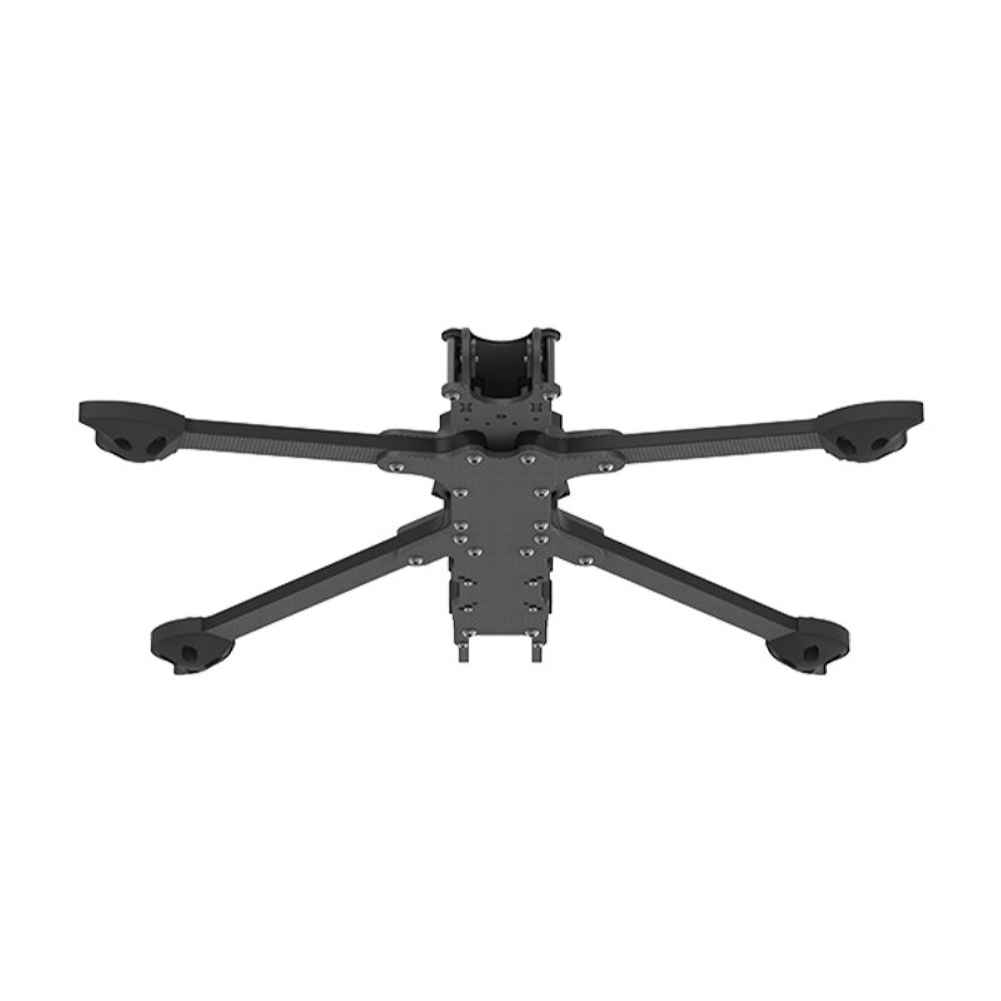

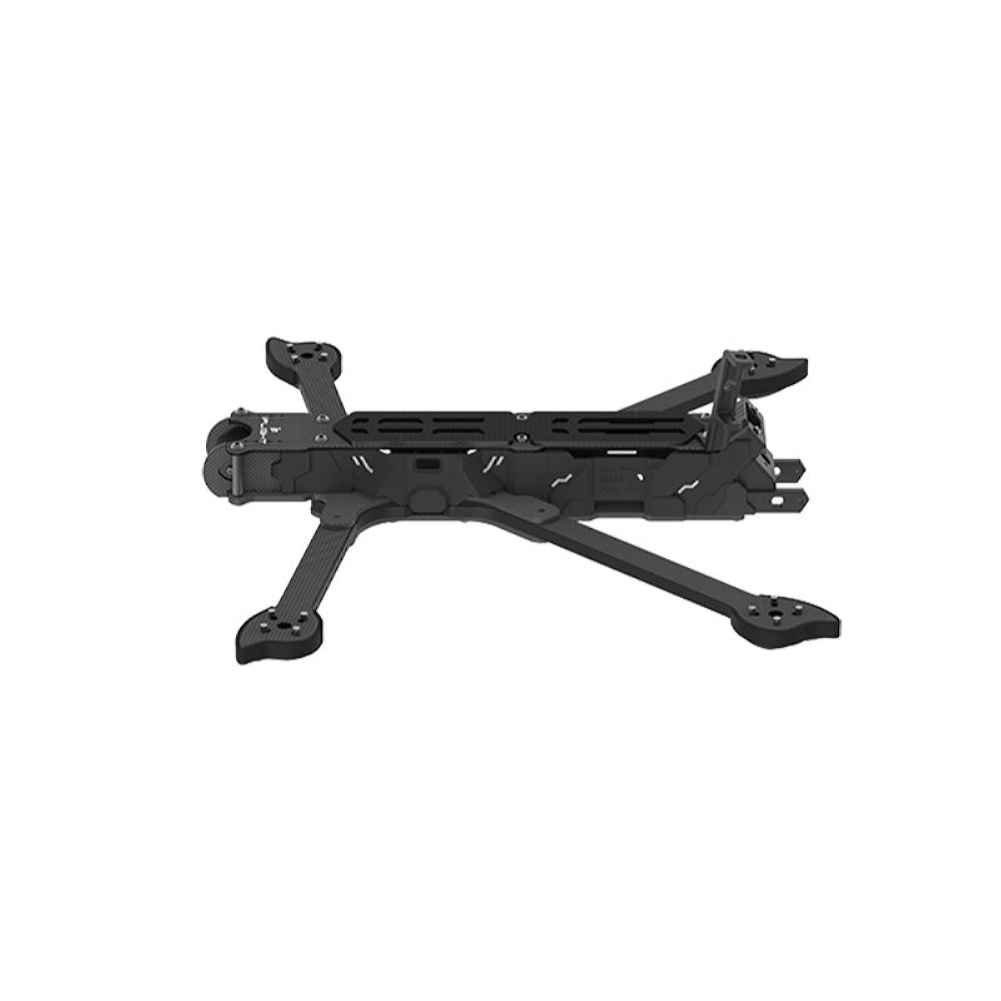

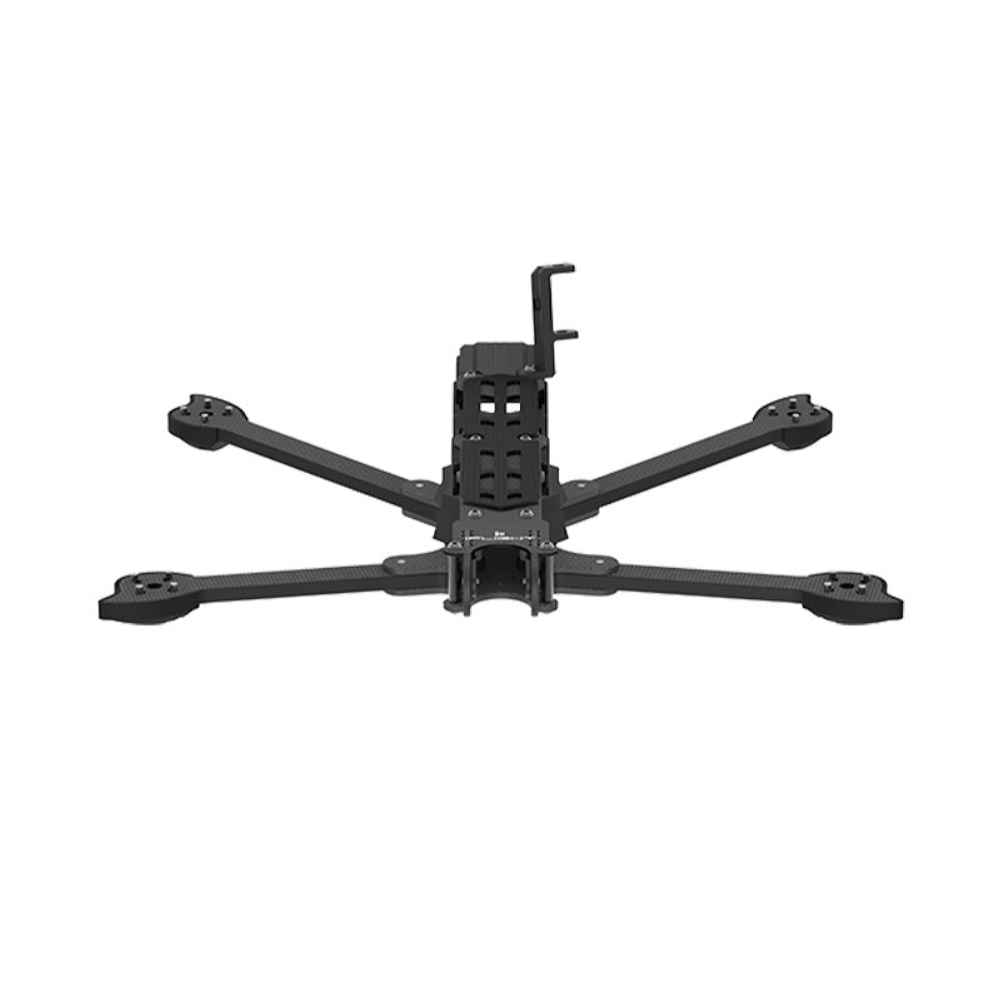

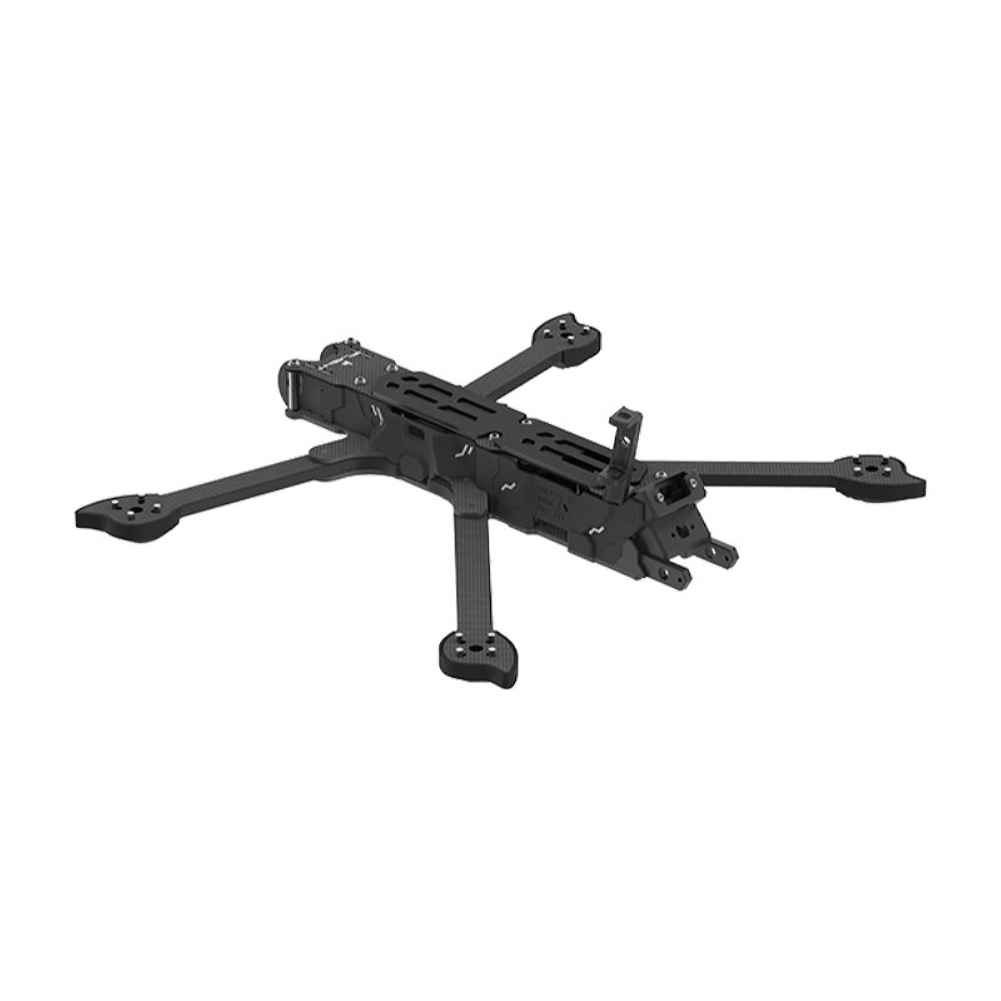

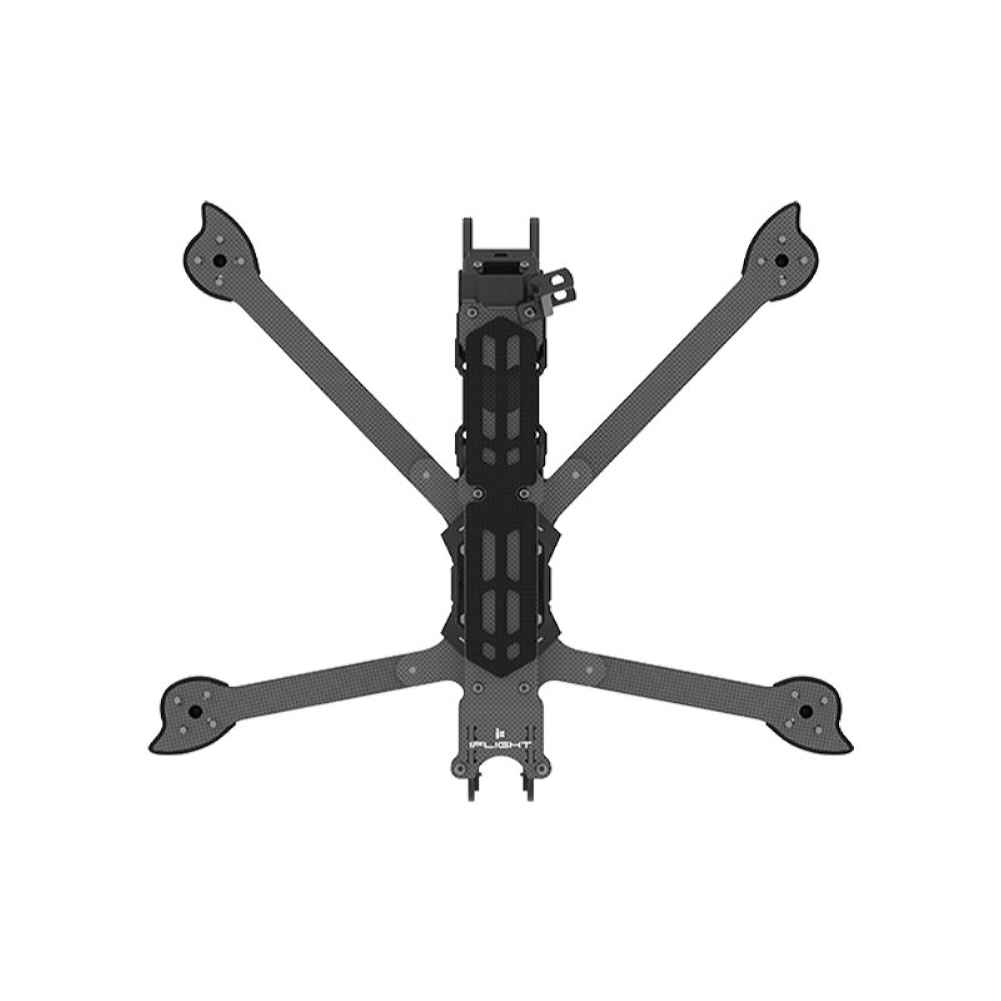

iFlight Chimera7 ECO 327mm Wheelbase 6mm Arm Thickness 7.5 Inch Long Range Frame Kit for DIY RC FPV Racing Drone
Discover the iFlight Chimera7 ECO, the ultimate long-range FPV frame kit designed for DIY RC FPV racing drones. This 7.5-inch frame features a 327mm wheelbase and 6mm thick arms, ensuring a super stiff construction for minimal resonance. Perfect for carrying larger batteries, it offers extended flight times ideal for adventurous flights. The frame includes multiple mounting options with a maximum flight stack height of 21mm, supporting various configurations. Constructed with high-quality materials, the Chimera7 ECO is built to withstand rigorous conditions, making it the king of long-range FPV.
Description:
The KING of Long Range FPV! A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance.
Specifications:
Brand: iFlight
Model: Chimera7 ECO
Product Name券327mm Wheelbase Long Range Frame Kit
Wheelbase: 327mm
Frame Dimension: L270*W199*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Maximum Flight Stack Height: 21mm
Max VTX Height: 30mm
Flight Stack Mounting: 30.5×30.5mm /嫉3mm
VTX Mounting: 30.5*30.5 嫉3mm / 25*25 嫉1.6mm / 20*20 嫉2mm
Motor Mounting: 16x16mm / 19*19mm 嫉3mm
Weight: 357g
Recommend Parts ( Not Included)
FC & ESC: 30.5×30.5mm iFlight BLITZ ATF435 FC & E55S 55A BL_S 4IN1 ESC Stack
Brushless Motor: iFlight XING-E 2809 800KV 1250KV 24V Cinelifter Motor
Propeller: GEMFAN CINELIFTER 7.5 Inch 7535 Tri-blade Propeller
Analog VTX: iFlight BLITZ 5.8GHz PIT/25mW/400mW/1000mW/2500mW MMCX VTX
Lipo Battery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery XT60 Plug
Packing Included:
1 x Chimera7 ECOFrame Kit
1 x TPU Set
1 x Screw Bag
1 x Anti-Slip Battery Pad
2 x Battery Strap
4 x AMASS MR30 Plugs
NOTE:
The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.
Package Included:
1 x Chimera7 ECO Frame Kit
1 x TPU Set
1 x Screw Bag
1 x Anti-Slip Battery Pad
2 x Battery Strap
4 x AMASS MR30 Plugs
