Description

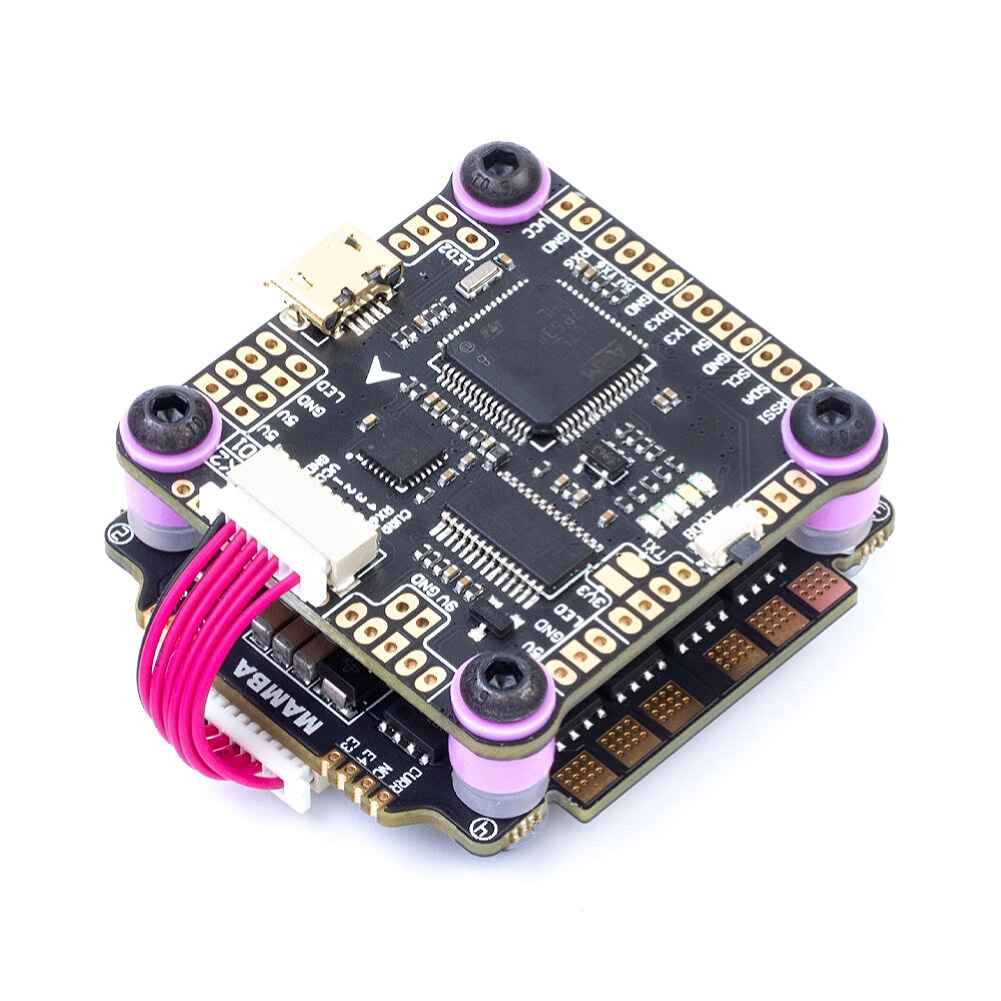

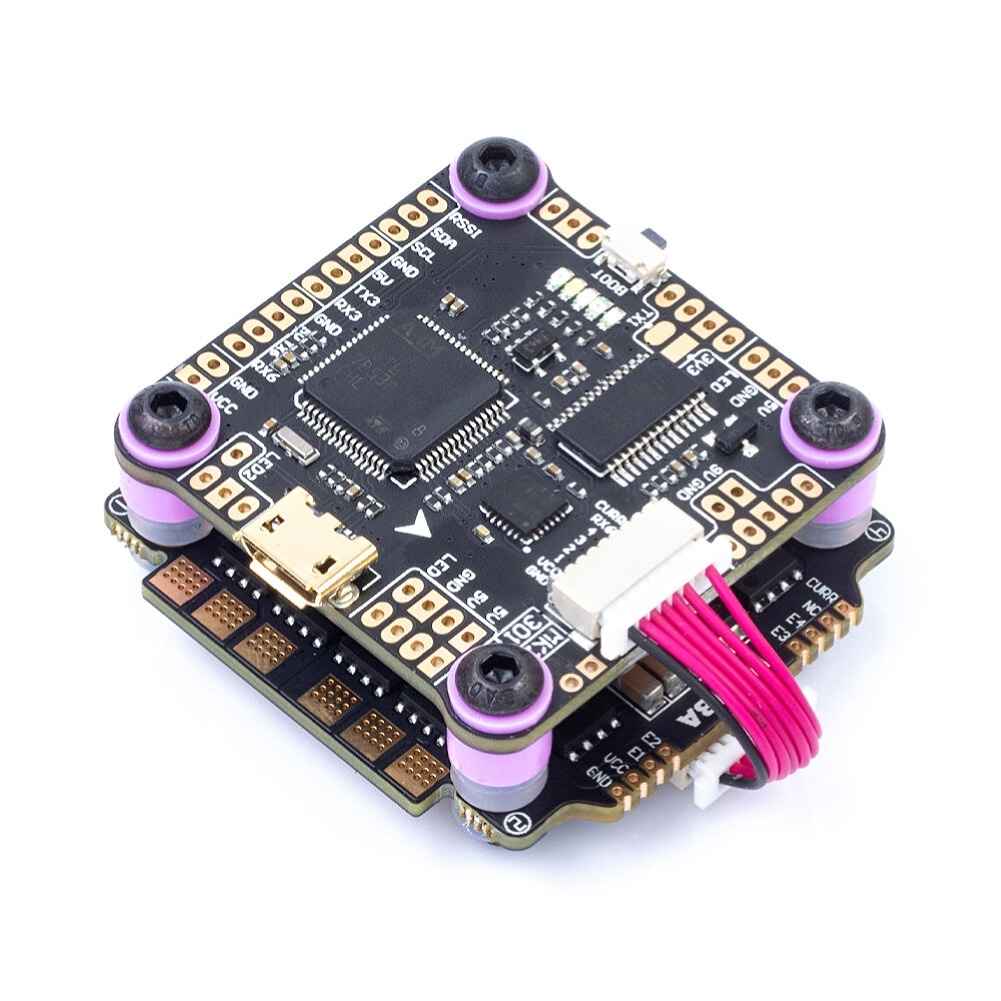

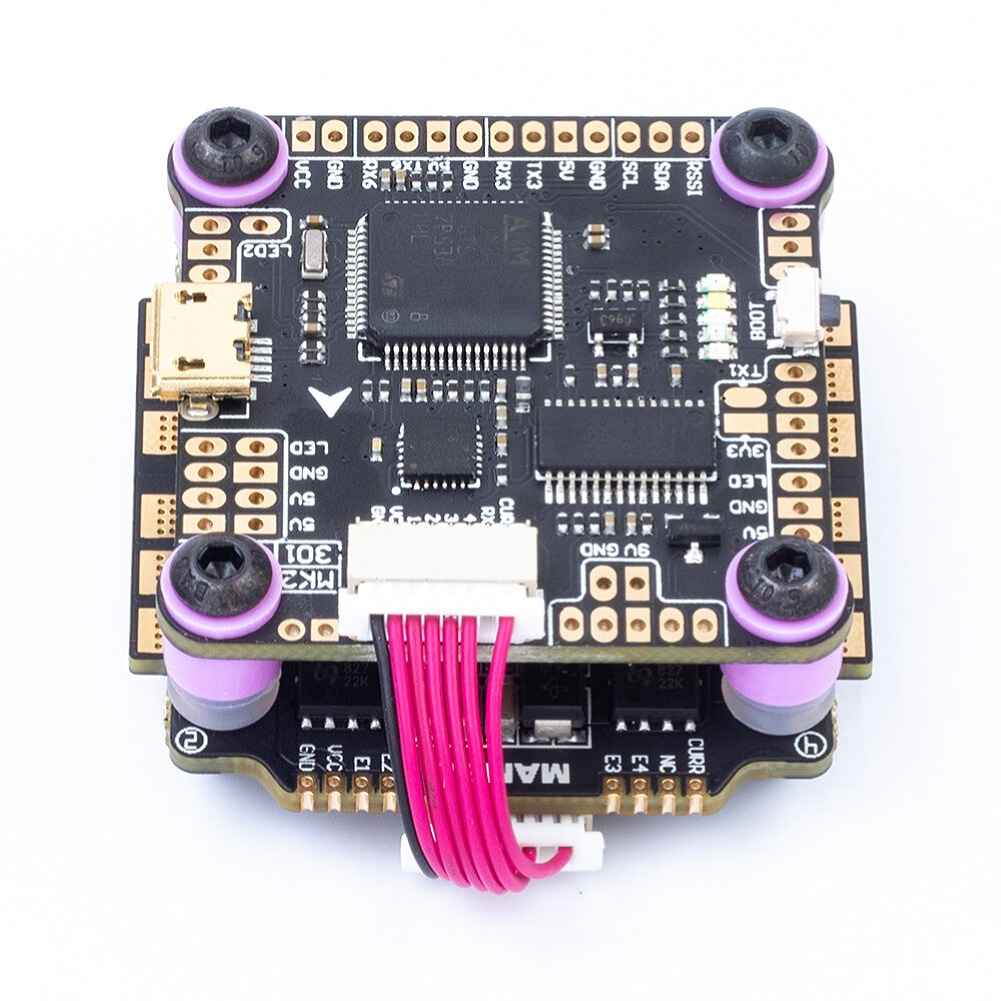

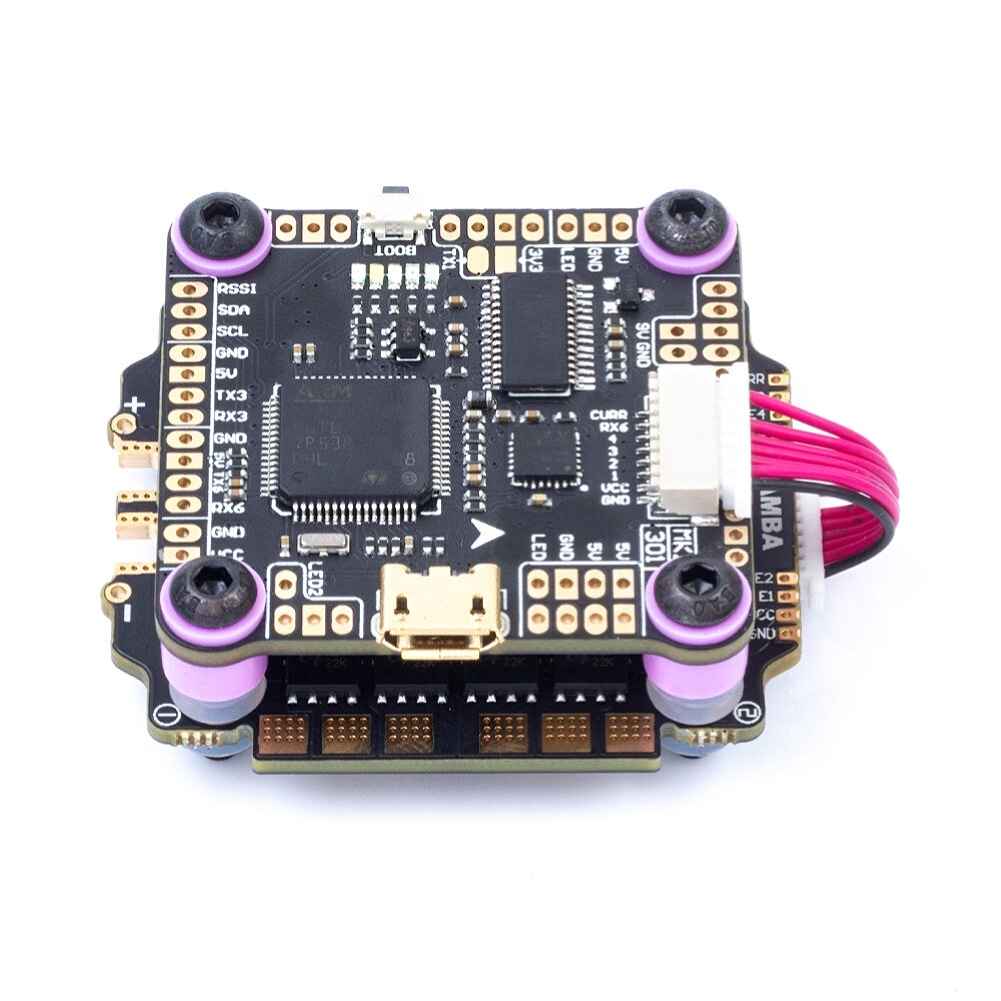

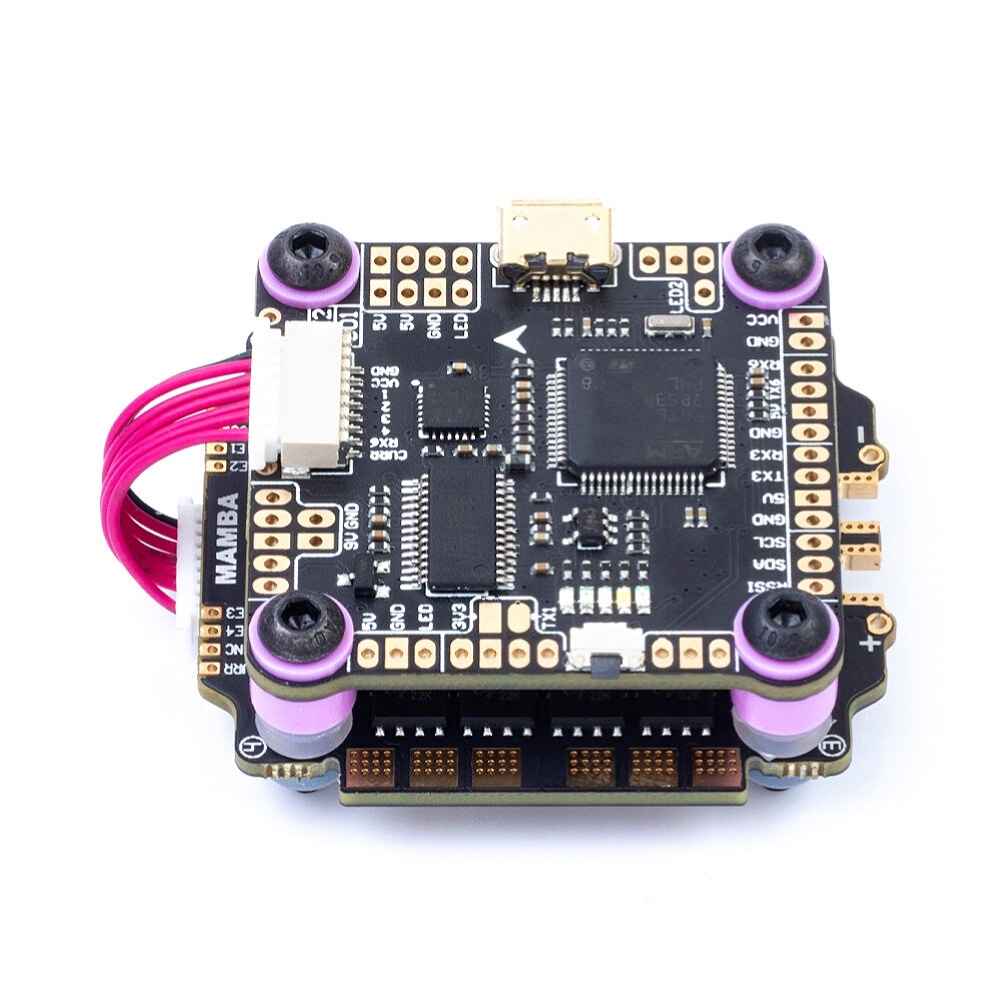

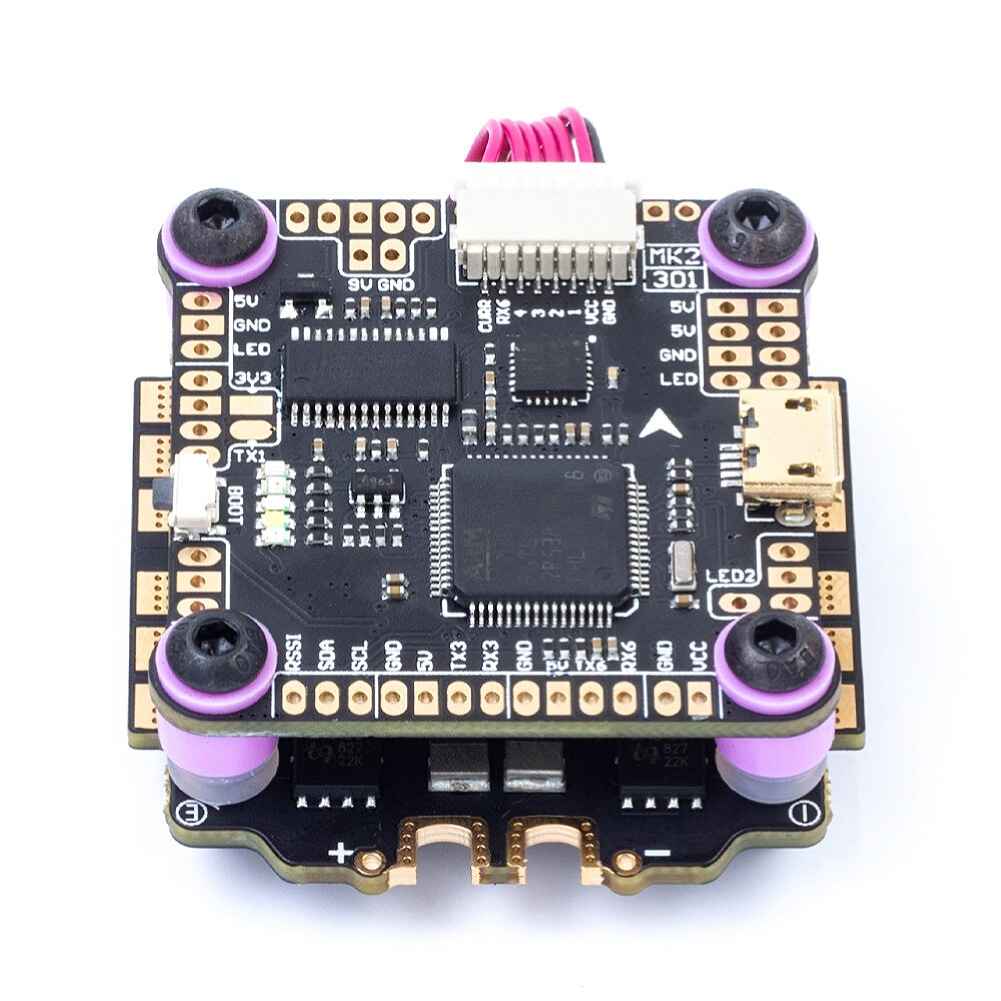

30.530.5mm MAMBA F405 MK2 Flight Controller OSD F50 50A Blheli_S 3-6S DSHOT600 Brushless ESC Stack for RC Drone FPV Racing
The MAMBA F405 MK2 Flight Controller is engineered for high-performance RC drone FPV racing. It features an STM32F405RGT6 MCU with a 168MHz frequency and an MPU6000 IMU for precise control. The integrated AT7456E OSD and 16M memory Blackbox enhance functionality, while the multiple BEC outputs (3.3V, 5V, 9V) and compatibility with TBS, PPM, SBUS, IBUS, and DSM receivers ensure versatile connectivity. The accompanying F50 50A Blheli_S ESC supports 3-6S Lipo input and DSHOT600, providing robust power management with a 50A output and 55A peak current. This stack is designed for easy mounting with a 30.5×30.5mm layout, making it ideal for competitive drone racing.
MAMBA F405 MK2 Flight Controller
MCU: STM32F405RGT6
Frequency: 168MHz
IMU: MPU6000
OSD: AT7456E
Blackbox: 16M Memory
Uarts: 3 Set
Receiver: TBS/PPM/SBUS/IBUS/DSM
RSSI Pad: Yes
Buzzer Pad: Yes
CURR Pad: Yes
Motor: 4 Set
BEC 3.3V: Yes
BEC 5V: Yes
BEC 9V: Yes
MB LED: No
BF LED: Yes
Bluetooth: NO
Input: 6S Lipo
VTS Protection: Yes
Soft: Betaflight
Target: FURYF405OSD
Mounting: 30.5沁30.5mm, 3
Size: 38.0沁38.0沁7.0mm
Weight: 7.5g
F50 50A Blheli_S 3-6S DSHOT600 ESC
Output current: 50A
Peak current: 55A
Input: 6S Lipo
Blheli_S
CURR: Yes
Telemetery: NO
BEC: NO
Target: CH40
Dshot: Dshot 300/600
Mounting: 30.5沁30.5mm, 3
Size: 45.0沁41.0沁6.5mm
Weight: 15g
Diagram
Hd Download
https://www.diatone.us/apps/help-center

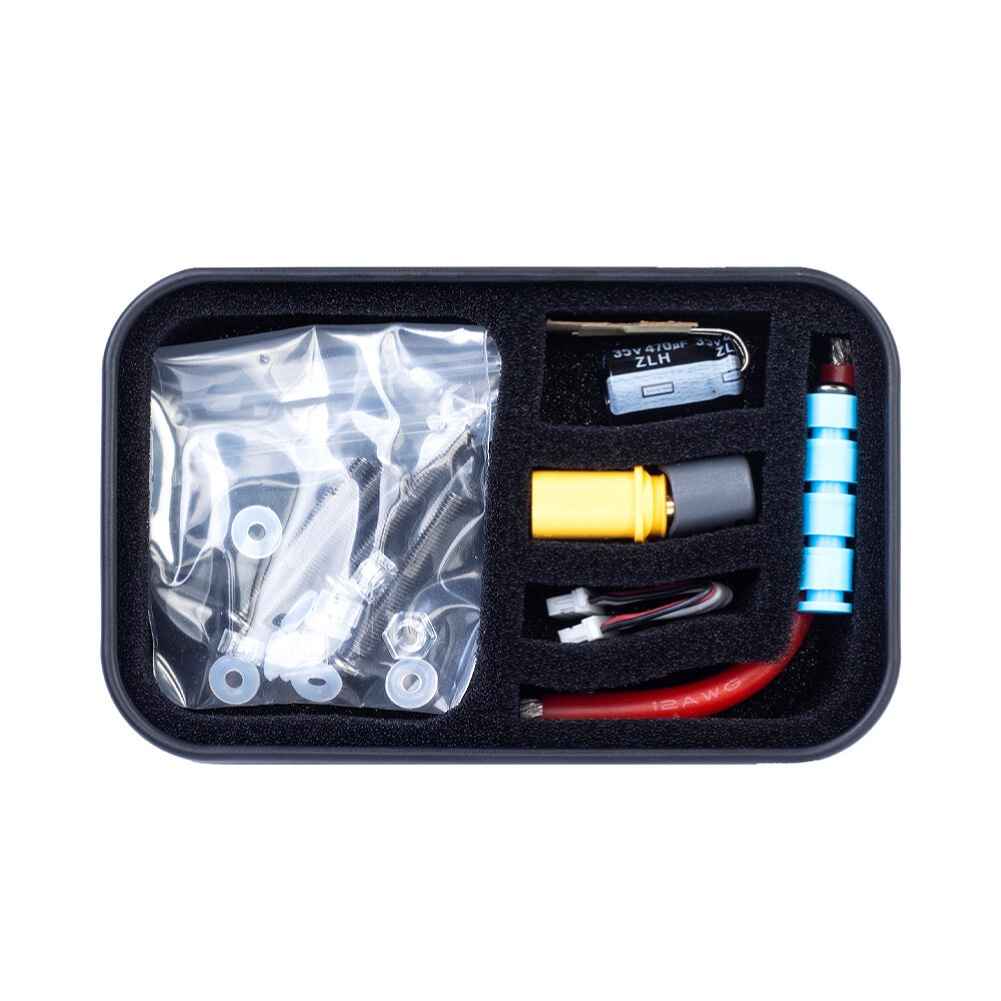

Package Included:
1 x MAMBA F405 MK2 Flight Controller
1 x F50 50A Blheli_S 3-6S ESC
