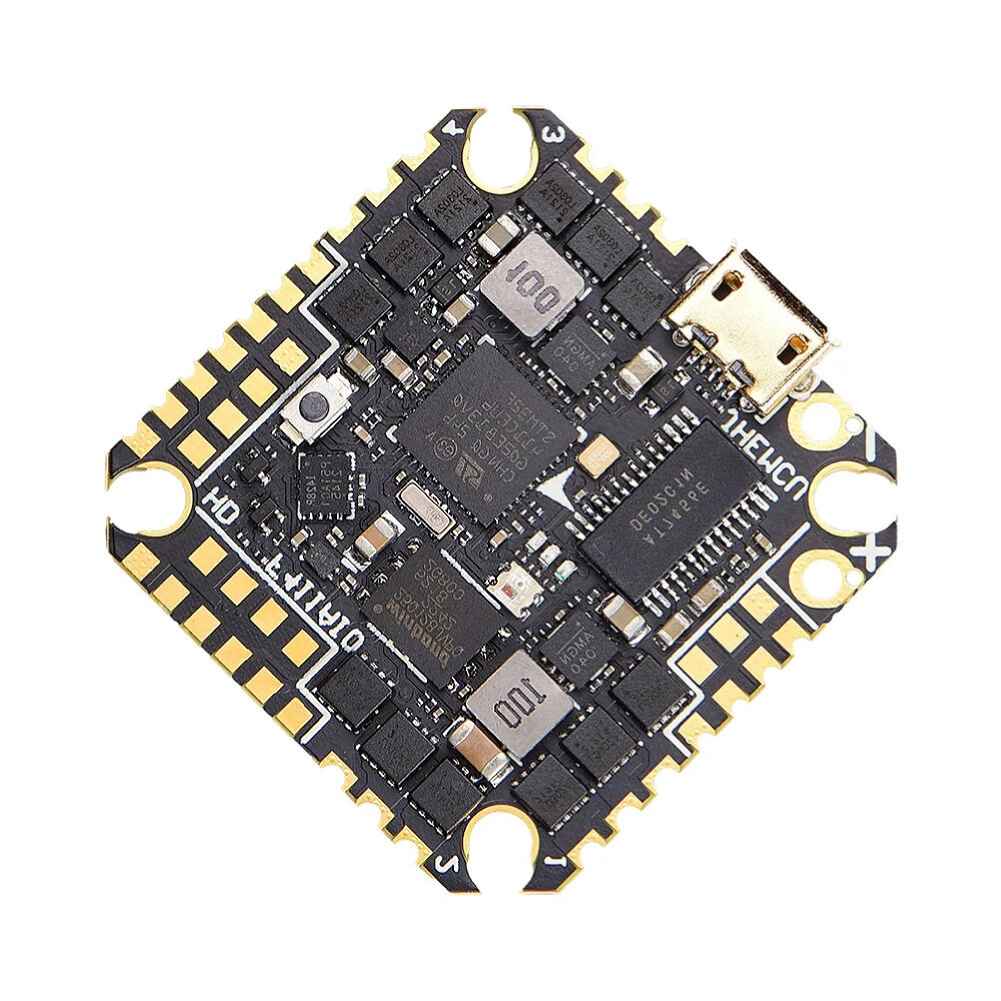

JHEMCU GHF411AIO HD F4 OSD Flight Controller with 5V 10V BEC, BL_S 40A 3-6S 4in1 ESC, DJI O3 Support for RC FPV Racing Drone

Original price was: 84.58$.Current price is: 68.09$.

STM32F411 chipset with ICM-42688-P gyroscope for stable flight
Integrated OSD, barometer, and 16MB black box for data management
Supports ELRS, TBS, SBUS, and more for versatile connectivity
8-bit MCU Blheli-S ESC with Dshot signal support
Compact design with GPS, compass, and HD O3 integration

SKU: RC2000779 Category: Multi Rotor Parts Tags: 5V 10V BEC drone, BL_S 40A ESC, DJI O3 support, F4 OSD flight controller, FPV racing drone controller, JHEMCU flight controller, multi rotor parts, RC drone parts Brand: JHEMCU

Description

25.5×25.5mm JHEMCU GHF411AIO HD F4 OSD Flight Controller with 5V 10V BEC BL_S 40A 3-6S 4in1 ESC Support DJI O3 for RC FPV Racing Drone

The JHEMCU GHF411AIO HD F4 OSD Flight Controller is engineered for precision and stability in FPV racing drones. Featuring the STM32F411 chipset and ICM-42688-P gyroscope, it ensures stable flight control. Integrated OSD, barometer, and a 16MB black box provide comprehensive flight data management. Compatible with a wide range of receivers, including ELRS, TBS, and SBUS, it offers versatile connectivity. The ESC, with its 8-bit MCU Blheli-S, supports Dshot signals for efficient performance. Its compact design includes GPS, compass, and HD O3 integration, making it an ideal choice for high-performance drones.

Specifications:
Brand Name: JHEMCU
Model: GHF411AIO-HD
MCU: STM32F411/100MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: YES
Blackbox: 16MB
Input Voltage: 3S-6S (11.5V-26V)
5V-BEC: 5V/2.5A 呼0.1V
10V-BEC: 10V/2A 呼0.1V
Receiver: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
GPS: YES
Compass: YES
HD DJI O3: YES, support
USART: UART1, UART2, Softserial
IIC: IIC1
Led_Strip: YES
Buzzer: 5V
ESC Signal: Dshot150, Dshot300, Dshot600
USB: Micro USB
Current Port: YES
Voltage Sensor: YES
DFU Button: YES
FC Firmware: betaflight_4.4.2 JHEF411HD.HEX
Size: 33*33MM
Mounting Hole: 25.5*25.5*3MM / 26.5*26.5*3MM
Weight: 7.6g
ESC Current: 40A
ESC MCU: EFM8BB21
ESC TYPE: Blheli_S
ESC Firmware: G_H_30_48_v0.19.2.HEX (bluejay)
Features:
Utilizes STM32F411 chipset and ICM-42688-P gyroscope, ensuring stable flight and precision control.
Comes with integrated OSD, air pressure meter, and a 16MB black box for comprehensive flight data recording and management.
ESC boasts an 8-bit MCU of Blheli-S with an embedded TVS module, promoting efficiency without external soldering needs.
Supports a broad range of receivers including ELRS, TBS, and SBUS for versatile connectivity options.
Compact design coupled with powerful functionalities like GPS, compass, and HD O3 integration, making it perfect for FPV racing drones.

Package Included:
1 x GHF411AIO-HD 1 x XT60 4 x M2 6.5MM Shock Absorber 2 x 40A-16AWG Wire 1 x 5P to 6P Connecting Cable for DJI O3 1 x 470UF/35V Capacitor 1 x TYPE-C Adapter Board 4 x 28AWG Wire 1 x Welding Practice Board
