Description

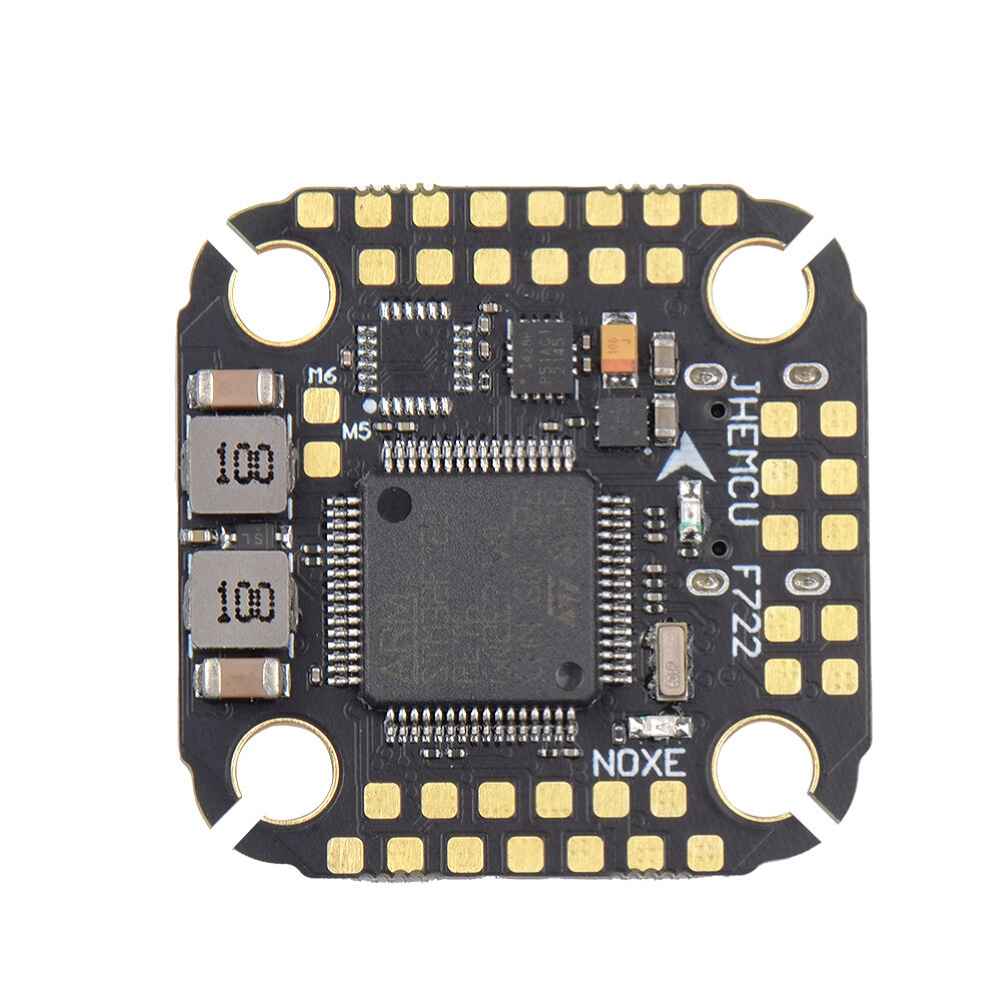

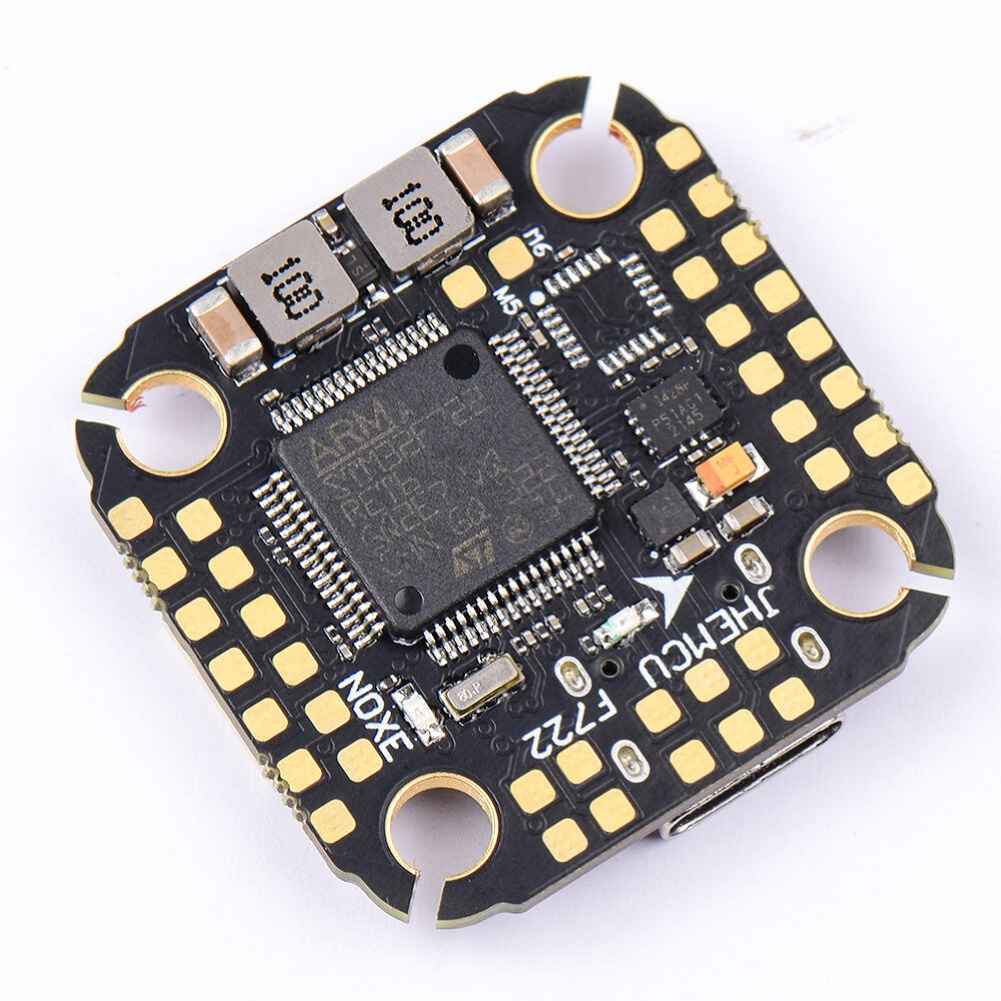

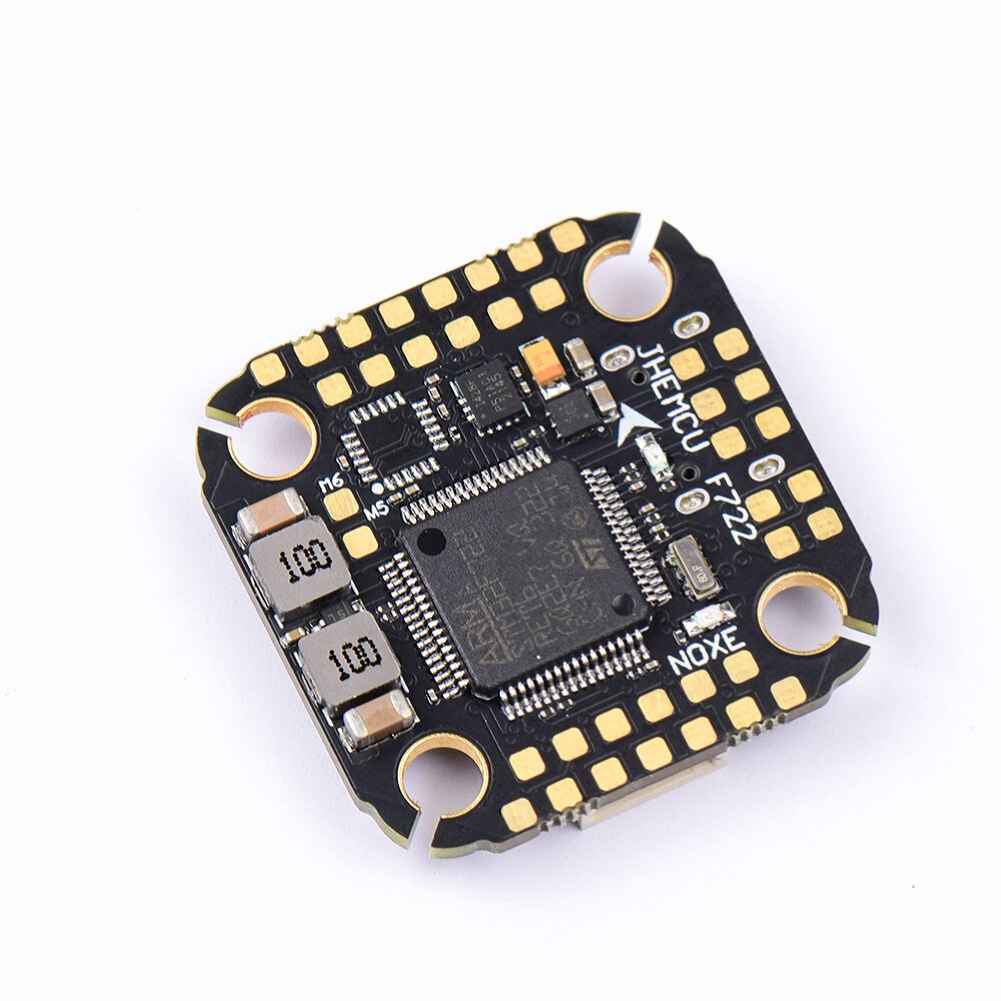

20x20mm JHEMCU F722 NOXE FC ICM 42688-P 3-6S STM32 F7 OSD Flight Controller with 5V 10V BEC Support DJI O3 for DIY RC Drone FPV Racing
The JHEMCU F722 NOXE Flight Controller is designed for high-performance RC drone FPV racing. Featuring the powerful STM32F722RE main control running at 216MHz, this controller supports a range of advanced functionalities including an ICM-42688-P gyroscope, DPS310 barometer, and an AT7456E OSD chip. It offers a robust power supply with 5V/2.5A and 10V/2.0A BEC options, and is compatible with various receiver types such as ELRS, TBS, SBUS, and more. The controller supports multiple communication interfaces, including UART and I2C, and features a USB Type-C port for easy connectivity. With a compact design and a weight of just 5g, it is ideal for DIY drone enthusiasts seeking optimal performance.
Specifications:
Brand: JHEMCU
Model: F722 NOXE
Main control: STM32F722RE (216MHZ)
Gyroscope: ICM-42688-P
Barometer: DPS310

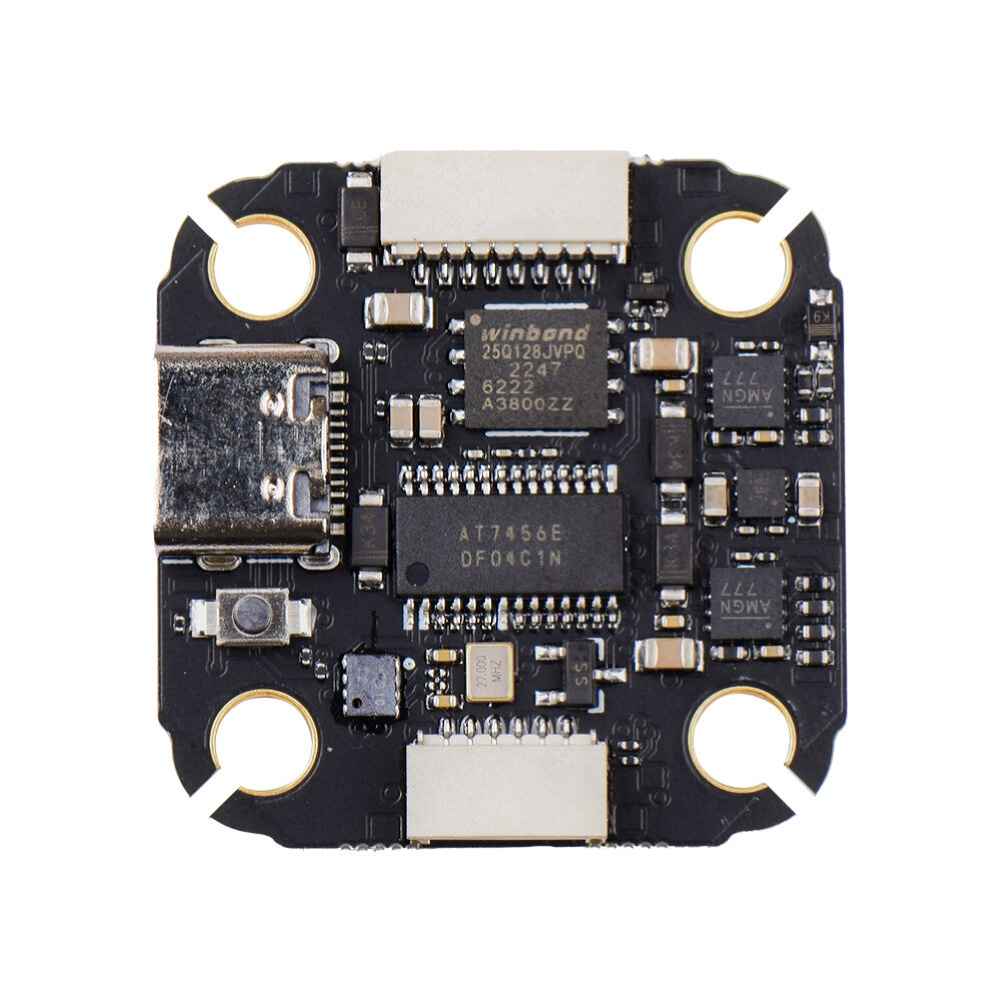

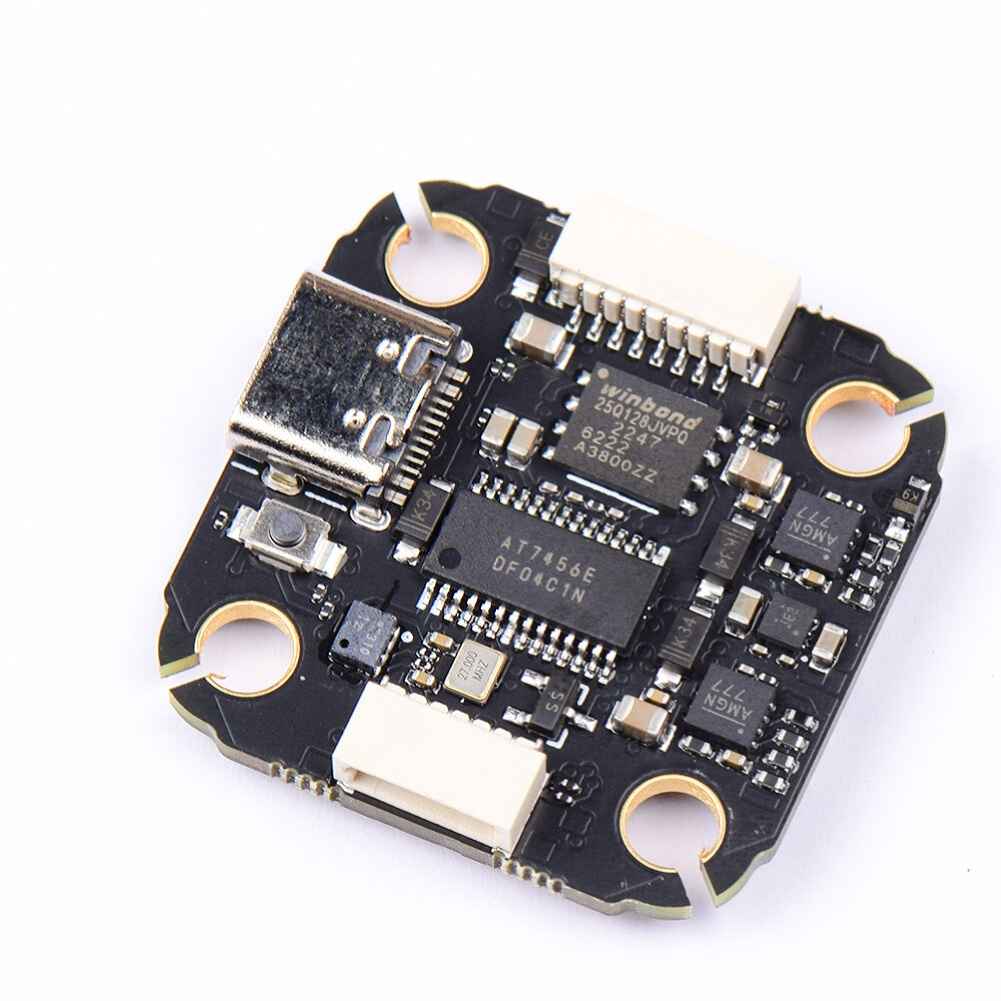

OSD chip: AT7456E
Black box: 16MB
LED programming: supported
BB sound: supported
Input voltage: 3-6S
I2C interface: supported
BEC: 5V/2.5A
BEC: 10V/2.0A
Camera input: supported
USART: UART1, UART2, UART3, UART4, UART5, UART6
Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES, support
Compass: YES, support
ESC signal: Dshot150,Dshot300佾Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor : YES
DFU button: YES
Weight: 5g
Flight control firmware: betaflight_ 4.4.2_ JHEF7DUAL.HEX
Installation hole spacing: 20x2x4MM
Maximum overall size: 29x29MM

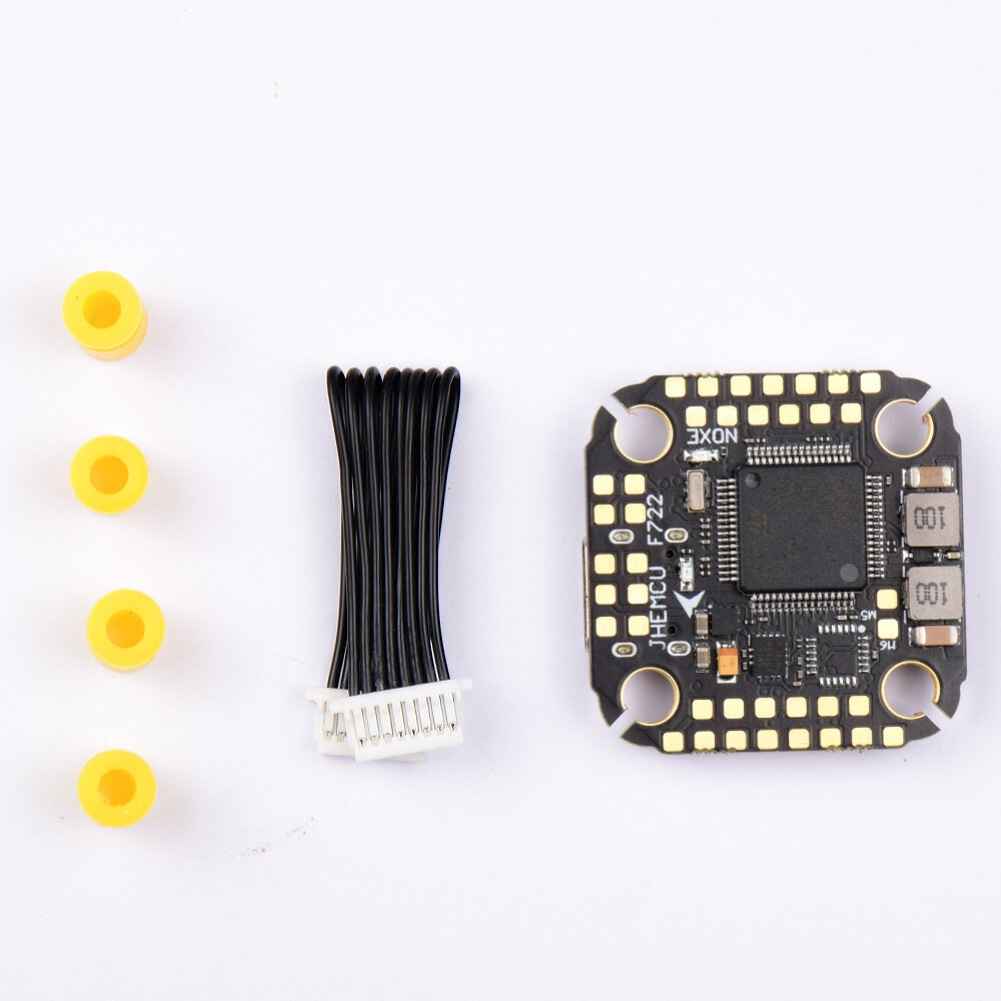

Package Included:
1x Flight Controller
1x 8P Plug Cable

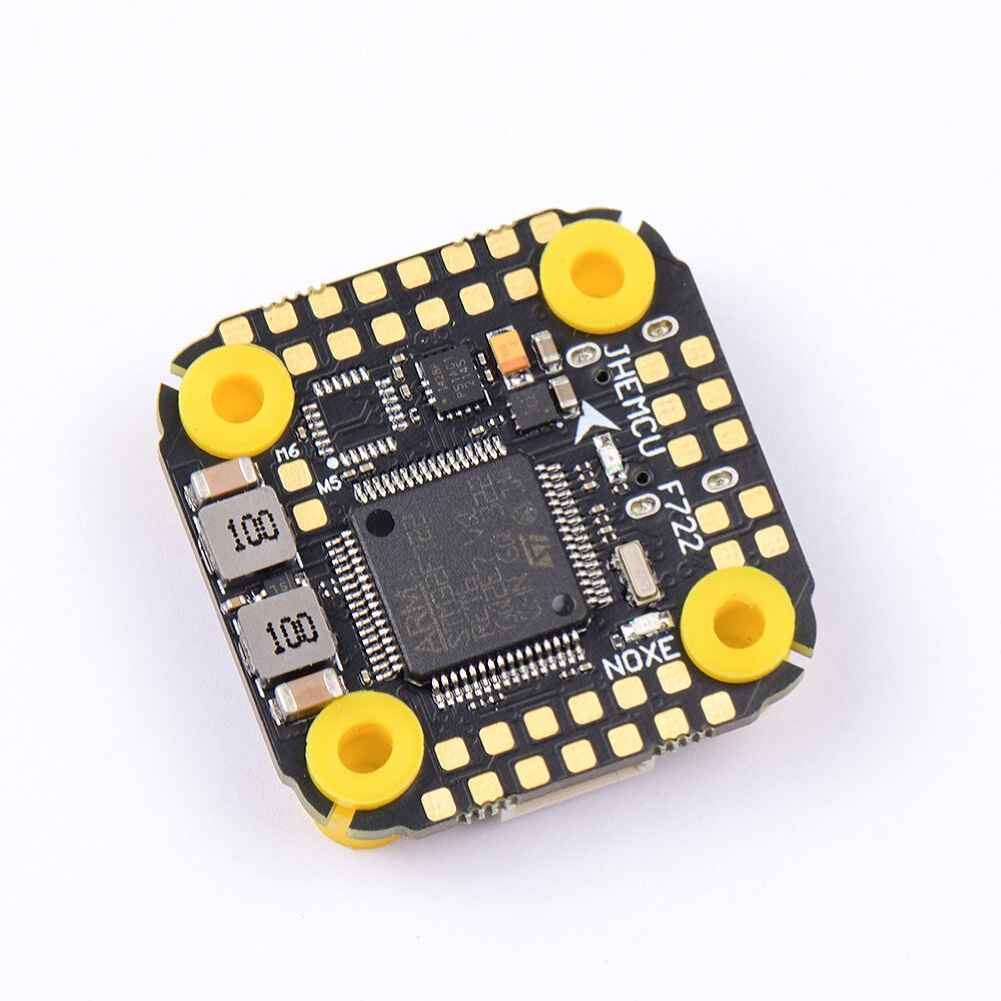

4x Damping Ball
