Description
35x35mm iFlight BLITZ H7 Pro Flight Controller OSD Baro 4-12S with 5V 12V BEC Output Support Smartaudio / IRC Tramp VTX Protocol for FPV RC Racing Drones

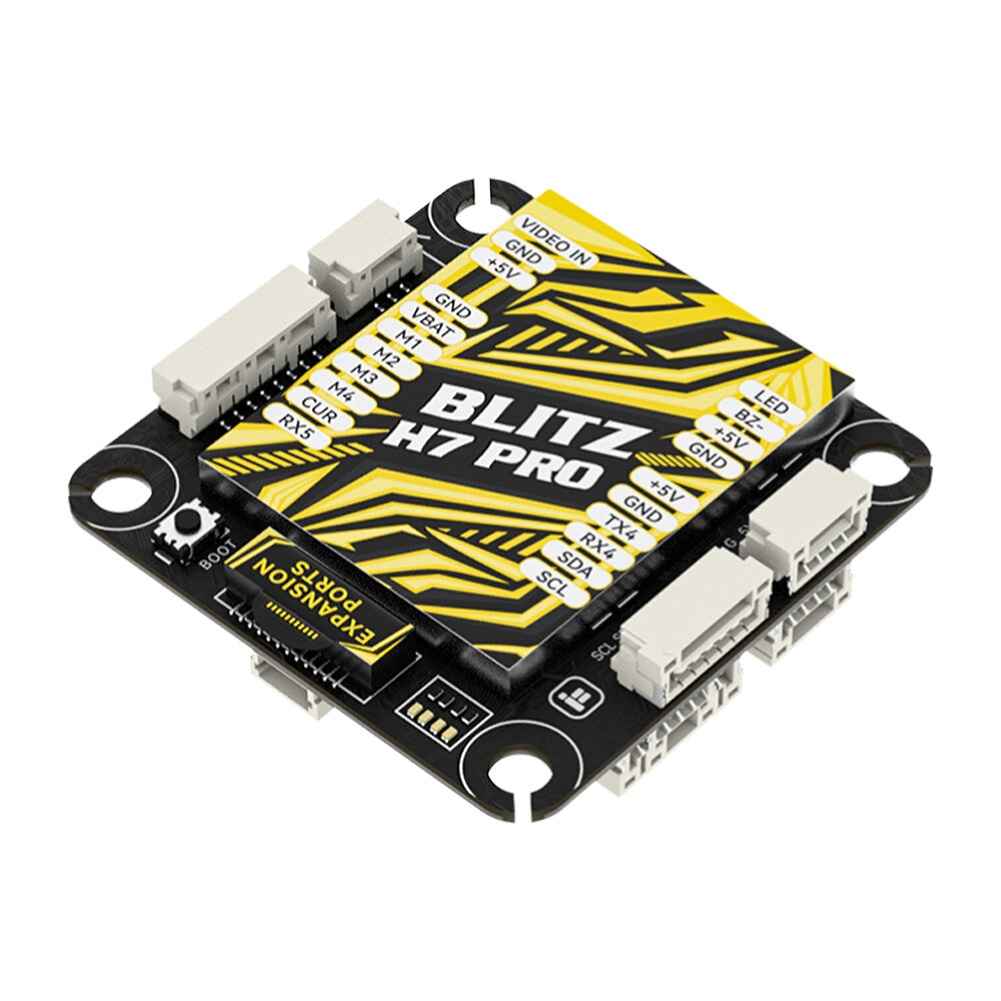

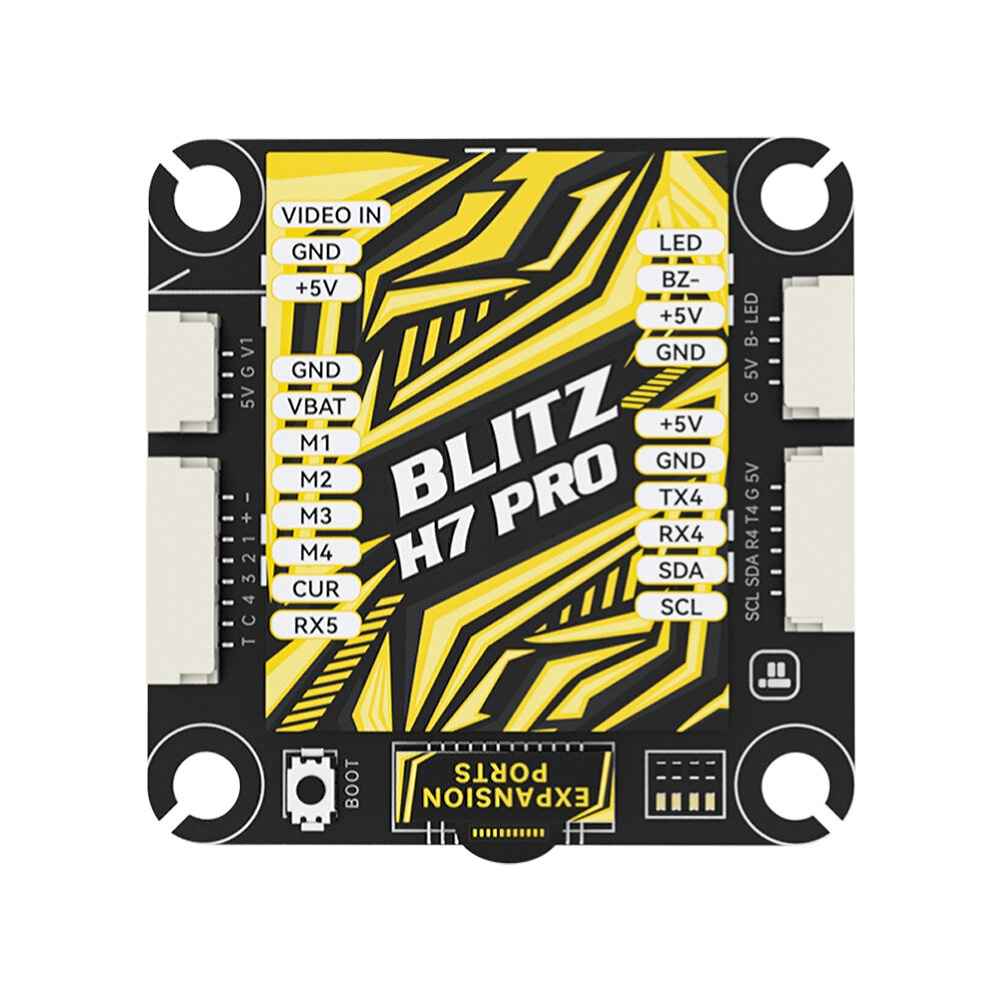

The iFlight BLITZ H7 Pro Flight Controller is engineered for FPV racing drones, featuring a dual-sided shielding design that protects against interference and debris. Equipped with the powerful STM32H743 MCU, it supports up to 12S input voltage and is compatible with Betaflight and ArduPilot firmware, offering versatility and high performance. The controller includes a GH1.25 connector for reliable assembly and an SD card for extensive flight data recording. Its high-voltage DC-DC buck converter ensures stable voltage delivery, while the removable expansion soldering pad board allows for easy peripheral connections. The 35x35mm mounting holes facilitate optimized PCB wiring, making it a top choice for advanced drone enthusiasts.
Description:
Introducing the BLITZ H7 Pro Flight Controller – a powerhoue with a dual-sided shielding design that not only protects against interference but also safeguards the controller from debris, ensuring seamless operation. The detachable shielding allows for easy TF card replacement. Upgraded with a robust STM32H743 MCU, it supports input voltages up to 12S and is compatible with ArduPilot firmware, offering customers endless possibilities. Upgrade to the BLITZ H7 Pro for unparalleled performance.
Features:
1.Features 35x35mm mounting holes, providing a larger size for optimized flight controller PCB wiring.
2.GH1.25 connector design enhances terminal connection reliability and ensures easy assembly.
3.Utilizes an SD card for the flight controller’s black box, offering increased capacity to record more flight data.
4.Dual-sided shielding design offers interference protection and safeguards the flight controller from foreign object malfunctions.

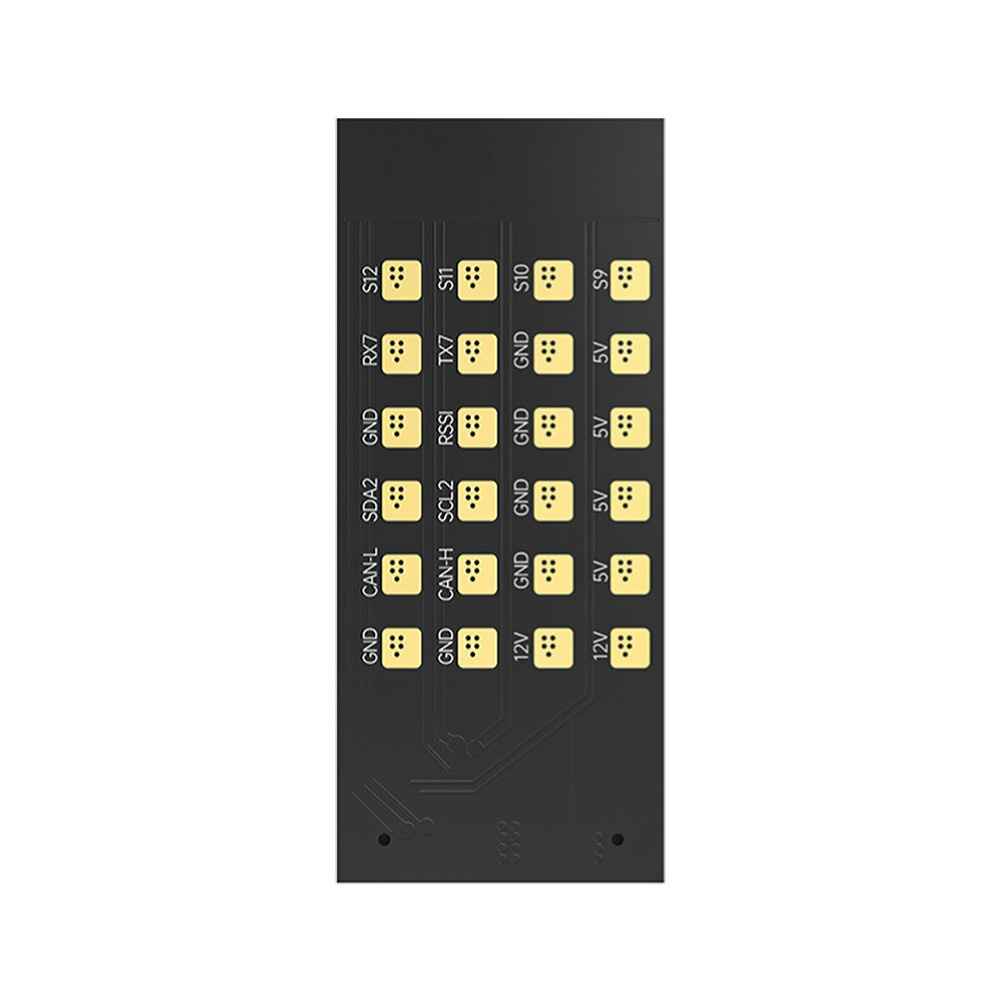

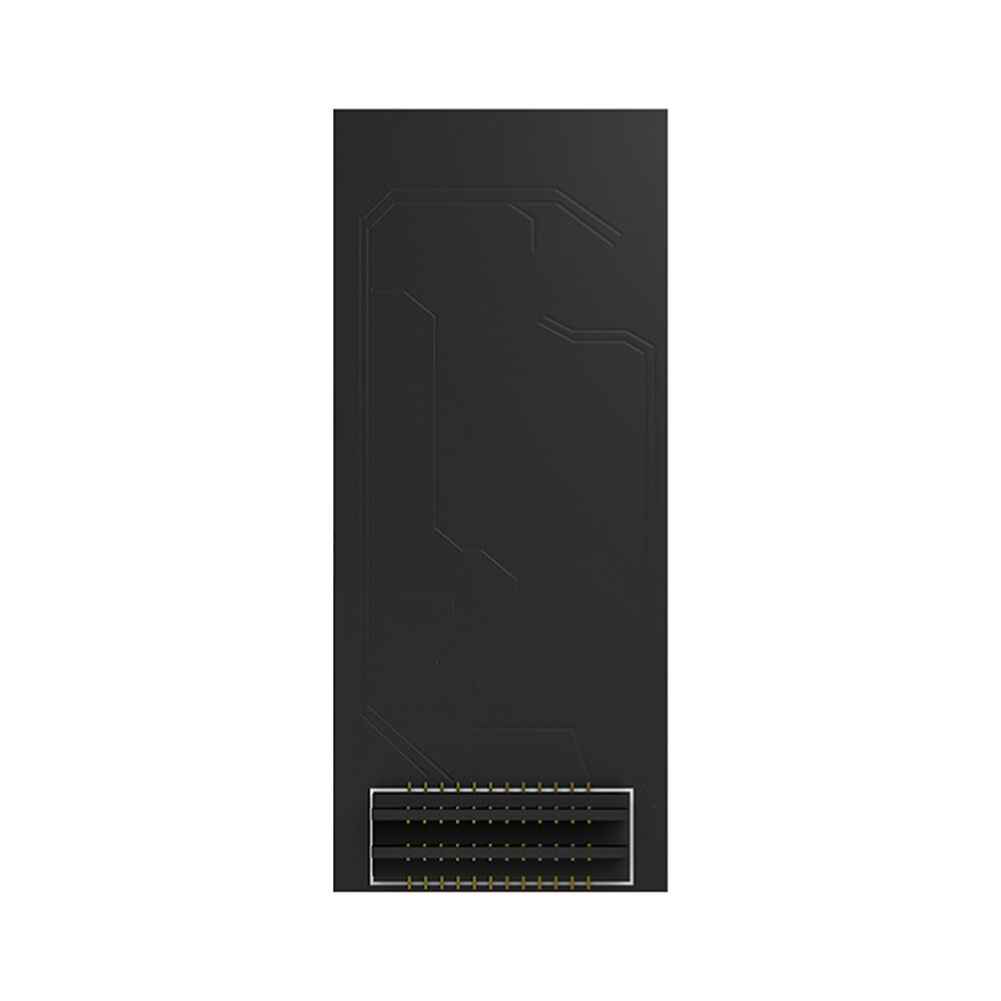

5.Removable expansion soldering pad board enables advanced users to easily connect additional peripherals.
6.Incorporates a high-voltage DC-DC buck converter with a chip voltage endurance of up to 100V, delivering stable and reliable voltage for the flight controller and video transmission.
7.Supports Betaflight and Ardupilot firmware.
Specifications:
Product Name: BLITZ H7 Pro Flight Controller
MCU: STM32H743
Gyro: ICM42688
Baro: DPS310
OSD: AT7456E
Input Voltage: 14.8V-50.4V (4S-12S LIPO)
Blackbox: SD Card
UARTS: 7
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 35*35mm/嫉4
Dimensions: 42*42*11.3mm
Weight: 20g
BEC: 5V 3A,12V 2.5A
BF Firmware target: IFLIGHT_BLITZ_H7_PRO (BF4.4.2)
Ardupilot Firmware券BlitzH743Pro
Wiring Suggestion:
UART1 for VTX HD/Analog
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
8沁Dshot/PWM outputs
2沁I2C for GPS Mag
Package Included:
1 x BLITZ H7 Pro Flight Controller
1 x Cable set
1 x USB Adapter Board
