Description

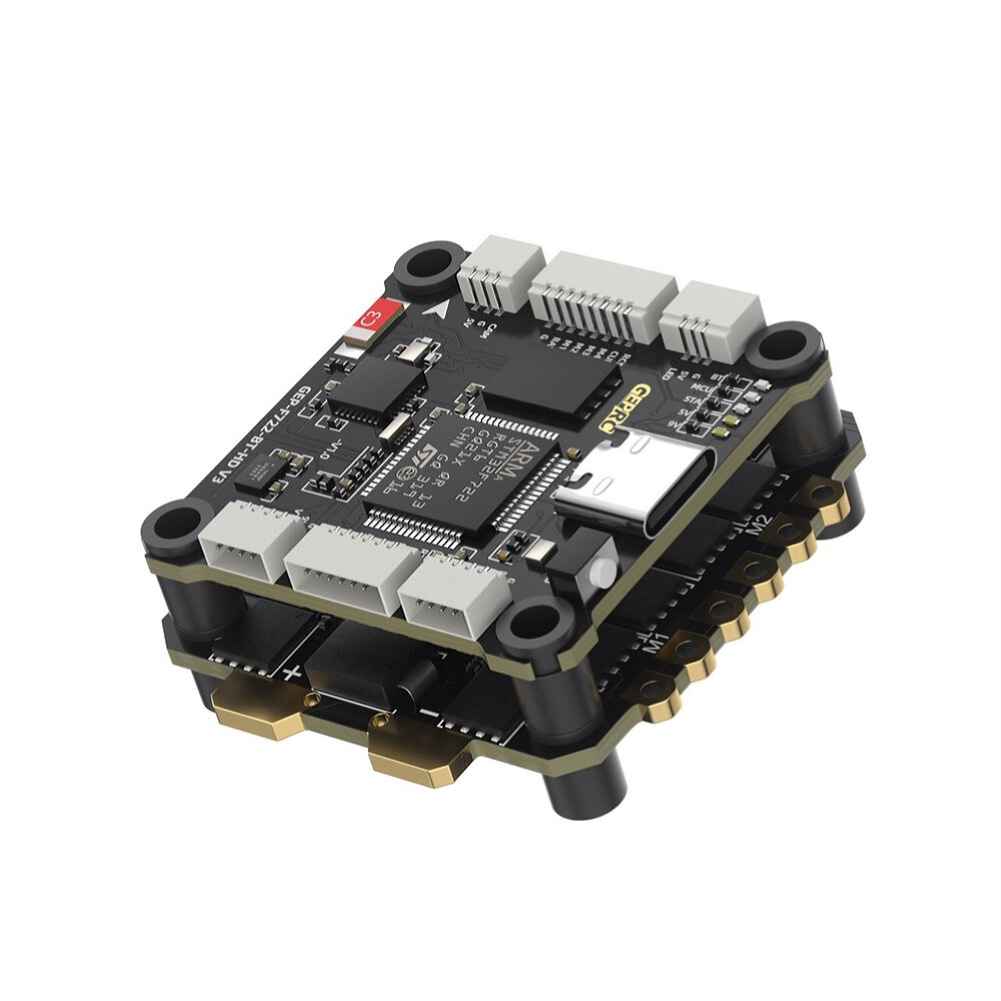

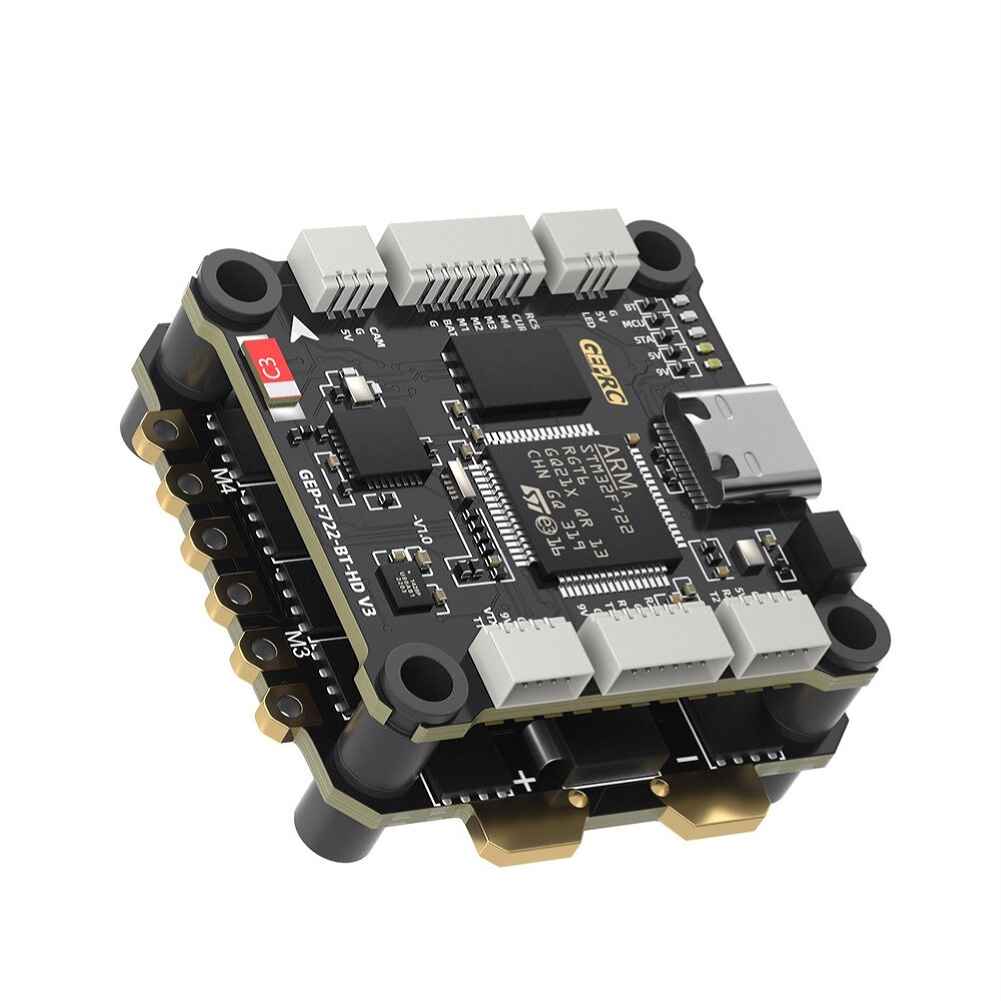

30.530.5mm GEPRC TAKER F722 BT HD V3 Flight Controller 3-6S 50A 32Bit 4In1 Brushless ESC Stack for RC FPV Racing Drone
The GEPRC TAKER F722 BT HD V3 Flight Controller is designed for RC FPV racing drones, offering reliable performance with its STM32F722 chip and 42688-P gyroscope. It includes a 512M black box for data storage and supports Bluetooth parameter tuning. The system features an integrated LC filter and a type-C USB interface for enhanced connectivity. The GEP-BL32 50A 96K 4-in-1 32Bit ESC ensures smooth flight, with easy installation via shock-absorbing mounts. It directly connects to the DJI Air Unit and includes a barometer, dual BEC outputs (9V@2.5A and 5V@3A), and BetaFlight OSD. Compatible with 3-6S LiPo, it supports multiple protocols including Dshot 150/300/600.
Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 also supported; customer flashing required.)
Feature:
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface

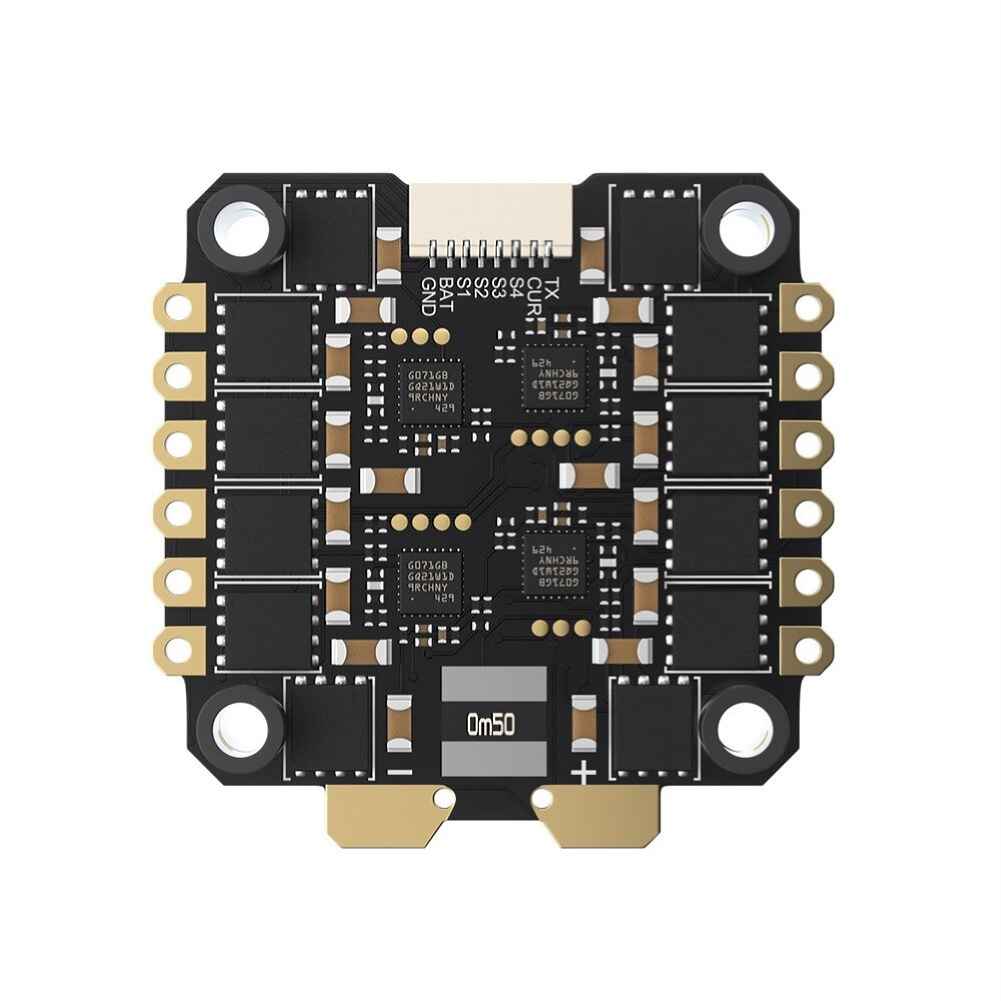

7. With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specification:
Brand: GEPRC
Model: TAKER F722 BT 32Bit 50A STACK
Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3 30 screws
4 x M3 25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
