Description
GEPRC GEP-TC18 87mm Wide X Frame Kit Compatible with DJI O4 Air Unit for RC FPV Racing Drones
The GEPRC GEP-TC18 87mm Wide X Frame Kit is engineered for RC FPV racing drones, offering robust performance and compatibility with the DJI O4 Air Unit. Constructed with 2mm thick arms, it ensures durability and stability during flights. The frame features a 7075 aluminum camera mount for enhanced durability and an integrated rear design accommodating a buzzer and dual antennas. Its dampening silicone reduces vibrations for smooth, shake-free footage. Designed with precision, the frame includes a 1.5mm top plate and a 2mm bottom plate, maintaining a lightweight structure at only 15g. Ideal for drone enthusiasts seeking a reliable and efficient frame kit.
Features:
1. Dampening Silicone for steady, shake-free footage with O4.
2. 7075 aluminum camera mount for superior durability.
3. Integrated rear design with reserved room for buzzer and dual antennas.
4. 2mm thick arms for durability and sturdiness.
Specifications:
Brand: GEPRC
Model: GEP-TC18 O4 frame
Wheelbase: 87mm
Dimension: 100*90mm
Frame Type: Wide X
Top Plate: 1.5mm
Bottom Plate: 2mm
FC Mounting Hole: 25.5*25.5/M2
VTX Mounting Hole: 25.5*25.5/M2
Motor Mounting Hole: 6.6*6.6/M1.4
Camera Side Plate Gap: 14*14mm
Stack Mounting Height: 12mm
Weight: 15g
Recommended Accessories(Not Included):
Motor: 0802-1002
FC&ESC: TAKER F411-12A-E 1~2S AIO
VTX&Camera: DJI O4 Air Unit
Propeller: HQprop 45mm / Gemfan 45mm 2-Blade / Gemfan 45mm 3-Blade

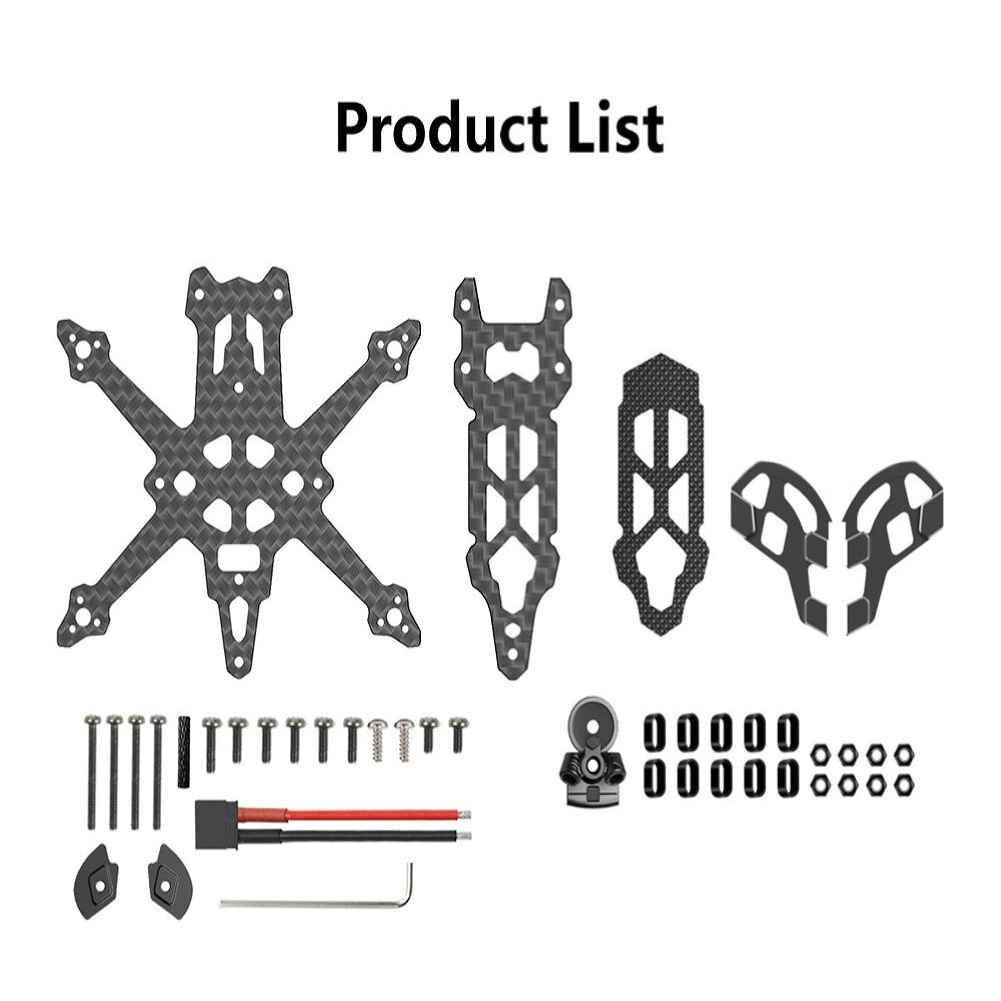

Package Included:
1 x Frame Kit
