Description

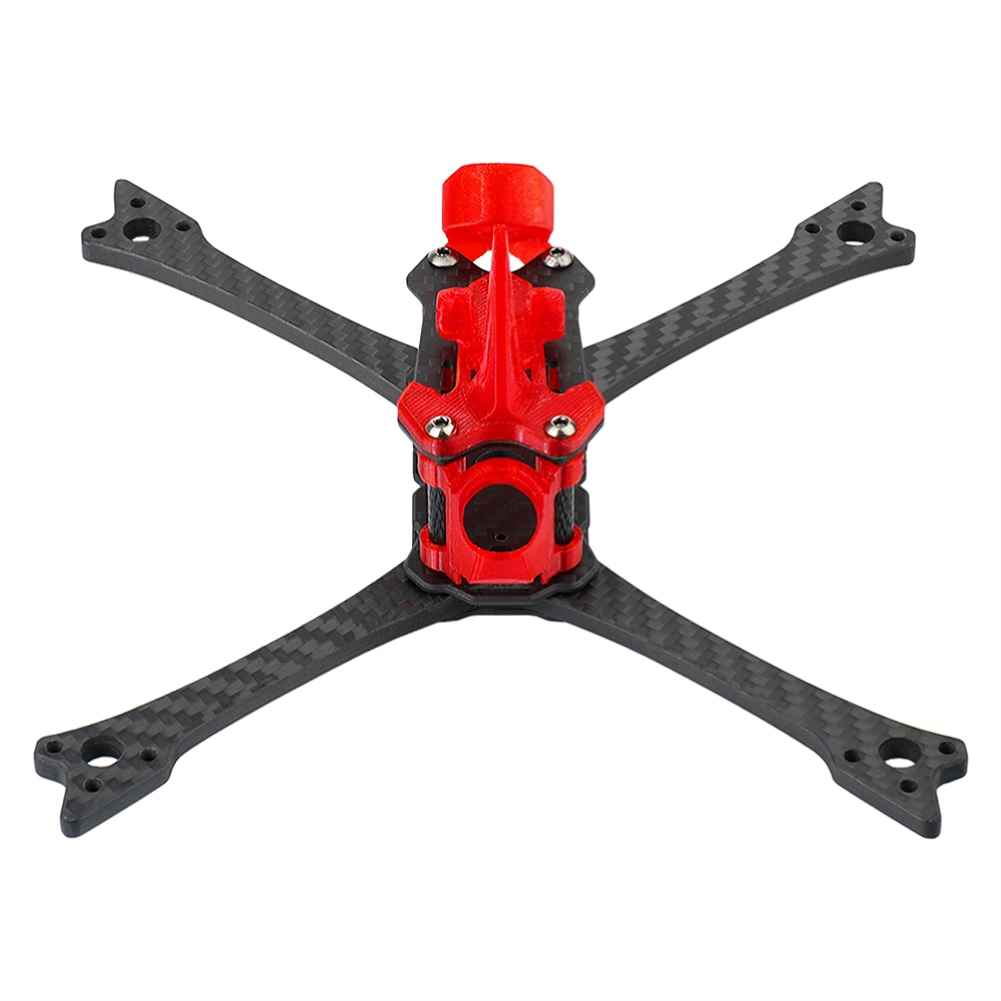

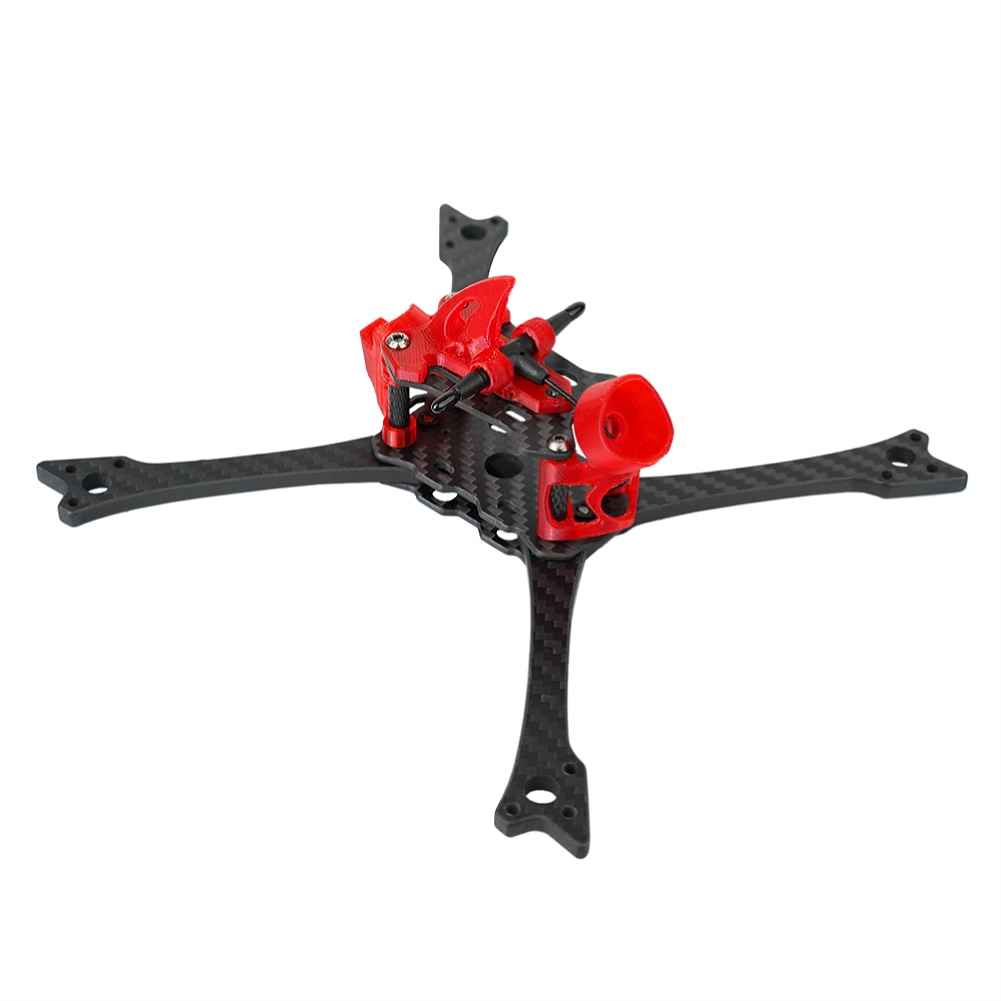

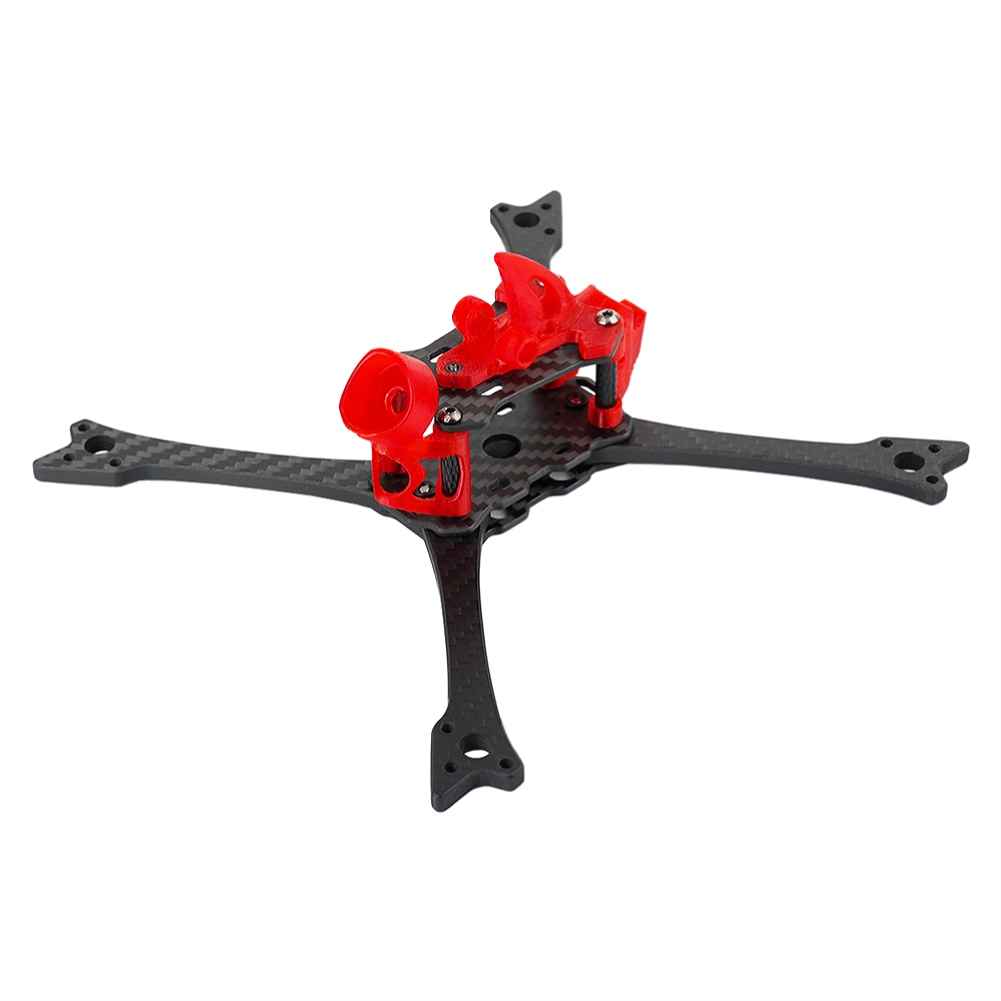

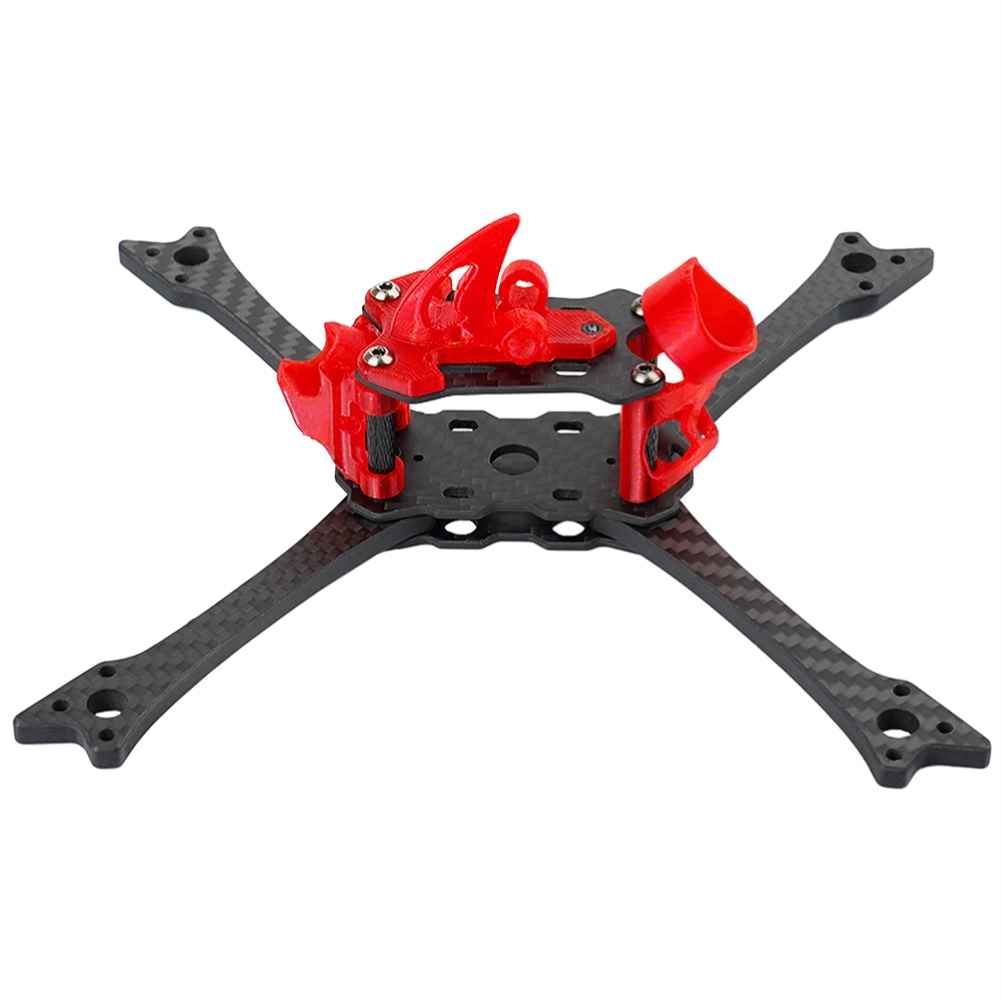

DeepSpace Raven5 190mm Wheelbase 5 Inch Racing Frame Kit Support 14mm Camera for DIY RC FPV Racing Drone
The DeepSpace Raven5 Racing Frame Kit is designed for DIY RC FPV racing drones, featuring a 190mm wheelbase and accommodating up to 5.1-inch propellers. This robust frame includes a top, middle, and bottom plate, each with a 2mm thickness, and arms with a 5mm thickness for enhanced durability. The frame is compatible with a 20x20mm FC & ESC stack and supports a 14mm camera space, making it ideal for racing enthusiasts. Weighing just 56.6g (excluding TPU parts), this lightweight yet sturdy frame is perfect for high-speed drone racing. Compatible components include the iFlight Blitz Mini E55 ESC and iFlight XING2 2207 motors, among others.
Specification:
Brand: DeepSpace
Model: Raven5
Item Name: 5 Inch Frame Kit
Wheelbase: 190mm
Propeller Size: Max 5.1 inch
Motor Mounting: 16*16mm (M3)
Stack/VTX Mounting: 20*20mm (M3)
Camera Space: 14mm
Top Plate Thickness: 2mm
Middle Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Arm Thickness: 5mm
Weight: 56.6 呼3g (excluding TPU parts)
The following Parts are Compatible: ( Not Included)FC & ESC Stack: 20x20mm iFlight Blitz Mini E55 55A BLHeli_32 32bit 2-6S 4In1 Brushless ESC Brushless Motor: iFlight XING2 2207 4-6S Brushless MotorPropeller: iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller VTX & Camera: Walksnail Avatar HD Nano Kit V3
Package Included:
1 x Bottom plate
4 x Arm
1 x Fixed plate
1 x Middle plate
1 x Top plate
1 x M2 4mm dome head screw
2 x M3 6mm dome head screw
1 x M2 hex nut
2 x M3 8mm dome head screw
2 x M3 6mm Flat head hexagonal screw
2 x M3 10mm Flat head hexagonal screw
4 x M3 14mm Flat head hexagonal screw
4 x M3 25mm Standoff
1 x TPU camera pad
1 x Shark fin print
1 x TPU VTX antenna mount
1 x Battery anti-slip mat
1 x Battery strap 16 250mm
