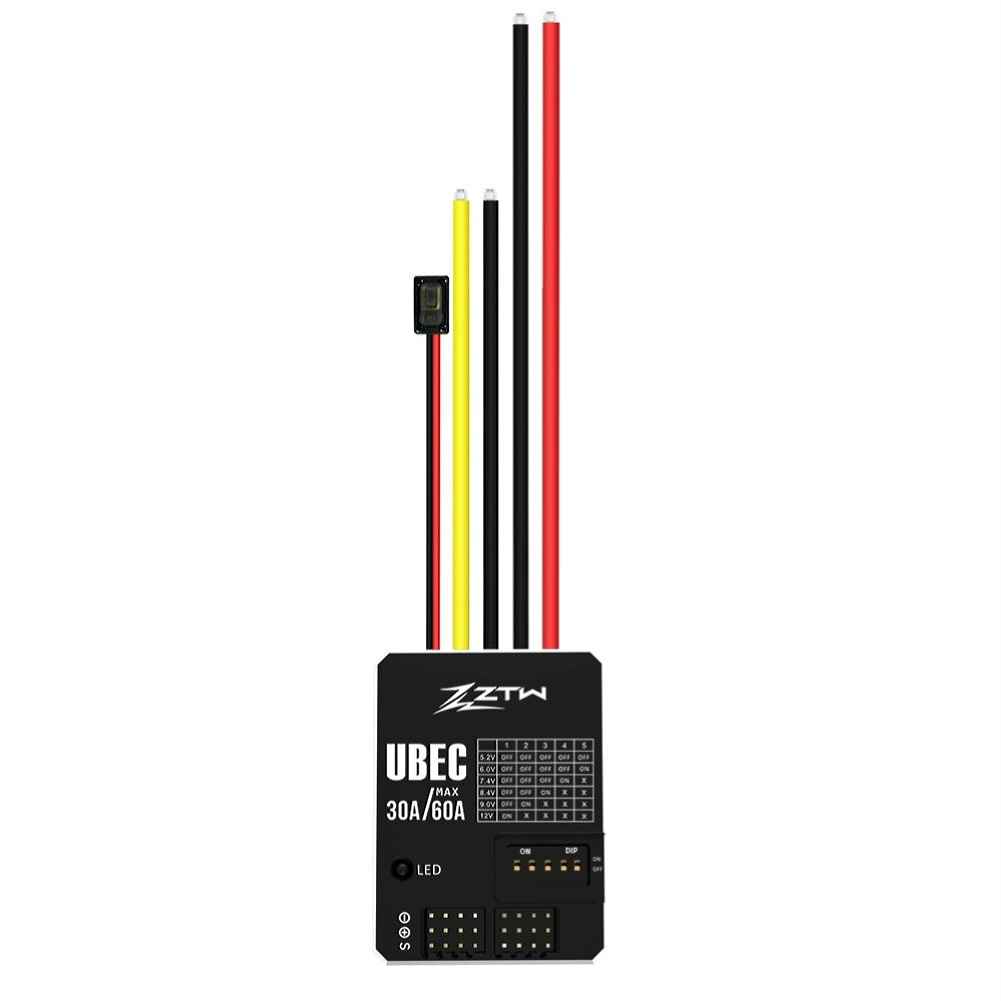

ZTW UBEC 30A MAX60A HV 3-18S Step-down Module Adjustable 5.2/6/7.4/8.4/9/12V for RC FPV Racing Drone
The ZTW UBEC 30A MAX60A HV Step-down Module is designed for RC FPV racing drones, providing a reliable power solution with its adjustable output voltage ranging from 5.2V to 12V. It supports main input voltages of 3-18S LiPo (9-80V) and backup input voltages of 1-2S LiPo (3-9V). This module features a metal housing for efficient heat dissipation and reduced electromagnetic interference. It offers multiple protections, including over-current, over-heat, low voltage, and short circuit protection, ensuring safe operation. With 8-channel parallel outputs, it delivers greater current endurance, while an external switch and LED indicator enhance usability and monitoring.
Specification:
Brand: ZTW
Model: UBEC 30A
Main Input Voltage: 3-18S LiPo (9-80V)
Backup Input Voltage: 1-2S LiPo (3-9V)
Output Voltage: 5.2V/6.0V/7.4V/8.4V/9V/12V
Output Amperage: Continuous Current:30A; Peak Current: 60A
Size(L*W*H): 55x41x17mm
Weight: 75g
Features:

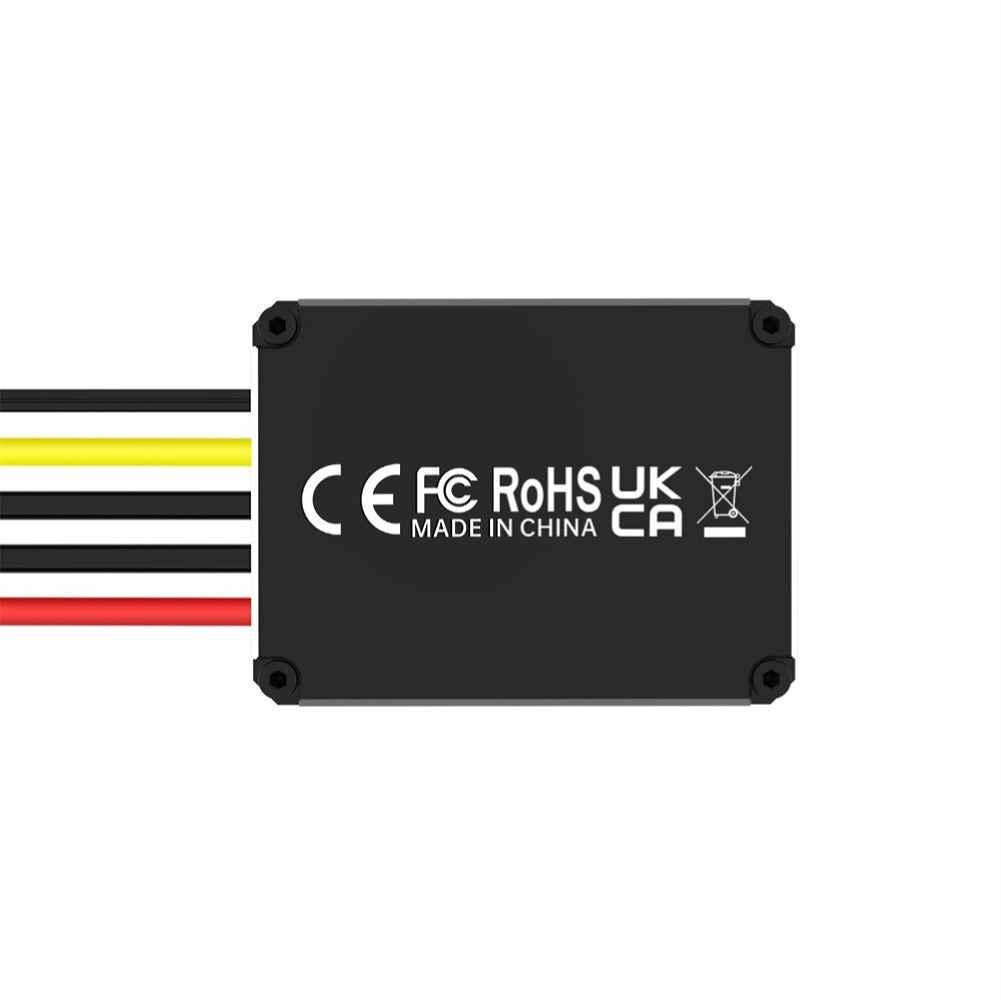

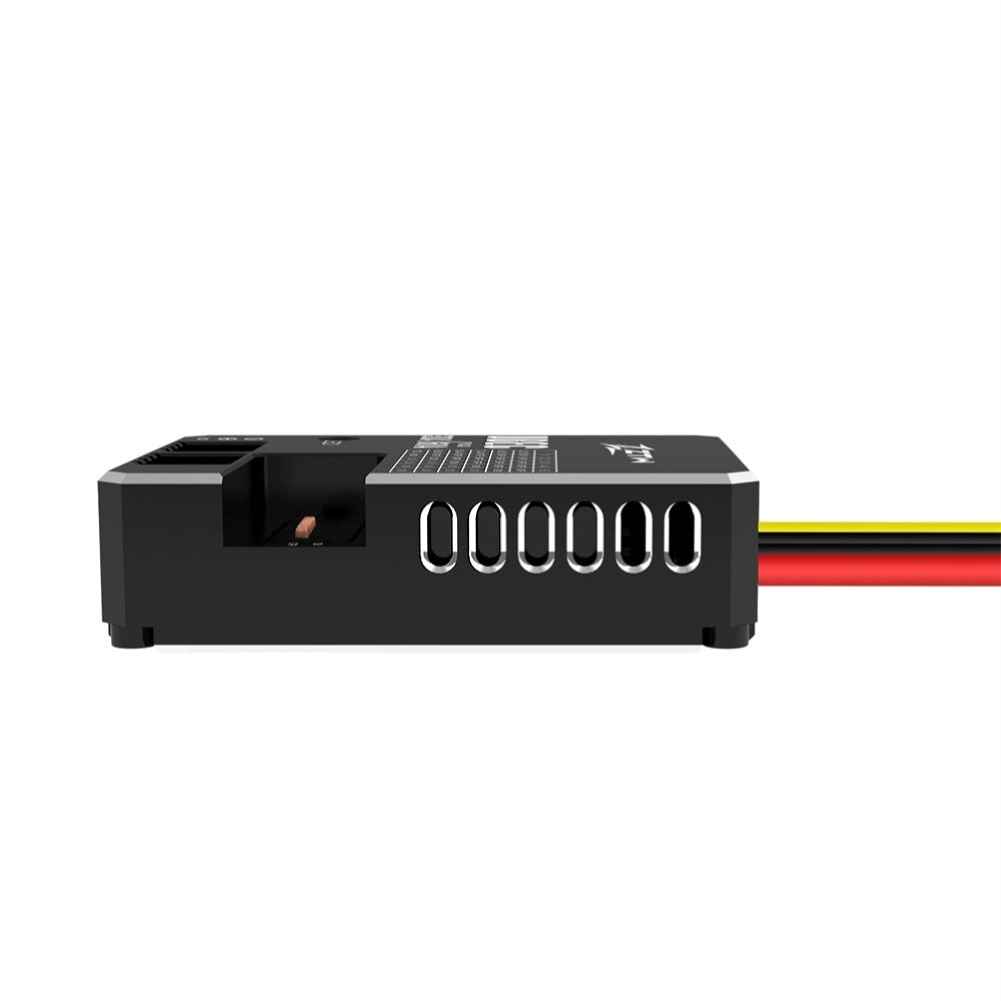

1. Metal housing for quick heat dissipation and less electromagnetic interference.
2. Adjustable output voltage (5.2V / 6.0V / 7.4V / 8.4V / 9V / 12V) is applicable for servos with different voltages.
3. Multiple protections include over current protection, , over heat protection, low voltage protection,(output end) short circuit protection, (output end) anti-backflow protection.
4. 8-channel parallel outputs for greater current endurance.
5. External switch allows to turn on/off the UBEC easily.
6. LED indicator for indicating the work status of the UBEC and the connecting status of the backup power supply.
Package Included:
1 x ZTW UBEC 30A Module
