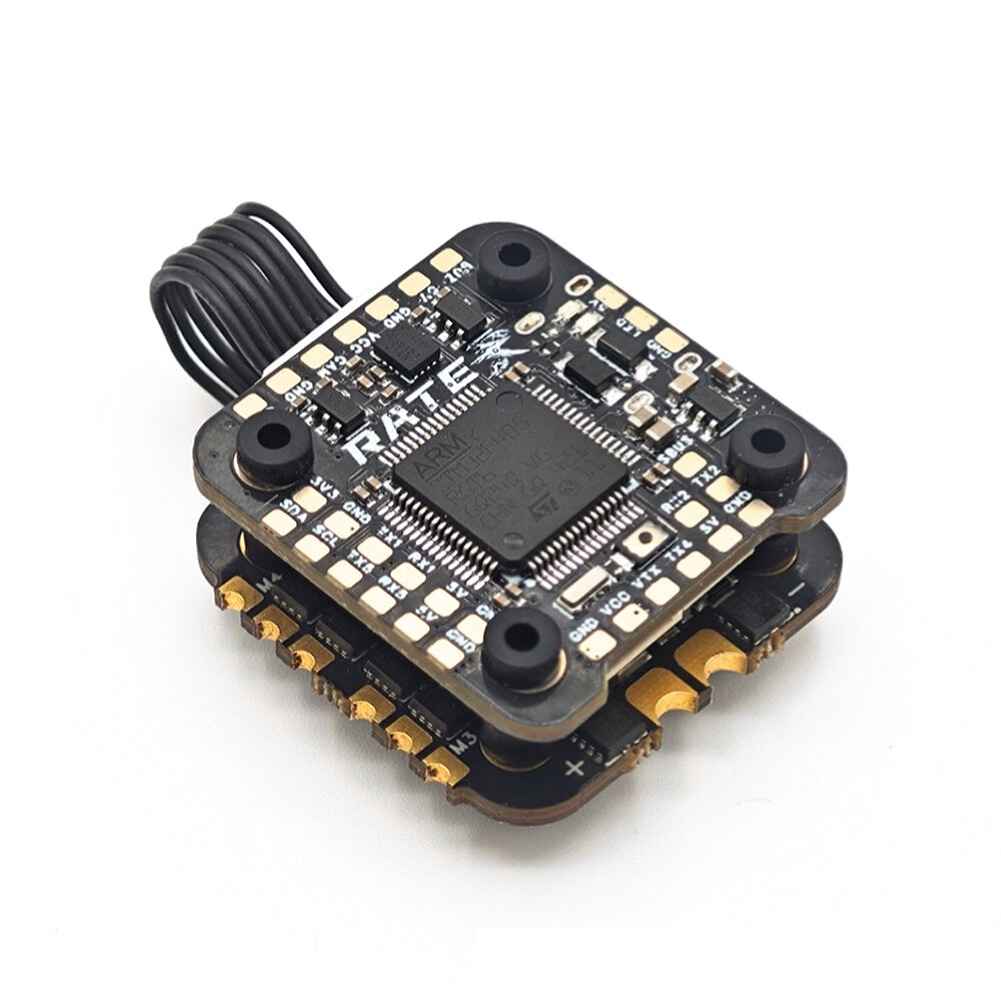

30.5mm*30.5mm Rate F405 Flight Controller with 5V 12V BEC Output & 30A 3-6S ESC Mini Stack for Freestyle RC FPV Drone Racing

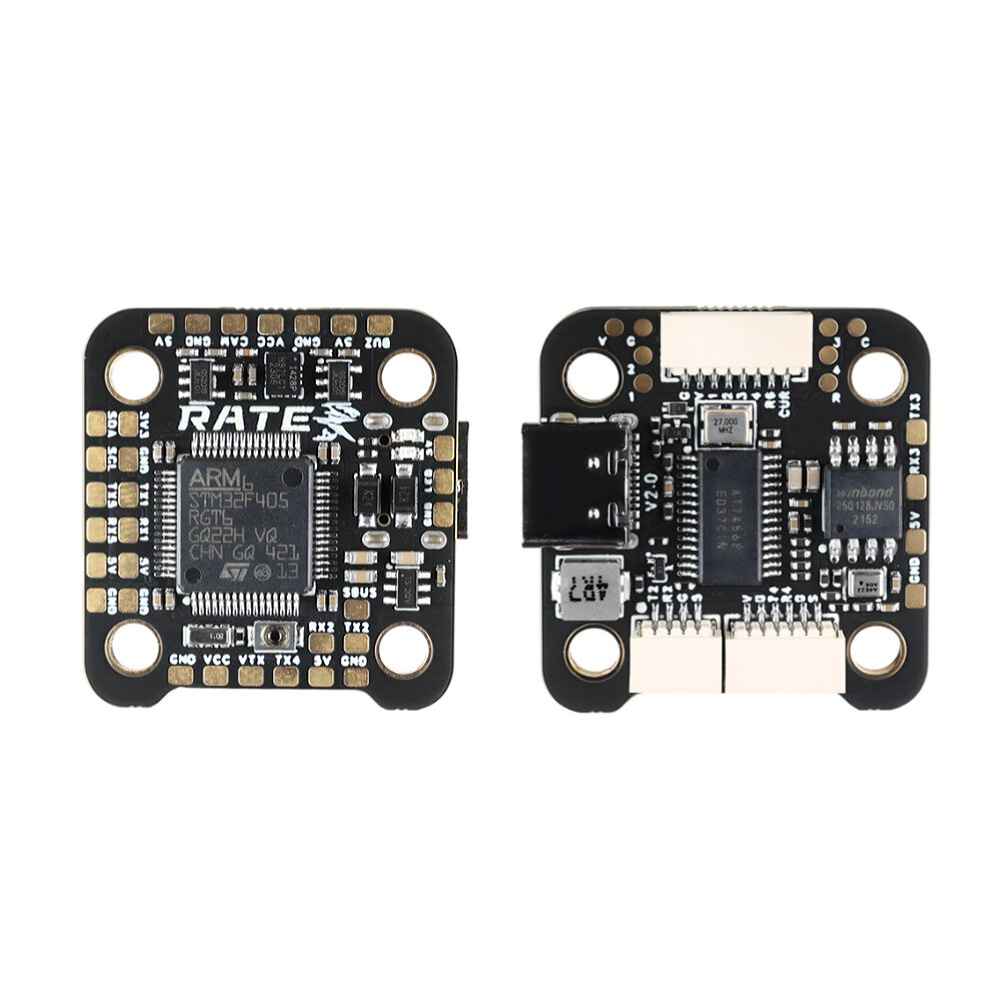

The RATE F405 Flight Controller is designed for freestyle RC FPV drone racing, offering a compact and efficient solution. This mini stack includes a 32-bit HF32 MCU featuring the STM32F405RGT6 processor for superior performance. Equipped with an ICM-42688-P IMU sensor and a BMP-280 barometer, it ensures precise control and stability. The flight controller dimensions are 29.7×28.58×6.1mm, while the ESC measures 30x30x5.6mm. It supports 3-6S voltage input and provides BEC outputs of 5V 3A and 12V 2A. With 16MB of flash memory, it is ideal for high-speed drone racing.
Specifications:
Brand: RATE
Item Name: F405 30A mini Stack

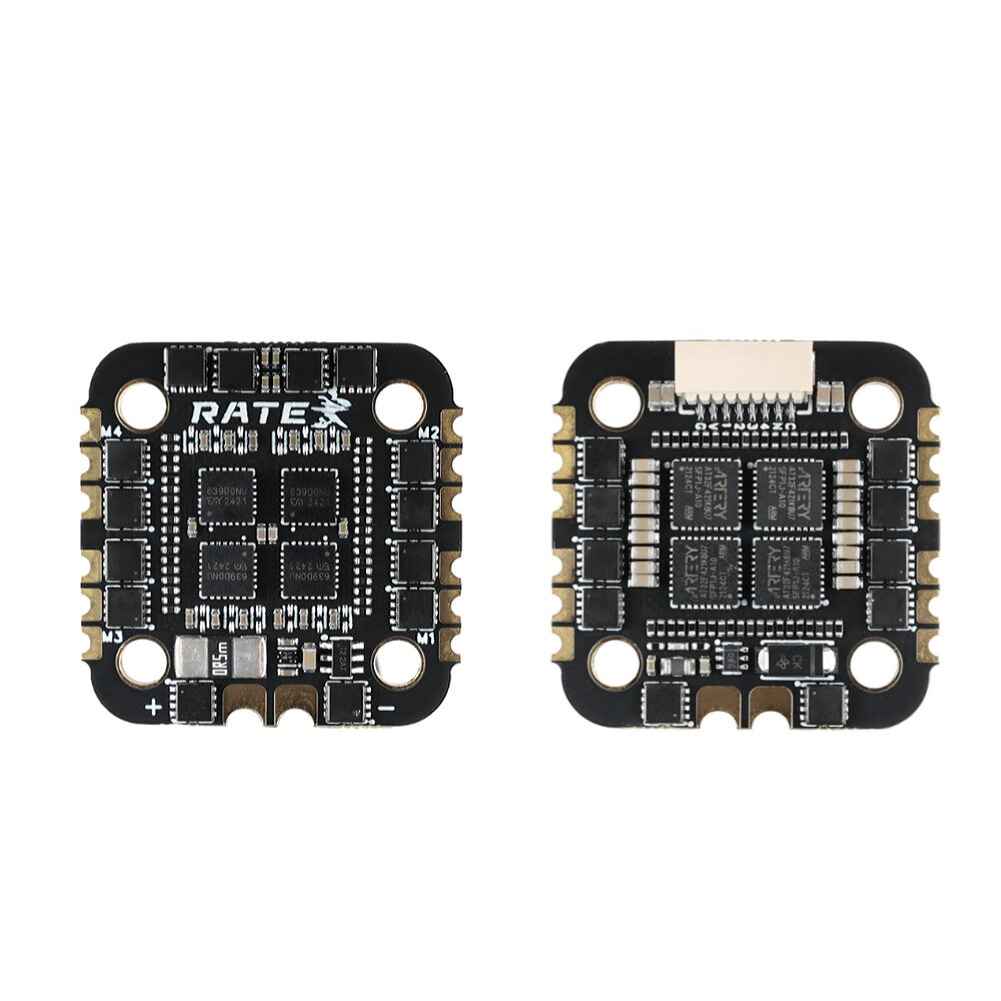

ESC: 32-Bit HF32
MCU: STM32F405RGT6
IMU Sensor: ICM-42688-P
Barometer: BMP-280
Flash Memory: 16MB
BEC Output: 5V 3A / 12V 2A
Voltage Input: 3-6S
Flight Controller Dimensions: 29.7×28.58×6.1mm
ESC Dimensions: 30x30x5.6mm

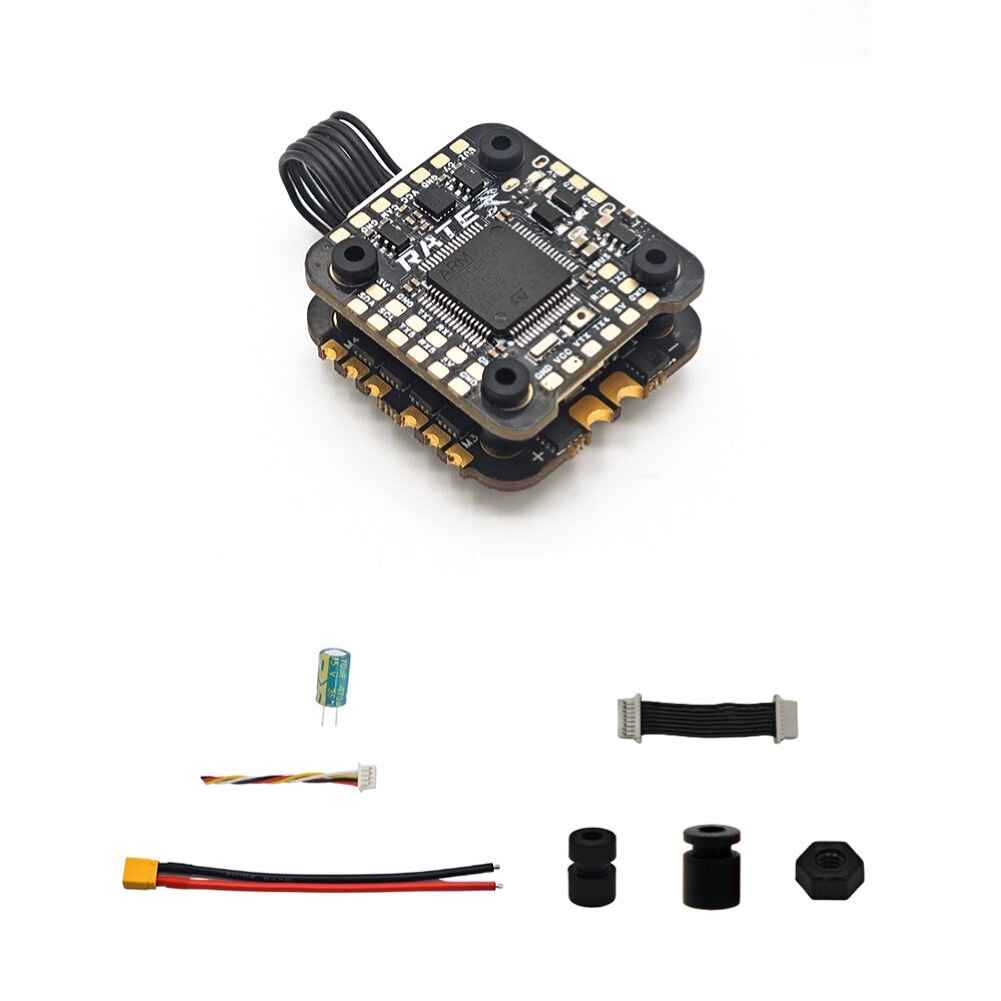

Package Included:
1 x F405 Stack
8 x M2 Nylon Nuts
1 x Flight Controller Connecting Wire
1 x Capacitor (35V 470uF)
1 x 16AWG Power Cable 10CM
8 x M2x6.6 Damping Balls
1 x sh1.0 4P Receiver Cable
