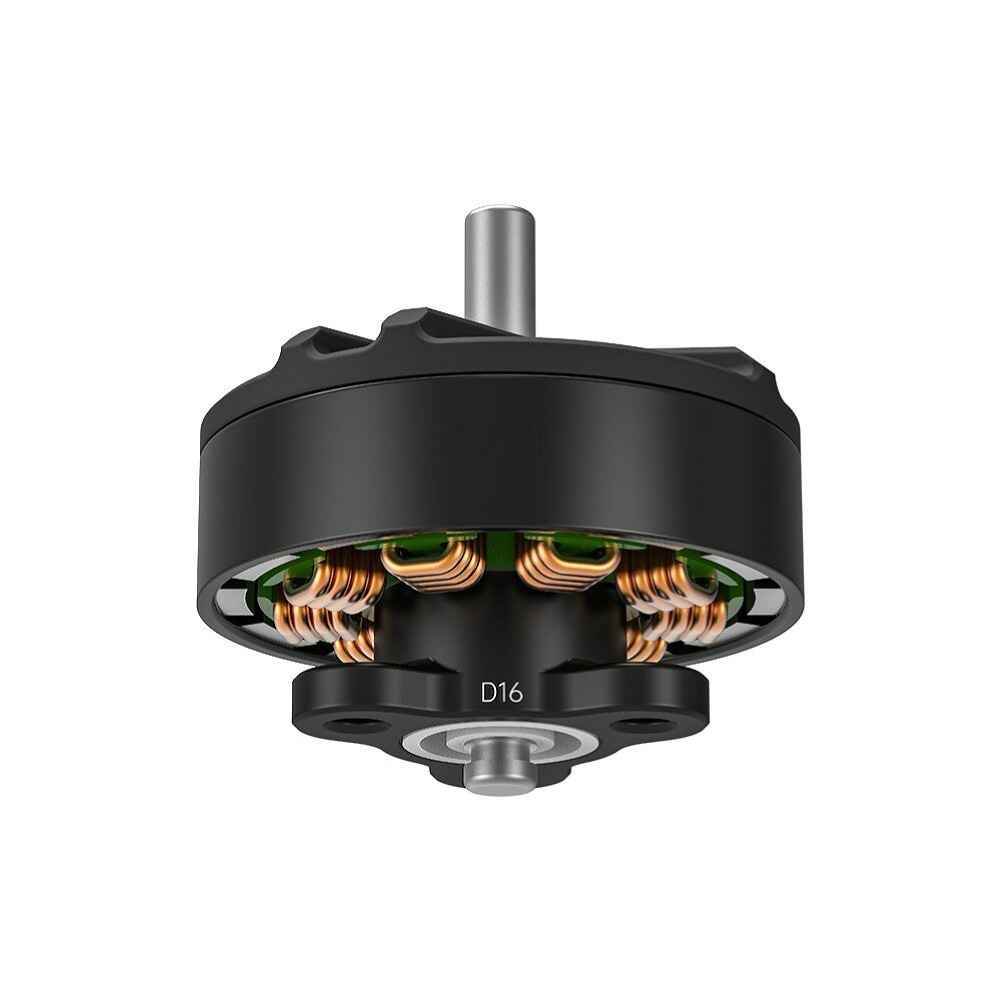

4PCS iFlight XING2 1002 14000KV 2S Brushless Motor 1.5mm Shaft for Defender16 Whoop RC FPV Racing Drone
The iFlight XING2 1002 14000KV Brushless Motor is engineered for high-speed performance and agility in ultralight FPV racing drones. Designed specifically for the Defender16 Whoop, this motor offers a lightweight build at just 2.7 grams, including wires, making it ideal for sub-250 gram micro drone setups. Its durable construction features a segmented bell rotor and N52H curved magnets for enhanced reliability. With a low interphase resistance of 0.269棒 and a high peak current of 6.87A, this motor ensures efficient power delivery. The precision NMB bearings and 1.5mm shaft provide smooth, frictionless movement, extending the motor’s lifespan.
Specifications:
Brand: iFligh
Model: XING2 1002
KV: 14000KV
Quantity: 4PCS ( 2CW+2CCW)
Weight(included wire): 2.7g
Dimension: 12.5*11.5mm
Interphase Resistance: 0.269棒
Input Volts: 8V
Peak Current: 6.87A
Max Watt: 53.2W
Mounting Holes: 6.6mm/嫉1.4mm (3 mounting holes)
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 3mm
Lead: 50mm/28AWG/SH1.25 3P
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NMB
Bearing Specification: 嫉4*1.5*2.mm
Winding: Single Strand copper winding
Application: Original Replace Motor for iFlight Defender16 FPV Racing Drone
Features:
High-Performance KV: With a KV rating of 14,000, this motor is designed for speedy and agile flight performance in ultralight builds.
Ultra-Lightweight: Weighing just 2.7 grams including the wire, this motor is optimized for sub-250gram micro drone setups.
Durable Build: Features a segmented bell rotor and a tough N52H curved magnet, ensuring long-lasting performance and reliability.
Efficient Design: Engineered with low interphase resistance (0.269棒) and high peak current (6.87A), this motor offers both efficiency and power in one package.
Precision Bearings: Equipped with high-quality NMB bearings and a 1.5mm shaft, you can expect smooth, friction-less movement and improved lifespan.
Package Included:
2x 1002 Motor CW
2x 1002 Motor CCW
16x M1.4×3 mm Mounting Screws
