Description

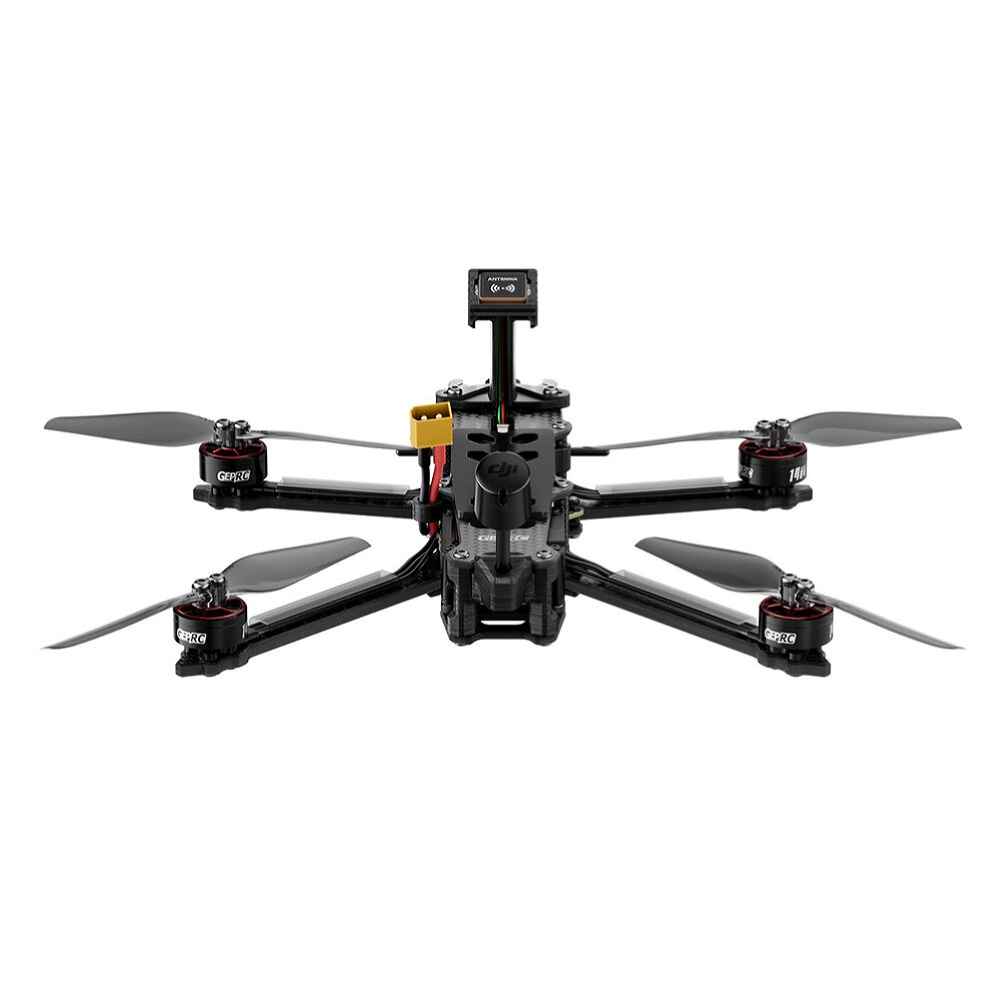

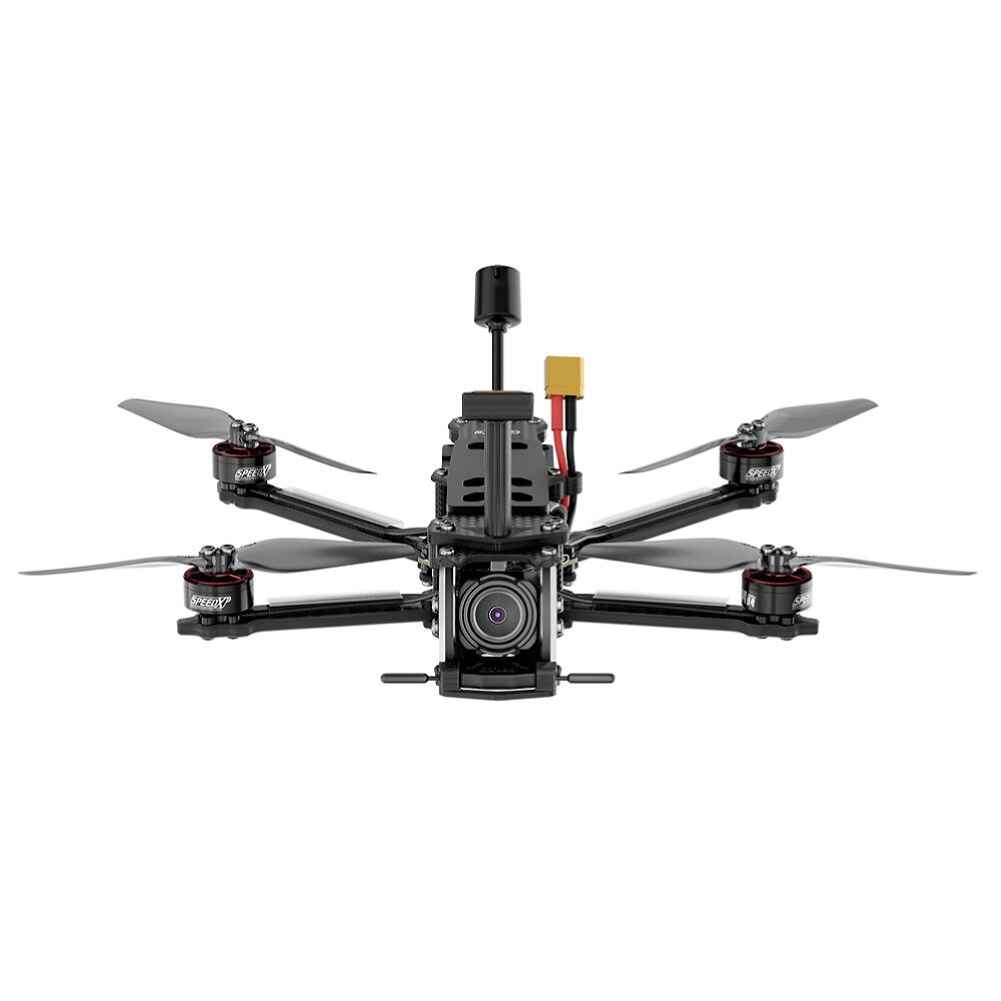

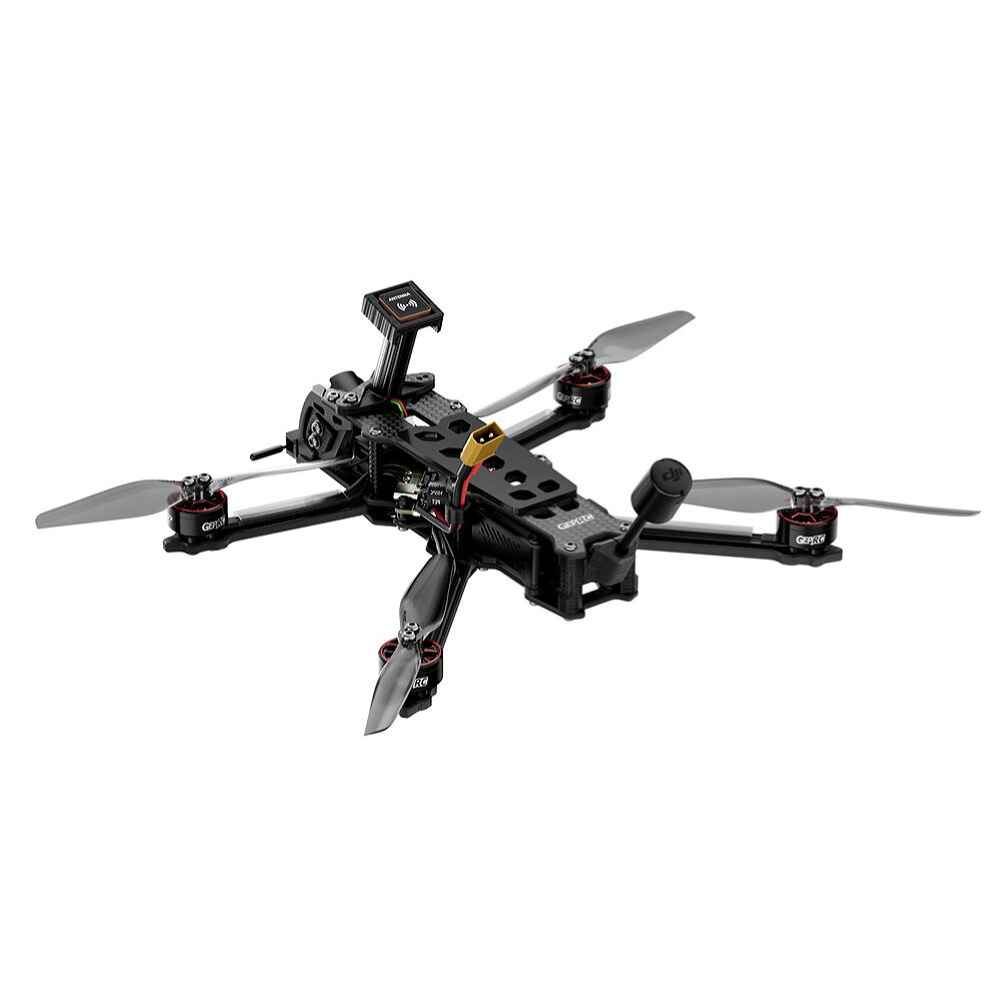

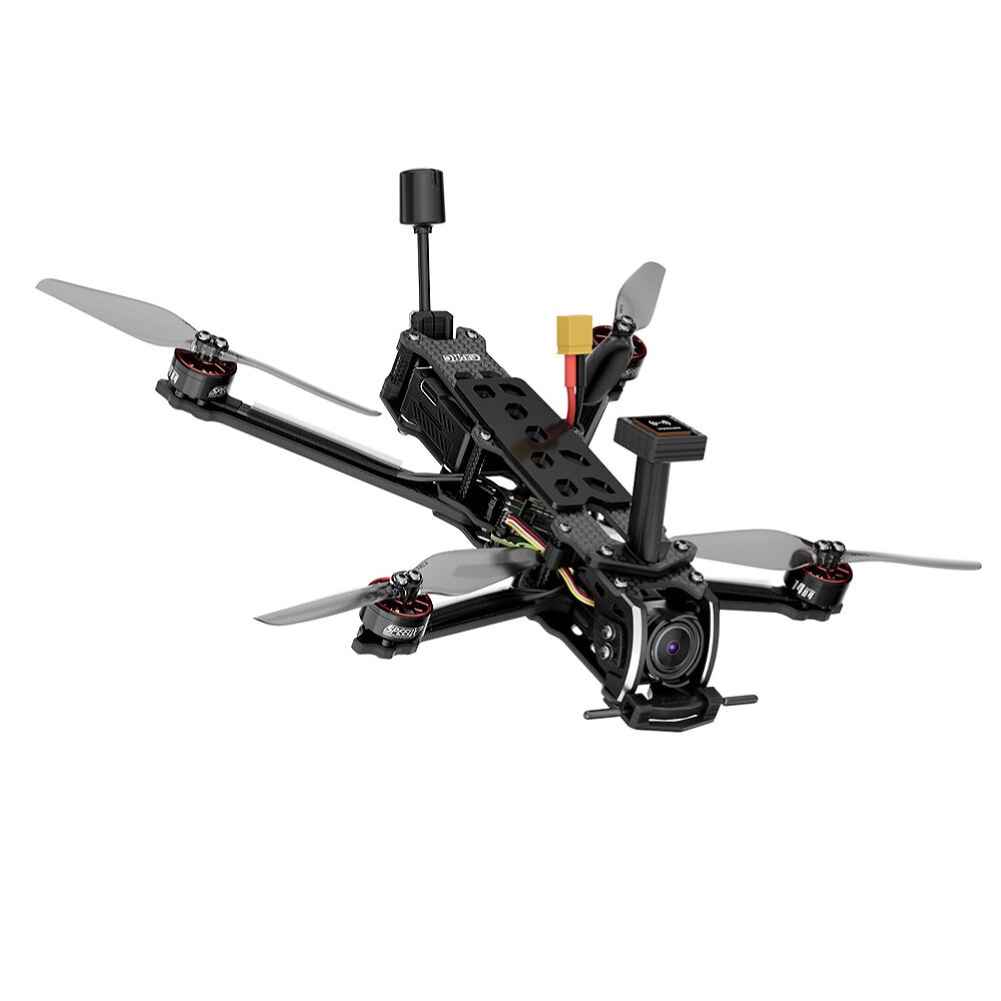

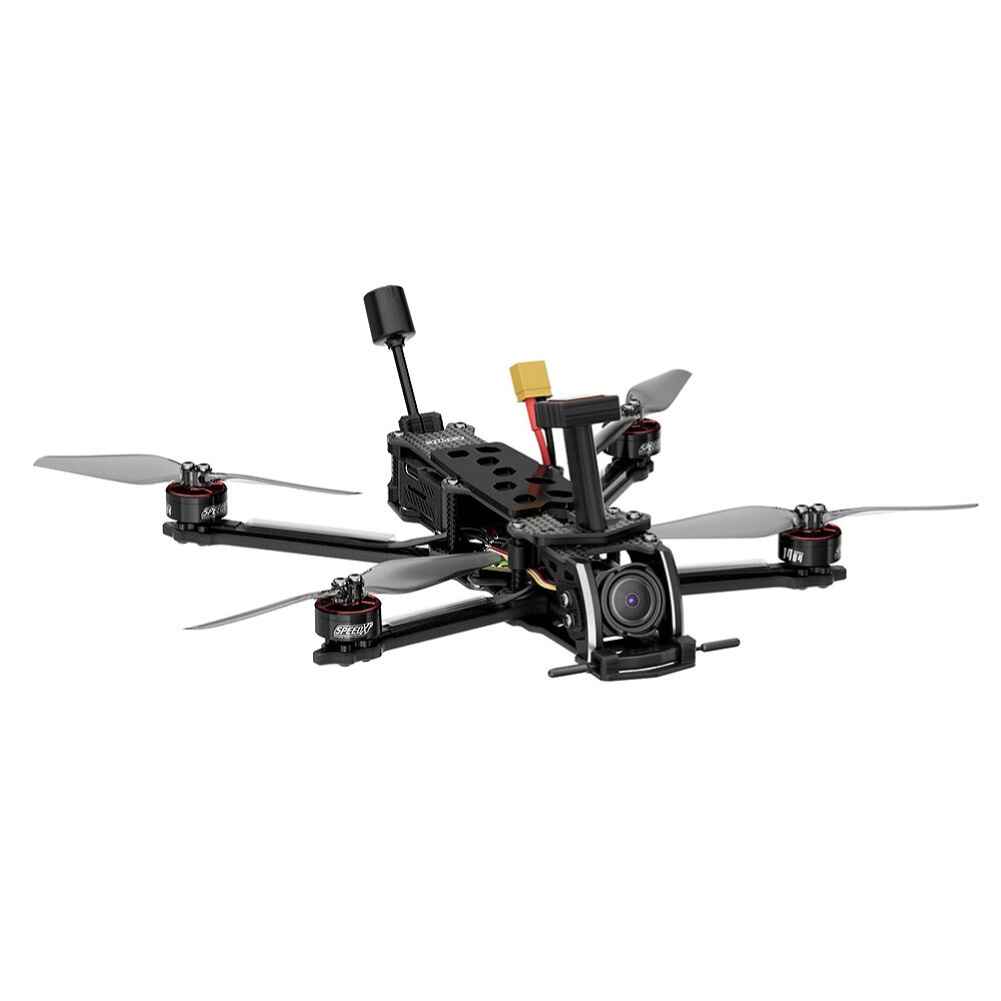

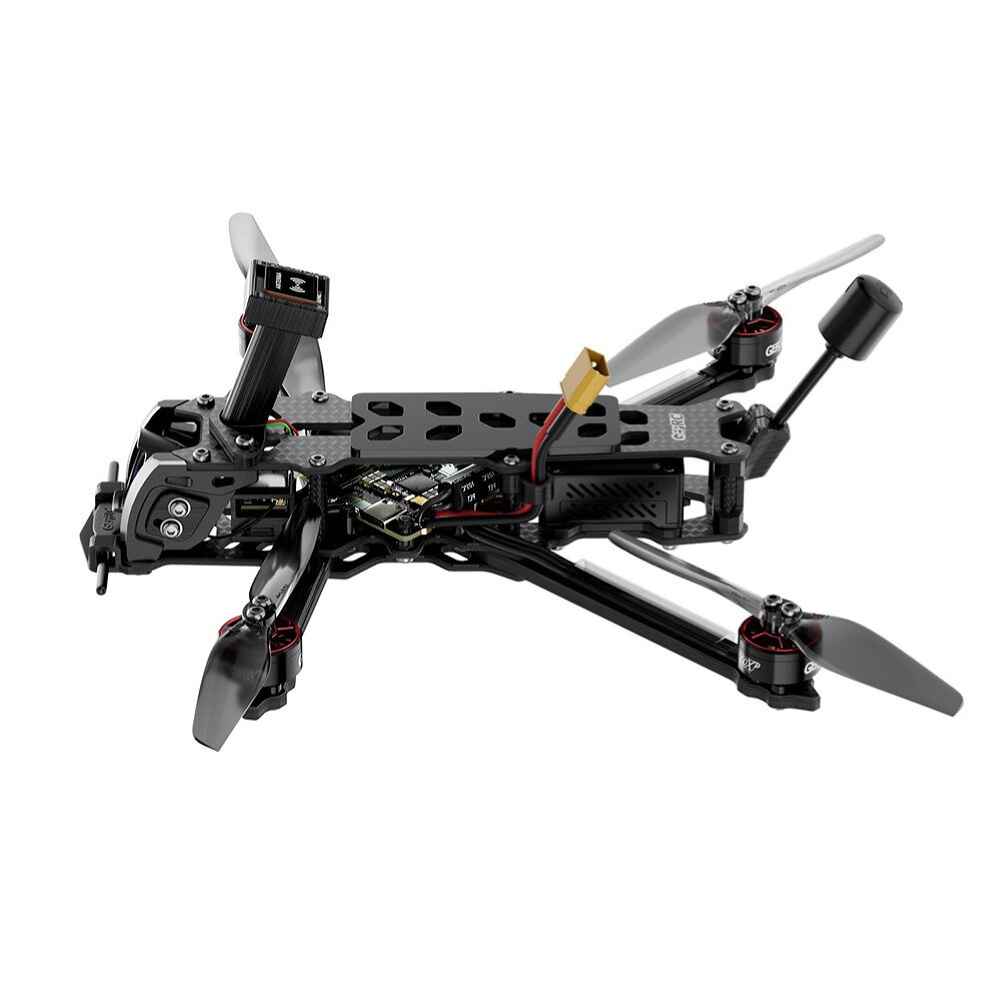

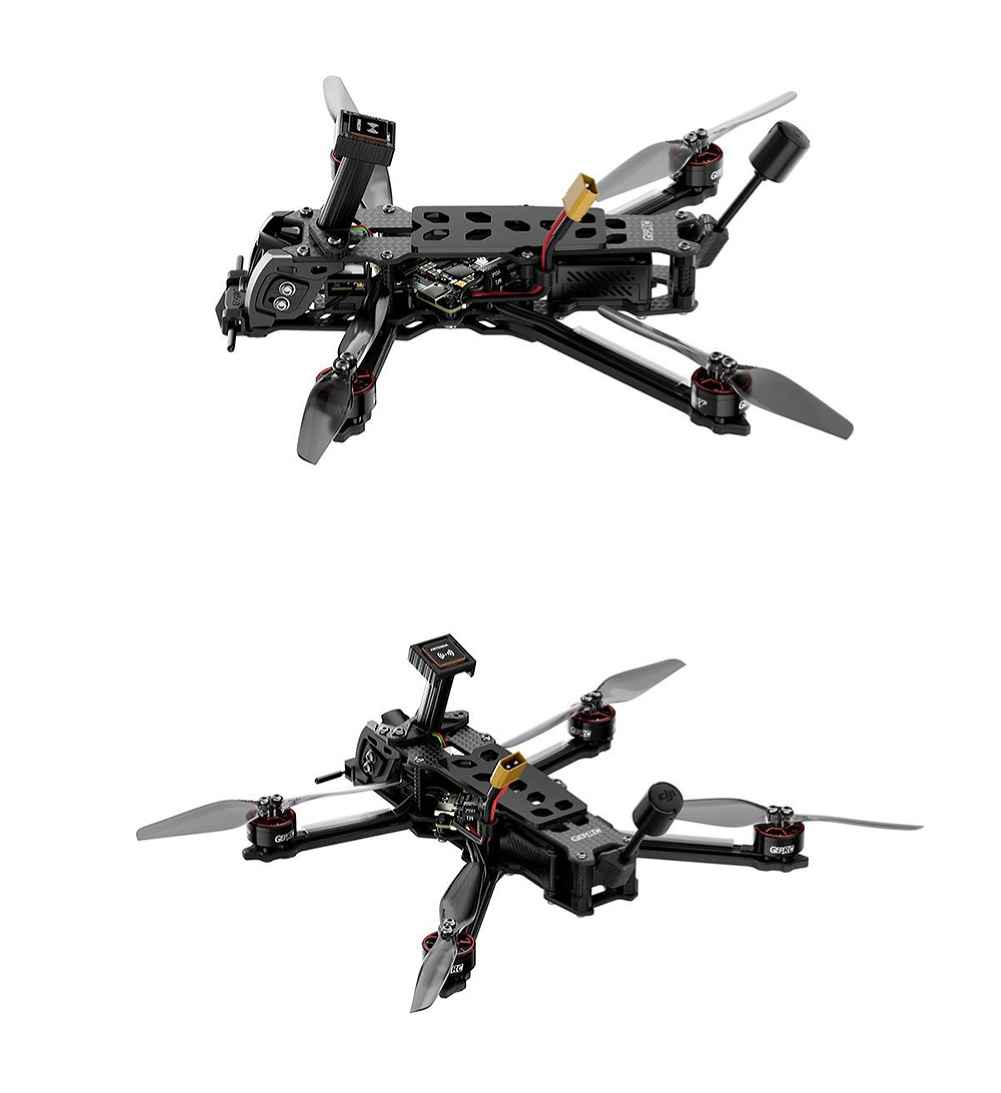

GEPRC Tern LR40 HD DJI O3 4 Inch 4S Long Range RC FPV Racing Drone BNF with Taker G4 45A AIO FC M10 Nano GPS

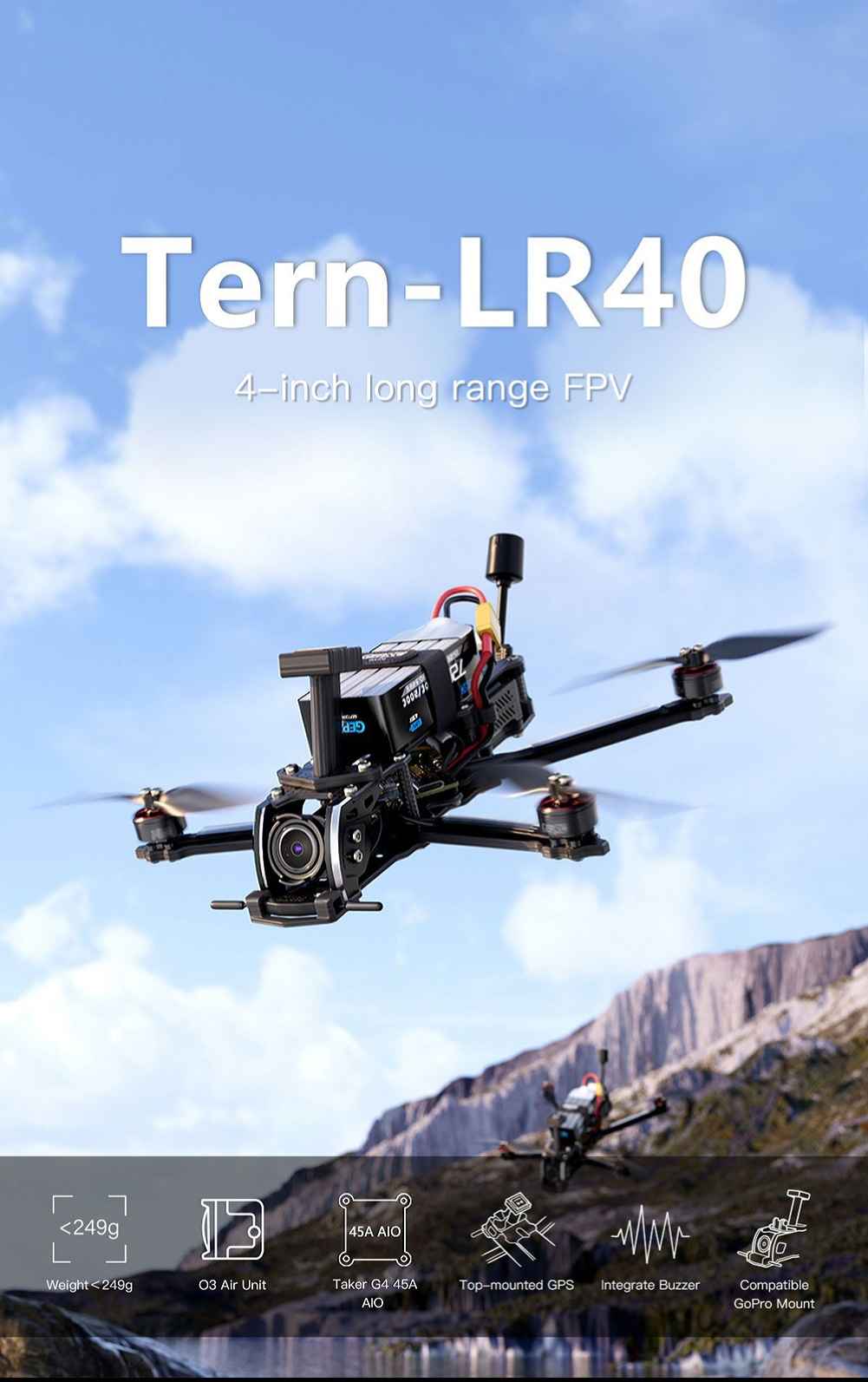

The GEPRC Tern LR40 is a 4-inch long-range FPV racing drone designed for outstanding performance and reliability. This drone features a lightweight DC-type structure made with aviation-grade 7075 aluminum, ensuring both lightness and rigidity. It is equipped with the Taker G4 45A AIO flight control for enhanced computing power and stability. The top-mounted GPS minimizes electromagnetic interference, offering a more stable rescue function. A silicone camera shock-absorbing pad reduces high-frequency vibrations from the DJI O3 camera. With a weight under 249g, the Tern LR40 is perfect for straight-line aerial photography without propeller visibility. It also includes a BB ring for battery low voltage alerts and supports GoPro mount installation for expanded shooting options.
Summary:
-In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

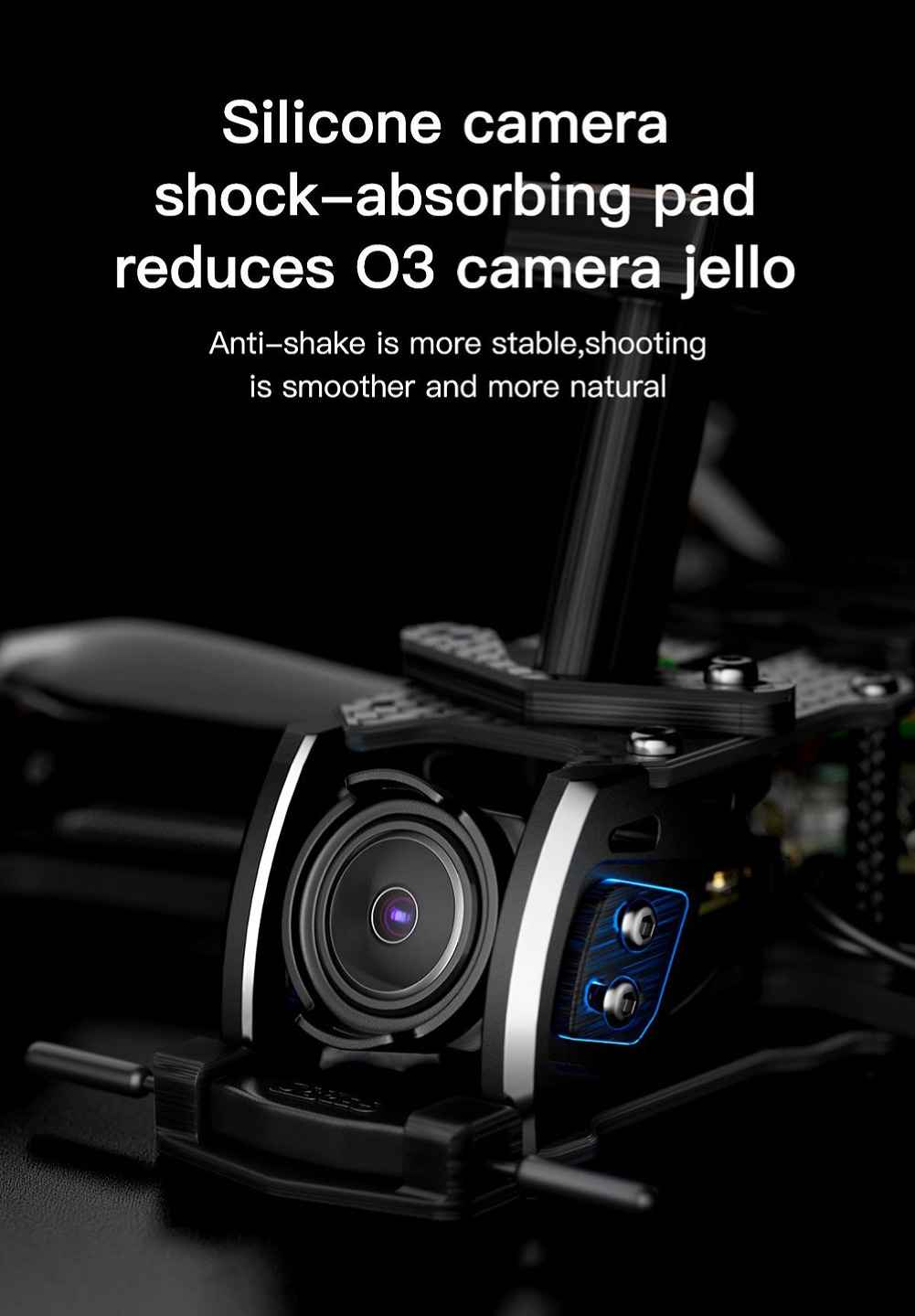

-Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jelly from DJI O3 camera.
-The Tern-LR40 is like a bird with spread wings, flying freely through the sky without being restrained. Choosing it is not only a high-quality flight, but also an artistc journey.
Features:

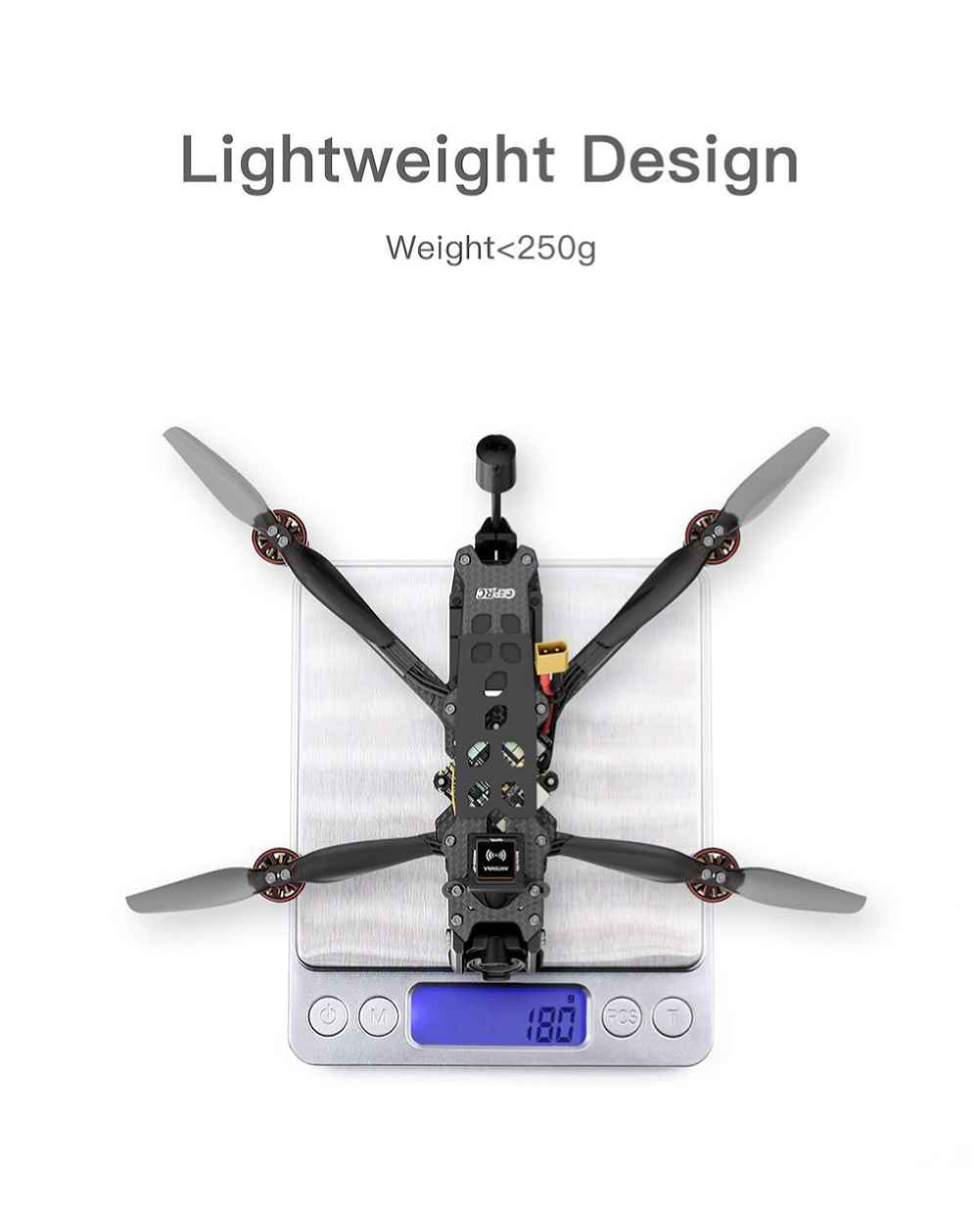

-New lightweight design, weight under 249g.

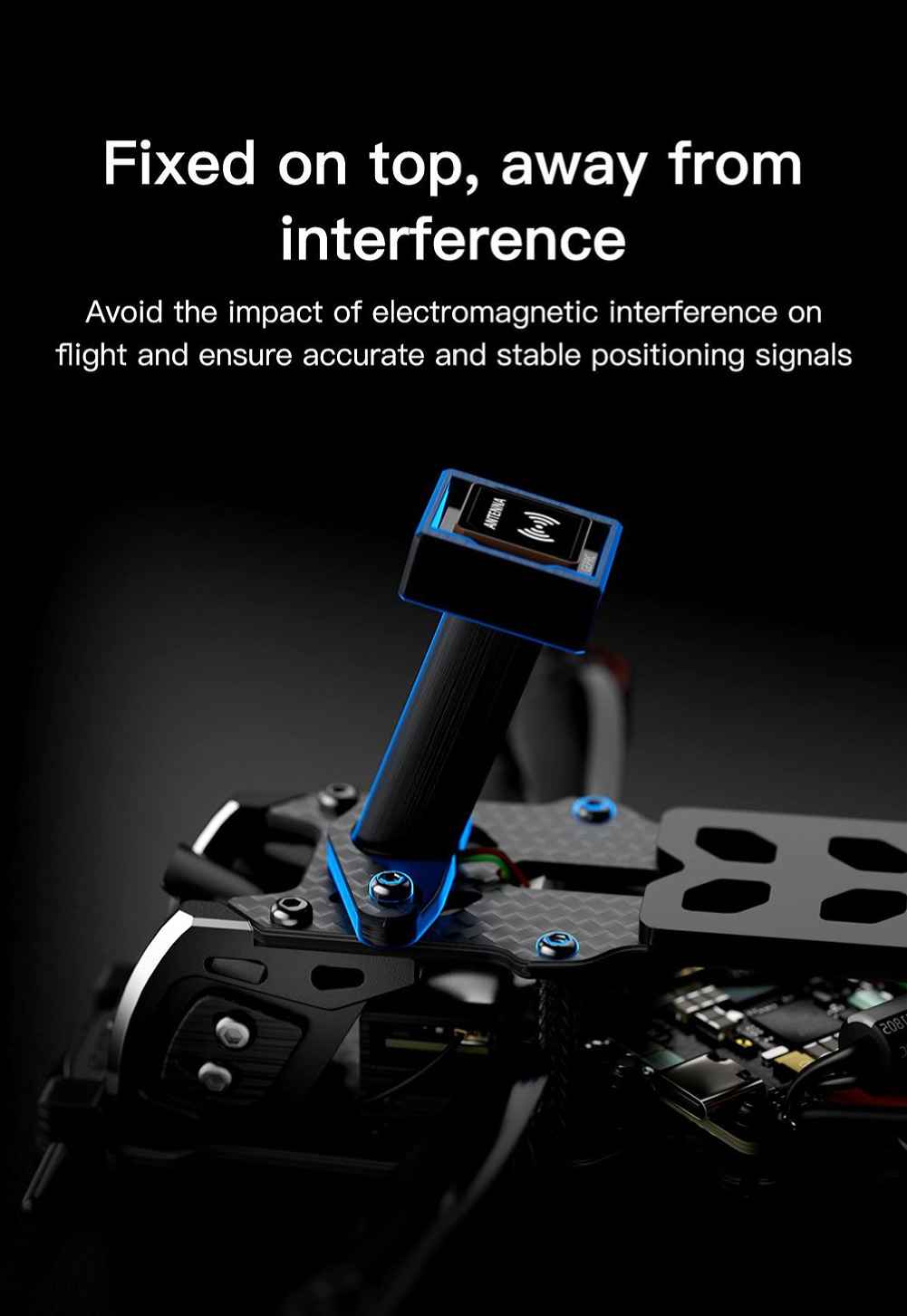

-Expand interference GPS fixation method and stay away from interference sources.
-DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
-Install BB ring to set the battery low voltage alarm.

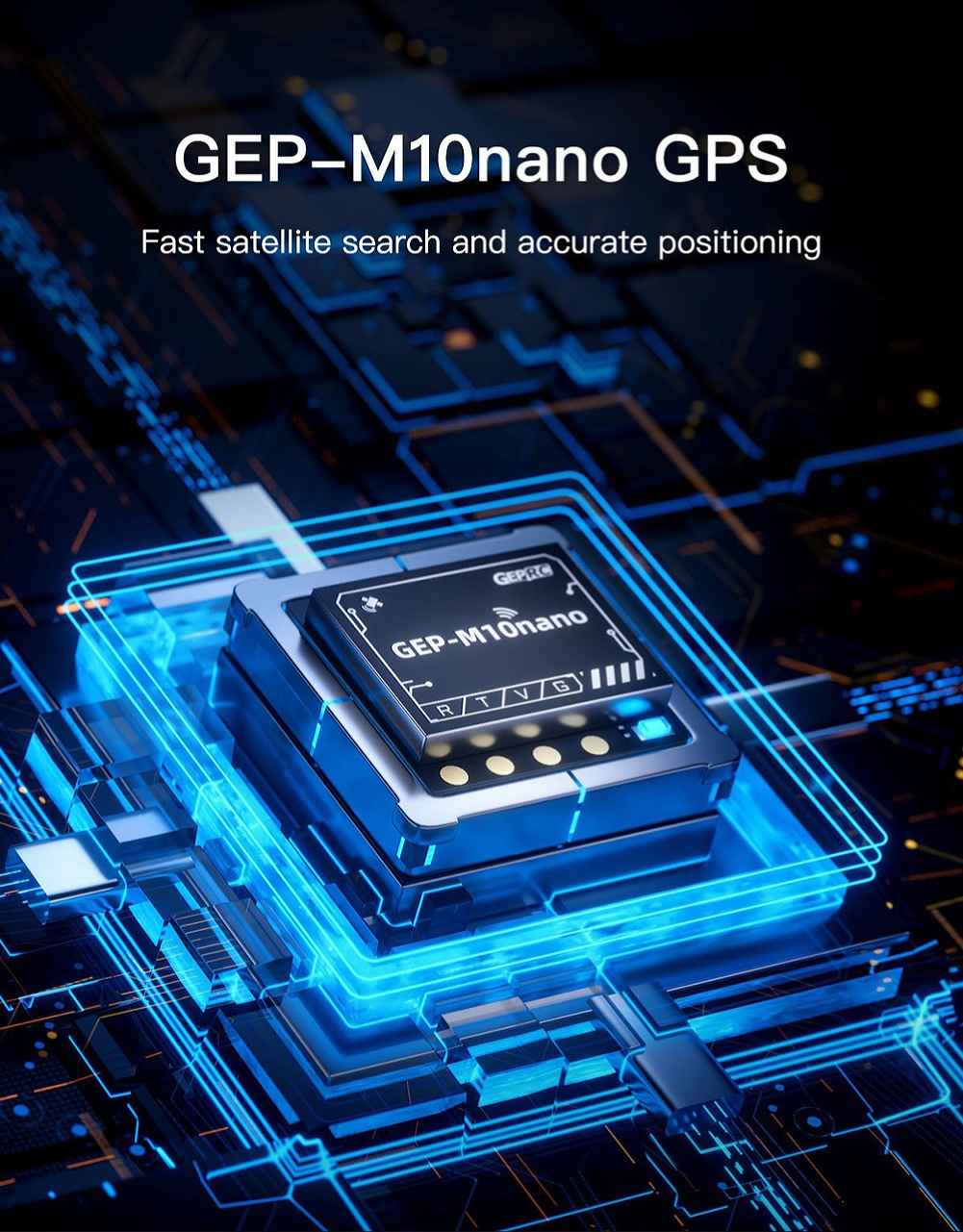

-Using GEP-M10nano GPS, the satellit search speed is faster and the rescue mode is more stable.

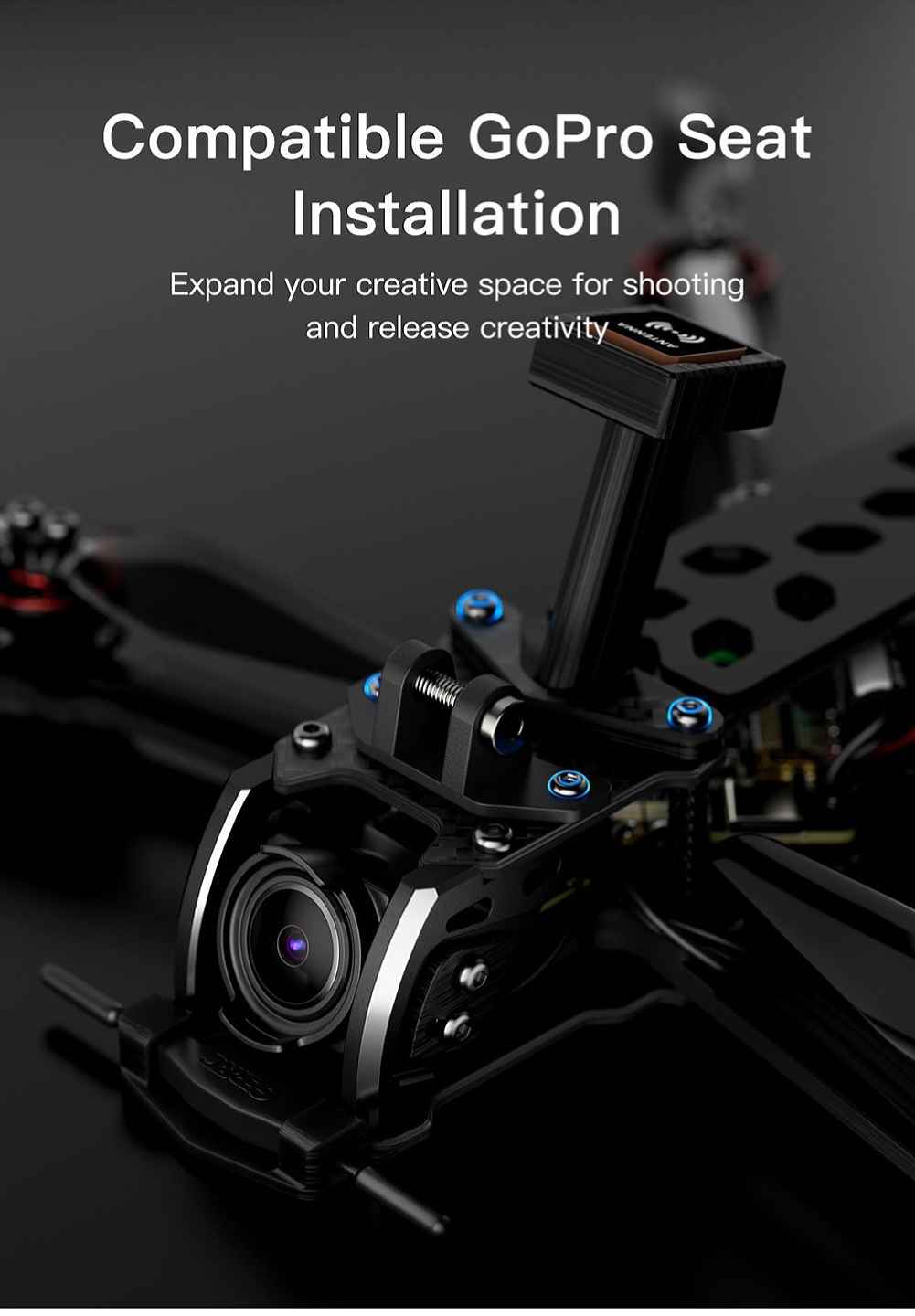

-Compatible gopro mount installation, expandable shooting creation.

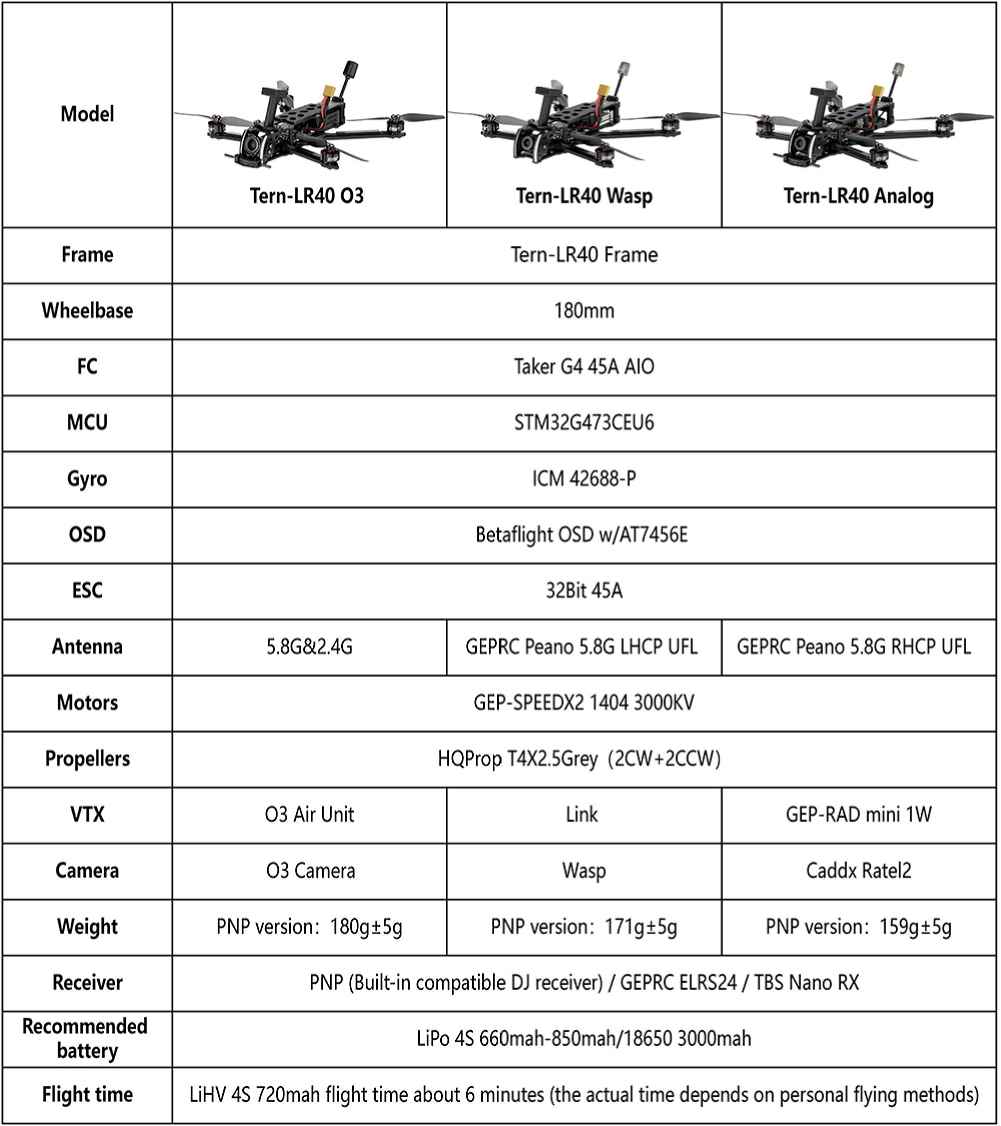

Specifications:
Model: Tern-LR40

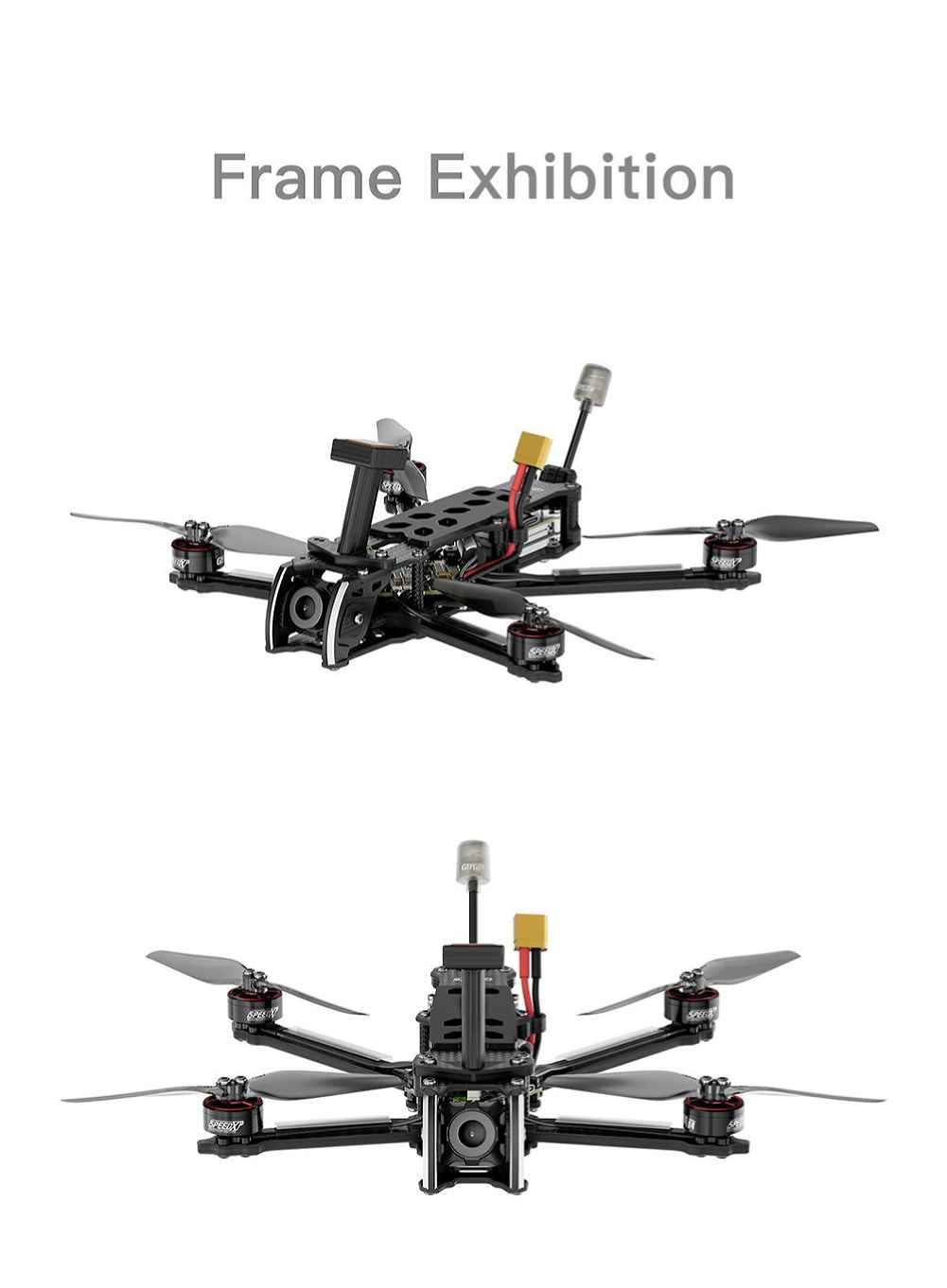

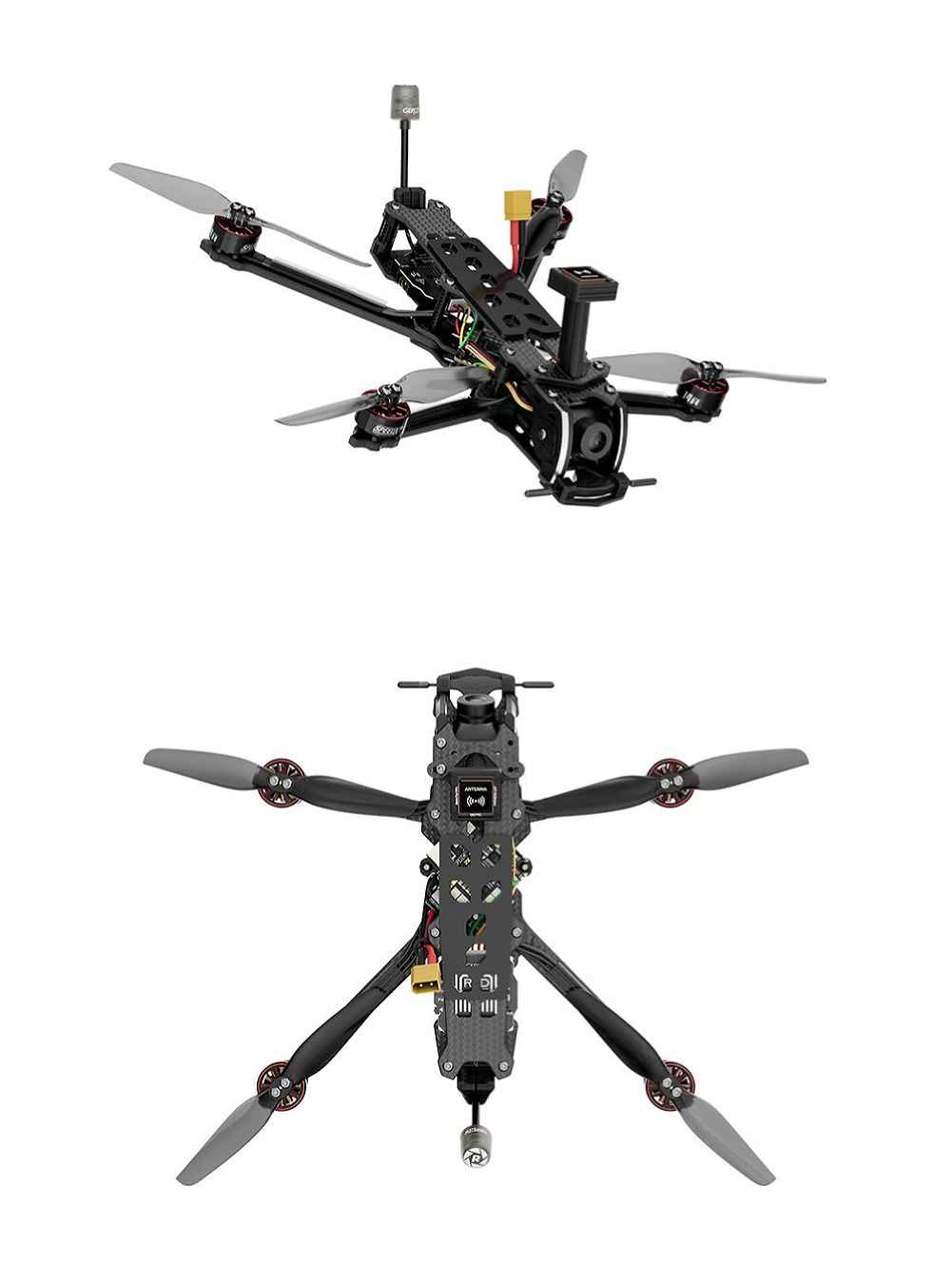

Frame: Tern-LR40 Frame
Wheelbase: 180mm
Top plate: 1.5mm
Mid plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm

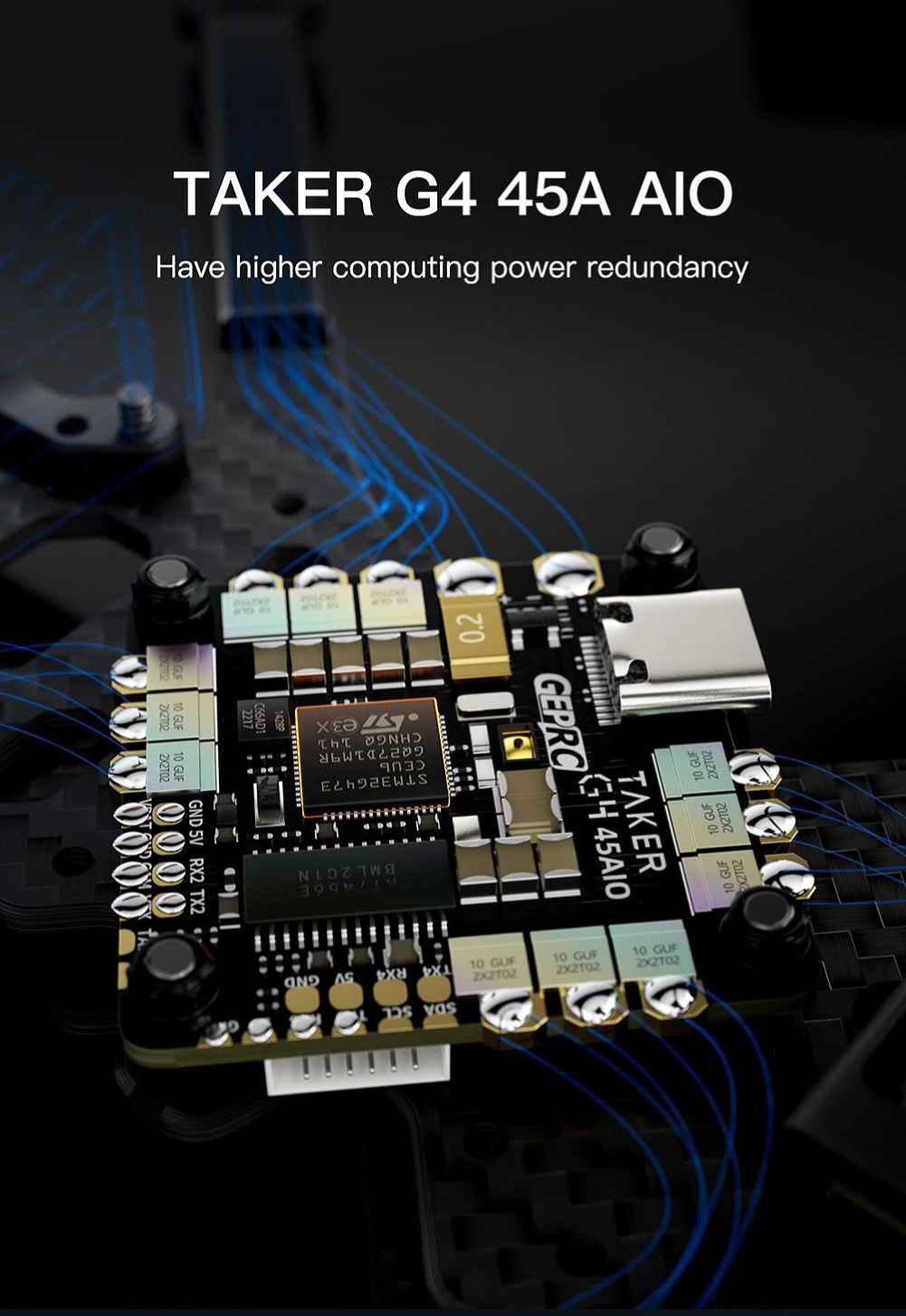

FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 32Bit 45A

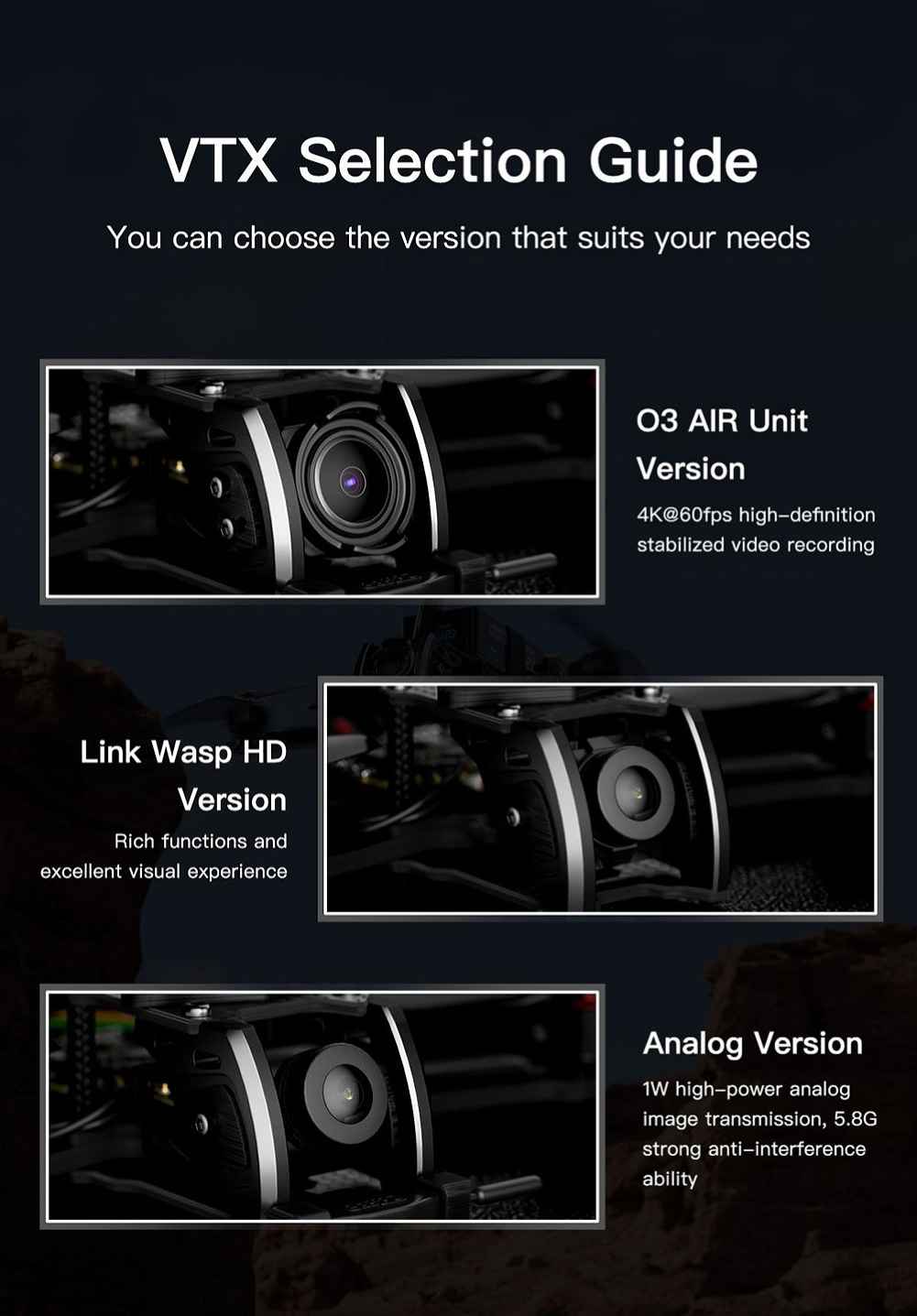

VTX: DJI O3 Air Unit
Camera: DJI O3 camera
Antenna: 5.8G&2.4G
Motors: GEP-SPEEDX2 1404 3000KV
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern-LR40 PNP version weight: 180g呼5g
Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
Recommended battery: LiPo 4S 660mah-850mah
Flight time: 10-25min

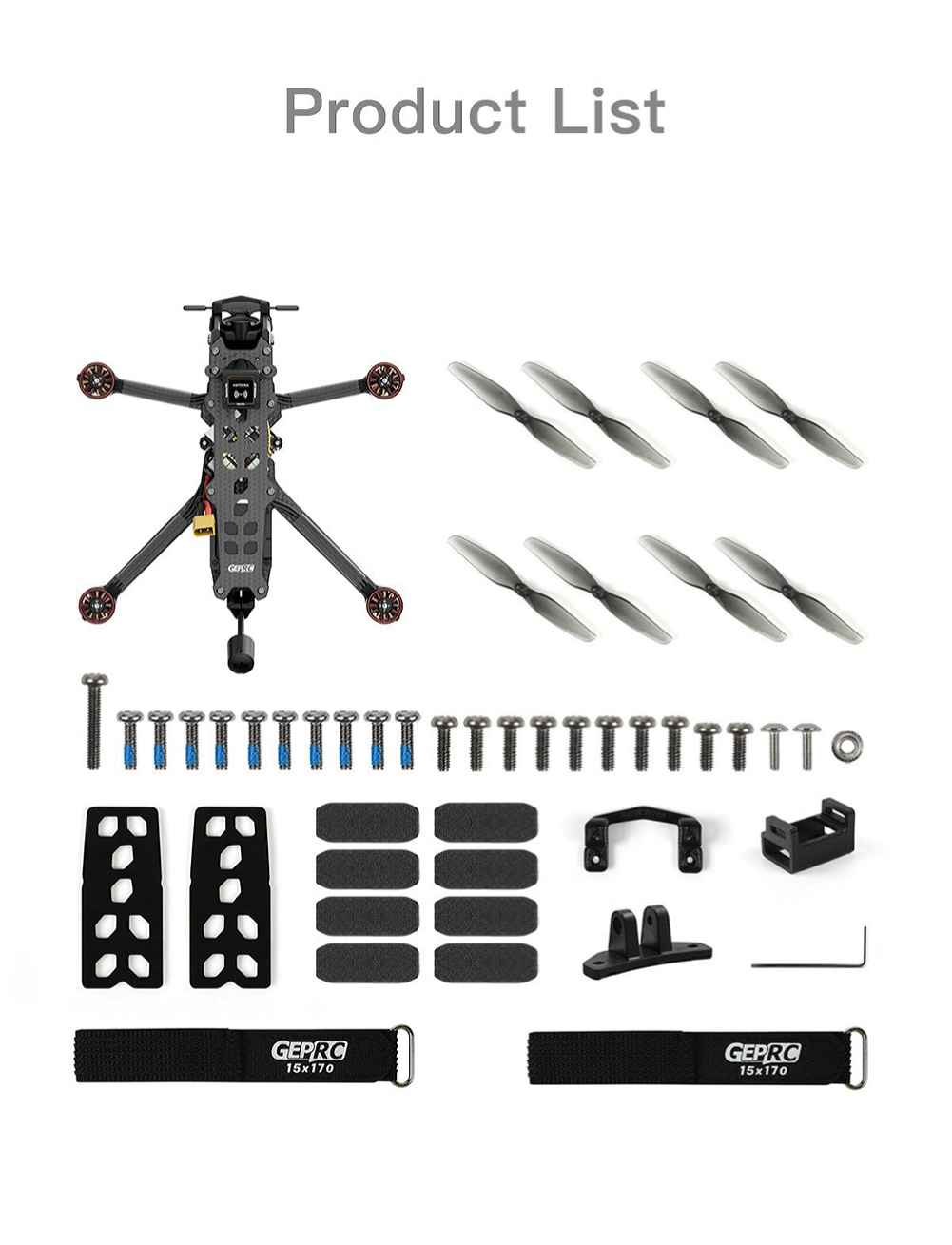

Includes:
1 x Tern-LR40
2 x HQProp T4X2.5Grey (2CW+2CCW)
2 x battery anti-slip mat
1 x screw pack
4 x Battery strap M15*170mm
1 x L-shaped screwdriver 1.5mm
1 x camera mount holder for GoPro
1 x T-type Antenna mount
1 x RC Printed
Package Included:
1 x Tern-LR40 2 x HQProp T4X2.5Grey (2CW+2CCW) 2 x battery anti-slip mat 1 x screw pack 4 x Battery strap M15 170mm 1 x L-shaped screwdriver 1.5mm 1 x camera mount holder for GoPro 1 x T-type Antenna mount 1 x RC Printed
