SpeedyBee Master 5 V2 226mm Frame Kit with GPS Mount & Antenna Base for 5-Inch Freestyle FPV Racing Drone

Description

SpeedyBee Master 5 V2 Spare Part 226mm Wheelbase 5 Inch Frame Kit / GPS Mount / Antenna Base for DIY Freestyle RC FPV Racing Drone

The SpeedyBee Master 5 V2 is a versatile frame kit designed for DIY freestyle FPV racing drones. It features a 226mm wheelbase and is compatible with 5 to 5.1-inch propellers. The frame includes a robust anti-vibration stack structure and a durable 7075 CNC aluminum alloy drone head. With various mounting options, it accommodates motors with 16x16mm holes and flight controllers with 30.5×30.5mm or 20x20mm holes. The kit also includes a GPS mount, antenna base for DJI O3, and a detachable stack protective plate. Its lightweight design, weighing approximately 140g, ensures agile flight performance.

Specifications:
Brand: SpeedyBee
Model: Master 5 V2

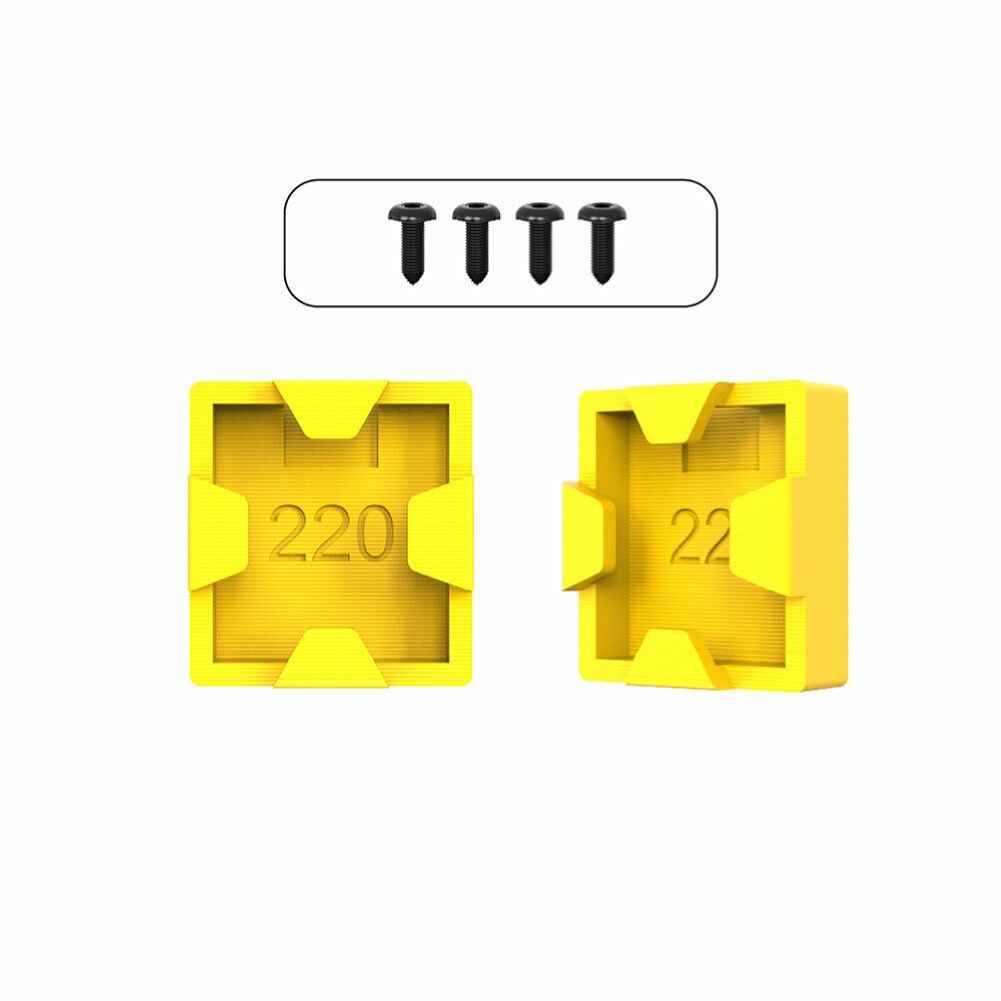

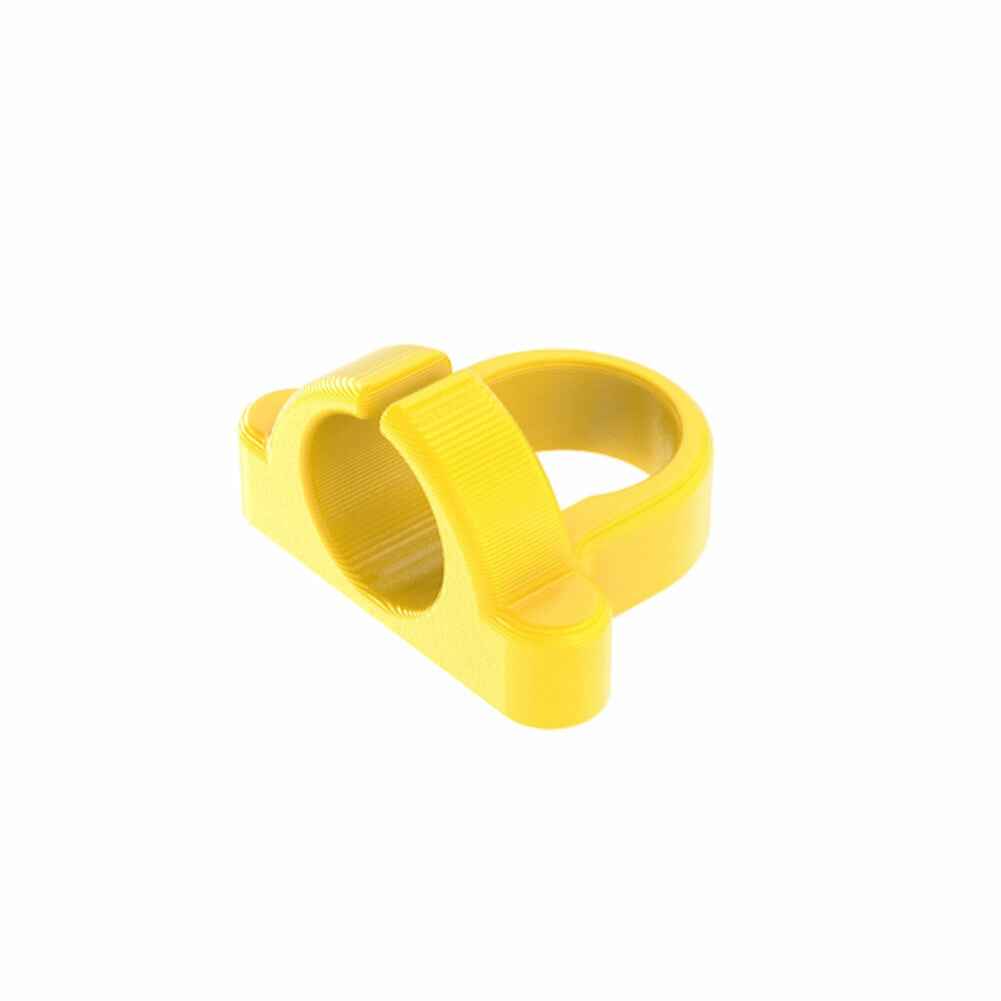

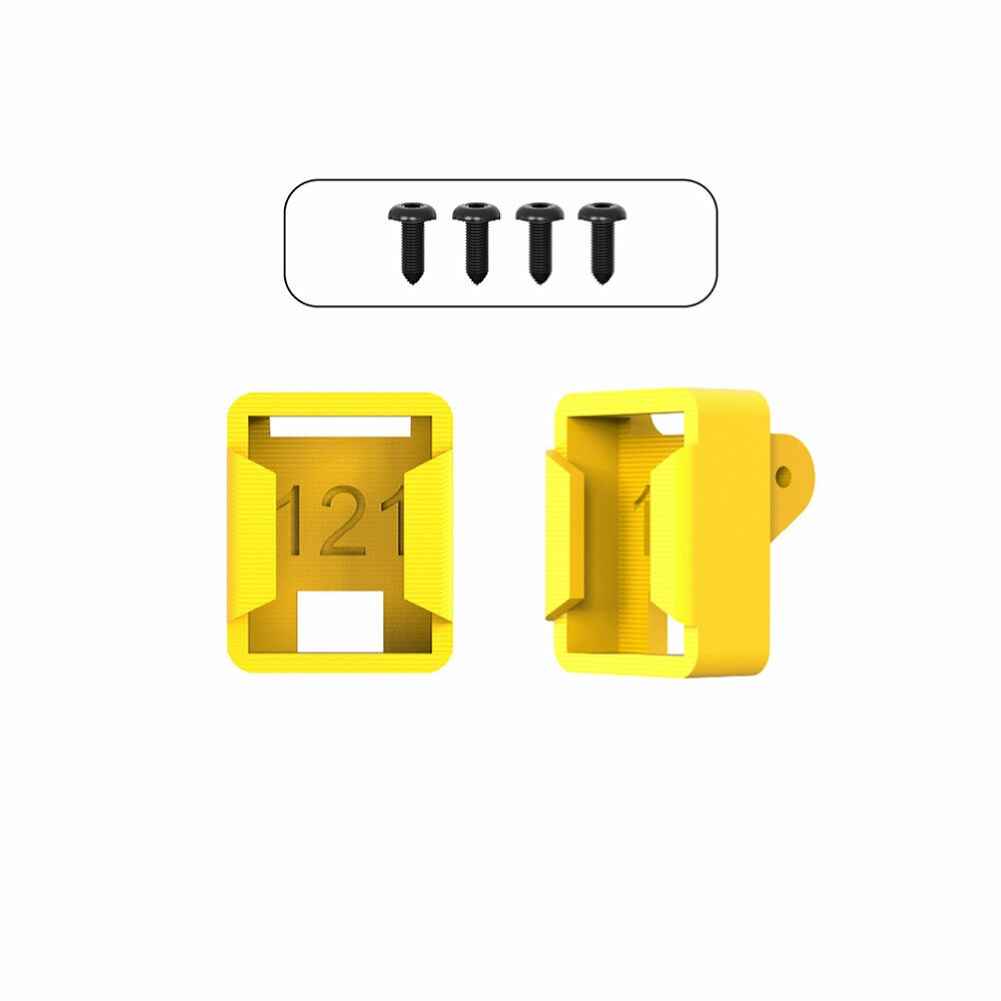

Optiona Version: Empty Frame Kit/Receiver Base/Capacitor & Beeper Base/ 121/181/220/151/880GPS Mount/

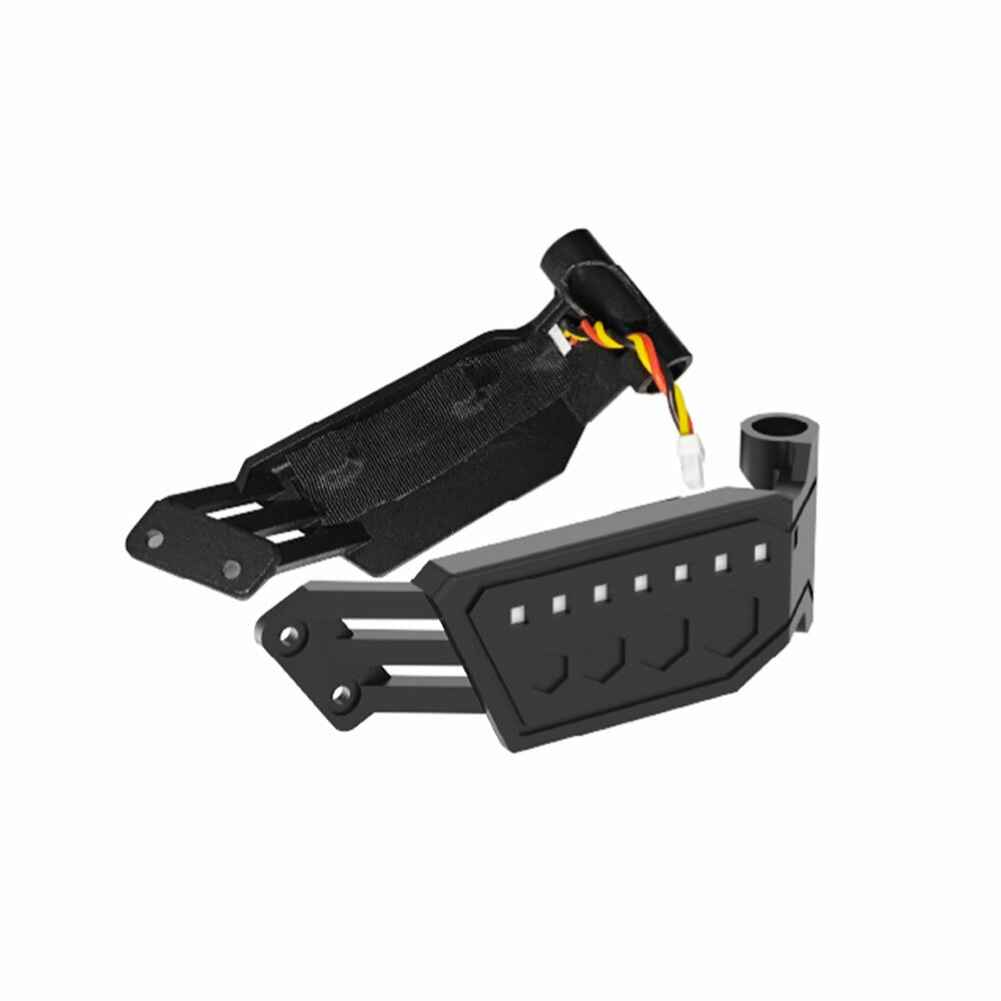

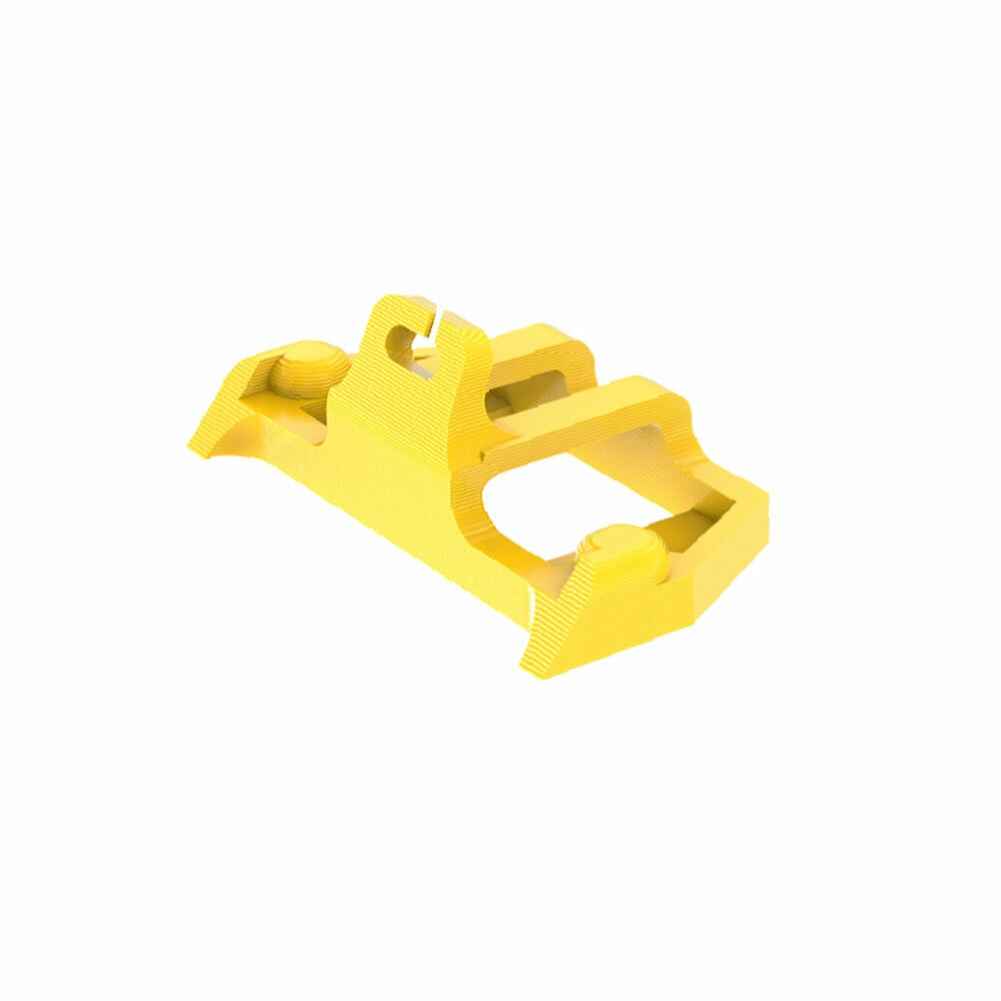

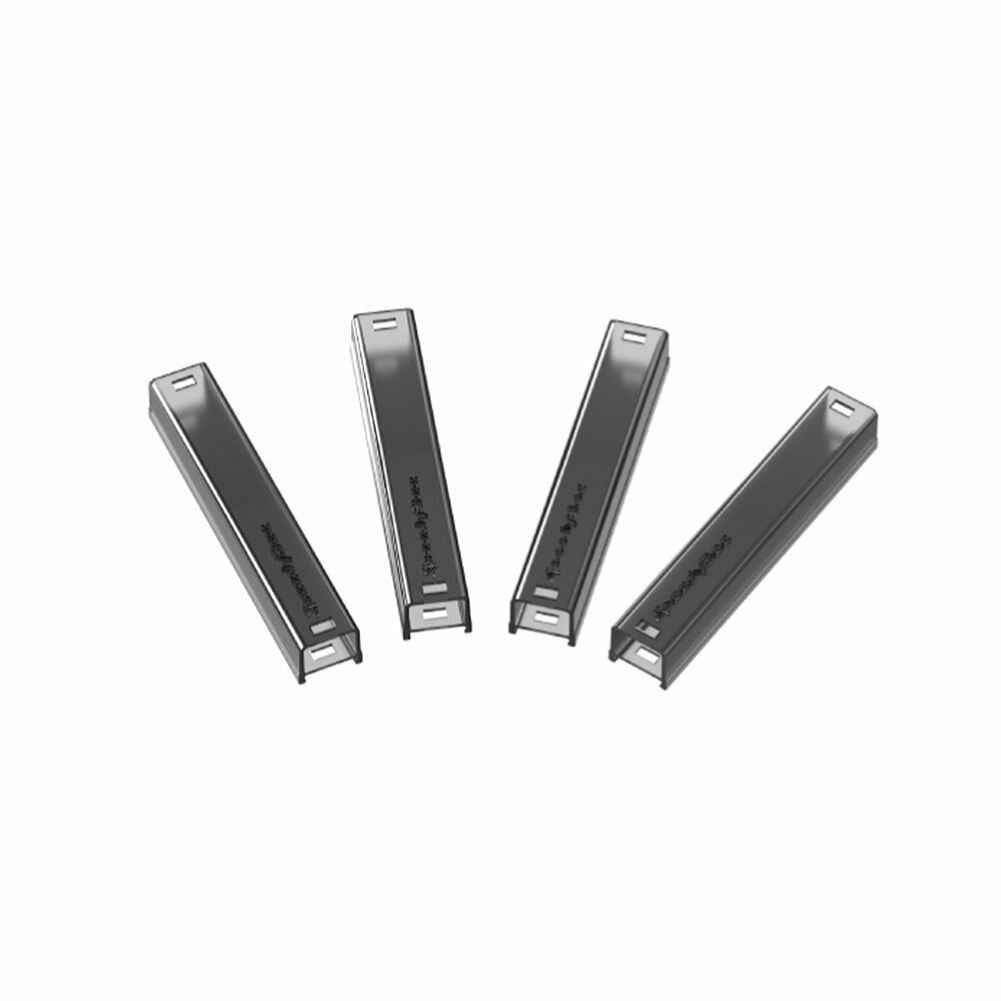

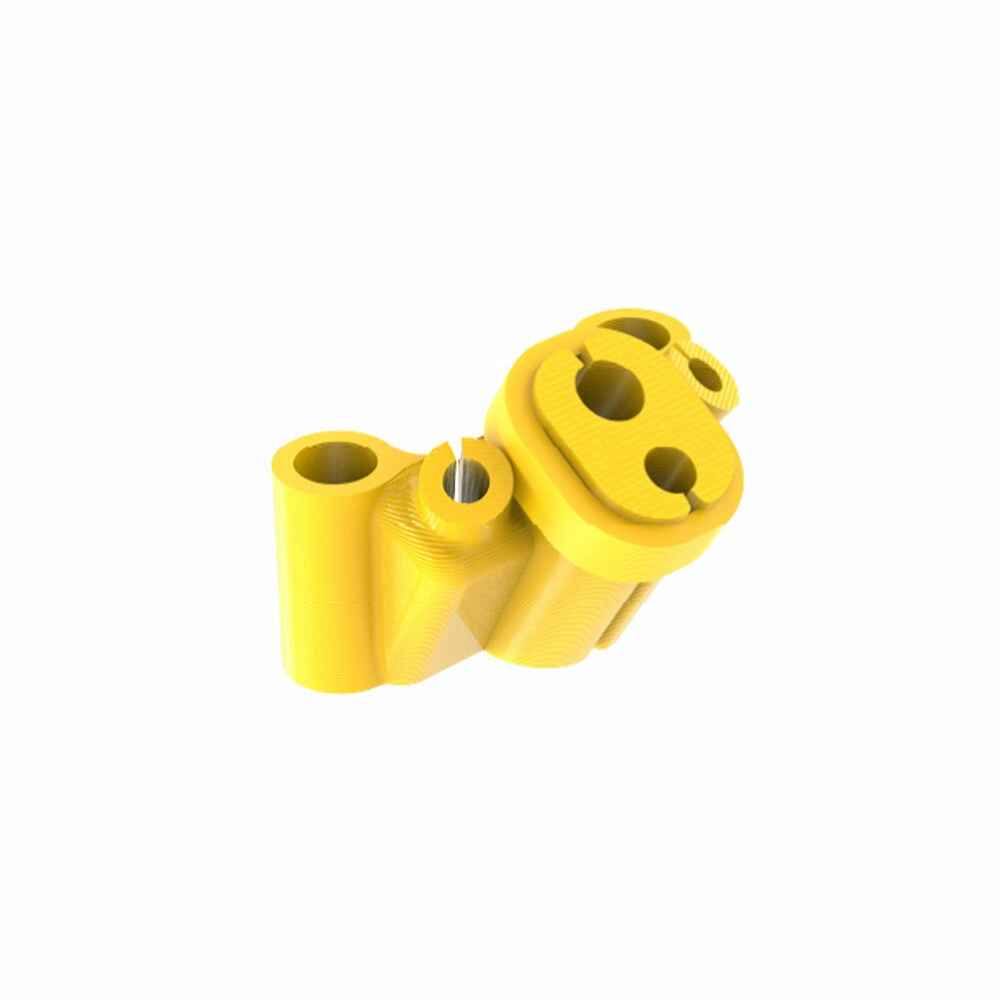

Antenna Base for DJI O3 /LED Protective Tube/Motor Wire Protective Sleeve/Stack Side Plate
Frame Kit Specification

Master 5 V2

Wheelbase

226mm

Weight

About 140g (non-3D printed parts included)

Top plate thickness

2.5mm(T300 3K)

Middle plate thickness

2mm(T300 3K)

Bottom plate thickness

2.5mm(T300 3K)

Arm thickness

5mm(T300 3K)

Camera side plate thickness

2mm TUPC

Anti-vibration stack structure hardness

Yellow HB80宜Translucent HB50

3D printed part

Yellow TPU

Motor circlip spacing

?8mm

Compatible propellers

5-5.1 inch

Mounting holes for motors

16*16mm

FC mounting hole

30.5沁30.5(M3) & 20沁20mm (M3)

Drone head

7075 CNC aluminum alloy

Aluminum standoff

7075 M3*23mm*(6mm/4.7mm)宜M3*23mm*(4.6mm)

Internal installation height

23-30mm

Standard antenna installation supporT

SMA (single), 4mm for DJI O3, RunCam Link

Standard GPS base size

18*18*8mm (other size requiresan additional purchase)

Rear Support Mounting Holes

20*20mm – 25.5*25.5mm – 30.5*30.5mm

Detachable stack protective plate RGB LED

included
