Description

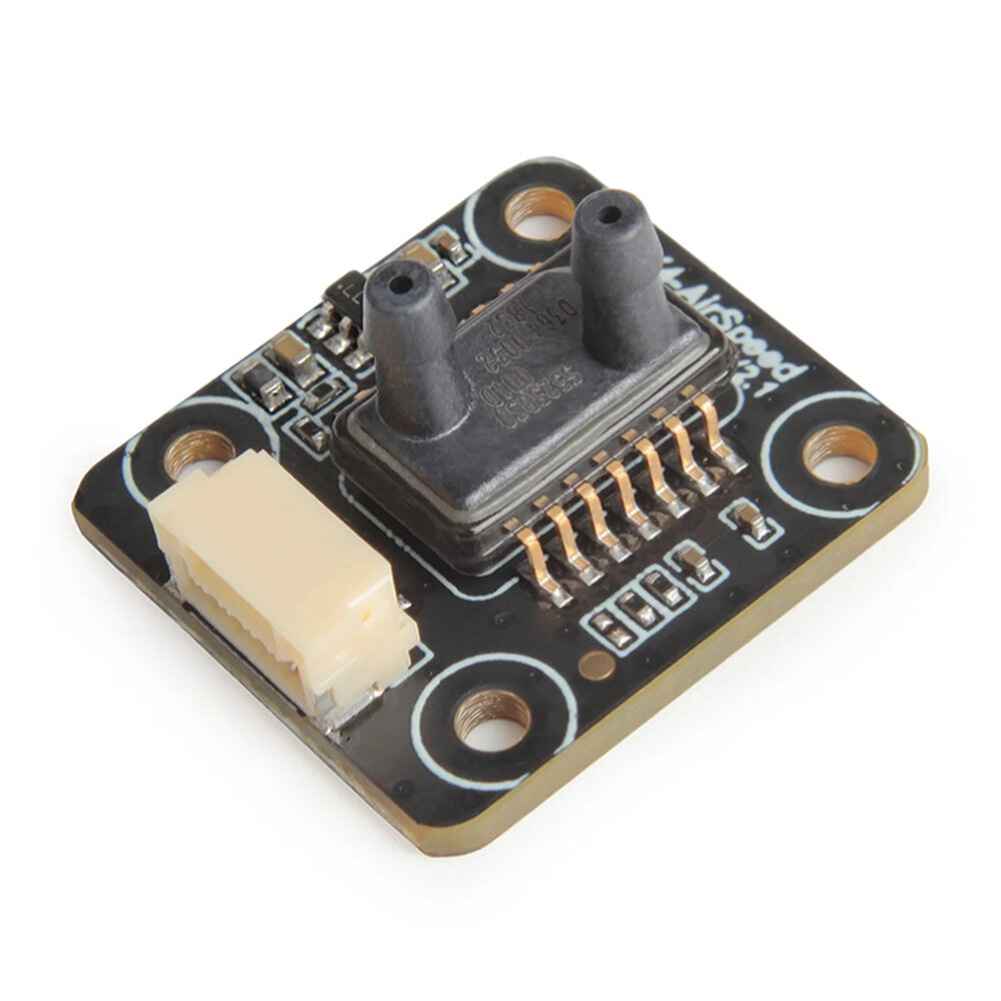

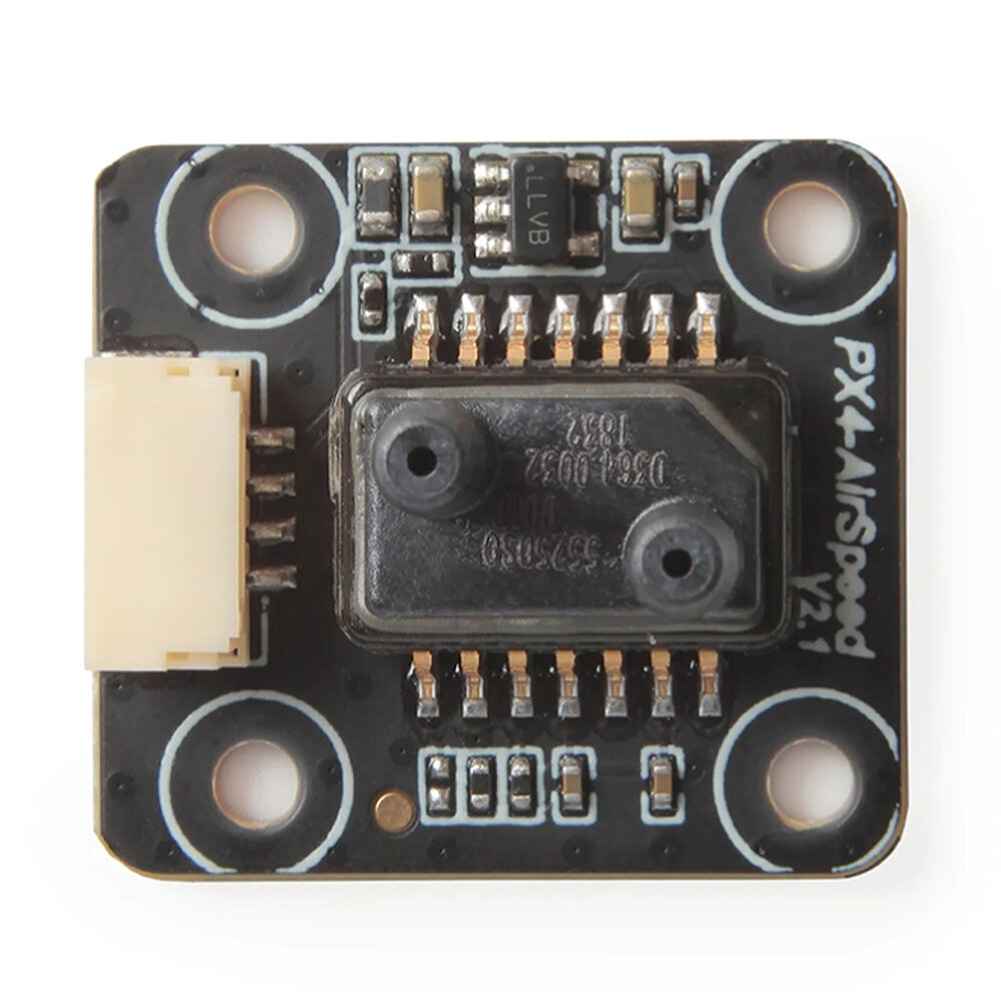

Holybro Digital Air Speed Sensor MS5525DSO Supported on all Holybro Autopilot Flight Controller Boards with Ardupilot & PX4
The Holybro Digital Airspeed Sensor MS5525DSO is designed for precision and reliability, featuring a low offset and high resolution. It eliminates noise issues common with long cables and ratio-metric outputs found in other sensors. Compatible with all Holybro Autopilot Flight Controller Boards, this sensor supports both Ardupilot and PX4 systems. The MS5525DSO integrates a pressure sensor and a 24-bit ADC with factory-calibrated coefficients, providing accurate pressure and temperature readings. Its simple communication protocol and compatibility with most microcontrollers make it user-friendly. Built on advanced MEMS technology, it offers robust performance in measuring pressures from 1 to 30psi. Available in single and dual port configurations, it meets various application needs.
Introduction:

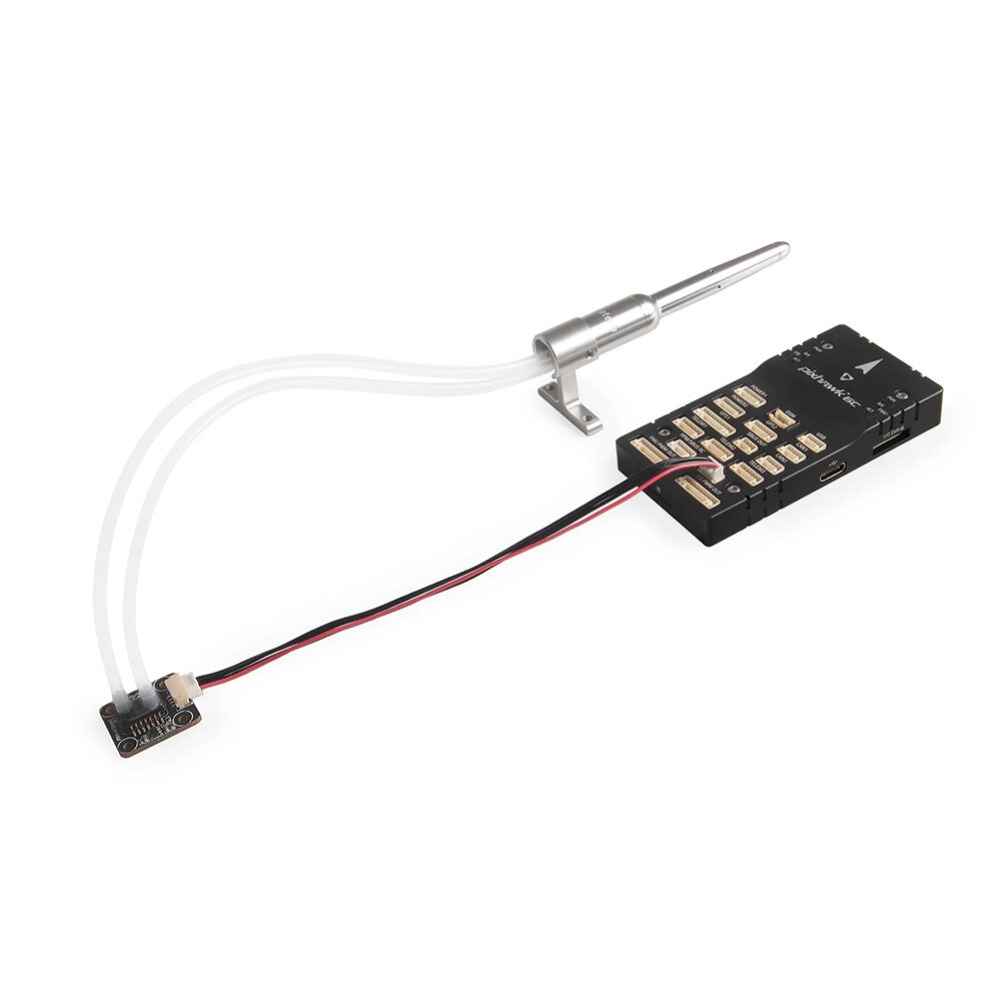

The Holybro Digital Airspeed Sensor has a very low offset, a high resolution and, best of all, does not suffer from the noise induced by long cables and offsets in the ratio-metric output on other airspeed sensors. Supported on all Holybro Autopilot Flight Controller Boards with Ardupilot & PX4.
The MS5525DSO is a new generation of Digital Small Outline pressure sensors from MEAS with SPI and I2C bus interface designed for high volume OEM users. The sensor module includes a pressure sensor and an ultra-low power 24-bit 瞁珝 ADC with internal factory calibrated coefficients. It provides a 24-bit digital pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. The MS5525DSO can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device.
This new sensor module generation is based on leading MEMS technology and latest benefits from TE prove experience and know-how in high volume manufacturing of pressure modules, which have been widely used for over a decade. The rugged engineered thermoplastic transducer is available in single and dual port configurations, and can measure absolute, gauge, compound, and differential pressure from 1 to 30psi.
Sensor Model Number: MS5525DSO
I2C Address券0x76
Package Included:

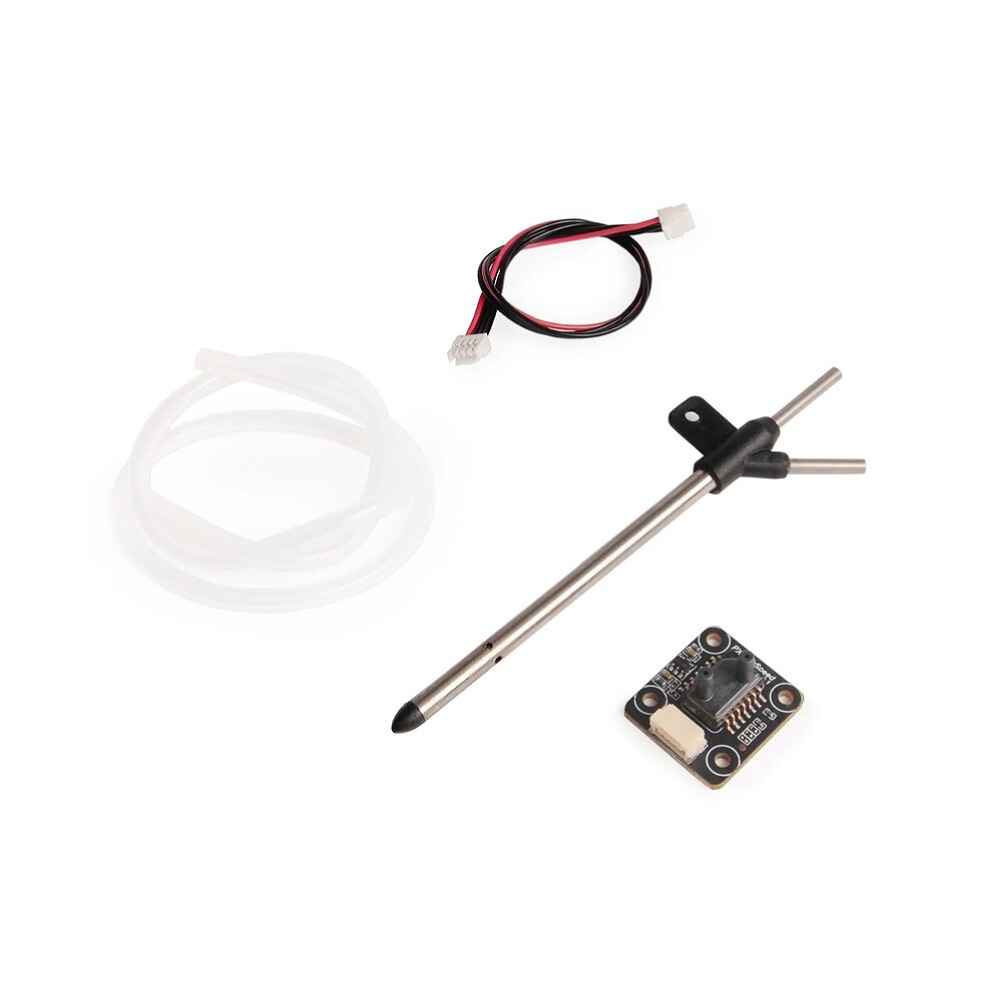

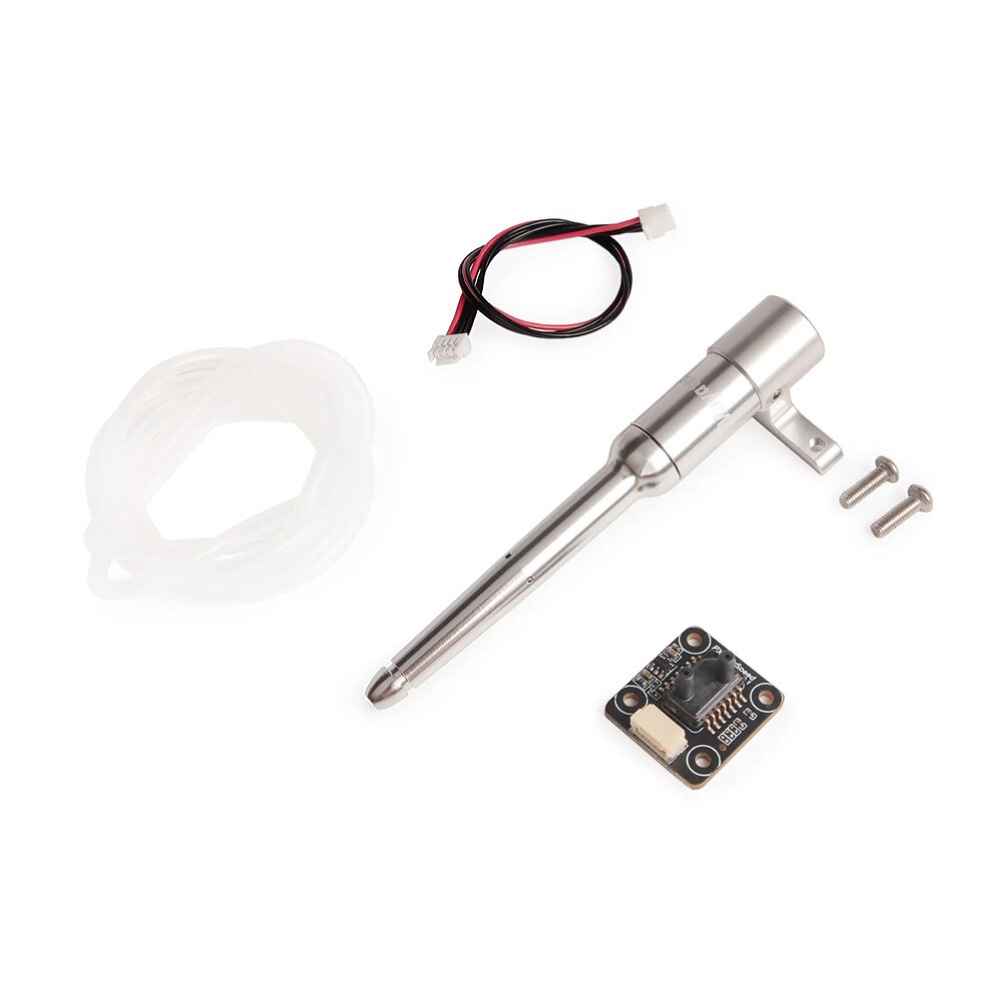

1 x Digital Air Speed Sensor (MS5525DSO) with PT40 Pitot Tube Version 1 x Digital Air Speed Sensor (MS5525DSO) 1 x PT40 Pitot Tube 1 x Rubber tubing 40cm 1 x GH 4P Cable with PT60 Pitot Tube Version 1 x Digital Air Speed Sensor (MS5525DSO) 1 x PT60 Pitot Tube 1 x Rubber tubing 100cm 1 x GH 4P Cable
