Description

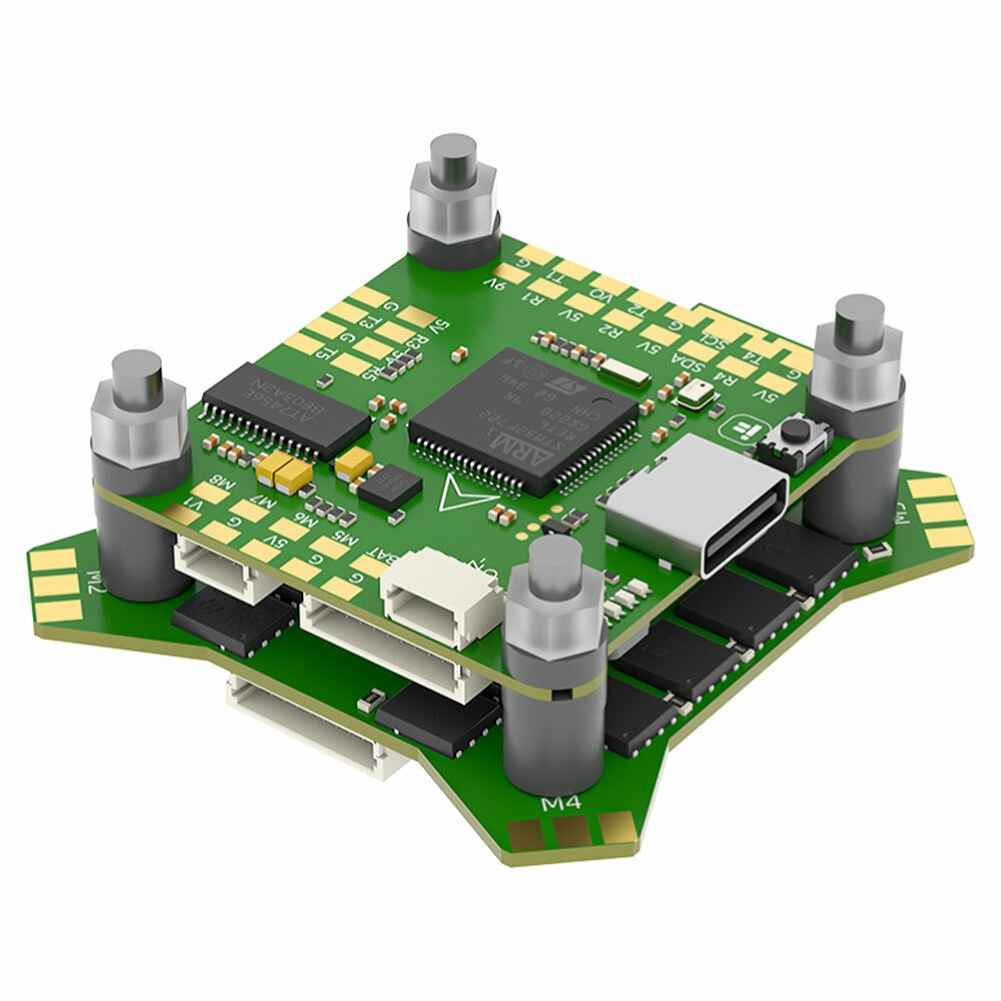

30.5×30.5mm iFlight BLITZ F7 Flight Controller E55S 55A 4IN1 ESC Stack 2-6S for FPV RC Racing Drone
The iFlight BLITZ F7 Flight Controller and E55S 55A 4IN1 ESC Stack is designed for FPV RC racing drones, offering a compact 30.5×30.5mm mounting pattern. This stack features the BLITZ F7 Flight Controller with an STM32F722 MCU, ICM42688 gyro, DPS310 barometer, and 32MB Blackbox flash. It supports six UARTs and provides motor outputs via SH1.0 connectors. The E55S 4IN1 ESC supports 2-6S lipo input and offers a constant 55 amps and burst 65 amps. It is compatible with DShot protocols and features a current sensor. The stack includes a DJI HD VTX connector for easy installation and FC indicator LEDs for debugging. This product is ideal for enhancing your drone＊s performance with improved circuit design and reduced electrical noise.
Specification:
Brand: iFlight
Model: BLITZ F7 E55S ESC Stack
|

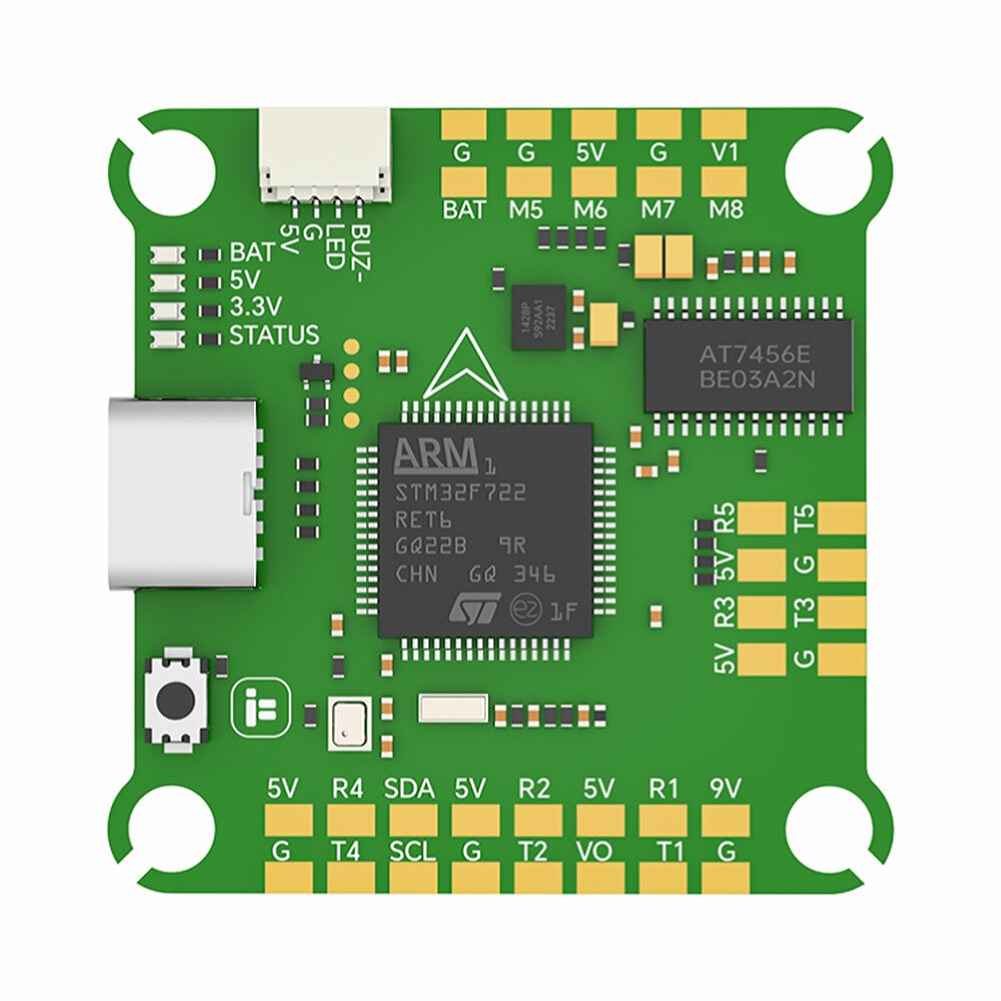

Blitz F7 Flight Controller
MCU: STM32F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
FC Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging
– With LC filter
|

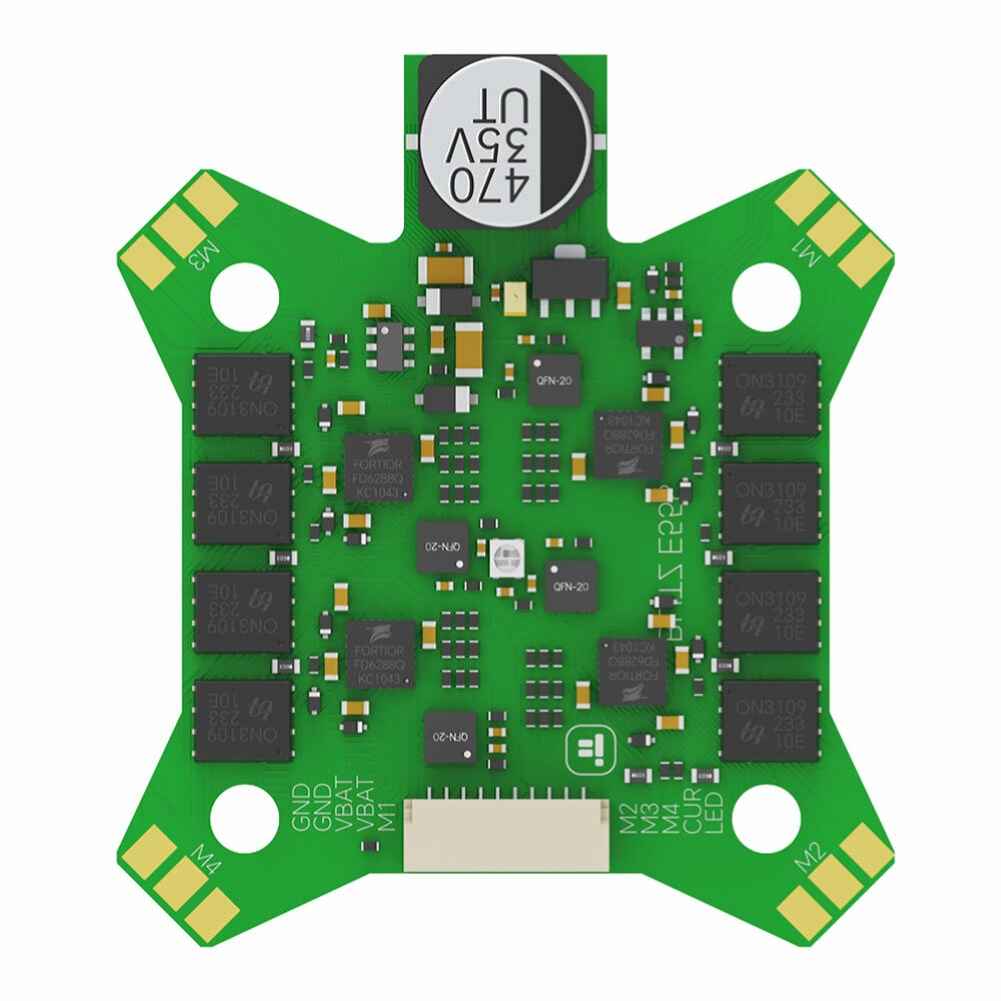

E55S 4in1 ESC
Mounting Holes: 30.5*30.5mm/?4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-25 (Bluejay)
Packing List:
|
Flight Controller Version
1x BLITZ F7 V1.2 Flight Controller
|
ESC Version
1x BLITZ E55S 4-IN-1 55A 2-6S ESC
|
FC + ESC Version
1x BLITZ F7 V1.2 Flight Controller
x BLITZ E55S 4-IN-1 55A 2-6S ESC
1x Screw Bag
Package Included:
1 x BLITZ F7 V1.2 Flight Controller
1 x BLITZ E55S 4-IN-1 55A 2-6S ESC
1 x Screw Bag
