Description

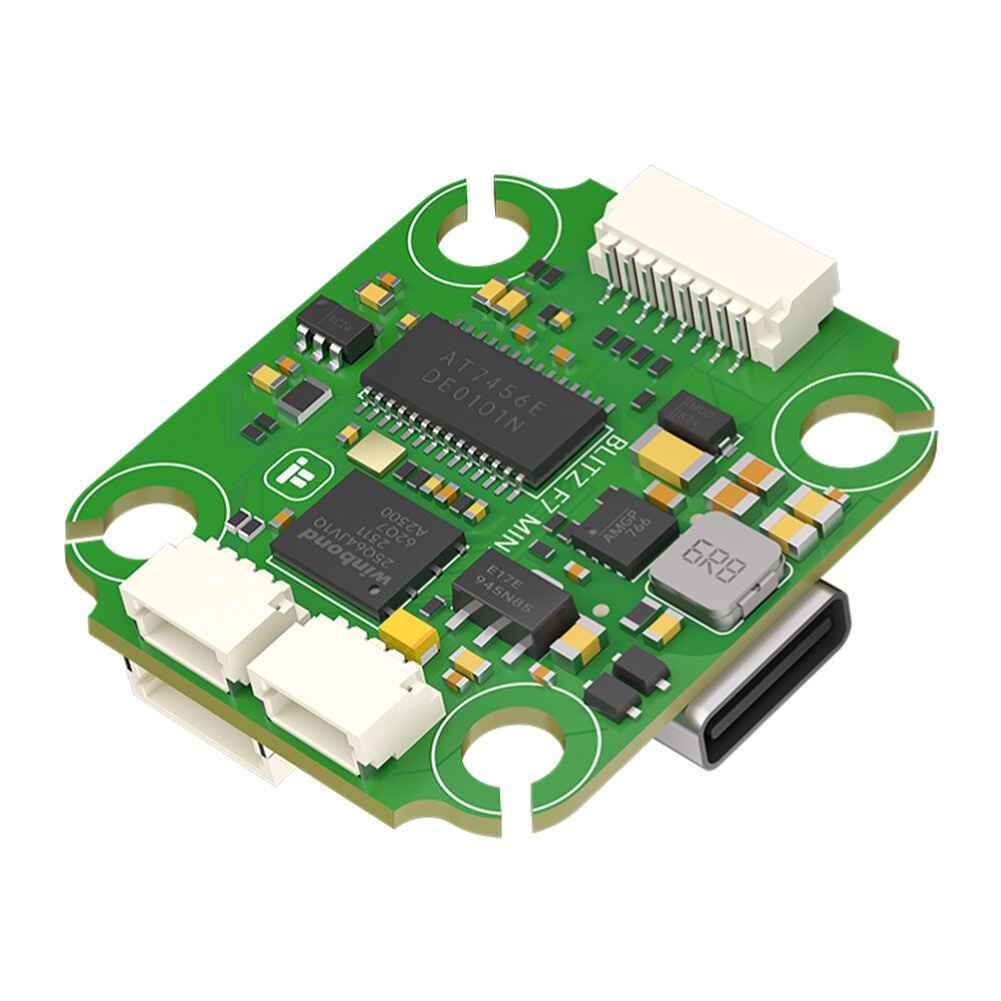

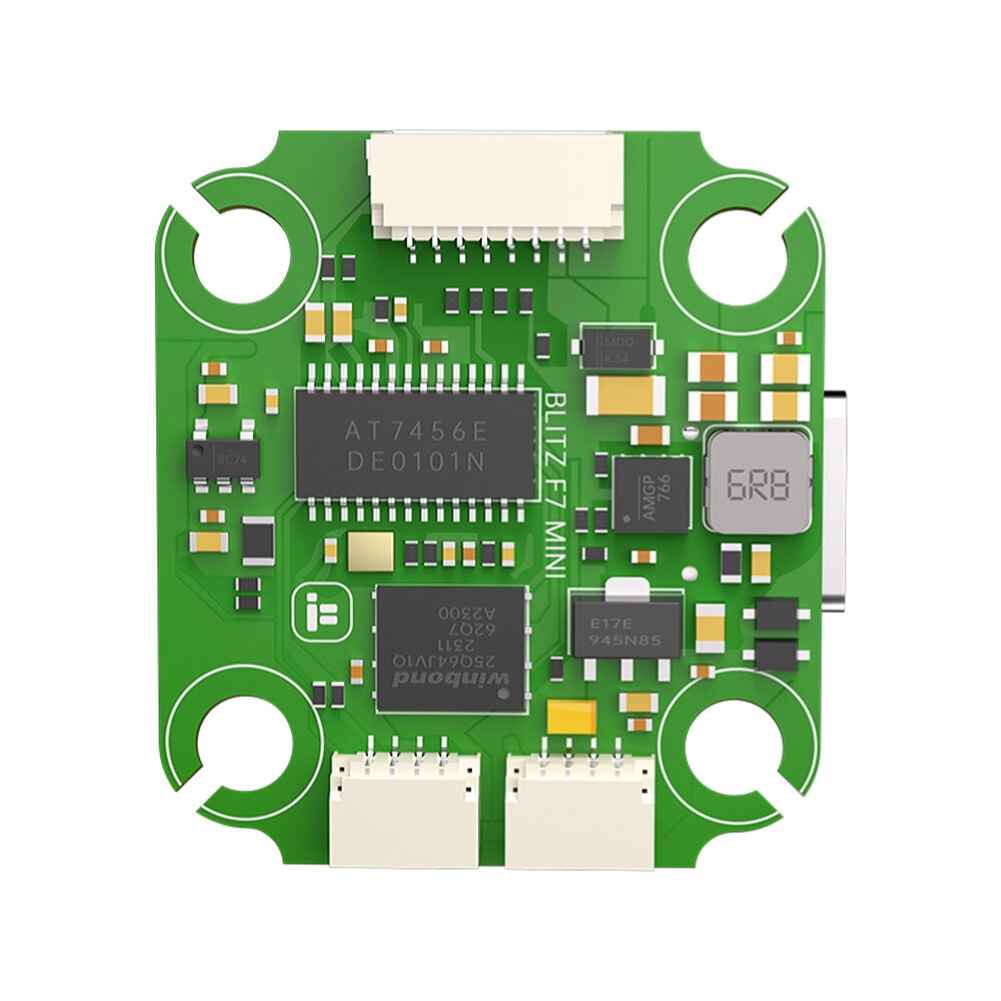

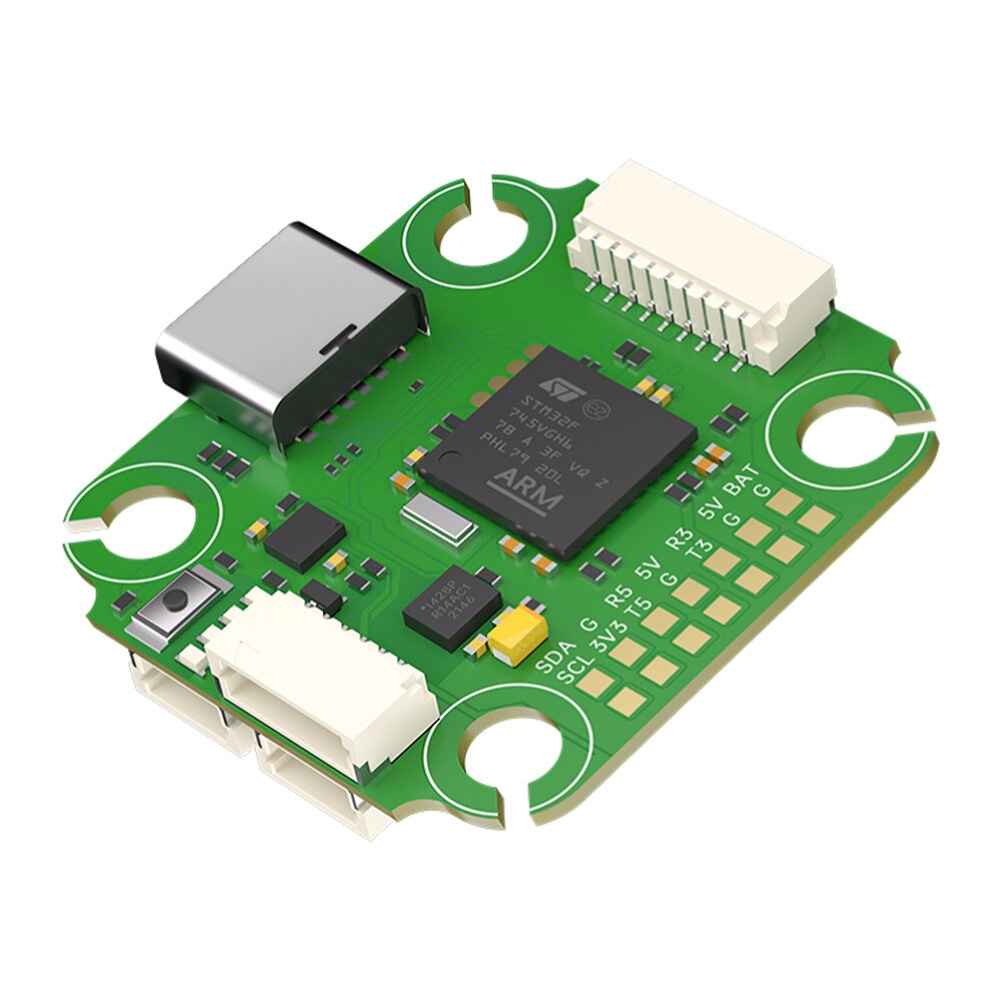

20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output Support Betaflight Ardupilot
The iFlight BLITZ Mini F745 Flight Controller is engineered for optimal performance in your RC multi-rotor setups. Featuring an STM32F745 MCU and ICM42688 gyro, this controller ensures precise flight control. It includes a DPS310 barometer, AT7456E OSD chip, and 16MB Blackbox flash, providing comprehensive data logging and on-screen display customization. With 6 UARTs and 4 motor outputs, it supports versatile configurations. The 5V BEC delivers a continuous output of 2.5A and peak current of 3A. Its improved circuit design reduces electrical noise, and the DJI HD VTX connector allows for easy plug-and-play installation. Compatible with Betaflight, INAV, and Ardupilot firmware, this controller is ideal for both beginners and advanced pilots.
Specifications:
Brand: iFlight
Model: BLITZ Mini F745
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/嫉4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware券arduplane_with_bl
Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Features:
1.Improved circuit design, better components, and lower electrical noise!
2.DJI HD VTX Connector (Plug-and-Play / No soldering required).
3.FC indicator LEDs for visual debugging.
4.Support Betaflight, INAV, Ardupilot firmware.

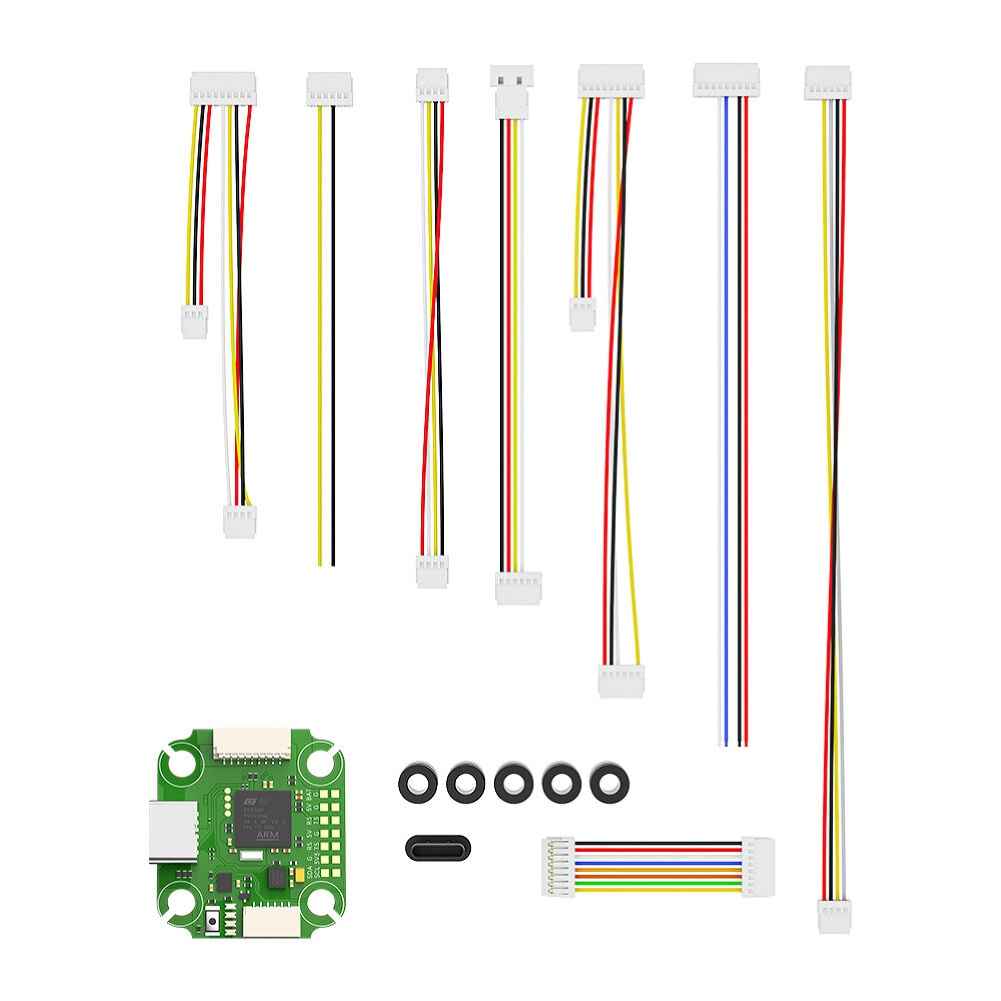

Package Included:
1 x BLITZ Mini F745 Flight Controller
