Description

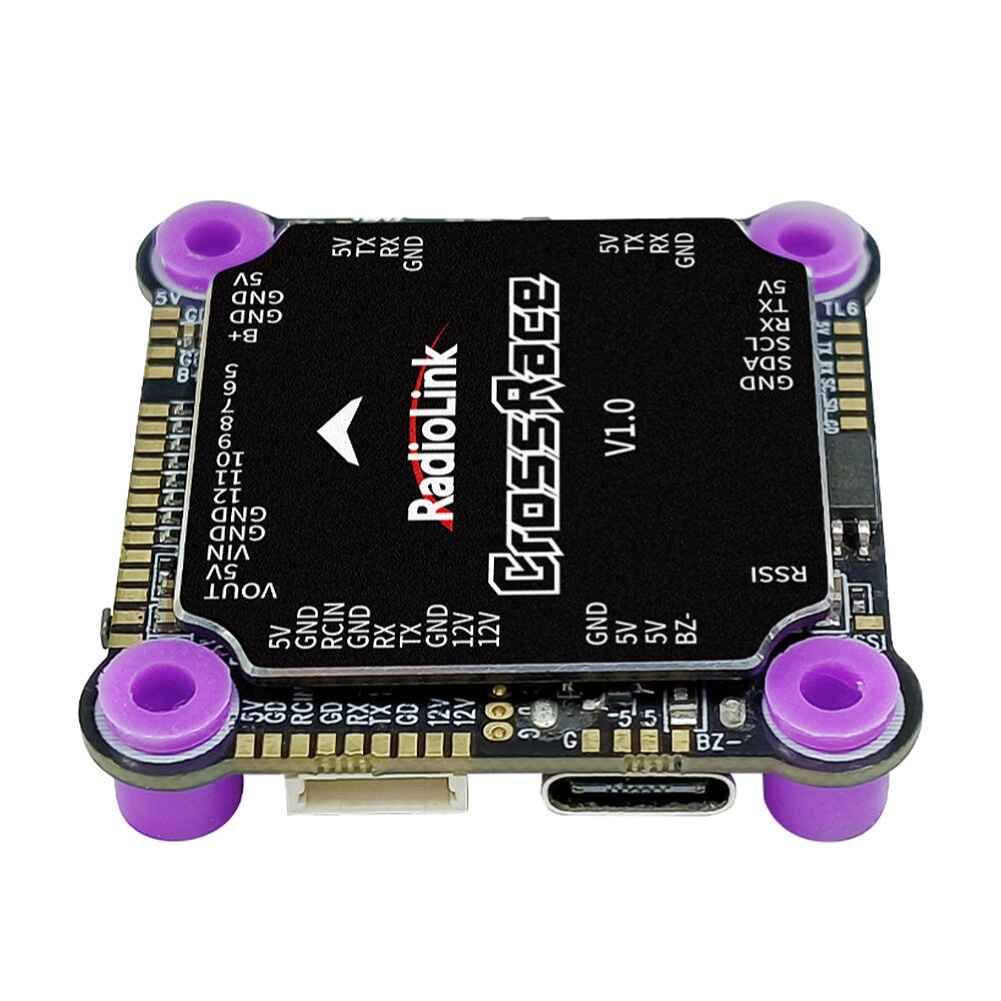

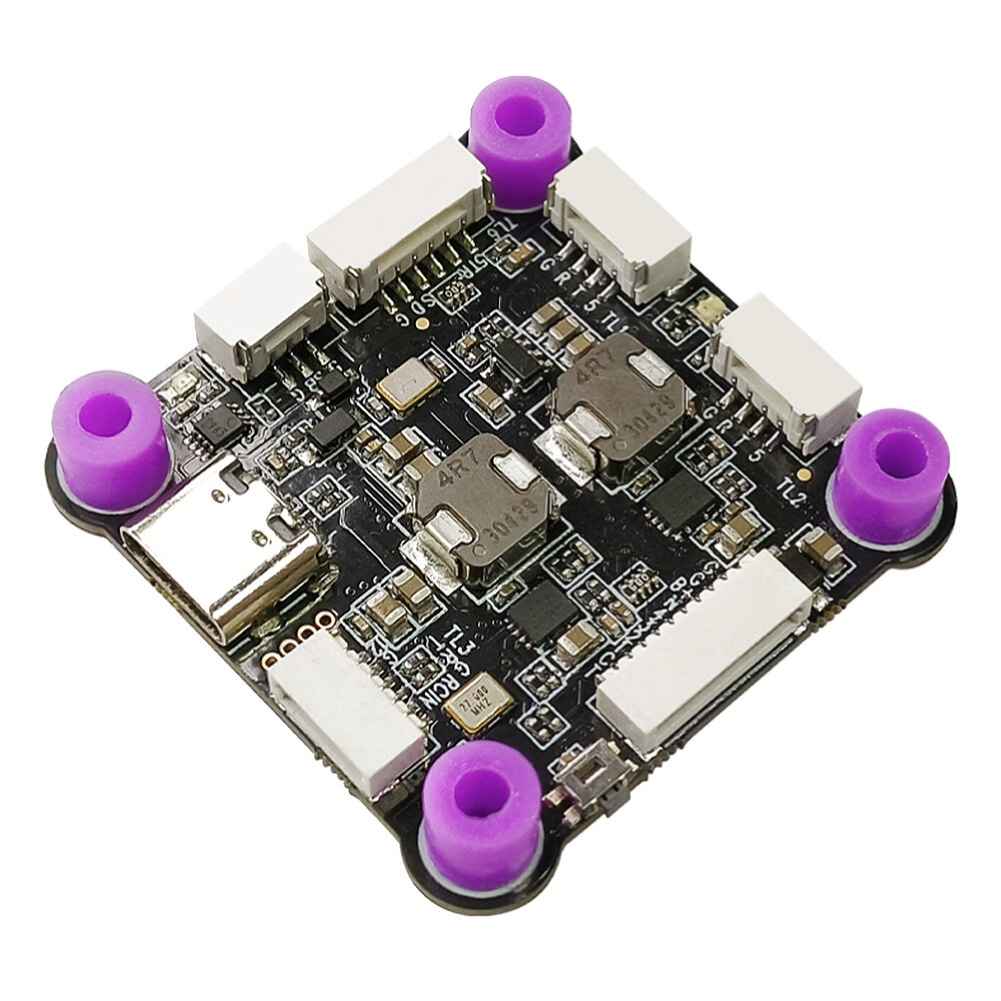

Radiolink CrossRace Flight Controller Built-in OSD Combine APM and Betaflight Support Analog Digital HD & Hobbywing 60A BL_S 4in1 ESC Combo for Multi-Rotor
The Radiolink CrossRace Flight Controller is designed for multi-rotor enthusiasts, combining APM and Betaflight support for enhanced drone performance. This controller features a built-in OSD and supports both analog and digital HD video transmission, ensuring clear and stable FPV experiences. It is equipped with a powerful 12-channel flight control system and a reliable 60A Hobbywing ESC, providing efficient control and safety. The compact size of 30.5mm x 30.5mm allows for easy installation in 130-300mm FPVs. With support for various protocols like PWM, DShot, and OneShot, this controller is versatile for different copter models. The package includes essential cables and components for seamless setup and operation.
Notice: ESC change into 60A.
Aug. 28th, 2024. BeiJing Time
Specifications:
Dimension: 37*37mm(1.46∫*1.46∫)
Weight: 12.2g(0.43oz), 42.8g(1.5oz when all the connect wires included)
Processor: HC32F4A0PITB
Gyro & Accelerometer: BMI323
Barometer: SPL06
FRAM: 128M, can store 2617 waypoints for multi-copters
Buzzer: 1
Switch: None
Type: Combining socket interfaces and soldering pads, Support DJI/CADDX HD Digital Video Transmission Plug-and-play
ESC Connector: 10PIN ESC connector, support voltage and current monitor, and ESC telemetry
BEC: 5V&12V Dual BEC Built-in
Channel Output: 12 channels Output
Mavlink UART: 2(without CTSRTS)
USB Port: 1(Type-C)
GPS UART/I2C Port: 1
RC In Signal Input: PPM/SBUS
RSSI Output: Support
OSD Module: OSD Module Integrated
ESC Protocol: PWM, DShot, and OneShot Protocol
DShot/OneShot Protocol: Support
RTK: Support
Redevelopment: Support
Input Voltage: 2-6S
Input Current: 5A
Adaptable Models: 2-8 Copters
USB Voltage: 5V呼0.3V
Operating Voltage: -30~85﹠
Features:
1.Compact Size: 30.5mm*30.5mm, perfect for easy installation and space-saving.
2.Powerful Performance: Equipped with a 12-channel flight control system for smooth and stable flights.
3.Digital Transmission Support: The domestic chip enables clear and stable digital transmission for a better FPV experience.
4.Reliable ESC: Comes with a high-quality 60A electronic speed controller for efficient control and safety.
5.Versatile Usage: Ideal for children and toy enthusiasts who love flying drones with enhanced features.

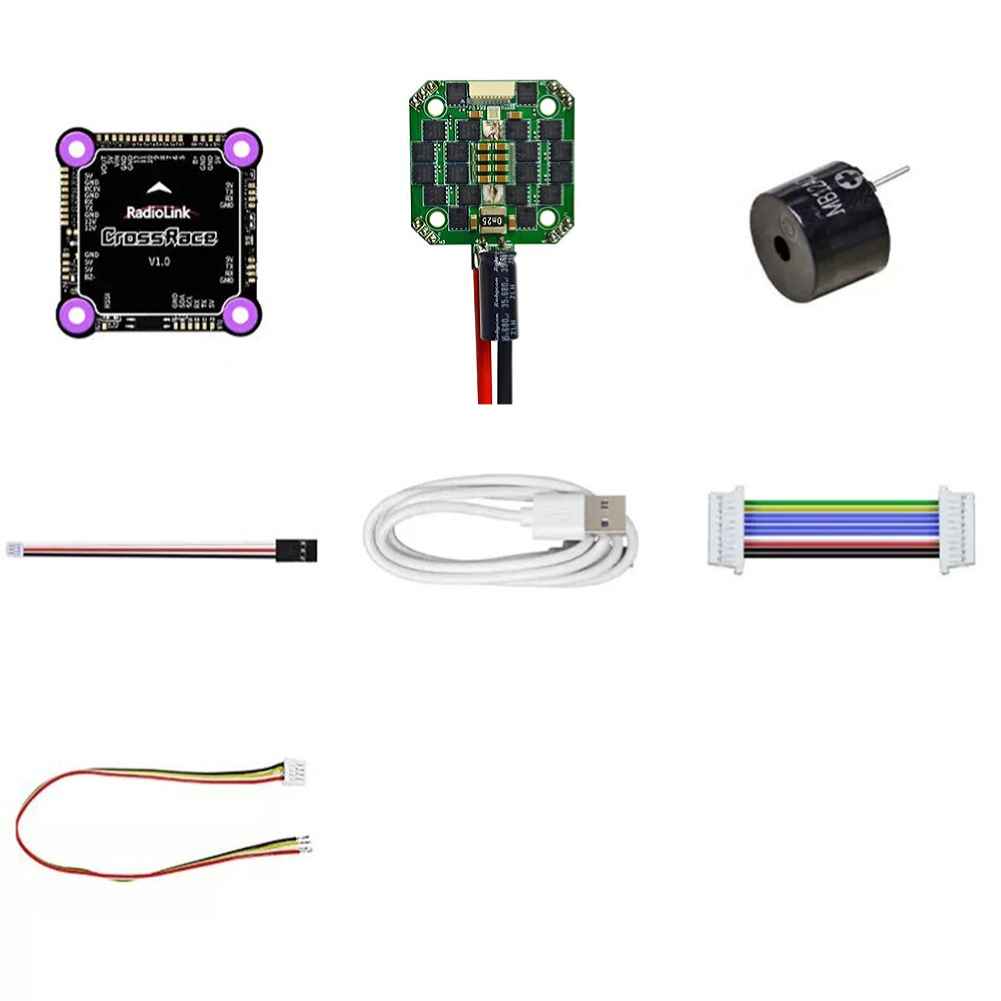

Package Included:
1x CrossRace Flight Controller Module Version
1x Buzzer (Need to be Soldered)
2x TELEM1&2 Ports Connect Cable
1x USB Cable (Upgrade or Setup)
1x Four-in-one ESC Connect Cable
1x Packing Box
1x Receiver Connect Cable
1x 60A 4in1 ESC (Hobbywing’s Own ESC Firmware)
